Locally Adaptive Sparse Grids: Spatial Refinement

PyApprox Tutorial Library

Hierarchical hat-function surrogates that place new points exactly where the function is hardest to approximate.

Learning Objectives

After completing this tutorial, you will be able to:

  • Distinguish dimension adaptivity (combination technique) from local (spatial) adaptivity
  • Explain how hierarchical surpluses drive point-by-point refinement
  • Use SingleFidelityHierarchicalFitter for a basic 2D problem
  • Choose between boundary_mode and admissibility criteria for a given problem

Prerequisites

Complete Adaptive Sparse Grids and Local Basis Sparse Grids first. Those tutorials cover the combination technique with global Lagrange and piecewise polynomial bases respectively. This tutorial introduces a fundamentally different construction.

Two Kinds of Adaptivity

The combination technique tutorials select subspaces based on a dimension-level error indicator. Within a chosen subspace every node is added; the algorithm cannot place extra points near a feature at \(z_1 = -0.3\) while leaving the rest of \(z_1\) coarse. This is dimension adaptivity.

A locally adaptive sparse grid stores a hierarchy of points directly. Each point carries a surplus measuring how much it contributes to the surrogate. Refinement adds the children of the single point with the largest surplus, regardless of which dimension or subspace it lives in. Points cluster wherever the function is hard to approximate.

Aspect Combination technique Locally adaptive
Refinement unit Subspace (level multi-index) Single point
Indicator Subspace contribution Per-point surplus
Best for Smooth, anisotropic Localised features (kinks, jumps, bumps)
API IsotropicSparseGridFitter, SingleFidelityAdaptiveSparseGridFitter SingleFidelityHierarchicalFitter

Hierarchical Surplus Basis

PyApprox uses a hierarchical hat-function basis on each dimension. Level 0 has a single node at the centre; level 1 (with boundary_mode="include") adds the two boundary nodes; each higher level \(l\) inserts \(2^{l-1}\) new midpoints between existing nodes. The 1D surrogate on \([a, b]\) is

\[ \hat f(x) \;=\; \sum_{l=0}^{L}\sum_{j\,\text{new at }l} v_{l,j}\,\psi_{l,j}(x), \]

where \(v_{l,j} = f(x_{l,j}) - \hat f_{<l}(x_{l,j})\) is the hierarchical surplus: the residual of the surrogate built from all coarser levels. A small surplus means the coarser surrogate already captures the function at \(x_{l,j}\), so refining there is unproductive.

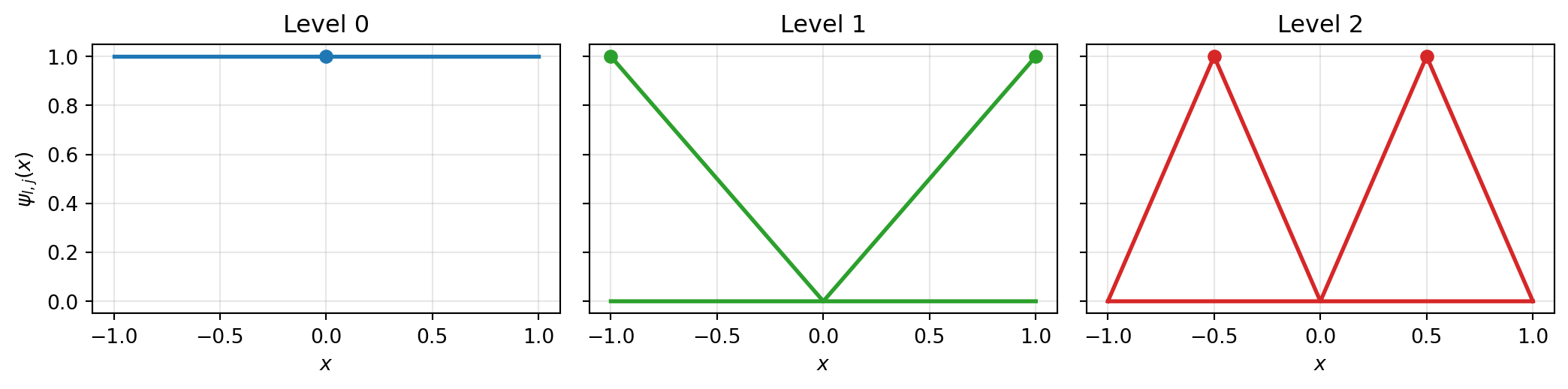

Figure 1: Hierarchical hat basis on \([-1,1]\) with boundary_mode='include'. Level 0 places a single hat at the midpoint; level 1 adds boundary hats; level 2 adds two interior midpoint hats. Each level halves the support of the new functions.

Refinement Where the Function Changes

Surpluses inherit the size of the local function variation: where \(f\) is smooth they decay rapidly with level; where \(f\) has a kink or jump they decay slowly. The greedy algorithm always refines the largest- surplus point next, so points cluster automatically near non-smooth features.

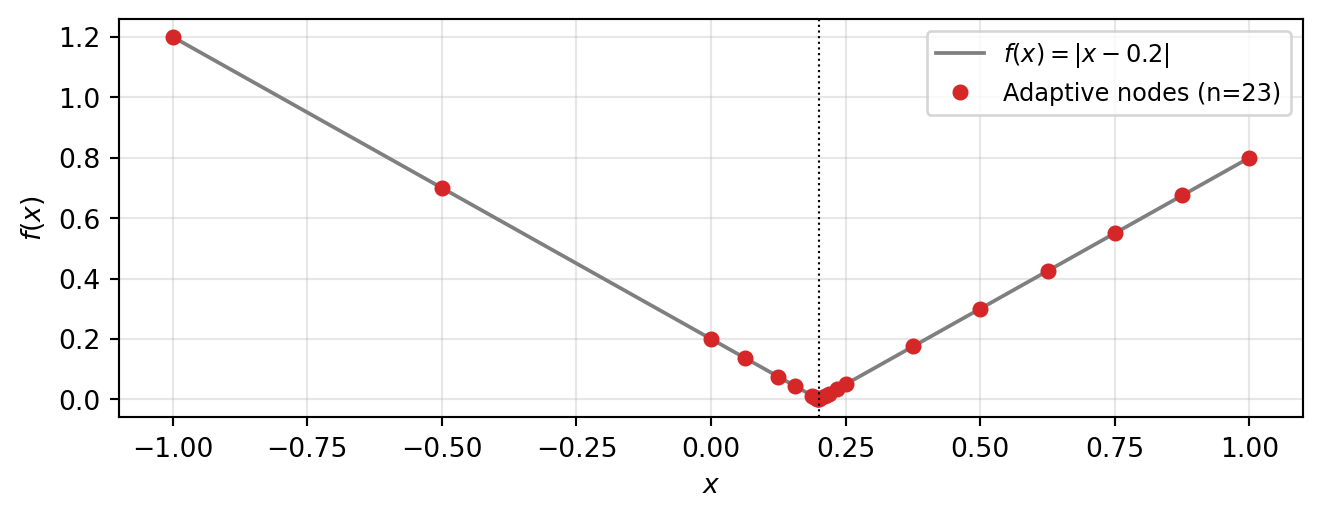

Figure 2: Local adaptive refinement of \(f(x)=|x-0.2|\) on \([-1,1]\). Points cluster at the kink because surpluses there decay slowly; the smooth regions need only a handful of nodes.

Setup

import numpy as np
import matplotlib.pyplot as plt

from pyapprox.util.backends.numpy import NumpyBkd
from pyapprox.surrogates.sparsegrids.basis.hierarchical_basis_1d import (
    HierarchicalBasis1D,
)
from pyapprox.surrogates.sparsegrids.hierarchical.hierarchical_fitter import (
    SingleFidelityHierarchicalFitter,
)
from pyapprox.surrogates.affine.indices.admissibility import (
    MaxLevelCriteria,
)
from pyapprox.interface.functions.fromcallable.function import (
    FunctionFromCallable,
)

bkd = NumpyBkd()
np.random.seed(0)

Basic 2D Usage

A locally adaptive surrogate is built from three ingredients: a list of 1D hierarchical bases (one per dimension), an admissibility criterion, and a fitter that drives the refinement loop.

def f_corner(samples):
    """Smooth elsewhere, kinked along x=0.3 and y=-0.2."""
    z1, z2 = samples[0], samples[1]
    return bkd.reshape(bkd.abs(z1 - 0.3) + 0.5 * bkd.abs(z2 + 0.2), (1, -1))

bases_1d = [
    HierarchicalBasis1D(bkd, bounds=(-1.0, 1.0), p_max=1,
                        boundary_mode="include"),
    HierarchicalBasis1D(bkd, bounds=(-1.0, 1.0), p_max=1,
                        boundary_mode="include"),
]
admissibility = MaxLevelCriteria(max_level=10, pnorm=1.0, bkd=bkd)
fitter = SingleFidelityHierarchicalFitter(
    bkd, bases_1d, admissibility, batch_size=1,
)
result = fitter.refine_to_tolerance(
    FunctionFromCallable(1, 2, f_corner, bkd),
    tol=1e-3, max_steps=300,
)
mean_val = float(bkd.to_numpy(result.surrogate.mean())[0])
print(f"Selected {result.nsamples} points; mean ≈ {mean_val:.4f}")
Selected 31 points; mean ≈ 3.2203

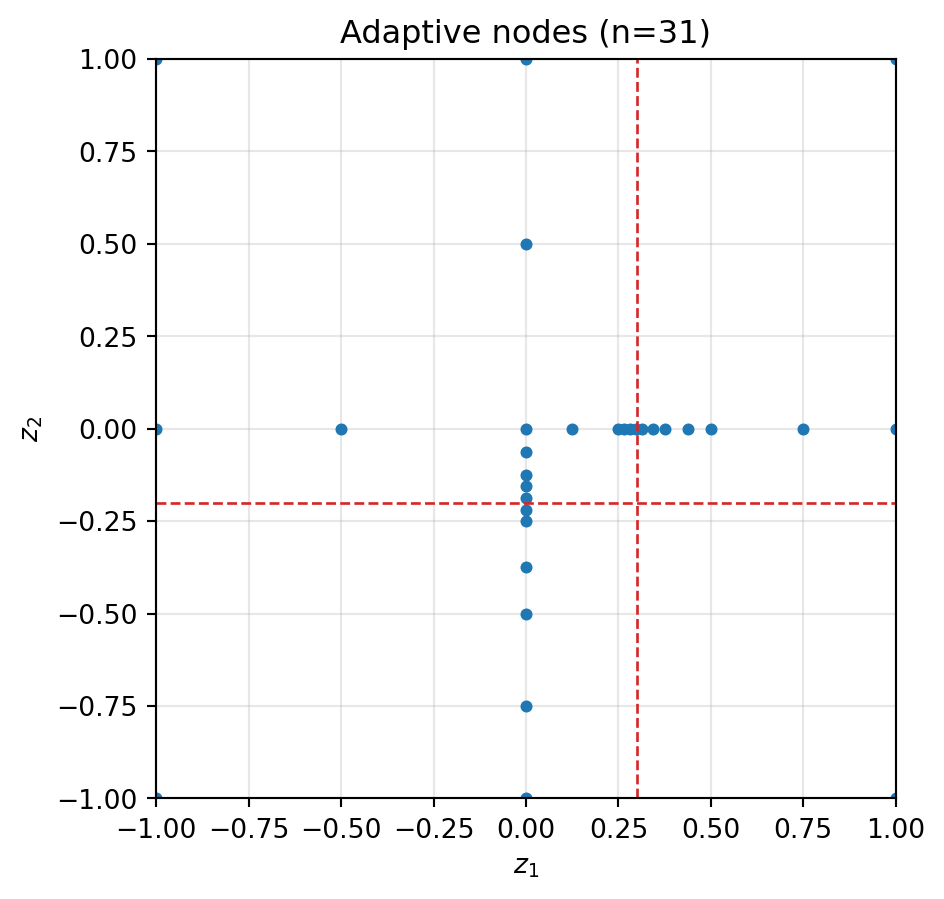

Figure 3: 2D point distribution after locally adaptive refinement of \(|z_1-0.3|+0.5|z_2+0.2|\). Points cluster on the two kink lines and remain sparse in the smooth corners.

Two Refinement Strategies

The fitter enforces downward closure by default: when refining a point, children are only spawned in directions where the backward-neighbour subspace is already complete. For an anisotropic function this is efficient — refinement concentrates in the directions already deemed important and avoids wasting evaluations in unimportant dimensions. Without downward closure every refined point spawns children in all \(d\) directions, which is wasteful when the function varies primarily along a subset of dimensions.

An admissibility criterion is a separate, composable constraint that bounds which subspace levels the algorithm may visit. Two are provided:

Criterion Effect When to use
MaxLevelCriteria(L, pnorm=1.0) Rejects any subspace whose \(\ell_p\)-norm exceeds \(L\). Always — controls maximum resolution.
AlwaysAdmissible() Accepts every subspace level. When you want the level cap to come only from the budget (max_steps / max_pts).

Either criterion can be combined with the fitter’s downward-closure enforcement. Both produce surrogates that interpolate \(f\) at every grid node; they differ in which nodes get selected, not in correctness.

Boundary Mode

HierarchicalBasis1D accepts boundary_mode="include" or "exclude". Use include when \(f\) is nonzero or unconstrained at the domain boundary (the typical UQ setting). Use exclude when \(f\) vanishes at the boundary (e.g. solutions to PDEs with homogeneous Dirichlet data); the surrogate will then evaluate to zero on the boundary by construction and uses fewer nodes.

Key Takeaways

  • Local adaptivity refines individual points by hierarchical surplus magnitude; combination-technique adaptivity refines whole subspaces by aggregate indicators.
  • Hierarchical surpluses naturally concentrate refinement near non-smooth features, so a localised kink or jump does not pollute the entire surrogate.
  • The fitter is configured by a list of HierarchicalBasis1D (one per dimension), a basis degree (p_max=1 or 2), a boundary_mode, an admissibility criterion (e.g. MaxLevelCriteria), and optionally downward_closed=False to disable downward closure.
  • Use the standard step_samples() / step_values() loop or the convenience refine_to_tolerance(FunctionFromCallable(...)) wrapper.

Exercises

  1. Replace f_corner with the smooth \(\cos(\pi z_1)\cos(\pi z_2/2)\). How many nodes does the locally adaptive grid need to reach the same accuracy as IsotropicSparseGridFitter from the Local Basis tutorial? Which method wins on a smooth target, and why?
  2. Set downward_closed=False in the fitter constructor. Plot the point distributions side by side. Where does the difference appear visually?
  3. Set p_max=2 and rerun. Quadratic local bases are exact on local quadratics; explain why the point count drops on the smooth regions of f_corner but barely changes on the kink lines.
