Learning Hamiltonians

PyApprox Tutorial Library

Fit Hamiltonian surrogates that preserve energy by construction, using PyApprox’s two structure-preserving parametrisations, with diagnostic plots for energy drift under different integrators.

Download Notebook

Download as Jupyter Notebook

Learning Objectives

After completing this tutorial, you will be able to:

Construct a FixedPoissonVariableHamiltonianSurrogate from a scalar BasisExpansion and a skew-symmetric Poisson matrix
Fit the Hamiltonian coefficients $\params$ with FixedPoissonVariableHamiltonianDerivativeMatchingFitter and recover known coefficients exactly in the well-conditioned regime
Extend the workflow to a parametric Hamiltonian via the n_params constructor argument and mu_batch at prediction
Construct a VariablePoissonFixedHamiltonianSurrogate by supplying gradient and Hessian callables for a known $\mathcal{H}$, then fit the skew-matrix entries with the matching derivative-matching fitter

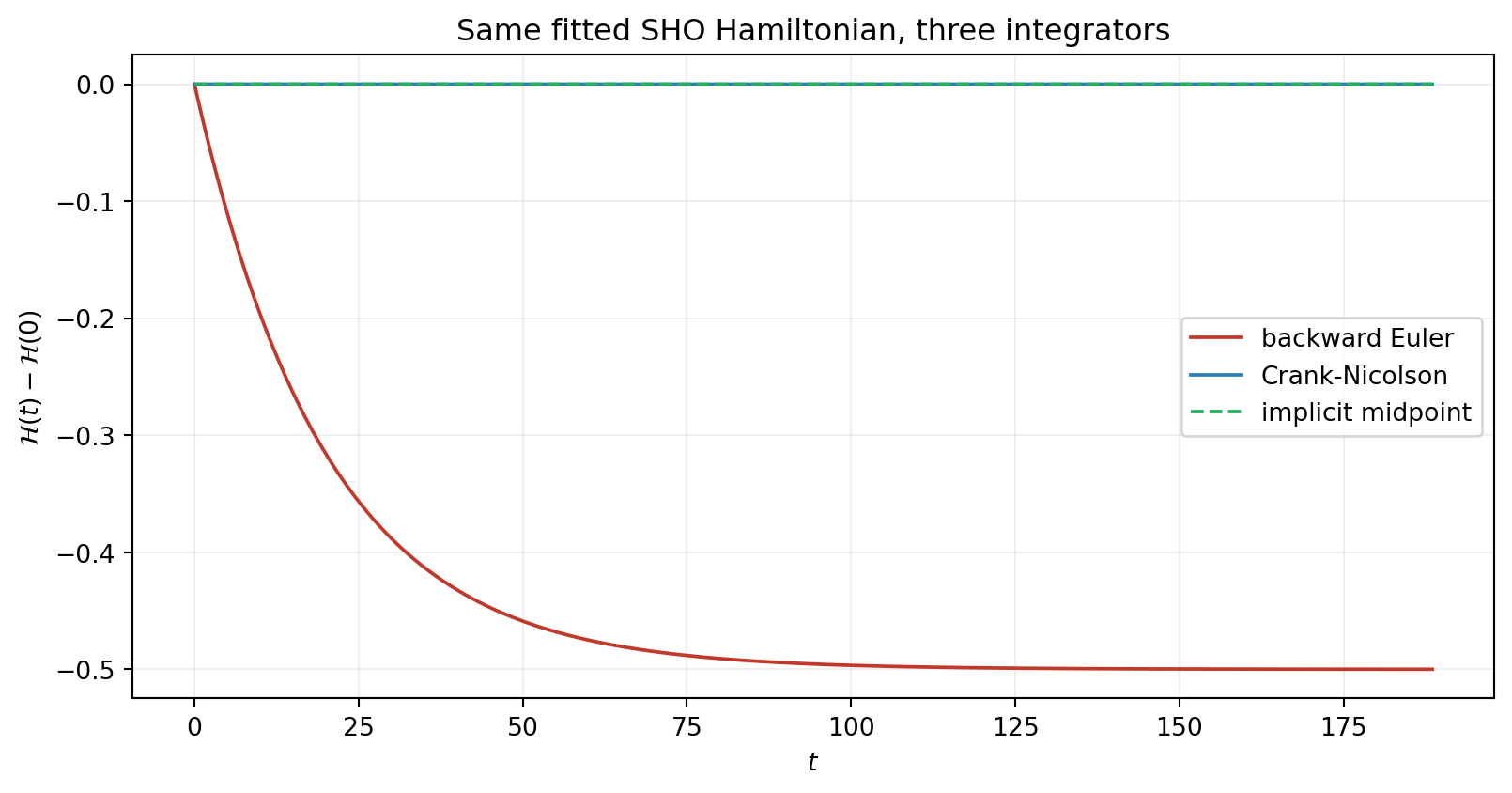

Diagnose energy conservation by integrating with backward Euler, Crank-Nicolson, and implicit midpoint and plotting $\mathcal{H}(t)$
Recognise the constant basis term as a redundant degree of freedom and apply the standard workaround

Prerequisites

This tutorial extends Derivative Matching with the structure-preserving parametrisations introduced in Hamiltonian Systems and Structure-Preserving Surrogates. The parametric-Hamiltonian section in Part 1b uses the augmented-snapshot and mu_batch mechanics from Parametric Dynamical Systems.

Setup

The Hamiltonian surrogate classes and their fitters are exported from the same pyapprox.surrogates.dynamical_systems package used in earlier tutorials, alongside three implicit time-stepper classes:

import numpy as np
import matplotlib.pyplot as plt
from scipy.integrate import solve_ivp

from pyapprox.util.backends.numpy import NumpyBkd
from pyapprox.probability import UniformMarginal
from pyapprox.surrogates.affine.basis import OrthonormalPolynomialBasis
from pyapprox.surrogates.affine.expansions import BasisExpansion
from pyapprox.surrogates.affine.indices import compute_hyperbolic_indices
from pyapprox.surrogates.affine.univariate import create_bases_1d
from pyapprox.surrogates.dynamical_systems import (
    BatchedBoundODEResidual,
    SnapshotDataset,
    FixedPoissonVariableHamiltonianSurrogate,
    FixedPoissonVariableHamiltonianDerivativeMatchingFitter,
    VariablePoissonFixedHamiltonianSurrogate,
    VariablePoissonFixedHamiltonianDerivativeMatchingFitter,
)
from pyapprox.ode.implicit_steppers.backward_euler import BackwardEulerAdjoint
from pyapprox.ode.implicit_steppers.crank_nicolson import CrankNicolsonAdjoint
from pyapprox.ode.implicit_steppers.implicit_midpoint import (
    ImplicitMidpointAdjoint,
)
from pyapprox.ode.implicit_steppers.integrator import TimeIntegrator
from pyapprox.util.rootfinding.newton import NewtonSolver

bkd = NumpyBkd()

Part 1a: Learning a Hamiltonian with Fixed Structure

The first parametrisation from the concept tutorial: $\mt{L}$ is known (we use canonical $\mt{J}$ for the simple harmonic oscillator) and the scalar Hamiltonian $\mathcal{H}_\params$ is learned. We fit on the SHO with $\omega = 1$:

\[ \dot q = p, \qquad \dot p = -q, \qquad \mathcal{H}(q, p) = \tfrac12 (q^2 + p^2). \tag{1}\]

Step 1: Build the Hamiltonian basis and surrogate

The Hamiltonian is a scalar function, so the underlying BasisExpansion has nqoi = 1. The constant basis term has zero gradient and contributes nothing to $\mt{L} \nabla \mathcal{H}_\params$; including it would make the design matrix rank-deficient. The standard workaround is to drop the constant from the index set.

nvars = 2
max_level = 2  # SHO Hamiltonian is quadratic

marginals = [UniformMarginal(-3.0, 3.0, bkd) for _ in range(nvars)]
bases_1d = create_bases_1d(marginals, bkd)
all_indices = compute_hyperbolic_indices(nvars, max_level, 1.0, bkd)
indices = all_indices[:, 1:]  # drop the constant column
basis = OrthonormalPolynomialBasis(bases_1d, bkd, indices)
hamiltonian_basis = BasisExpansion(basis, bkd, nqoi=1)

surrogate = FixedPoissonVariableHamiltonianSurrogate.canonical(
    hamiltonian_basis,
)

print(f"Number of basis terms (constant dropped): "
      f"{hamiltonian_basis.nterms()}")
print(f"Poisson matrix L = J:")
print(bkd.to_numpy(surrogate.poisson_matrix()))

Number of basis terms (constant dropped): 5
Poisson matrix L = J:
[[ 0.  1.]
 [-1.  0.]]

The .canonical() factory builds $\mt{J} = \begin{psmallmatrix} 0 & I \\ -I & 0 \end{psmallmatrix}$ of the right size automatically. To use a different skew matrix, pass it directly: FixedPoissonVariableHamiltonianSurrogate(hamiltonian_basis, L).

Step 2: Generate snapshots and fit

For demonstration we draw snapshots uniformly from a box in state space and compute the true derivatives analytically. In a real workflow the snapshots come from observed trajectories (as in Derivative Matching).

rng = np.random.RandomState(42)
n_snap = 500
q = rng.uniform(-2.0, 2.0, n_snap)
p = rng.uniform(-2.0, 2.0, n_snap)
states = bkd.array(np.stack([q, p], axis=0))
derivs = bkd.array(np.stack([p, -q], axis=0))  # SHO RHS with omega=1
dataset = SnapshotDataset(states, derivs, bkd)

fitter = FixedPoissonVariableHamiltonianDerivativeMatchingFitter(bkd)
result = fitter.fit(surrogate, dataset)
fitted_sho = result.surrogate()

residual = fitted_sho(dataset.states()) - dataset.derivatives()
rms_residual = float(bkd.sqrt(bkd.mean(residual ** 2)))
print(f"Training RMS residual: {rms_residual:.3e}")

Training RMS residual: 1.197e-15

A residual at the round-off floor confirms exact recovery of the underlying Hamiltonian up to representation in the chosen basis.

What the fitter is doing

FixedPoissonVariableHamiltonianDerivativeMatchingFitter assembles the design matrix $\Phi$ from the basis gradient — not the basis itself. For each snapshot the rows of $\Phi$ are

\[ \Phi_{i,k} = \mt{L}\, \nabla \phi_k(\inputs_i), \]

where $\phi_k$ is the $k$-th basis function. The surrogate RHS is $\mt{L} \sum_k \params_k\, \nabla \phi_k(\inputs)$, which is linear in $\params$, so the fit reduces to ordinary least squares $\Phi\, \params = \dot{\inputs}$. This is why the constant basis term (which has zero gradient) creates a rank-deficient column and must be dropped — or absorbed by switching the fitter’s solver argument to a RidgeSolver, which adds Tikhonov regularisation.

Step 3: Integrate with Crank-Nicolson and validate

Wrap the fitted surrogate as an ODE residual, integrate over 10 oscillation periods, and compare to the analytic $(\cos t,\, -\sin t)$ trajectory.

wrapper = BatchedBoundODEResidual(learned_function=fitted_sho, n_dynamic=2)
stepper = CrankNicolsonAdjoint(wrapper)
newton = NewtonSolver(stepper)
newton.set_options(maxiters=30, atol=1e-12, rtol=1e-12)
integrator = TimeIntegrator(
    init_time=0.0,
    final_time=10 * 2 * np.pi,
    deltat=0.05,
    newton_solver=newton,
)

predicted, pred_times = integrator.solve(bkd.array([1.0, 0.0]))

# Analytic SHO truth
t_np = bkd.to_numpy(pred_times)
truth = bkd.array(np.stack([np.cos(t_np), -np.sin(t_np)], axis=0))

abs_err = bkd.max(bkd.abs(predicted - truth))
print(f"Max absolute error over 10 periods: {float(abs_err):.3e}")

# Energy along trajectory: H = 0.5*(q^2 + p^2)
H_traj = 0.5 * (predicted[0] ** 2 + predicted[1] ** 2)
drift = float(bkd.max(bkd.abs(H_traj - 0.5)))
print(f"Max |H(t) - H(0)| over 10 periods: {drift:.3e}")

Max absolute error over 10 periods: 1.308e-02
Max |H(t) - H(0)| over 10 periods: 2.720e-15

The energy drift is at round-off because Crank-Nicolson is symplectic for quadratic Hamiltonians (the SHO case, exactly).

pred_np = bkd.to_numpy(predicted)
truth_np = bkd.to_numpy(truth)

fig, axes = plt.subplots(1, 2, figsize=(11, 4.2))

axes[0].plot(truth_np[0], truth_np[1], lw=1.4, color="#2C7FB8", label="truth")
axes[0].plot(
    pred_np[0], pred_np[1], "--", lw=1.0, color="#E67E22", label="surrogate",
)
axes[0].plot(1.0, 0.0, "ko", markersize=5, label="initial condition")
axes[0].set_xlabel(r"$q$")
axes[0].set_ylabel(r"$p$")
axes[0].set_title("Phase portrait")
axes[0].legend(fontsize=9)
axes[0].grid(True, alpha=0.2)
axes[0].set_aspect("equal", adjustable="box")

axes[1].plot(t_np, bkd.to_numpy(H_traj) - 0.5, lw=1.2, color="#27AE60")
axes[1].set_xlabel(r"$t$")
axes[1].set_ylabel(r"$\mathcal{H}(t) - \mathcal{H}(0)$")
axes[1].set_title("Energy drift")
axes[1].grid(True, alpha=0.2)

plt.tight_layout()
plt.show()

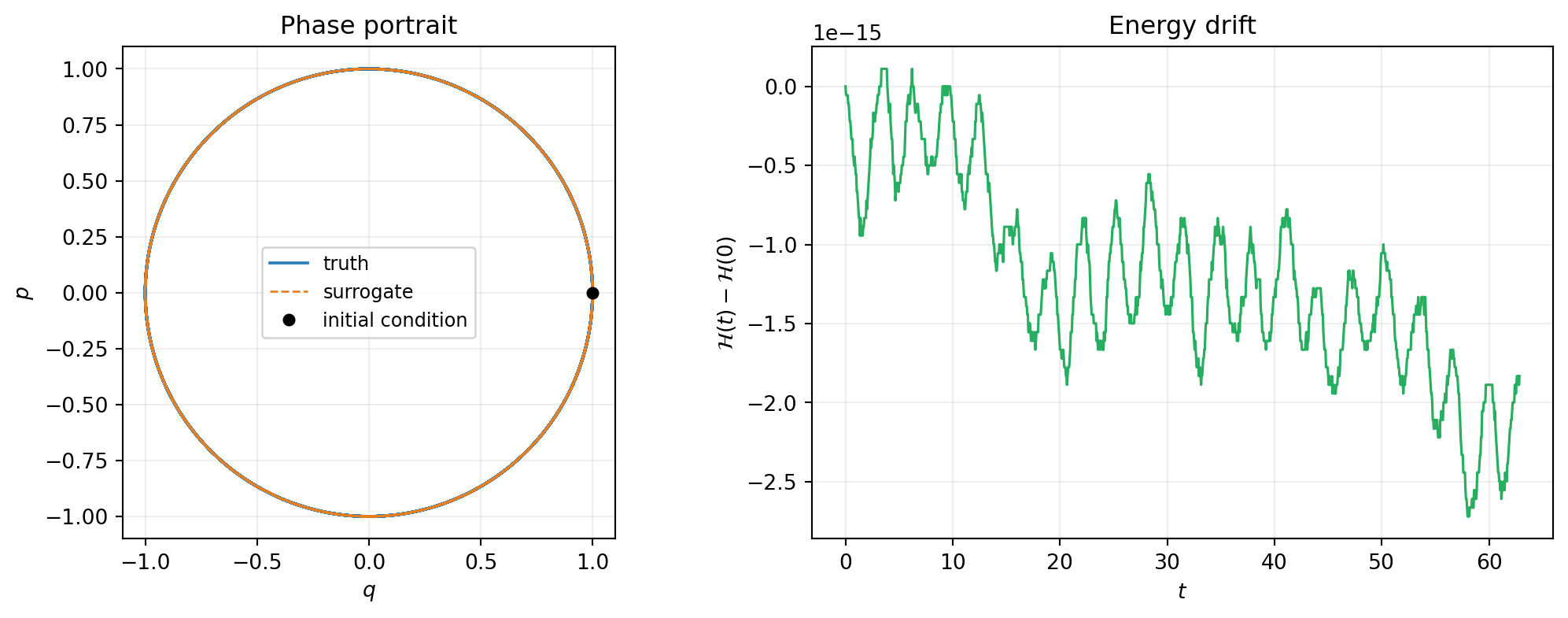

Figure 1: SHO validation over 10 oscillation periods. Left: phase portrait, surrogate (orange dashed) overlaying analytic truth (blue). Right: Hamiltonian along the predicted trajectory; the variation is at round-off, confirming Crank-Nicolson preserves the learned quadratic $\mathcal{H}_\eta$ exactly.

Part 1b: A Parametric Hamiltonian

Real systems usually have parameters. The Hamiltonian surrogate supports the parametric workflow via an n_params constructor argument and the mu_batch mechanism from Parametric Dynamical Systems. We illustrate by varying the SHO frequency: $\mathcal{H}(q, p; \omega) = \tfrac12 (p^2 + \omega^2 q^2)$.

Step 4: Build a parametric Hamiltonian surrogate

The Hamiltonian basis now operates on the augmented input $(q, p, \omega)$ — two state components plus the parameter. The total polynomial degree must be at least 4 because $\omega^2 q^2$ has total degree 4:

nvars_aug = 3       # q, p, omega
max_level_aug = 4   # to span omega^2 * q^2

state_marginals = [UniformMarginal(-2.0, 2.0, bkd) for _ in range(2)]
omega_marginal = UniformMarginal(0.3, 2.2, bkd)
marginals_aug = state_marginals + [omega_marginal]
bases_1d_aug = create_bases_1d(marginals_aug, bkd)
all_indices_aug = compute_hyperbolic_indices(nvars_aug, max_level_aug, 1.0, bkd)
indices_aug = all_indices_aug[:, 1:]  # drop constant
basis_aug = OrthonormalPolynomialBasis(bases_1d_aug, bkd, indices_aug)
hamiltonian_basis_aug = BasisExpansion(basis_aug, bkd, nqoi=1)

surrogate_par = FixedPoissonVariableHamiltonianSurrogate.canonical(
    hamiltonian_basis_aug, n_params=1,
)

print(f"Augmented basis terms: {hamiltonian_basis_aug.nterms()}")
print(f"Surrogate nvars / nqoi / n_dynamic: "
      f"{surrogate_par.nvars()} / {surrogate_par.nqoi()} / "
      f"{surrogate_par.n_dynamic()}")

Augmented basis terms: 34
Surrogate nvars / nqoi / n_dynamic: 3 / 2 / 2

n_params=1 tells .canonical() that one of the three input rows is a system parameter, not dynamic state. The Poisson matrix is therefore $2 \times 2$ canonical $\mt{J}$, acting only on the dynamic rows.

Step 5: Generate augmented snapshots across multiple $\omega$ values

Same pattern as the non-Hamiltonian parametric tutorial: augment each trajectory’s snapshot input with an $\omega$ row, then concatenate.

omega_train = [0.5, 1.0, 1.5, 2.0]
rng = np.random.RandomState(7)

state_blocks, deriv_blocks = [], []
for omega in omega_train:
    n = 200
    q = rng.uniform(-1.5, 1.5, n)
    p = rng.uniform(-1.5, 1.5, n)
    omega_row = np.full((1, n), omega)
    state_blocks.append(np.vstack([np.stack([q, p], axis=0), omega_row]))
    # SHO derivatives at this omega: dq/dt = p, dp/dt = -omega^2 * q
    deriv_blocks.append(np.stack([p, -omega ** 2 * q], axis=0))

aug_states = bkd.array(np.hstack(state_blocks))
aug_derivs = bkd.array(np.hstack(deriv_blocks))
dataset_par = SnapshotDataset(aug_states, aug_derivs, bkd)
print(f"Parametric snapshot set: {dataset_par.nsamples()} pairs "
      f"({dataset_par.nstates_input()} input rows, "
      f"{dataset_par.nstates_output()} output rows)")

fitter_par = FixedPoissonVariableHamiltonianDerivativeMatchingFitter(bkd)
result_par = fitter_par.fit(surrogate_par, dataset_par)
fitted_par = result_par.surrogate()

residual_par = fitted_par(dataset_par.states()) - dataset_par.derivatives()
rms_par = float(bkd.sqrt(bkd.mean(residual_par ** 2)))
print(f"Parametric training RMS residual: {rms_par:.3e}")

Parametric snapshot set: 800 pairs (3 input rows, 2 output rows)
Parametric training RMS residual: 2.830e-15

Step 6: Predict at new $\omega$ values via `mu_batch`

The same BatchedBoundODEResidual interface works: pass an (n_params, k) array, integrate $k$ trajectories simultaneously.

omega_test = [0.7, 1.3]
k = len(omega_test)
mu_batch = bkd.array([omega_test])

wrapper_par = BatchedBoundODEResidual(
    learned_function=fitted_par, n_dynamic=2, mu_batch=mu_batch,
)
stepper_par = CrankNicolsonAdjoint(wrapper_par)
newton_par = NewtonSolver(stepper_par)
newton_par.set_options(maxiters=30, atol=1e-12, rtol=1e-12)
integrator_par = TimeIntegrator(
    init_time=0.0,
    final_time=4 * 2 * np.pi,
    deltat=0.05,
    newton_solver=newton_par,
)
init_flat = bkd.array([1.0, 0.0] * k)
predicted_par, pred_times_par = integrator_par.solve(init_flat)

Validate against the analytic truth at each test $\omega$. The energy at each fixed $\omega$ is $\mathcal{H}(q, p; \omega) = \tfrac12 (p^2 + \omega^2 q^2)$, evaluated trajectory-by-trajectory:

t_par_np = bkd.to_numpy(pred_times_par)

for i, omega in enumerate(omega_test):
    pred_i = predicted_par[i*2 : (i+1)*2, :]
    truth_i = np.stack([
        np.cos(omega * t_par_np),
        -omega * np.sin(omega * t_par_np),
    ], axis=0)
    err_i = float(bkd.max(bkd.abs(pred_i - bkd.array(truth_i))))

    pred_i_np = bkd.to_numpy(pred_i)
    H_i = 0.5 * (pred_i_np[1] ** 2 + omega ** 2 * pred_i_np[0] ** 2)
    H_drift = float(np.max(np.abs(H_i - H_i[0])))
    print(f"omega={omega}: max abs error {err_i:.3e}, "
          f"max |H drift| {H_drift:.3e}")

omega=0.7: max abs error 1.766e-03, max |H drift| 3.386e-15
omega=1.3: max abs error 1.438e-02, max |H drift| 6.772e-15

fig, axes = plt.subplots(1, 2, figsize=(11, 4.5))

colors = ["#2C7FB8", "#C0392B"]
for i, (omega, color) in enumerate(zip(omega_test, colors)):
    pred_np = bkd.to_numpy(predicted_par[i*2 : (i+1)*2, :])
    truth_np = np.stack([
        np.cos(omega * t_par_np),
        -omega * np.sin(omega * t_par_np),
    ], axis=0)

    axes[0].plot(
        truth_np[0], truth_np[1], lw=1.4, color=color,
        label=rf"truth, $\omega = {omega}$",
    )
    axes[0].plot(
        pred_np[0], pred_np[1], "--", lw=1.0, color="black", alpha=0.6,
    )

    H_i = 0.5 * (pred_np[1] ** 2 + omega ** 2 * pred_np[0] ** 2)
    axes[1].plot(
        t_par_np, H_i - H_i[0], lw=1.2, color=color,
        label=rf"$\omega = {omega}$",
    )

axes[0].plot(1.0, 0.0, "ko", markersize=5)
axes[0].set_xlabel(r"$q$")
axes[0].set_ylabel(r"$p$")
axes[0].set_title("Phase portraits at two new $\\omega$")
axes[0].legend(fontsize=9)
axes[0].grid(True, alpha=0.2)
axes[0].set_aspect("equal", adjustable="box")

axes[1].set_xlabel(r"$t$")
axes[1].set_ylabel(r"$\mathcal{H}(t; \omega) - \mathcal{H}(0; \omega)$")
axes[1].set_title("Energy drift per $\\omega$")
axes[1].legend(fontsize=9)
axes[1].grid(True, alpha=0.2)

plt.tight_layout()
plt.show()

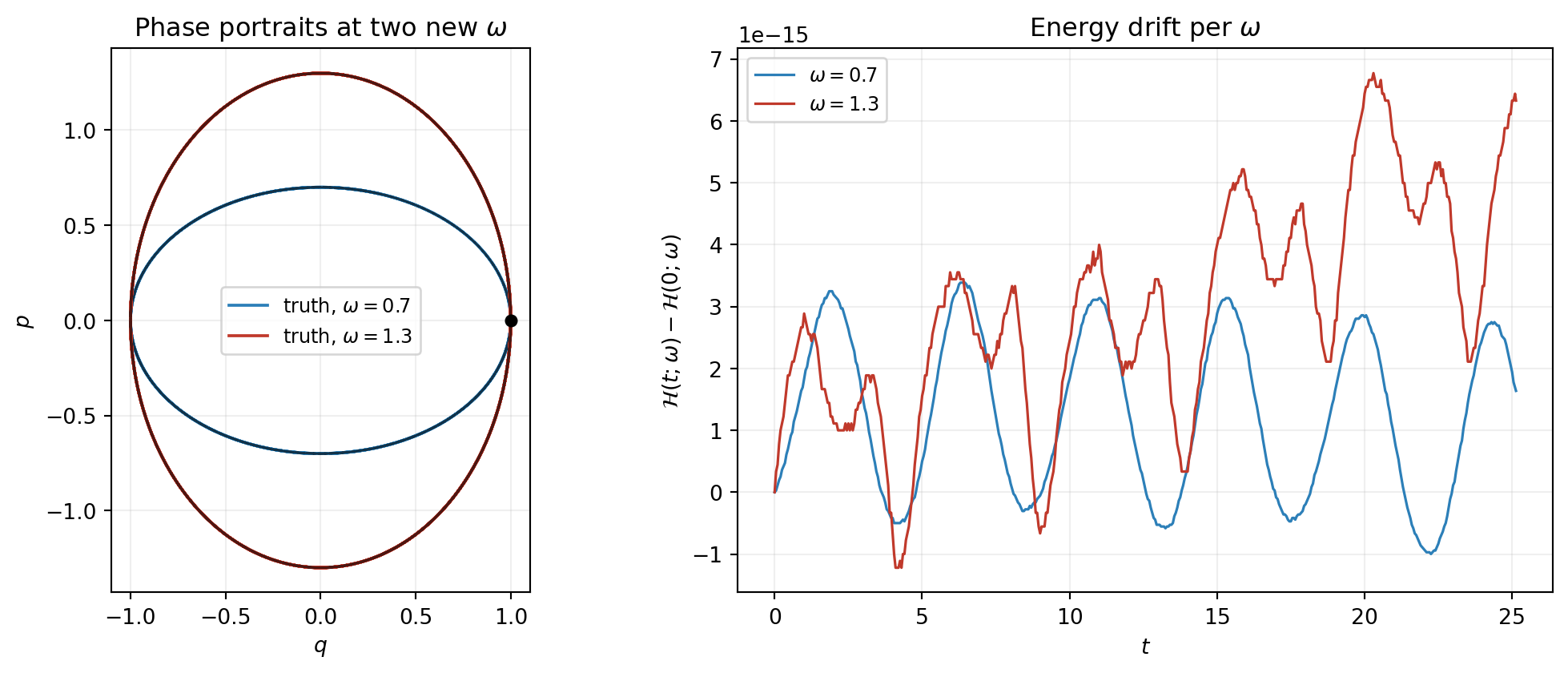

Figure 2: Parametric SHO at two held-out $\omega$ values. Left: phase portraits, surrogate (orange dashed) vs analytic truth (blue), shown for $\omega = 0.7$ and $\omega = 1.3$. Right: Hamiltonian along each predicted trajectory; flat at round-off because the learned $\mathcal{H}_\eta$ is quadratic in $(q, p)$ at every $\omega$. Same fitted surrogate, two different `mu_batch` entries.

Part 2: Learning the Poisson Structure with Fixed Hamiltonian

The second parametrisation from the concept tutorial: $\mathcal{H}$ is known and supplied as callables, the structure matrix $\mt{L}_\params$ is learned. We illustrate on a 2D rotation system whose Hamiltonian is the squared norm $\mathcal{H}(\inputs) = \tfrac12 \|\inputs\|^2$ and whose true Poisson matrix has a single free parameter $\omega$:

\[ \dot{\inputs} = \mt{L}_\params\, \nabla \mathcal{H}(\inputs), \quad \nabla \mathcal{H}(\inputs) = \inputs, \quad \mt{L}_\params = \begin{pmatrix} 0 & \omega \\ -\omega & 0 \end{pmatrix}. \tag{2}\]

Step 7: Construct the surrogate by supplying $\nabla \mathcal{H}$ and its Jacobian

The known Hamiltonian enters as two Python callables — its gradient and the Jacobian of that gradient (which is the Hessian of $\mathcal{H}$ in the dynamic variables):

n_dynamic = 2

def grad_H(samples):
    """grad H = x for H = 0.5 * ||x||^2."""
    return samples[:n_dynamic, :]


def grad_H_jac(samples):
    """Jacobian of grad H is the identity for the quadratic Hamiltonian."""
    nsamples = samples.shape[1]
    eye = bkd.eye(n_dynamic)
    return bkd.tile(
        bkd.reshape(eye, (1, n_dynamic, n_dynamic)),
        (nsamples, 1, 1),
    )


surrogate_rot = VariablePoissonFixedHamiltonianSurrogate(
    grad_hamiltonian=grad_H,
    grad_hamiltonian_jacobian=grad_H_jac,
    n_dynamic=n_dynamic,
    bkd=bkd,
)
print(f"Number of learnable skew entries: "
      f"{surrogate_rot.hyp_list().nactive_params()}")

Number of learnable skew entries: 1

For a $2 \times 2$ skew matrix there is exactly one free entry — the strictly upper-triangular position. The fitter recovers it.

Step 8: Generate trajectory snapshots and fit

Use a single rotation trajectory at the true $\omega_{\text{true}} = 1.5$ as the data source. Snapshots come from SnapshotDataset.from_trajectory exactly as in tutorial 2:

omega_true = 1.5

def true_rotation_trajectory(initial_state, times, omega):
    q0, p0 = initial_state
    q = q0 * np.cos(omega * times) + p0 * np.sin(omega * times)
    p = -q0 * np.sin(omega * times) + p0 * np.cos(omega * times)
    return bkd.array(np.stack([q, p], axis=0))


times_rot = bkd.linspace(0.0, 10.0, 401)
trajectory_rot = true_rotation_trajectory(
    [1.0, 0.0], bkd.to_numpy(times_rot), omega=omega_true,
)
dataset_rot = SnapshotDataset.from_trajectory(
    trajectory=trajectory_rot, times=times_rot, bkd=bkd, fd_method="central",
)

fitter_rot = VariablePoissonFixedHamiltonianDerivativeMatchingFitter(bkd)
result_rot = fitter_rot.fit(surrogate_rot, dataset_rot)
fitted_rot = result_rot.surrogate()

omega_recovered = float(fitted_rot.hyp_list().get_active_values()[0])
print(f"True omega:       {omega_true}")
print(f"Recovered omega:  {omega_recovered:.6f}")
print(f"Recovery error:   {abs(omega_recovered - omega_true):.3e}")

True omega:       1.5
Recovered omega:  1.499648
Recovery error:   3.515e-04

The recovery error is at the finite-difference truncation-error floor, because the snapshot derivatives themselves carry that level of error.

Step 9: Integrate and validate

Wrap, integrate with Crank-Nicolson, compare to analytic:

wrapper_rot = BatchedBoundODEResidual(
    learned_function=fitted_rot, n_dynamic=2,
)
stepper_rot = CrankNicolsonAdjoint(wrapper_rot)
newton_rot = NewtonSolver(stepper_rot)
newton_rot.set_options(maxiters=30, atol=1e-12, rtol=1e-12)
integrator_rot = TimeIntegrator(
    init_time=0.0,
    final_time=5 * 2 * np.pi / omega_true,
    deltat=0.02,
    newton_solver=newton_rot,
)
predicted_rot, pred_times_rot = integrator_rot.solve(bkd.array([1.0, 0.0]))

t_rot_np = bkd.to_numpy(pred_times_rot)
truth_rot = true_rotation_trajectory([1.0, 0.0], t_rot_np, omega=omega_true)
err_rot = float(bkd.max(bkd.abs(predicted_rot - truth_rot)))
print(f"Max abs error over 5 rotation periods: {err_rot:.3e}")

Max abs error over 5 rotation periods: 9.716e-03

pred_rot_np = bkd.to_numpy(predicted_rot)
truth_rot_np = bkd.to_numpy(truth_rot)

fig, ax = plt.subplots(figsize=(5.5, 5))
ax.plot(truth_rot_np[0], truth_rot_np[1], lw=1.4, color="#2C7FB8", label="truth")
ax.plot(
    pred_rot_np[0], pred_rot_np[1], "--", lw=1.0, color="#E67E22",
    label="surrogate",
)
ax.plot(1.0, 0.0, "ko", markersize=5, label="initial condition")
ax.set_xlabel(r"$q$")
ax.set_ylabel(r"$p$")
ax.set_title(rf"2D rotation, $\omega_{{\mathrm{{rec}}}} = {omega_recovered:.4f}$")
ax.legend(fontsize=9)
ax.grid(True, alpha=0.2)
ax.set_aspect("equal", adjustable="box")
plt.tight_layout()
plt.show()

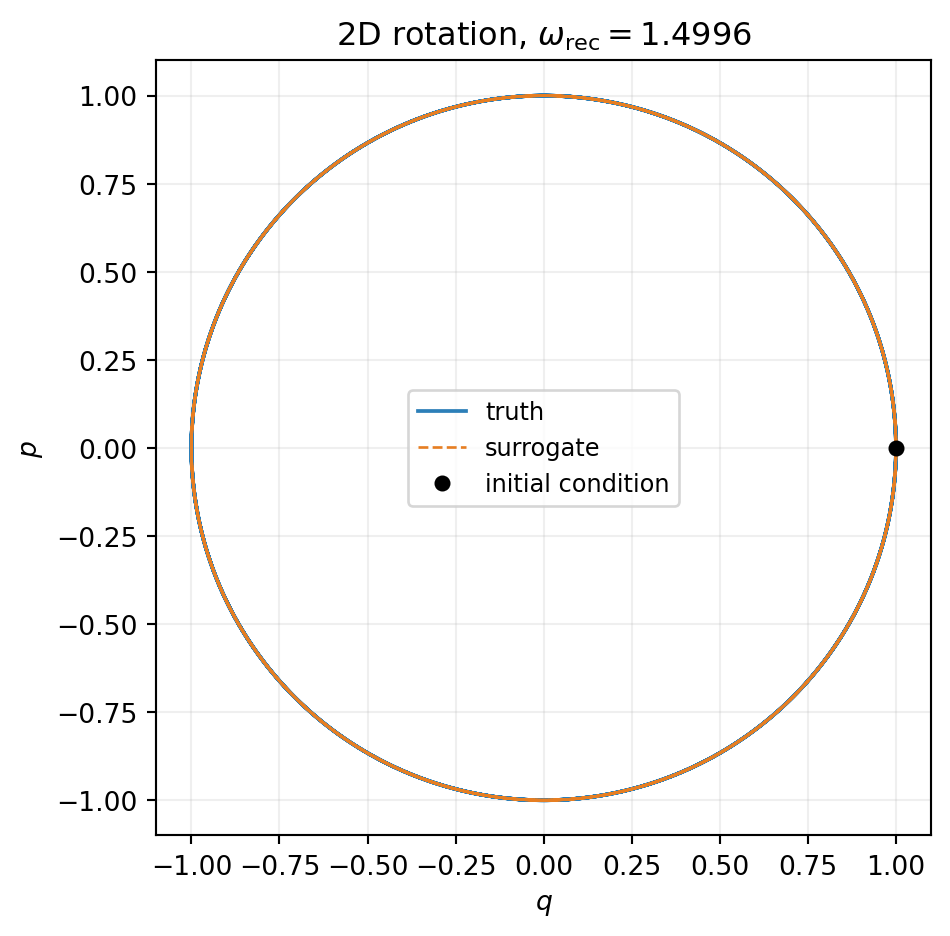

Figure 3: Variable-Poisson rotation validation. The fitted skew-matrix entry recovers $\omega_{\mathrm{true}} = 1.5$, and the surrogate (orange dashed) traces the unit circle in phase space alongside the analytic truth (blue) over 5 rotation periods.

Part 3: Integrator Choice for Hamiltonian Surrogates

The concept tutorial argued that structure preservation in the surrogate buys nothing for long-time prediction if the integrator dissipates it away. We demonstrate this concretely: take the fitted non-parametric SHO surrogate from Part 1a, integrate three times — once each with BackwardEulerAdjoint, CrankNicolsonAdjoint, ImplicitMidpointAdjoint — and plot $\mathcal{H}(t) - \mathcal{H}(0)$ for all three.

Step 10: Integrate the fitted SHO with three steppers

def integrate_with_stepper(stepper_cls, final_time):
    """Integrate fitted SHO once with the given stepper class."""
    wrapper = BatchedBoundODEResidual(
        learned_function=fitted_sho, n_dynamic=2,
    )
    stepper = stepper_cls(wrapper)
    newton = NewtonSolver(stepper)
    newton.set_options(maxiters=30, atol=1e-12, rtol=1e-12)
    integrator = TimeIntegrator(
        init_time=0.0, final_time=final_time, deltat=0.05,
        newton_solver=newton,
    )
    return integrator.solve(bkd.array([1.0, 0.0]))


T_long = 30 * 2 * np.pi  # 30 oscillation periods

sols_be, times_be = integrate_with_stepper(BackwardEulerAdjoint, T_long)
sols_cn, times_cn = integrate_with_stepper(CrankNicolsonAdjoint, T_long)
sols_im, times_im = integrate_with_stepper(ImplicitMidpointAdjoint, T_long)

For the linear SHO, Crank-Nicolson and implicit midpoint coincide mathematically — they are the same scheme when the RHS is linear in the state. On nonlinear Hamiltonians they differ, and only implicit midpoint preserves $\mathcal{H}$ exactly; that contrast is the subject of the concept tutorial’s Figure 3 on the pendulum.

Step 11: Compare energy drift

def hamiltonian_along(sols):
    return 0.5 * (sols[0] ** 2 + sols[1] ** 2)


H_be = hamiltonian_along(bkd.to_numpy(sols_be))
H_cn = hamiltonian_along(bkd.to_numpy(sols_cn))
H_im = hamiltonian_along(bkd.to_numpy(sols_im))
H0 = 0.5  # initial energy

print(f"Final energy drift |H(T) - H(0)| after {T_long/(2*np.pi):.0f} periods:")
print(f"  Backward Euler:    {abs(H_be[-1] - H0):.3e}")
print(f"  Crank-Nicolson:    {abs(H_cn[-1] - H0):.3e}")
print(f"  Implicit midpoint: {abs(H_im[-1] - H0):.3e}")

Final energy drift |H(T) - H(0)| after 30 periods:
  Backward Euler:    5.000e-01
  Crank-Nicolson:    3.941e-15
  Implicit midpoint: 3.941e-15

times_be_np = bkd.to_numpy(times_be)
times_cn_np = bkd.to_numpy(times_cn)
times_im_np = bkd.to_numpy(times_im)

fig, ax = plt.subplots(figsize=(8.5, 4.5))
ax.plot(
    times_be_np, H_be - H0, lw=1.4, color="#C0392B",
    label="backward Euler",
)
ax.plot(
    times_cn_np, H_cn - H0, lw=1.4, color="#2C7FB8",
    label="Crank-Nicolson",
)
ax.plot(
    times_im_np, H_im - H0, lw=1.4, color="#27AE60", ls="--",
    label="implicit midpoint",
)
ax.set_xlabel(r"$t$")
ax.set_ylabel(r"$\mathcal{H}(t) - \mathcal{H}(0)$")
ax.set_title("Same fitted SHO Hamiltonian, three integrators")
ax.legend(fontsize=10)
ax.grid(True, alpha=0.2)
plt.tight_layout()
plt.show()

Figure 4: Energy drift over 30 oscillation periods for the same fitted SHO Hamiltonian surrogate integrated with three steppers. Backward Euler decays monotonically due to artificial numerical dissipation. Crank-Nicolson and implicit midpoint are indistinguishable — both preserve $\mathcal{H}_\eta$ to round-off because the learned Hamiltonian is quadratic in the state. The contrast between Crank-Nicolson and implicit midpoint becomes visible only for nonlinear Hamiltonians (shown in the concept tutorial).

Same fitted surrogate, three qualitatively different long-time behaviours. The lesson holds: pair Hamiltonian surrogates with symplectic integrators when long-time conservation matters.

Common Errors

Three failure modes specific to Hamiltonian surrogates:

Including the constant basis term. The constant function has zero gradient and contributes nothing to $\mt{L} \nabla \mathcal{H}_\params$. Including it makes the design matrix rank-deficient. The standard workarounds (in order of preference): drop the constant via indices = all_indices[:, 1:], or pass solver=RidgeSolver(bkd, alpha=...) to the fitter to Tikhonov-regularise.

nqoi mismatch. FixedPoissonVariableHamiltonianSurrogate requires its underlying BasisExpansion to have nqoi == 1. If you accidentally build with nqoi = 2 (treating the Hamiltonian as a vector field), the constructor raises ValueError. The Hamiltonian is a scalar — the surrogate’s output is a vector (the RHS), but the Hamiltonian basis output is a scalar.

Non-skew Poisson matrix. The constructor checks $\|\mt{L} + \mt{L}^\top\|_\infty < 10^{-12}$. If you pass an asymmetric or non-skew matrix it raises ValueError. Use .canonical() for the standard $\mt{J}$ to avoid hand-rolling, or build $\mt{L}$ explicitly from its strictly upper-triangular entries.

Summary

Both Hamiltonian parametrisations use the same usage pattern as Derivative Matching: snapshot dataset → surrogate → fitter → wrap → integrate. The differences are which Surrogate class to instantiate and which Fitter class to use:

FixedPoissonVariableHamiltonianSurrogate with FixedPoissonVariableHamiltonianDerivativeMatchingFitter — known $\mt{L}$, learn $\mathcal{H}_\params$.
VariablePoissonFixedHamiltonianSurrogate with VariablePoissonFixedHamiltonianDerivativeMatchingFitter — known $\mathcal{H}$ (supplied as gradient + Jacobian callables), learn the skew-matrix entries of $\mt{L}_\params$.

The parametric workflow extends both: pass n_params=k to the FixedPoissonVariableHamiltonianSurrogate constructor, augment snapshots with $k$ parameter rows, and use mu_batch at prediction.

For long-time energy conservation, pair Hamiltonian surrogates with symplectic integrators: CrankNicolsonAdjoint for quadratic Hamiltonians, ImplicitMidpointAdjoint for nonlinear ones. BackwardEulerAdjoint is dissipative and is a poor choice for Hamiltonian problems regardless of how well the Hamiltonian was learned.

A natural next step is trajectory matching — comparing integrated trajectories rather than local derivatives. This becomes important when snapshot derivatives are noisy or sparse and derivative matching’s noise floor becomes the limiting factor.

References

Gruber, A., & Tezaur, I. (2023). Canonical and noncanonical Hamiltonian operator inference. Computer Methods in Applied Mechanics and Engineering. Develops the canonical and noncanonical Hamiltonian operator-inference framework on which PyApprox’s Hamiltonian surrogates are based.
Greydanus, S., Dzamba, M., & Yosinski, J. (2019). Hamiltonian neural networks. Advances in Neural Information Processing Systems 32. The scalar-Hamiltonian parametrisation with a neural-network $\mathcal{H}_\params$ instead of a basis expansion.
Hairer, E., Lubich, C., & Wanner, G. (2006). Geometric Numerical Integration: Structure-Preserving Algorithms for Ordinary Differential Equations (2nd ed.). Springer. Reference for symplectic integrators, long-time energy behaviour, and the Crank-Nicolson-vs-implicit-midpoint distinction for nonlinear Hamiltonians.

--- title: "Learning Hamiltonians" subtitle: "PyApprox Tutorial Library" description: "Fit Hamiltonian surrogates that preserve energy by construction, using PyApprox's two structure-preserving parametrisations, with diagnostic plots for energy drift under different integrators." tutorial_type: usage topic: surrogate_modeling difficulty: intermediate estimated_time: 18 render_time: 45 prerequisites: - hamiltonian_systems_concept - derivative_matching_usage - parametric_dynamical_systems_usage tags: - dynamical-systems - hamiltonian - structure-preserving - simple-harmonic-oscillator - rotation - symplectic-integration format: html: code-fold: false code-tools: true toc: true execute: echo: true warning: false jupyter: python3 --- ::: {.callout-tip collapse="true"} ## Download Notebook [Download as Jupyter Notebook](notebooks/learning_hamiltonians_usage.ipynb) ::: ## Learning Objectives After completing this tutorial, you will be able to: - Construct a `FixedPoissonVariableHamiltonianSurrogate` from a scalar `BasisExpansion` and a skew-symmetric Poisson matrix - Fit the Hamiltonian coefficients $\params$ with `FixedPoissonVariableHamiltonianDerivativeMatchingFitter` and recover known coefficients exactly in the well-conditioned regime - Extend the workflow to a parametric Hamiltonian via the `n_params` constructor argument and `mu_batch` at prediction - Construct a `VariablePoissonFixedHamiltonianSurrogate` by supplying gradient and Hessian callables for a known $\mathcal{H}$, then fit the skew-matrix entries with the matching derivative-matching fitter - Diagnose energy conservation by integrating with backward Euler, Crank-Nicolson, and implicit midpoint and plotting $\mathcal{H}(t)$ - Recognise the constant basis term as a redundant degree of freedom and apply the standard workaround ## Prerequisites This tutorial extends [Derivative Matching](derivative_matching_usage.qmd) with the structure-preserving parametrisations introduced in [Hamiltonian Systems and Structure-Preserving Surrogates](hamiltonian_systems_concept.qmd). The parametric-Hamiltonian section in Part 1b uses the augmented-snapshot and `mu_batch` mechanics from [Parametric Dynamical Systems](parametric_dynamical_systems_usage.qmd). ## Setup The Hamiltonian surrogate classes and their fitters are exported from the same `pyapprox.surrogates.dynamical_systems` package used in earlier tutorials, alongside three implicit time-stepper classes: ```{python} import numpy as np import matplotlib.pyplot as plt from scipy.integrate import solve_ivp from pyapprox.util.backends.numpy import NumpyBkd from pyapprox.probability import UniformMarginal from pyapprox.surrogates.affine.basis import OrthonormalPolynomialBasis from pyapprox.surrogates.affine.expansions import BasisExpansion from pyapprox.surrogates.affine.indices import compute_hyperbolic_indices from pyapprox.surrogates.affine.univariate import create_bases_1d from pyapprox.surrogates.dynamical_systems import ( BatchedBoundODEResidual, SnapshotDataset, FixedPoissonVariableHamiltonianSurrogate, FixedPoissonVariableHamiltonianDerivativeMatchingFitter, VariablePoissonFixedHamiltonianSurrogate, VariablePoissonFixedHamiltonianDerivativeMatchingFitter, ) from pyapprox.ode.implicit_steppers.backward_euler import BackwardEulerAdjoint from pyapprox.ode.implicit_steppers.crank_nicolson import CrankNicolsonAdjoint from pyapprox.ode.implicit_steppers.implicit_midpoint import ( ImplicitMidpointAdjoint, ) from pyapprox.ode.implicit_steppers.integrator import TimeIntegrator from pyapprox.util.rootfinding.newton import NewtonSolver bkd = NumpyBkd() ``` # Part 1a: Learning a Hamiltonian with Fixed Structure The first parametrisation from the concept tutorial: $\mt{L}$ is known (we use canonical $\mt{J}$ for the simple harmonic oscillator) and the scalar Hamiltonian $\mathcal{H}_\params$ is learned. We fit on the SHO with $\omega = 1$: $$ \dot q = p, \qquad \dot p = -q, \qquad \mathcal{H}(q, p) = \tfrac12 (q^2 + p^2). $$ {#eq-sho} ## Step 1: Build the Hamiltonian basis and surrogate The Hamiltonian is a *scalar* function, so the underlying `BasisExpansion` has `nqoi = 1`. The constant basis term has zero gradient and contributes nothing to $\mt{L} \nabla \mathcal{H}_\params$; including it would make the design matrix rank-deficient. The standard workaround is to drop the constant from the index set. ```{python} nvars = 2 max_level = 2 # SHO Hamiltonian is quadratic marginals = [UniformMarginal(-3.0, 3.0, bkd) for _ in range(nvars)] bases_1d = create_bases_1d(marginals, bkd) all_indices = compute_hyperbolic_indices(nvars, max_level, 1.0, bkd) indices = all_indices[:, 1:] # drop the constant column basis = OrthonormalPolynomialBasis(bases_1d, bkd, indices) hamiltonian_basis = BasisExpansion(basis, bkd, nqoi=1) surrogate = FixedPoissonVariableHamiltonianSurrogate.canonical( hamiltonian_basis, ) print(f"Number of basis terms (constant dropped): " f"{hamiltonian_basis.nterms()}") print(f"Poisson matrix L = J:") print(bkd.to_numpy(surrogate.poisson_matrix())) ``` The `.canonical()` factory builds $\mt{J} = \begin{psmallmatrix} 0 & I \\ -I & 0 \end{psmallmatrix}$ of the right size automatically. To use a different skew matrix, pass it directly: `FixedPoissonVariableHamiltonianSurrogate(hamiltonian_basis, L)`. ## Step 2: Generate snapshots and fit For demonstration we draw snapshots uniformly from a box in state space and compute the true derivatives analytically. In a real workflow the snapshots come from observed trajectories (as in [Derivative Matching](derivative_matching_usage.qmd)). ```{python} rng = np.random.RandomState(42) n_snap = 500 q = rng.uniform(-2.0, 2.0, n_snap) p = rng.uniform(-2.0, 2.0, n_snap) states = bkd.array(np.stack([q, p], axis=0)) derivs = bkd.array(np.stack([p, -q], axis=0)) # SHO RHS with omega=1 dataset = SnapshotDataset(states, derivs, bkd) fitter = FixedPoissonVariableHamiltonianDerivativeMatchingFitter(bkd) result = fitter.fit(surrogate, dataset) fitted_sho = result.surrogate() residual = fitted_sho(dataset.states()) - dataset.derivatives() rms_residual = float(bkd.sqrt(bkd.mean(residual ** 2))) print(f"Training RMS residual: {rms_residual:.3e}") ``` A residual at the round-off floor confirms exact recovery of the underlying Hamiltonian up to representation in the chosen basis. ::: {.callout-note collapse="true"} ## What the fitter is doing `FixedPoissonVariableHamiltonianDerivativeMatchingFitter` assembles the design matrix $\Phi$ from the *basis gradient* — not the basis itself. For each snapshot the rows of $\Phi$ are $$ \Phi_{i,k} = \mt{L}\, \nabla \phi_k(\inputs_i), $$ where $\phi_k$ is the $k$-th basis function. The surrogate RHS is $\mt{L} \sum_k \params_k\, \nabla \phi_k(\inputs)$, which is linear in $\params$, so the fit reduces to ordinary least squares $\Phi\, \params = \dot{\inputs}$. This is why the constant basis term (which has zero gradient) creates a rank-deficient column and must be dropped — or absorbed by switching the fitter's `solver` argument to a `RidgeSolver`, which adds Tikhonov regularisation. ::: ## Step 3: Integrate with Crank-Nicolson and validate Wrap the fitted surrogate as an ODE residual, integrate over 10 oscillation periods, and compare to the analytic $(\cos t,\, -\sin t)$ trajectory. ```{python} wrapper = BatchedBoundODEResidual(learned_function=fitted_sho, n_dynamic=2) stepper = CrankNicolsonAdjoint(wrapper) newton = NewtonSolver(stepper) newton.set_options(maxiters=30, atol=1e-12, rtol=1e-12) integrator = TimeIntegrator( init_time=0.0, final_time=10 * 2 * np.pi, deltat=0.05, newton_solver=newton, ) predicted, pred_times = integrator.solve(bkd.array([1.0, 0.0])) # Analytic SHO truth t_np = bkd.to_numpy(pred_times) truth = bkd.array(np.stack([np.cos(t_np), -np.sin(t_np)], axis=0)) abs_err = bkd.max(bkd.abs(predicted - truth)) print(f"Max absolute error over 10 periods: {float(abs_err):.3e}") # Energy along trajectory: H = 0.5*(q^2 + p^2) H_traj = 0.5 * (predicted[0] ** 2 + predicted[1] ** 2) drift = float(bkd.max(bkd.abs(H_traj - 0.5))) print(f"Max |H(t) - H(0)| over 10 periods: {drift:.3e}") ``` The energy drift is at round-off because Crank-Nicolson is symplectic for quadratic Hamiltonians (the SHO case, exactly). ```{python} #| fig-cap: "SHO validation over 10 oscillation periods. Left: phase portrait, surrogate (orange dashed) overlaying analytic truth (blue). Right: Hamiltonian along the predicted trajectory; the variation is at round-off, confirming Crank-Nicolson preserves the learned quadratic $\\mathcal{H}_\\eta$ exactly." #| label: fig-sho-validation pred_np = bkd.to_numpy(predicted) truth_np = bkd.to_numpy(truth) fig, axes = plt.subplots(1, 2, figsize=(11, 4.2)) axes[0].plot(truth_np[0], truth_np[1], lw=1.4, color="#2C7FB8", label="truth") axes[0].plot( pred_np[0], pred_np[1], "--", lw=1.0, color="#E67E22", label="surrogate", ) axes[0].plot(1.0, 0.0, "ko", markersize=5, label="initial condition") axes[0].set_xlabel(r"$q$") axes[0].set_ylabel(r"$p$") axes[0].set_title("Phase portrait") axes[0].legend(fontsize=9) axes[0].grid(True, alpha=0.2) axes[0].set_aspect("equal", adjustable="box") axes[1].plot(t_np, bkd.to_numpy(H_traj) - 0.5, lw=1.2, color="#27AE60") axes[1].set_xlabel(r"$t$") axes[1].set_ylabel(r"$\mathcal{H}(t) - \mathcal{H}(0)$") axes[1].set_title("Energy drift") axes[1].grid(True, alpha=0.2) plt.tight_layout() plt.show() ``` # Part 1b: A Parametric Hamiltonian Real systems usually have parameters. The Hamiltonian surrogate supports the parametric workflow via an `n_params` constructor argument and the `mu_batch` mechanism from [Parametric Dynamical Systems](parametric_dynamical_systems_usage.qmd). We illustrate by varying the SHO frequency: $\mathcal{H}(q, p; \omega) = \tfrac12 (p^2 + \omega^2 q^2)$. ## Step 4: Build a parametric Hamiltonian surrogate The Hamiltonian basis now operates on the augmented input $(q, p, \omega)$ — two state components plus the parameter. The total polynomial degree must be at least 4 because $\omega^2 q^2$ has total degree 4: ```{python} nvars_aug = 3 # q, p, omega max_level_aug = 4 # to span omega^2 * q^2 state_marginals = [UniformMarginal(-2.0, 2.0, bkd) for _ in range(2)] omega_marginal = UniformMarginal(0.3, 2.2, bkd) marginals_aug = state_marginals + [omega_marginal] bases_1d_aug = create_bases_1d(marginals_aug, bkd) all_indices_aug = compute_hyperbolic_indices(nvars_aug, max_level_aug, 1.0, bkd) indices_aug = all_indices_aug[:, 1:] # drop constant basis_aug = OrthonormalPolynomialBasis(bases_1d_aug, bkd, indices_aug) hamiltonian_basis_aug = BasisExpansion(basis_aug, bkd, nqoi=1) surrogate_par = FixedPoissonVariableHamiltonianSurrogate.canonical( hamiltonian_basis_aug, n_params=1, ) print(f"Augmented basis terms: {hamiltonian_basis_aug.nterms()}") print(f"Surrogate nvars / nqoi / n_dynamic: " f"{surrogate_par.nvars()} / {surrogate_par.nqoi()} / " f"{surrogate_par.n_dynamic()}") ``` `n_params=1` tells `.canonical()` that one of the three input rows is a system parameter, not dynamic state. The Poisson matrix is therefore $2 \times 2$ canonical $\mt{J}$, acting only on the dynamic rows. ## Step 5: Generate augmented snapshots across multiple $\omega$ values Same pattern as the non-Hamiltonian parametric tutorial: augment each trajectory's snapshot input with an $\omega$ row, then concatenate. ```{python} omega_train = [0.5, 1.0, 1.5, 2.0] rng = np.random.RandomState(7) state_blocks, deriv_blocks = [], [] for omega in omega_train: n = 200 q = rng.uniform(-1.5, 1.5, n) p = rng.uniform(-1.5, 1.5, n) omega_row = np.full((1, n), omega) state_blocks.append(np.vstack([np.stack([q, p], axis=0), omega_row])) # SHO derivatives at this omega: dq/dt = p, dp/dt = -omega^2 * q deriv_blocks.append(np.stack([p, -omega ** 2 * q], axis=0)) aug_states = bkd.array(np.hstack(state_blocks)) aug_derivs = bkd.array(np.hstack(deriv_blocks)) dataset_par = SnapshotDataset(aug_states, aug_derivs, bkd) print(f"Parametric snapshot set: {dataset_par.nsamples()} pairs " f"({dataset_par.nstates_input()} input rows, " f"{dataset_par.nstates_output()} output rows)") fitter_par = FixedPoissonVariableHamiltonianDerivativeMatchingFitter(bkd) result_par = fitter_par.fit(surrogate_par, dataset_par) fitted_par = result_par.surrogate() residual_par = fitted_par(dataset_par.states()) - dataset_par.derivatives() rms_par = float(bkd.sqrt(bkd.mean(residual_par ** 2))) print(f"Parametric training RMS residual: {rms_par:.3e}") ``` ## Step 6: Predict at new $\omega$ values via `mu_batch` The same `BatchedBoundODEResidual` interface works: pass an `(n_params, k)` array, integrate $k$ trajectories simultaneously. ```{python} omega_test = [0.7, 1.3] k = len(omega_test) mu_batch = bkd.array([omega_test]) wrapper_par = BatchedBoundODEResidual( learned_function=fitted_par, n_dynamic=2, mu_batch=mu_batch, ) stepper_par = CrankNicolsonAdjoint(wrapper_par) newton_par = NewtonSolver(stepper_par) newton_par.set_options(maxiters=30, atol=1e-12, rtol=1e-12) integrator_par = TimeIntegrator( init_time=0.0, final_time=4 * 2 * np.pi, deltat=0.05, newton_solver=newton_par, ) init_flat = bkd.array([1.0, 0.0] * k) predicted_par, pred_times_par = integrator_par.solve(init_flat) ``` Validate against the analytic truth at each test $\omega$. The energy at each fixed $\omega$ is $\mathcal{H}(q, p; \omega) = \tfrac12 (p^2 + \omega^2 q^2)$, evaluated trajectory-by-trajectory: ```{python} t_par_np = bkd.to_numpy(pred_times_par) for i, omega in enumerate(omega_test): pred_i = predicted_par[i*2 : (i+1)*2, :] truth_i = np.stack([ np.cos(omega * t_par_np), -omega * np.sin(omega * t_par_np), ], axis=0) err_i = float(bkd.max(bkd.abs(pred_i - bkd.array(truth_i)))) pred_i_np = bkd.to_numpy(pred_i) H_i = 0.5 * (pred_i_np[1] ** 2 + omega ** 2 * pred_i_np[0] ** 2) H_drift = float(np.max(np.abs(H_i - H_i[0]))) print(f"omega={omega}: max abs error {err_i:.3e}, " f"max |H drift| {H_drift:.3e}") ``` ```{python} #| fig-cap: "Parametric SHO at two held-out $\\omega$ values. Left: phase portraits, surrogate (orange dashed) vs analytic truth (blue), shown for $\\omega = 0.7$ and $\\omega = 1.3$. Right: Hamiltonian along each predicted trajectory; flat at round-off because the learned $\\mathcal{H}_\\eta$ is quadratic in $(q, p)$ at every $\\omega$. Same fitted surrogate, two different `mu_batch` entries." #| label: fig-parametric-validation fig, axes = plt.subplots(1, 2, figsize=(11, 4.5)) colors = ["#2C7FB8", "#C0392B"] for i, (omega, color) in enumerate(zip(omega_test, colors)): pred_np = bkd.to_numpy(predicted_par[i*2 : (i+1)*2, :]) truth_np = np.stack([ np.cos(omega * t_par_np), -omega * np.sin(omega * t_par_np), ], axis=0) axes[0].plot( truth_np[0], truth_np[1], lw=1.4, color=color, label=rf"truth, $\omega = {omega}$", ) axes[0].plot( pred_np[0], pred_np[1], "--", lw=1.0, color="black", alpha=0.6, ) H_i = 0.5 * (pred_np[1] ** 2 + omega ** 2 * pred_np[0] ** 2) axes[1].plot( t_par_np, H_i - H_i[0], lw=1.2, color=color, label=rf"$\omega = {omega}$", ) axes[0].plot(1.0, 0.0, "ko", markersize=5) axes[0].set_xlabel(r"$q$") axes[0].set_ylabel(r"$p$") axes[0].set_title("Phase portraits at two new $\\omega$") axes[0].legend(fontsize=9) axes[0].grid(True, alpha=0.2) axes[0].set_aspect("equal", adjustable="box") axes[1].set_xlabel(r"$t$") axes[1].set_ylabel(r"$\mathcal{H}(t; \omega) - \mathcal{H}(0; \omega)$") axes[1].set_title("Energy drift per $\\omega$") axes[1].legend(fontsize=9) axes[1].grid(True, alpha=0.2) plt.tight_layout() plt.show() ``` # Part 2: Learning the Poisson Structure with Fixed Hamiltonian The second parametrisation from the concept tutorial: $\mathcal{H}$ is known and supplied as callables, the structure matrix $\mt{L}_\params$ is learned. We illustrate on a 2D rotation system whose Hamiltonian is the squared norm $\mathcal{H}(\inputs) = \tfrac12 \|\inputs\|^2$ and whose true Poisson matrix has a single free parameter $\omega$: $$ \dot{\inputs} = \mt{L}_\params\, \nabla \mathcal{H}(\inputs), \quad \nabla \mathcal{H}(\inputs) = \inputs, \quad \mt{L}_\params = \begin{pmatrix} 0 & \omega \\ -\omega & 0 \end{pmatrix}. $$ {#eq-rotation} ## Step 7: Construct the surrogate by supplying $\nabla \mathcal{H}$ and its Jacobian The known Hamiltonian enters as two Python callables — its gradient and the Jacobian of that gradient (which is the Hessian of $\mathcal{H}$ in the dynamic variables): ```{python} n_dynamic = 2 def grad_H(samples): """grad H = x for H = 0.5 * ||x||^2.""" return samples[:n_dynamic, :] def grad_H_jac(samples): """Jacobian of grad H is the identity for the quadratic Hamiltonian.""" nsamples = samples.shape[1] eye = bkd.eye(n_dynamic) return bkd.tile( bkd.reshape(eye, (1, n_dynamic, n_dynamic)), (nsamples, 1, 1), ) surrogate_rot = VariablePoissonFixedHamiltonianSurrogate( grad_hamiltonian=grad_H, grad_hamiltonian_jacobian=grad_H_jac, n_dynamic=n_dynamic, bkd=bkd, ) print(f"Number of learnable skew entries: " f"{surrogate_rot.hyp_list().nactive_params()}") ``` For a $2 \times 2$ skew matrix there is exactly one free entry — the strictly upper-triangular position. The fitter recovers it. ## Step 8: Generate trajectory snapshots and fit Use a single rotation trajectory at the *true* $\omega_{\text{true}} = 1.5$ as the data source. Snapshots come from `SnapshotDataset.from_trajectory` exactly as in tutorial 2: ```{python} omega_true = 1.5 def true_rotation_trajectory(initial_state, times, omega): q0, p0 = initial_state q = q0 * np.cos(omega * times) + p0 * np.sin(omega * times) p = -q0 * np.sin(omega * times) + p0 * np.cos(omega * times) return bkd.array(np.stack([q, p], axis=0)) times_rot = bkd.linspace(0.0, 10.0, 401) trajectory_rot = true_rotation_trajectory( [1.0, 0.0], bkd.to_numpy(times_rot), omega=omega_true, ) dataset_rot = SnapshotDataset.from_trajectory( trajectory=trajectory_rot, times=times_rot, bkd=bkd, fd_method="central", ) fitter_rot = VariablePoissonFixedHamiltonianDerivativeMatchingFitter(bkd) result_rot = fitter_rot.fit(surrogate_rot, dataset_rot) fitted_rot = result_rot.surrogate() omega_recovered = float(fitted_rot.hyp_list().get_active_values()[0]) print(f"True omega: {omega_true}") print(f"Recovered omega: {omega_recovered:.6f}") print(f"Recovery error: {abs(omega_recovered - omega_true):.3e}") ``` The recovery error is at the finite-difference truncation-error floor, because the snapshot derivatives themselves carry that level of error. ## Step 9: Integrate and validate Wrap, integrate with Crank-Nicolson, compare to analytic: ```{python} wrapper_rot = BatchedBoundODEResidual( learned_function=fitted_rot, n_dynamic=2, ) stepper_rot = CrankNicolsonAdjoint(wrapper_rot) newton_rot = NewtonSolver(stepper_rot) newton_rot.set_options(maxiters=30, atol=1e-12, rtol=1e-12) integrator_rot = TimeIntegrator( init_time=0.0, final_time=5 * 2 * np.pi / omega_true, deltat=0.02, newton_solver=newton_rot, ) predicted_rot, pred_times_rot = integrator_rot.solve(bkd.array([1.0, 0.0])) t_rot_np = bkd.to_numpy(pred_times_rot) truth_rot = true_rotation_trajectory([1.0, 0.0], t_rot_np, omega=omega_true) err_rot = float(bkd.max(bkd.abs(predicted_rot - truth_rot))) print(f"Max abs error over 5 rotation periods: {err_rot:.3e}") ``` ```{python} #| fig-cap: "Variable-Poisson rotation validation. The fitted skew-matrix entry recovers $\\omega_{\\mathrm{true}} = 1.5$, and the surrogate (orange dashed) traces the unit circle in phase space alongside the analytic truth (blue) over 5 rotation periods." #| label: fig-rotation-validation pred_rot_np = bkd.to_numpy(predicted_rot) truth_rot_np = bkd.to_numpy(truth_rot) fig, ax = plt.subplots(figsize=(5.5, 5)) ax.plot(truth_rot_np[0], truth_rot_np[1], lw=1.4, color="#2C7FB8", label="truth") ax.plot( pred_rot_np[0], pred_rot_np[1], "--", lw=1.0, color="#E67E22", label="surrogate", ) ax.plot(1.0, 0.0, "ko", markersize=5, label="initial condition") ax.set_xlabel(r"$q$") ax.set_ylabel(r"$p$") ax.set_title(rf"2D rotation, $\omega_{{\mathrm{{rec}}}} = {omega_recovered:.4f}$") ax.legend(fontsize=9) ax.grid(True, alpha=0.2) ax.set_aspect("equal", adjustable="box") plt.tight_layout() plt.show() ``` # Part 3: Integrator Choice for Hamiltonian Surrogates The concept tutorial argued that **structure preservation in the surrogate buys nothing for long-time prediction if the integrator dissipates it away**. We demonstrate this concretely: take the fitted non-parametric SHO surrogate from Part 1a, integrate three times — once each with `BackwardEulerAdjoint`, `CrankNicolsonAdjoint`, `ImplicitMidpointAdjoint` — and plot $\mathcal{H}(t) - \mathcal{H}(0)$ for all three. ## Step 10: Integrate the fitted SHO with three steppers ```{python} def integrate_with_stepper(stepper_cls, final_time): """Integrate fitted SHO once with the given stepper class.""" wrapper = BatchedBoundODEResidual( learned_function=fitted_sho, n_dynamic=2, ) stepper = stepper_cls(wrapper) newton = NewtonSolver(stepper) newton.set_options(maxiters=30, atol=1e-12, rtol=1e-12) integrator = TimeIntegrator( init_time=0.0, final_time=final_time, deltat=0.05, newton_solver=newton, ) return integrator.solve(bkd.array([1.0, 0.0])) T_long = 30 * 2 * np.pi # 30 oscillation periods sols_be, times_be = integrate_with_stepper(BackwardEulerAdjoint, T_long) sols_cn, times_cn = integrate_with_stepper(CrankNicolsonAdjoint, T_long) sols_im, times_im = integrate_with_stepper(ImplicitMidpointAdjoint, T_long) ``` For the linear SHO, Crank-Nicolson and implicit midpoint coincide mathematically — they are the same scheme when the RHS is linear in the state. On nonlinear Hamiltonians they differ, and only implicit midpoint preserves $\mathcal{H}$ exactly; that contrast is the subject of the concept tutorial's Figure 3 on the pendulum. ## Step 11: Compare energy drift ```{python} def hamiltonian_along(sols): return 0.5 * (sols[0] ** 2 + sols[1] ** 2) H_be = hamiltonian_along(bkd.to_numpy(sols_be)) H_cn = hamiltonian_along(bkd.to_numpy(sols_cn)) H_im = hamiltonian_along(bkd.to_numpy(sols_im)) H0 = 0.5 # initial energy print(f"Final energy drift |H(T) - H(0)| after {T_long/(2*np.pi):.0f} periods:") print(f" Backward Euler: {abs(H_be[-1] - H0):.3e}") print(f" Crank-Nicolson: {abs(H_cn[-1] - H0):.3e}") print(f" Implicit midpoint: {abs(H_im[-1] - H0):.3e}") ``` ```{python} #| fig-cap: "Energy drift over 30 oscillation periods for the same fitted SHO Hamiltonian surrogate integrated with three steppers. Backward Euler decays monotonically due to artificial numerical dissipation. Crank-Nicolson and implicit midpoint are indistinguishable — both preserve $\\mathcal{H}_\\eta$ to round-off because the learned Hamiltonian is quadratic in the state. The contrast between Crank-Nicolson and implicit midpoint becomes visible only for nonlinear Hamiltonians (shown in the concept tutorial)." #| label: fig-integrator-comparison times_be_np = bkd.to_numpy(times_be) times_cn_np = bkd.to_numpy(times_cn) times_im_np = bkd.to_numpy(times_im) fig, ax = plt.subplots(figsize=(8.5, 4.5)) ax.plot( times_be_np, H_be - H0, lw=1.4, color="#C0392B", label="backward Euler", ) ax.plot( times_cn_np, H_cn - H0, lw=1.4, color="#2C7FB8", label="Crank-Nicolson", ) ax.plot( times_im_np, H_im - H0, lw=1.4, color="#27AE60", ls="--", label="implicit midpoint", ) ax.set_xlabel(r"$t$") ax.set_ylabel(r"$\mathcal{H}(t) - \mathcal{H}(0)$") ax.set_title("Same fitted SHO Hamiltonian, three integrators") ax.legend(fontsize=10) ax.grid(True, alpha=0.2) plt.tight_layout() plt.show() ``` Same fitted surrogate, three qualitatively different long-time behaviours. The lesson holds: pair Hamiltonian surrogates with symplectic integrators when long-time conservation matters. ## Common Errors Three failure modes specific to Hamiltonian surrogates: **Including the constant basis term.** The constant function has zero gradient and contributes nothing to $\mt{L} \nabla \mathcal{H}_\params$. Including it makes the design matrix rank-deficient. The standard workarounds (in order of preference): drop the constant via `indices = all_indices[:, 1:]`, or pass `solver=RidgeSolver(bkd, alpha=...)` to the fitter to Tikhonov-regularise. **`nqoi` mismatch.** `FixedPoissonVariableHamiltonianSurrogate` requires its underlying `BasisExpansion` to have `nqoi == 1`. If you accidentally build with `nqoi = 2` (treating the Hamiltonian as a vector field), the constructor raises `ValueError`. The Hamiltonian is a scalar — the *surrogate's* output is a vector (the RHS), but the *Hamiltonian basis* output is a scalar. **Non-skew Poisson matrix.** The constructor checks $\|\mt{L} + \mt{L}^\top\|_\infty < 10^{-12}$. If you pass an asymmetric or non-skew matrix it raises `ValueError`. Use `.canonical()` for the standard $\mt{J}$ to avoid hand-rolling, or build $\mt{L}$ explicitly from its strictly upper-triangular entries. ## Summary Both Hamiltonian parametrisations use the same usage pattern as [Derivative Matching](derivative_matching_usage.qmd): **snapshot dataset → surrogate → fitter → wrap → integrate**. The differences are which `Surrogate` class to instantiate and which `Fitter` class to use: - **`FixedPoissonVariableHamiltonianSurrogate`** with `FixedPoissonVariableHamiltonianDerivativeMatchingFitter` — known $\mt{L}$, learn $\mathcal{H}_\params$. - **`VariablePoissonFixedHamiltonianSurrogate`** with `VariablePoissonFixedHamiltonianDerivativeMatchingFitter` — known $\mathcal{H}$ (supplied as gradient + Jacobian callables), learn the skew-matrix entries of $\mt{L}_\params$. The parametric workflow extends both: pass `n_params=k` to the `FixedPoissonVariableHamiltonianSurrogate` constructor, augment snapshots with $k$ parameter rows, and use `mu_batch` at prediction. For long-time energy conservation, pair Hamiltonian surrogates with symplectic integrators: `CrankNicolsonAdjoint` for quadratic Hamiltonians, `ImplicitMidpointAdjoint` for nonlinear ones. `BackwardEulerAdjoint` is dissipative and is a poor choice for Hamiltonian problems regardless of how well the Hamiltonian was learned. A natural next step is trajectory matching — comparing integrated trajectories rather than local derivatives. This becomes important when snapshot derivatives are noisy or sparse and derivative matching's noise floor becomes the limiting factor. ## References - Gruber, A., & Tezaur, I. (2023). [*Canonical and noncanonical Hamiltonian operator inference*](https://arxiv.org/abs/2304.06262). Computer Methods in Applied Mechanics and Engineering. Develops the canonical and noncanonical Hamiltonian operator-inference framework on which PyApprox's Hamiltonian surrogates are based. - Greydanus, S., Dzamba, M., & Yosinski, J. (2019). [*Hamiltonian neural networks*](https://arxiv.org/abs/1906.01563). Advances in Neural Information Processing Systems 32. The scalar-Hamiltonian parametrisation with a neural-network $\mathcal{H}_\params$ instead of a basis expansion. - Hairer, E., Lubich, C., & Wanner, G. (2006). *Geometric Numerical Integration: Structure-Preserving Algorithms for Ordinary Differential Equations* (2nd ed.). Springer. Reference for symplectic integrators, long-time energy behaviour, and the Crank-Nicolson-vs-implicit-midpoint distinction for nonlinear Hamiltonians.

Learning Hamiltonians

Learning Objectives

Prerequisites

Setup

Part 1a: Learning a Hamiltonian with Fixed Structure

Step 1: Build the Hamiltonian basis and surrogate

Step 2: Generate snapshots and fit

Step 3: Integrate with Crank-Nicolson and validate

Part 1b: A Parametric Hamiltonian

Step 4: Build a parametric Hamiltonian surrogate

Step 5: Generate augmented snapshots across multiple \(\omega\) values

Step 6: Predict at new \(\omega\) values via `mu_batch`

Part 2: Learning the Poisson Structure with Fixed Hamiltonian

Step 7: Construct the surrogate by supplying \(\nabla \mathcal{H}\) and its Jacobian

Step 8: Generate trajectory snapshots and fit

Step 9: Integrate and validate

Part 3: Integrator Choice for Hamiltonian Surrogates

Step 10: Integrate the fitted SHO with three steppers

Step 11: Compare energy drift

Common Errors

Summary

References

Learning Objectives

Prerequisites

Setup

Part 1a: Learning a Hamiltonian with Fixed Structure

Step 1: Build the Hamiltonian basis and surrogate

Step 2: Generate snapshots and fit

Step 3: Integrate with Crank-Nicolson and validate

Part 1b: A Parametric Hamiltonian

Step 4: Build a parametric Hamiltonian surrogate

Step 5: Generate augmented snapshots across multiple \(\omega\) values

Step 6: Predict at new \(\omega\) values via mu_batch

Part 2: Learning the Poisson Structure with Fixed Hamiltonian

Step 7: Construct the surrogate by supplying \(\nabla \mathcal{H}\) and its Jacobian

Step 8: Generate trajectory snapshots and fit

Step 9: Integrate and validate

Part 3: Integrator Choice for Hamiltonian Surrogates

Step 10: Integrate the fitted SHO with three steppers

Step 11: Compare energy drift

Common Errors

Summary

References

Step 6: Predict at new \(\omega\) values via `mu_batch`
