Sensitivity Analysis

PyApprox Tutorial Library

Variance decomposition and Sobol indices: identifying which uncertain inputs drive output variability.

Learning Objectives

After completing this tutorial, you will be able to:

  • Explain Sobol sensitivity indices as a decomposition of output variance into input contributions
  • Distinguish first-order indices (direct effects) from total-order indices (effects including interactions)
  • Interpret sensitivity results to guide resource allocation for uncertainty reduction

Prerequisites

Complete Forward UQ before this tutorial.

Motivation: Which Parameters Matter?

Forward UQ tells us how much total uncertainty there is in a model’s outputs. Now we ask a different question: which uncertain inputs are responsible for that variability?

If we can identify the dominant inputs, we can:

  • Focus resources on reducing those uncertainties (better measurements, tighter manufacturing tolerances)
  • Fix unimportant inputs at nominal values, simplifying the model
  • Understand the model’s input-output structure

Sensitivity Analysis (SA) provides a principled framework for answering this question.

Variance Decomposition (ANOVA)

The key idea behind variance-based sensitivity analysis is Analysis of Variance (ANOVA). The total output variance can be decomposed into contributions from individual inputs and their interactions:

\[ \Var_{\params}[q] = \sum_{i} V_i + \sum_{i<j} V_{ij} + \cdots + V_{1,2,\ldots,\dparams} \]

where:

  • \(V_i = \Var_{\theta_i}[\E_{\theta_{\sim i}}[q | \theta_i]]\) is the variance due to input \(\theta_i\) alone
  • \(V_{ij}\) is the additional variance from the interaction between \(\theta_i\) and \(\theta_j\)
  • Higher-order terms capture three-way and beyond interactions

Figure 1 shows how the variance of tip deflection decomposes across the three KLE inputs.

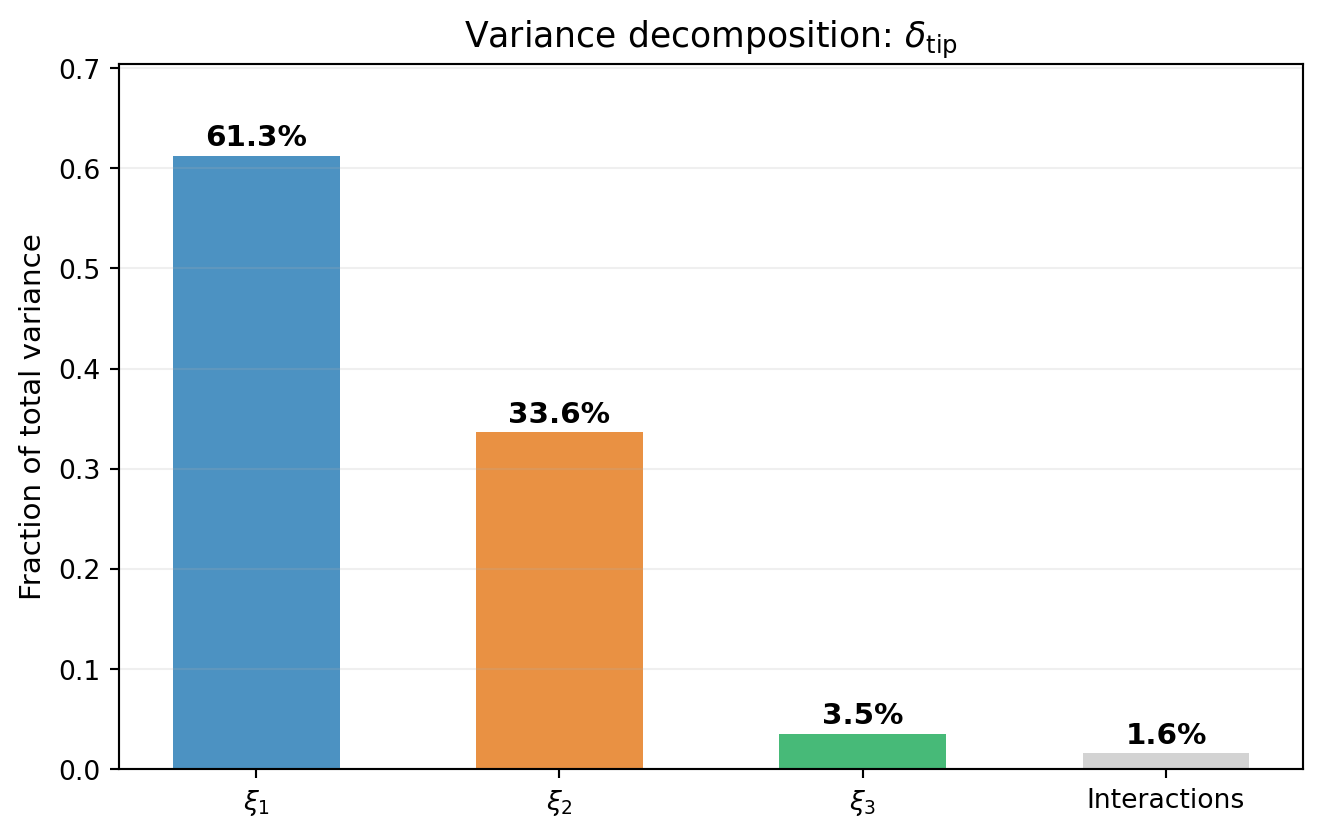

Figure 1: Variance decomposition for beam tip deflection. Each slice shows the fraction of total variance attributable to each KLE input. The first KLE term dominates because it represents the lowest-frequency spatial mode of the stiffness field.

First-Order and Total-Order Indices

The ANOVA decomposition motivates two key measures of input importance.

First-Order Sobol Index

The first-order Sobol index \(\Sobol{i}\) measures the fraction of output variance explained by input \(\theta_i\) acting alone:

\[ \Sobol{i} = \frac{V_i}{\Var_{\params}[q]} = \frac{\Var_{\theta_i}[\E_{\theta_{\sim i}}[q | \theta_i]]}{\Var_{\params}[q]} \]

  • \(\Sobol{i} \approx 1\): input \(i\) explains nearly all variance by itself
  • \(\Sobol{i} \approx 0\): input \(i\) has little direct effect on variance

Total-Order Sobol Index

The total-order Sobol index \(\SobolT{i}\) captures the total contribution of input \(\theta_i\), including all interactions with other inputs:

\[ \SobolT{i} = 1 - \frac{\Var_{\theta_{\sim i}}[\E_{\theta_i}[q | \theta_{\sim i}]]}{\Var_{\params}[q]} \]

where \(\theta_{\sim i}\) denotes all inputs except \(\theta_i\).

Key properties:

  • \(\SobolT{i} \geq \Sobol{i}\) always
  • If \(\SobolT{i} \approx \Sobol{i}\): input \(i\) has few interactions with other inputs
  • If \(\SobolT{i} \gg \Sobol{i}\): input \(i\) participates in strong interactions
  • \(\sum_i \Sobol{i} \leq 1\) (equality iff no interactions)
  • \(\sum_i \SobolT{i} \geq 1\) (equality iff no interactions)

Figure 2 shows both indices for the beam QoIs that have nonzero variance: tip deflection and maximum curvature.

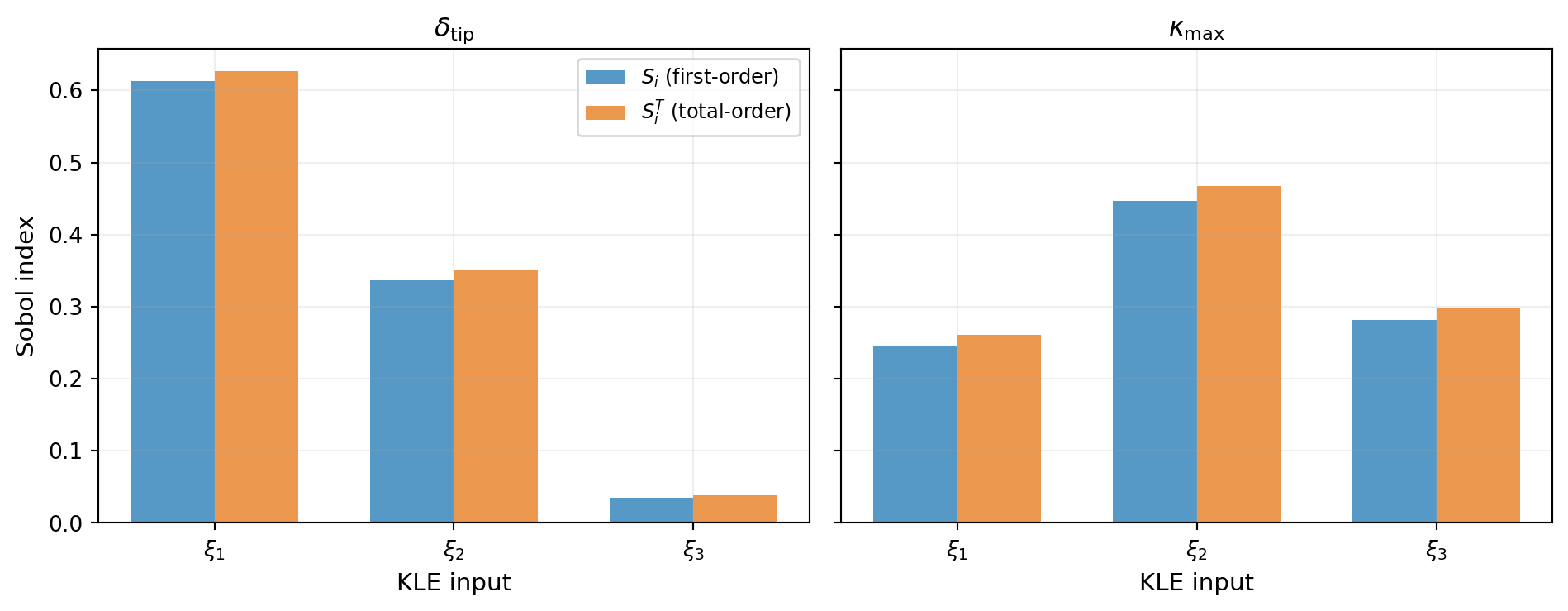

Figure 2: First-order and total-order Sobol indices for tip deflection and maximum curvature. When the bars are similar in height, interactions are weak. When the total-order bar is much taller, the input participates in interactions with other inputs.
NoteWhy is \(\sigma_{\mathrm{int}}\) missing?

The integrated bending stress \(\sigma_{\mathrm{int}} = \int_0^L \sigma(x)\, dx\) has zero variance — it is constant regardless of the KLE inputs. This is because the internal bending moment distribution \(M(x)\) is determined entirely by the applied load and boundary conditions (static equilibrium), not by the stiffness field \(EI(x)\). The stiffness affects how much the beam deflects and how curvature distributes, but the total integrated stress \(\int M(x)\, y/I(x) \cdot dx\) simplifies to a load-dependent constant for this model. A QoI with zero variance has undefined Sobol indices, so it is omitted from the sensitivity analysis.

Visual Confirmation

A quick visual check supports the sensitivity indices. Figure 3 shows scatter plots of the QoI against the most influential and least influential KLE inputs. The dominant input shows a clear functional trend, while the non-influential input shows no pattern.

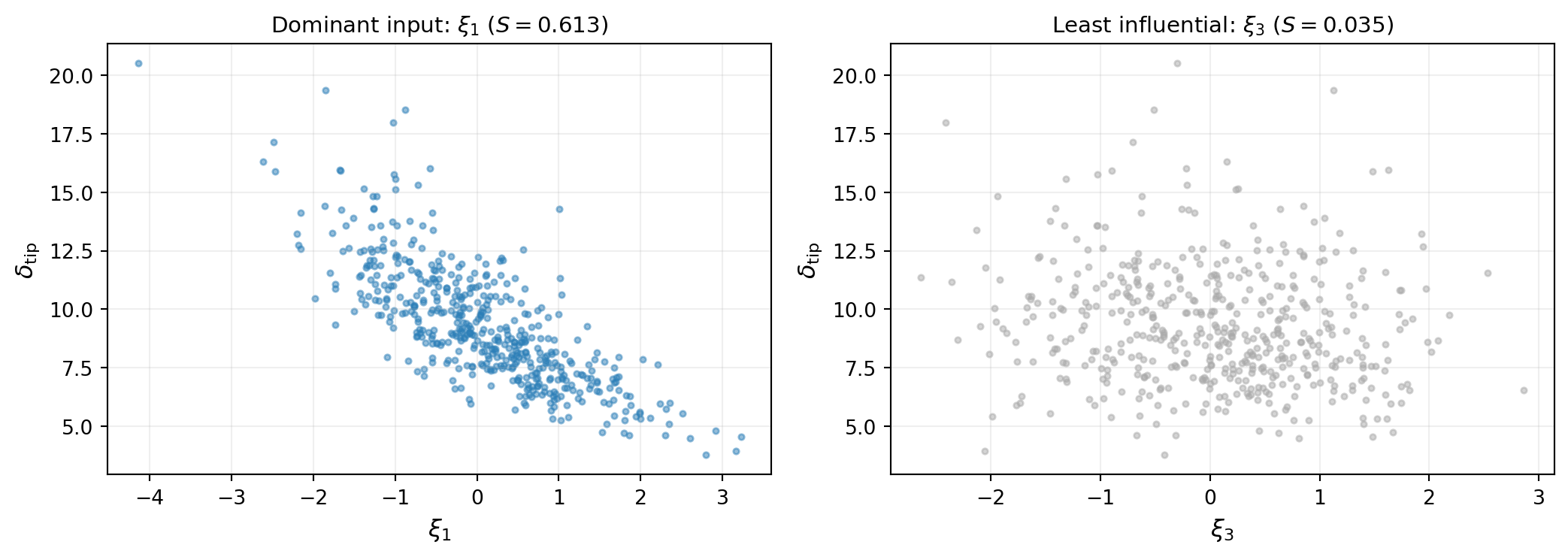

Figure 3: Scatter plots confirming sensitivity rankings. Left: QoI vs. dominant KLE input (clear trend explains high S_i). Right: QoI vs. least influential input (no trend, low S_i).

Key Takeaways

  • Variance decomposition splits output variance into contributions from individual inputs and their interactions
  • First-order \(\Sobol{i}\) measures the direct (additive) effect of input \(i\)
  • Total-order \(\SobolT{i}\) measures the total effect including all interactions — use this for deciding which inputs to fix
  • \(\sum_i \Sobol{i} < 1\) indicates the presence of interactions between inputs
  • A QoI with zero variance (e.g., determined by static equilibrium) has undefined Sobol indices
