PCE-Based Sensitivity Analysis

PyApprox Tutorial Library

Computing Sobol indices analytically from polynomial chaos expansion coefficients.

Download Notebook

Download as Jupyter Notebook

Learning Objectives

After completing this tutorial, you will be able to:

Use PolynomialChaosSensitivityAnalysis to compute all Sobol indices from a fitted PCE
Specify interaction terms of interest and interpret higher-order indices
Visualize sensitivity results with built-in plotting functions
Assess the accuracy of PCE-based indices by comparing against ground truth

Prerequisites

Complete:

Sensitivity Analysis — variance decomposition and Sobol index definitions
Building a Polynomial Chaos Surrogate — PCE fitting basics

Quick Recap

The orthonormality of the PCE basis lets us compute Sobol indices directly from the expansion coefficients $c_k$. The first-order index $\Sobol{i}$ is the ratio of variance from terms involving only $\theta_i$ to the total variance. No additional sampling is needed once the PCE is fitted.

Setup

We use the Ishigami benchmark, a standard 3-variable test function with known analytical Sobol indices:

\[ f(x_1, x_2, x_3) = \sin(x_1) + 7\sin^2(x_2) + 0.1\, x_3^4 \sin(x_1) \]

The Ishigami function has notable features: $x_2$ has the largest main effect, $x_3$ has zero main effect but a strong interaction with $x_1$, and $x_1$ participates in both direct and interaction effects.

import numpy as np
import matplotlib.pyplot as plt
from pyapprox.util.backends.numpy import NumpyBkd
from pyapprox.benchmarks import ishigami_3d
from pyapprox.surrogates.affine.expansions.pce import (
    create_pce_from_marginals,
)
from pyapprox.surrogates.affine.expansions.fitters.least_squares import (
    LeastSquaresFitter,
)

bkd = NumpyBkd()
np.random.seed(42)

# Load benchmark
benchmark = ishigami_3d(bkd)
func = benchmark.function()
prior = benchmark.prior()
gt = benchmark.ground_truth()
marginals = prior.marginals()
nvars = 3

gt_main = bkd.to_numpy(gt.main_effects).flatten()
gt_total = bkd.to_numpy(gt.total_effects).flatten()

# Fit a PCE to the Ishigami function
N_train = 200
samples_train = prior.rvs(N_train)
values_train = func(samples_train)

degree = 8
pce = create_pce_from_marginals(marginals, degree, bkd, nqoi=1)
ls_fitter = LeastSquaresFitter(bkd)
pce = ls_fitter.fit(pce, samples_train, values_train).surrogate()

Basic Usage

The PolynomialChaosSensitivityAnalysis class wraps a fitted PCE and provides Sobol index computation.

from pyapprox.sensitivity import PolynomialChaosSensitivityAnalysis

sa = PolynomialChaosSensitivityAnalysis(pce)

# Main effects (first-order indices)
main_effects = sa.main_effects()  # shape (nvars, nqoi)

# Total effects
total_effects = sa.total_effects()  # shape (nvars, nqoi)

The PCE-based estimates closely match the analytical ground truth. Note that $\Sobol{3} \approx 0$ (no main effect for $x_3$) but $\SobolT{3} > 0$ (due to the $x_1 x_3$ interaction).

Interaction Terms

To compute higher-order Sobol indices (e.g., $\Sobol{13}$), specify the interaction terms of interest. Each column of the interaction matrix is a binary indicator of which variables are active.

# Define interaction terms: main effects + all pairwise + triple
interaction_terms = bkd.asarray([
    [1, 0, 0, 1, 1, 0, 1],  # x_1 active
    [0, 1, 0, 1, 0, 1, 1],  # x_2 active
    [0, 0, 1, 0, 1, 1, 1],  # x_3 active
])

sa.set_interaction_terms_of_interest(interaction_terms)
sobol_all = sa.sobol_indices()  # shape (nterms, nqoi)

The $\Sobol{13}$ interaction is substantial, capturing the $x_1$-$x_3$ coupling in the $0.1 x_3^4 \sin(x_1)$ term. The other pairwise and triple interactions are near zero.

Visualization

The sensitivity.plots module provides built-in plotting functions.

from pyapprox.sensitivity.plots import (
    plot_main_effects,
    plot_total_effects,
    plot_interaction_values,
)

fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(15, 4.5))

# Main effects pie chart
plot_main_effects(main_effects, ax1, bkd, rv="x")
ax1.set_title("Main Effects", fontsize=12)

# Total effects bar chart
plot_total_effects(total_effects, ax2, bkd, rv="x")
ax2.set_ylabel("Sobol Index", fontsize=11)
ax2.set_title("Total Effects", fontsize=12)

# Full Sobol decomposition pie chart
plot_interaction_values(sobol_all, interaction_terms, ax3, bkd, rv="x")
ax3.set_title("Full Sobol Decomposition", fontsize=12)

plt.tight_layout()
plt.show()

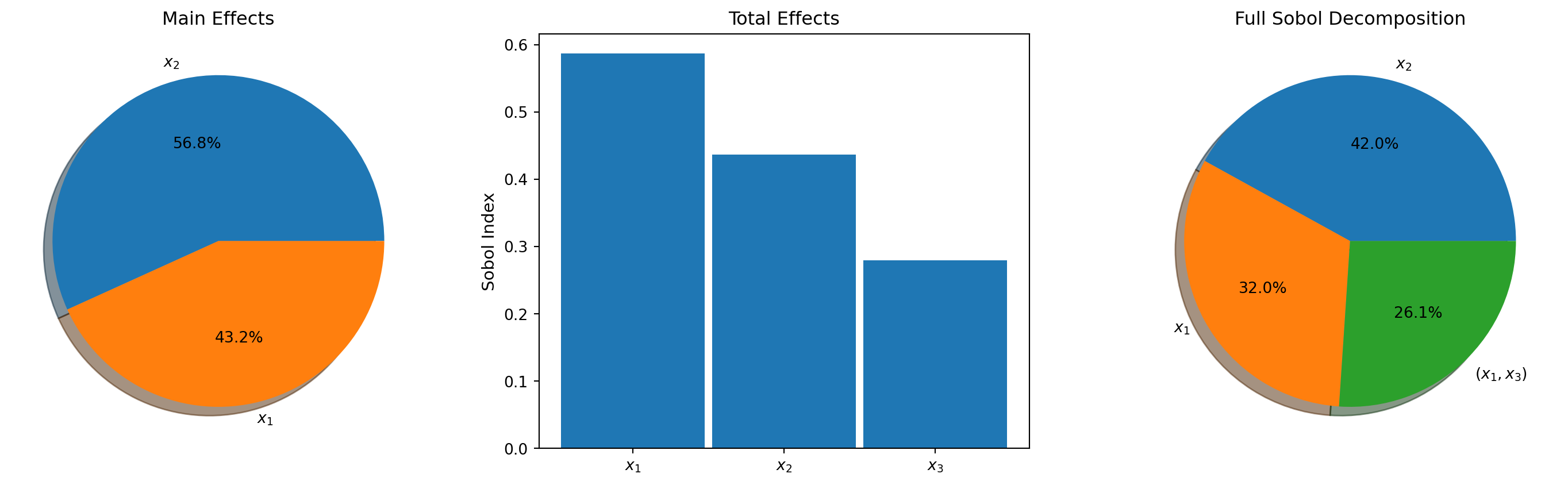

Figure 1: PCE-based Sobol indices for the Ishigami function. Left: main effect pie chart showing $x_2$ dominates. Center: total-order bar chart—$x_3$ has zero main effect but nonzero total effect due to its interaction with $x_1$. Right: full Sobol decomposition showing the $S_{13}$ interaction.

Convergence with PCE Degree

The accuracy of PCE-based Sobol indices depends on how well the surrogate approximates the true function. Higher polynomial degree generally gives better indices, but requires more training data.

Figure 2: Convergence of PCE-based Sobol indices with polynomial degree. As the degree increases, the estimates approach the analytical ground truth (dashed lines). The x_1-x_3 interaction requires higher degree to resolve because it involves a degree-4 polynomial in x_3.

The $x_3$ total effect converges slowly because it requires capturing the $x_3^4$ term, which needs at least polynomial degree 4.

Key Takeaways

PolynomialChaosSensitivityAnalysis computes Sobol indices analytically from PCE coefficients — no sampling needed
main_effects() and total_effects() return first-order and total-order indices
Use set_interaction_terms_of_interest() and sobol_indices() for higher-order interaction indices
The sum of all Sobol indices equals 1 (up to surrogate error)
Index accuracy depends on the PCE degree — higher degree resolves more complex functions

Exercises

(Easy) Compute and compare the sum $\sum_i \Sobol{i}$ at degree 4 vs. degree 8. How does the sum change, and what does it imply about how well the PCE captures interactions?
(Medium) Apply PCE sensitivity analysis to the 4D Sobol G-function (sobol_g_4d benchmark). Compute main effects and compare to the analytical ground truth. What polynomial degree is sufficient?
(Challenge) Use a multi-output PCE (e.g., the beam model with 3 QoIs) and compute Sobol indices for each QoI. Create a grouped bar chart comparing the rankings across QoIs.

Next Steps

Continue with:

Morris Screening — Cheap screening to identify important inputs before Sobol analysis
Bin-Based Sensitivity — Sobol indices from existing datasets (no special sampling design)
