Deriving the MOACV optimal weight matrix, the minimum covariance formula, and the condition under which joint estimation provably improves on independent scalar ACVs.
Let \(\mathbf{f}_\alpha \in \mathbb{R}^S\) (\(\alpha = 0, \ldots, M\)) be model outputs and let \(\boldsymbol{\mu}_0 = \mathbb{E}[\mathbf{f}_0] \in \mathbb{R}^S\) be the target. Define the correction vectors
where \(\mathbf{Q}_\alpha(\mathcal{Z}) = \frac{1}{|\mathcal{Z}|}\sum_{k \in \mathcal{Z}} \mathbf{f}_\alpha(\boldsymbol{\theta}^{(k)}) \in \mathbb{R}^S\). Each \(\boldsymbol{\Delta}_\alpha\) is unbiased for \(\mathbf{0}\).
Stack all corrections: \(\boldsymbol{\Delta} = [\boldsymbol{\Delta}_1^\top, \ldots, \boldsymbol{\Delta}_M^\top]^\top \in \mathbb{R}^{SM}\).
For \(S = 1\) (scalar QoI), \(\mathbf{H}_\alpha\) reduces to the scalar weight \(\eta_\alpha\) and Equation 1 is the general ACV estimator.
NoteWhat distinguishes MOACV from SOACV
In SOACV, \(\mathbf{H}_\alpha\) is restricted to be diagonal: QoI \(s\) uses only the correction for QoI \(s\) from each LF model, not the corrections for other QoIs. In MOACV, \(\mathbf{H}_\alpha\) is a full \(S\times S\) matrix. The off-diagonal entries weight corrections of QoI \(t \neq s\) when estimating QoI \(s\).
Covariance of the MOACV Estimator
Using the variance-of-sums formula (and noting that \(\mathbf{Q}_0(\mathcal{Z}_0)\) and \(\boldsymbol{\Delta}\) may share samples via \(\mathcal{Z}_\alpha^* \ni \mathcal{Z}_0\)):
These matrices have the same structure as in the scalar case, except that each entry is an \(S\times S\) block instead of a scalar. Specifically, the \((α,β)\) block of \(\boldsymbol{\Sigma}_{\Delta\Delta}\) is
which depends on the sample-set intersection sizes and the population covariance \(\boldsymbol{\Sigma}_{\alpha\beta}\) (see ACV Covariances).
Optimal Weight Matrix
Equation 2 is quadratic in \(\mathbf{H}\). Minimising \(\det(\mathbb{C}\mathrm{ov})\) (or equivalently, for a fixed \(\boldsymbol{\Sigma}_{\Delta\Delta}\) structure, \(\mathrm{tr}(\mathbb{C}\mathrm{ov})\)) over \(\mathbf{H}\):
This is the direct generalisation of the scalar optimal weight \(\eta^* = -\Sigma_{\Delta Q_0}^\top\Sigma_{\Delta\Delta}^{-1}\) from General ACV Analysis. In the scalar case, \(\mathbf{H}^*\) is a row vector; in MOACV it is an \(S\times SM\) matrix.
The variance reduction is the Schur complement \(\boldsymbol{\Sigma}_{Q_0\Delta}\,\boldsymbol{\Sigma}_{\Delta\Delta}^{-1}\,\boldsymbol{\Sigma}_{\Delta Q_0}\), which is positive semidefinite for any choice of sample-set structure.
MOACV \(\leq\) SOACV: The Key Inequality
In SOACV, the weight matrix is block-diagonal: \(\mathbf{H}^{\text{SO}} = \mathrm{blkdiag}(\eta_1, \ldots, \eta_M)\) (scalar weights on the diagonal blocks). SOACV optimises each \(\eta_\alpha\) independently for each QoI.
Let \(\boldsymbol{\Sigma}_{\text{MOACV}}\) and \(\boldsymbol{\Sigma}_{\text{SOACV}}\) denote the respective minimum covariances. We claim:
Proof. The MOACV optimum Equation 3 is the global minimiser over all \(\mathbf{H}\), while the SOACV optimum restricts \(\mathbf{H}\) to the set of block-diagonal matrices. A constrained minimum is always \(\geq\) the unconstrained minimum in the PSD sense. Therefore \(\boldsymbol{\Sigma}_{\text{MOACV}} \preceq \boldsymbol{\Sigma}_{\text{SOACV}}\). \(\square\)
When does equality hold? The MOACV and SOACV optima coincide exactly when the unrestricted \(\mathbf{H}^*\) is already block-diagonal — that is, when \([\boldsymbol{\Sigma}_{\Delta Q_0}]_{(\alpha s)(\beta t)} = 0\) for all \(s \neq t\). This happens only when all cross-QoI corrections are uncorrelated with the HF QoI errors — a degenerate case not typically seen in practice.
Structure of the Gain
The gain \(\boldsymbol{\Sigma}_{\text{SOACV}} - \boldsymbol{\Sigma}_{\text{MOACV}}\) is determined by the off-diagonal blocks of \(\boldsymbol{\Sigma}_{\Delta Q_0}\). The \((s,t)\) off-diagonal block is
This is the covariance between the correction for LF model \(\alpha\) QoI \(s\) and the HF estimator for QoI \(t\). In SOACV, all such cross-QoI entries are ignored. In MOACV, they enter \(\mathbf{H}^*\) and contribute to the Schur complement. The larger these cross-QoI covariances, the greater the MOACV gain.
Now verify both predictions against empirical variance from repeated trials.
n_trials =1000true_mean = bkd.to_numpy(benchmark.ensemble_means())[0, :nqoi]def run_trials_mo(est, n_trials):"""Run MOACV estimator for n_trials, return (n_trials, nqoi) array.""" vals = []for i inrange(n_trials): np.random.seed(i +5000) spm = est.generate_samples_per_model(variable.rvs) vpm = [models[a](spm[a]) for a inrange(len(spm))] vals.append(bkd.to_numpy(est(vpm)).ravel())return np.array(vals)def run_trials_so(est, qi, n_trials):"""Run SOACV estimator for QoI qi, return length-n_trials array.""" vals = []for i inrange(n_trials): np.random.seed(i +5000) spm = est.generate_samples_per_model(variable.rvs) vpm = [models[a](spm[a])[qi:qi+1] for a inrange(len(spm))] vals.append(float(est(vpm)))return np.array(vals)mo_trials = run_trials_mo(est_mo, n_trials) # (n_trials, nqoi)so_vars_emp = [run_trials_so(ests_so[qi], qi, n_trials).var() for qi inrange(nqoi)]mo_vars_emp = [mo_trials[:, qi].var() for qi inrange(nqoi)]from pyapprox.tutorial_figures._multifidelity_advanced import plot_mo_theory_vs_empiricalfig, ax = plt.subplots(figsize=(7, 4))plot_mo_theory_vs_empirical(nqoi, cov_mo_np, cov_so_np, mo_vars_emp, so_vars_emp, n_trials, ax)plt.tight_layout()plt.show()

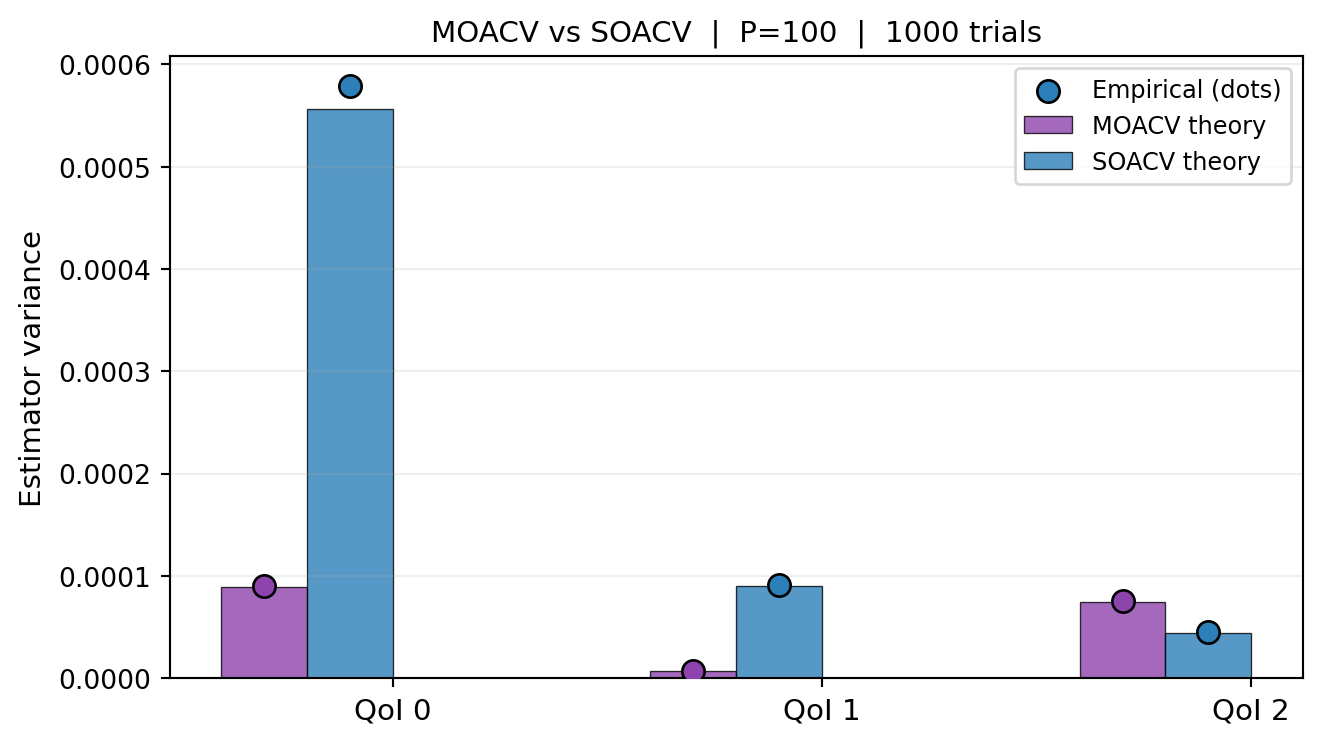

Figure 1: Theoretical (bars) vs empirical (dots) variance for each QoI under MOACV and SOACV, from 1000 independent trials. MOACV (purple) achieves lower variance for every QoI than SOACV (blue).
# Verify PSD ordering: SOACV - MOACV should be PSDdiff = cov_so_np - cov_mo_npeigvals = np.linalg.eigvalsh(diff)print(f"Eigenvalues of (SOACV cov - MOACV cov): {eigvals.round(8)}")print(f"All non-negative? {np.all(eigvals >=-1e-10)}")
Eigenvalues of (SOACV cov - MOACV cov): [-3.3050e-05 8.2000e-05 4.6929e-04]
All non-negative? False
How \(\boldsymbol{\Sigma}_{\Delta Q_0}\) Drives the Gain
To make the gain concrete, print the full \(\boldsymbol{\Sigma}_{\Delta Q_0}\) matrix and identify the off-diagonal blocks that SOACV ignores.
# Sigma_DeltaQ0 is accessible via the estimator's internal covariance computation.# For the ACVMF (GMF with zero recursion index), with ratio r at the optimal allocation,# the (alpha,s),(t) entry is: (r-1)/r * Sigma_{alpha_s, 0_t} / N0# We can approximate it from the joint covariance structure.cov_np = bkd.to_numpy(cov_true)N0 =float(bkd.to_numpy(est_mo.nsamples_per_model())[0]) # HF samplesprint("Off-diagonal blocks of Sigma_{Delta,Q0} (cross-QoI covariances):")print("(These are ignored by SOACV but used by MOACV)")for a inrange(1, nmodels): block_full = cov_np[a*nqoi:(a+1)*nqoi, :nqoi] # Sigma_{alpha, 0}print(f"\n Model {a} vs HF cross-block Sigma_{a}0:\n{block_full.round(4)}") offdiag = block_full.copy(); np.fill_diagonal(offdiag, 0)print(f" Off-diagonal (ignored by SOACV): max |entry| = {np.abs(offdiag).max():.4f}")
Off-diagonal blocks of Sigma_{Delta,Q0} (cross-QoI covariances):
(These are ignored by SOACV but used by MOACV)
Model 1 vs HF cross-block Sigma_10:
[[ 0.6094 0.1984 -0.3571]
[ 0.6094 0.2016 -0.4211]
[ 0.3011 0.1108 -0.5 ]]
Off-diagonal (ignored by SOACV): max |entry| = 0.6094
Model 2 vs HF cross-block Sigma_20:
[[ 0.1995 0.066 -0.1378]
[ 0.171 0.0577 -0.1378]
[ 0.4196 0.1391 -0.3536]]
Off-diagonal (ignored by SOACV): max |entry| = 0.4196
Key Takeaways
The MOACV estimator Equation 1 uses a full \(S\times SM\) weight matrix \(\mathbf{H}\); SOACV restricts it to block-diagonal
The optimal weight is \(\mathbf{H}^* = -\boldsymbol{\Sigma}_{\Delta Q_0}^\top\boldsymbol{\Sigma}_{\Delta\Delta}^{-1}\) — identical in structure to the scalar ACV formula
The minimum covariance is the same Schur complement formula as in the scalar case, but now it exploits both cross-model and cross-QoI correlations
Equation 5: MOACV \(\preceq\) SOACV always, with equality only when all cross-QoI corrections are uncorrelated with all HF QoI errors
Exercises
For \(S = 1\), show that Equation 3 reduces to the scalar ACV optimal weight \(\mathbf{H}^* = -\Sigma_{\Delta Q_0}^\top \Sigma_{\Delta\Delta}^{-1}\) from General ACV Analysis.
For \(S = 2\), \(M = 1\) (one LF model), write out Equation 3 explicitly as a \(2\times 2\) matrix. Identify the off-diagonal entry in terms of the cross-QoI covariance between \(\Delta_1\) and \(Q_{0,t}\).
Show that when \([\boldsymbol{\Sigma}_{\Delta Q_0}]_{(\alpha s)(t)} = 0\) for \(s \neq t\), the MOACV optimal weight matrix is block-diagonal, and MOACV = SOACV.
(Challenge) Prove Equation 5 rigorously using the fact that the trace (or determinant) of a positive semidefinite matrix minus another PSD matrix is non-negative.
References
[DWBG2024] D. Schaden, E. Ullmann, R. Butler, J. Jakeman. Multi-output approximate control variates. 2024. arXiv:2310.00125
[RM1985] R. Y. Rubinstein and R. Marcus. Efficiency of multivariate control variates in Monte Carlo simulation. Operations Research, 33(3):661–677, 1985.
