Signal Level Scale factor in decibels applied to the signal.
Repeat Signal If checked, the signal will repeat continuously. If not checked, the environment will stop after the signal is played in its entirety.
Start Environment Starts playing the signal from the shakers and recording responses to that signal.
Stop Environment Stops the signal currently playing. It will ramp down the signal to zero over the time specified by the Cancel Rampdown Time parameter on the Environment Definition tab.
Outputs Plot A plot of the output signals as they are measured.
Responses Plot A plot of the responses to the outputs that are being measured. Responses defined as any channel active in the environment that is not an output channel.
Environment Control
Signal Level Scale factor in decibels applied to the signal.
Repeat Signal If checked, the signal will repeat continuously. If not checked, the environment will stop after the signal is played in its entirety.
Start Environment Starts playing the signal from the shakers and recording responses to that signal.
Stop Environment Stops the signal currently playing. It will ramp down the signal to zero over the time specified by the Cancel Rampdown Time parameter on the Environment Definition tab.

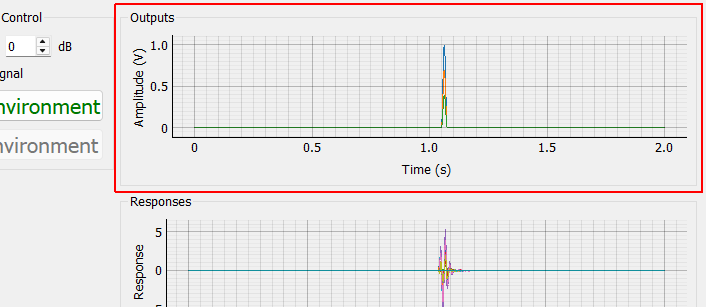

Outputs

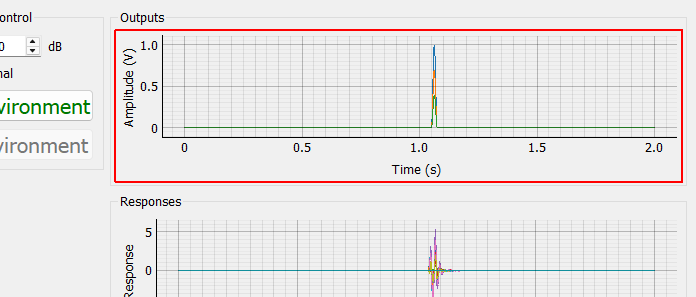

Outputs Plot A plot of the output signals as they are measured.

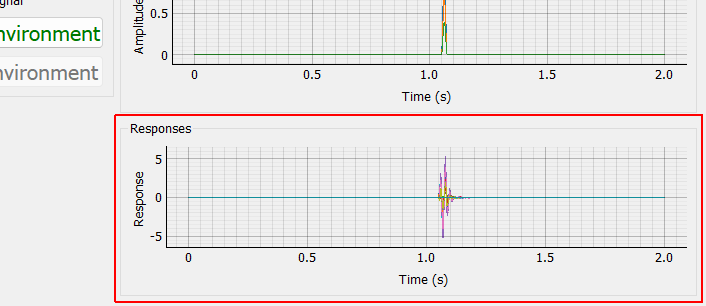

Responses

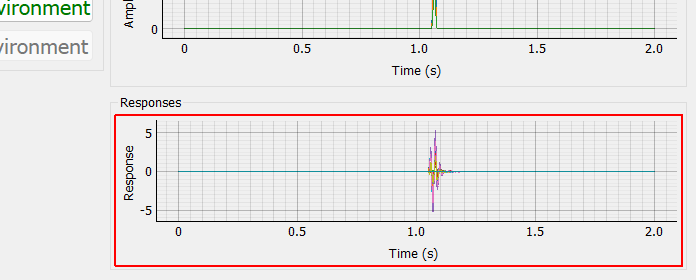

Responses Plot A plot of the responses to the outputs that are being measured. Responses defined as any channel active in the environment that is not an output channel.
