Load Signal Opens a file dialog to select a file that contains time data to play to the shakers
Signal File File path from which the time signal was loaded.

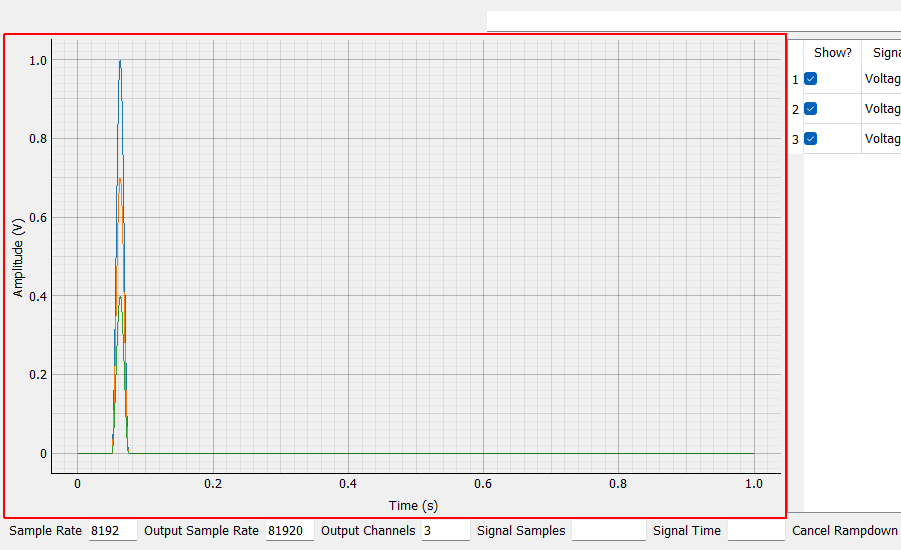

Time History Plot A plot showing the loaded time signals. Individual signals can be displayed or hidden using the signal table.
Signal Table Lists the signals that will be played to the shakers in this environments. Signals can be hidden or displayed by checking the box in the Show? column.
Sample Rate The sample rate of the data acquistion. This is for display only; the sample rate is specified on the Data Acquisition Parameters tab.
Output Sample Rate The sample rate of the signal generator. This is for display only; the value is set on the Data Acquisition Tab. Depending on the type of data acquisition system used, this may be a parameter that can be changed independently, or it may be tied to the sample rate of the data acquisition system.
Output Channels Total number of output channels active in the environment.
Signal Samples Total number of samples in the loaded signal
Signal Time Total time it will take to generate the signal
Cancel Rampdown Time Time to ramp down the signal to zero if the environment is stopped manually before the signal ends.
Load Signal Opens a file dialog to select a file that contains time data to play to the shakers
Signal File File path from which the time signal was loaded.
Time History Plot A plot showing the loaded time signals. Individual signals can be displayed or hidden using the signal table.
Signal Table Lists the signals that will be played to the shakers in this environments. Signals can be hidden or displayed by checking the box in the Show? column.
Sample Rate The sample rate of the data acquistion. This is for display only; the sample rate is specified on the Data Acquisition Parameters tab.
Output Sample Rate The sample rate of the signal generator. This is for display only; the value is set on the Data Acquisition Tab. Depending on the type of data acquisition system used, this may be a parameter that can be changed independently, or it may be tied to the sample rate of the data acquisition system.
Output Channels Total number of output channels active in the environment.
Signal Samples Total number of samples in the loaded signal
Signal Time Total time it will take to generate the signal
Cancel Rampdown Time Time to ramp down the signal to zero if the environment is stopped manually before the signal ends.
