Abstract

Rattlesnake is a combined-environments, multiple input/multiple output control system for dynamic excitation of structures under test. It provides capabilities to control multiple responses on the part using multiple exciters using various control strategies. Rattlesnake is written in the Python programming language to facilitate multiple input/multiple output vibration research by allowing users to prescribe custom control laws to the controller. Rattlesnake can target multiple hardware devices, or even perform synthetic control to simulate a test virtually. Rattlesnake has been used to execute control problems with up to 200 response channels and 24 shaker drives. This document describes the functionality, architecture, and usage of the Rattlesnake controller to perform combined environments testing.

Nomenclature

Notation

Accents

• $\mathbf{x}$ (bold, non-italic typeface) Matrix or vector
• $x$ (non-bold, italic typeface) Scalar or array

Variables

• $n_f$ Number of frequency lines
• $n_c$ Number of control channels
• $n_o$ Number of output signals
• $n_s$ Number of samples in a signal
• $n_{o}s$ Number of samples in an oversampled output signal
• ${\mathbf{G}}_{vv}$ CPSD matrix for the output signals
• ${\mathbf{G}}_{xx}$ CPSD matrix for the responses (i.e. the specification)
• ${\mathbf{H}}_{xv}$ Transfer function matrix between the responses and the output signals
• $\mathbf{X}$ Response spectra (FFT)
• $\mathbf{V}$ Output spectra (FFT)
• $\mathbf{T}$ Transformation matrix
• $\mathbf{A}$ State or system matrix for state space equations of motion
• $\mathbf{B}$ Input matrix for state space equations of motion
• $\mathbf{C}$ Output matrix for state space equations of motion
• $\mathbf{D}$ Feedthrough or feedforward matrix for state space equations of motion
• $\mathbf{x}$ State vector for state space equations of motion
• $\mathbf{y}$ Output vector for state space equations of motion
• $\mathbf{u}$ Input vector for state space equations of motion
• $\mathbf{M}$ Mass matrix for 2nd-order differential equations of motion
• $\mathbf{C}$ Damping matrix for 2nd-order differential equations of motion
• $\mathbf{K}$ Stiffness matrix for 2nd-order differential equations of motion

Operations

• ⬚${}^{+}$ Pseudoinverse of a matrix
• ⬚${}^H$ Complex-conjugate transpose of a matrix (hermitian)

1. Introduction

The field of multiple input/multiple output (MIMO) vibration testing has grown substantially in the past few years. MIMO vibration testing provides the capability to match a field environment more accurately and at more locations on the test article than traditional single-axis vibration testing. Unfortunately, many existing vibration control systems are proprietary, which makes it difficult to implement new MIMO techniques.

Currently, MIMO vibration practitioners must either develop a control system from scratch to implement their ideas, or alternatively convince an MIMO vibration software vendor to implement their ideas into existing devices, and neither of these approaches are conducive to the rapid and iterative nature of research.

The Rattlesnake framework was developed to overcome these limitations and facilitate MIMO vibration research. Rattlesnake is a MIMO control system that provides the user the ability to overcome testing challenges by providing a flexible framework that can be extended and modified to meet testing demands. Rattlesnake can run multiple environments simultaneously, providing a combined-environments capability that does not yet exist in commercial software packages. It can target multiple hardware devices, or even perform control virtually using a state space model, finite element model (FEM) results, or a SDynPy System.

1.1. Document Overview

This document provides information about the functionality in the Rattlesnake software, as well as instructions for how to use that functionality. The document is divided into Parts targeting different aspects of the software.

• Part I provides an overview of the software as well as instructions for how to acquire and run the software. Chapter 2 includes instructions for setting up the Python ecosystem required to run the software, if necessary. Chapter 3 describes the Rattlesnake userinterface (UI). Each main portion of the Rattlesnake interface is described along with the parameters that should be defined within that interface.
• Part II describes the hardware devices available to the Rattlesnake software, as well as the hardware-specific considerations in the controller. Each Chapter in this Part is dedicated to a specific hardware device. Synthetic or virtual control is also discussed in this part, as well as instructions to extend Rattlesnake to additional hardware devices.
• Part III describes the various control environments contained within the Rattlesnake software. The environments defined within Rattlesnake are where the next output data that will be sent to the exciters are computed based off the previously acquired data. Each chapter in this Part is dedicated to a environment type within Rattlesnake. This chapter also provides instructions to combine environments as well as extend Rattlesnake to additional environments.
• The Appendices contain several example problems. Users with a reasonable understanding of the Rattlesnake workflow can use these chapters as a kind of "Quick Start" guide to the software. Appendix B demonstrates a series of tests on a simple beam using a NI cDAQ hardware device. Appendix C and Appendix D demonstrate virtual control problems using SDynPy System and State Space models, respectively, which only require a computer to run.

Part I. Rattlesnake Overview

This Part provides a general overview of Rattlesnake software. Chapter 2 provides an overview of how to acquire and run the software. Chapter 3 describes the general software workflow.

This Part with only deal with "global" Rattlesnake paramters. For hardware-specific parameters, see Part II. For environment-specific parameters, see Part III.

2. Acquiring and Running Rattlesnake

Two methods are provided to acquire the Rattlesnake software. The software can be downloaded as an executable and run directly with no other dependencies. Alternatively, the software can be downloaded in its Python script form and run using a Python interpreter. The former approach is simpler, but results in a larger file size and longer software loading time due to the necessity to pack the Python ecosystem into the executable for distribution and unpack it prior to execution. The latter approach is more suited to users who wish to utilize the full functionality of the Rattlesnake framework, which would include activities such as coding up custom control laws. In this case, it will be advantageous to have a Python ecosystem installed on the user's computer, so simply downloading the source code and executing it similarly to other Python scripts will potentially be easier than the executable approach.

2.1. Running from an Executable

Python code can be compiled into a single executable file, which makes it easier to distribute Python code. The user need not have a Python distribution installed on their computer to simply run the executable, as the executable will contain the required Python interpreter and libraries compiled within it. The executable approach has a few disadvantages. The file size of the executable will generally be larger than the raw source code. Additionally, the executable will generally be slower to start due to the necessary unpacking of the Python ecosystem from it. Still, if a user is not familiar with Python, the executable will be the easiest approach to run the software.

2.1.1. Downloading the Executable

Executables for Rattlesnake are generally stored in the GitHub Project on the GitHub Releases page. A user can simply download the executable corresponding to the user's operating system and save it to their computer. No installation is necessary to run this executable.

2.1.2. Running the Executable

Running Rattlesnake from an executable is as simple as running any other program. Simply double click on the executable (or otherwise execute it) and the program will run. Note that there may be a significant delay between executing the executable and the program appearing, as the executable will unpack a Python distribution into the user's temporary space in order to run the included Python code.

As with any other executable program, users may create links to the program to put on the desktop or in the start menu to make accessing the program easier.

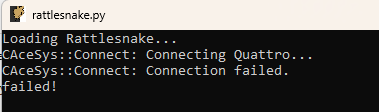

It may be beneficial to run the executable through the command terminal, as otherwise if an error occurs in the program, the program may simply disappear without the user being aware of any errors. When running through the command terminal, the user will be able to view any error messages if the program unexpectedly exits, which will be useful in diagnosing the issue if submitted to the issue tracker in the GitHub Issues (See Obtaining Support for more information).

2.2. Running from the Python script

The alternative to running the Rattlesnake as an executable is to run it as a Python script, which users familiar with the Python programming language should be accustomed to. This approach provides the user the ability to modify code directly without needing to recompile an executable. Additionally, if the user plans on developing custom control laws for the Rattlesnake (see, e.g., Chapter \ref{sec:rattlesnake_environments_mimo_random} for more information), they will generally require a Python ecosystem installed on their computer, so the running of the code as a script is not a great burden.

2.2.1. Setting up a Python Ecosystem

The first step to running Rattlesnake from its Python script is to install Python. This can be done in multiple ways. Python can be downloaded and installed from the Python website directly. When installed this way, Python will not include any of the numeric or scientific libraries such as NumPy or SciPy. For this reason, many users will prefer to download a scientific Python distribution which contains many numeric or scientific libraries. Anaconda or WinPython are popular distributions.

Regardless of the distribution selected, users will need to install packages that Rattlesnake depends on. The GitHub repository contains a requirements.txt file that can be used by the Python package manager pip to install all required dependencies:

pip install -r requirements.txt

Note that if running through a corporate or university firewall, the proxy may need to be specified in pip. Additionally, on some networks the Python package repositories must be added as trusted hosts. Such a command may look like

pip --proxy <proxy_address> install --trusted-host pypi.org --trusted-host files.pythonhosted.org -r requirements.txt

where <proxy_address> is the address of the proxy.

2.2.2. Downloading the Python Code

With Python installed the Rattlesnake code can be downloaded from the GitHub project repository. For users who aim to develop the Rattlesnake software, the preferred approach to acquire the software is to use Git to clone the repository. For users who only wish to use the software, the code can be downloaded in a zip file or other archive format and extracted to the user's computer.

2.2.3. Running Rattlesnake

If Python is on the user's path, the user can simply call

python rattlesnake.py

from a command line in the directory in which Rattlesnake was downloaded to execute the software. If Python is not on the user's path, it will be necessary to provide the command line the full path to the Python executable.

Many users will find it more comfortable to forgo the command line and launch Rattlesnake directly from their favorite integrated development environment (IDE). Note that the Rattlesnake uses the multiprocessing Python package to spawn several processes, and these processes sometimes do not play nice with IDE consoles. Therefore if running from an IDE, the IDE should be instructed to run the rattlesnake.py script from an external system terminal rather than a terminal inside the IDE. When executing in an external terminal, it is again useful to keep the terminal active after execution in case of errors occurring. The error message and traceback displayed in the terminal will be instrumental in debugging the source of the error. In Spyder, this can be configured per file from the Run menu, so the run settings for rattlesnake.py should be set as shown in Figure 2-1.

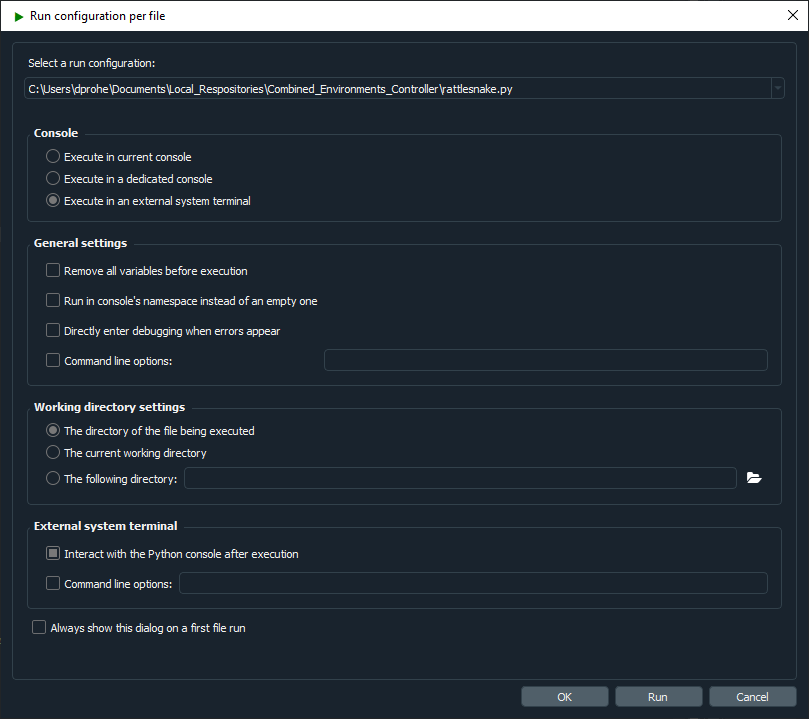

Figure 2-1. Spyder run configuration showing execution in an external system terminal as well as allowing interaction with the Python console after execution.

2.3. Computational Requirements

Rattlesnake is a process-heavy software; it spawns processes for each environment, as well as for various portions of the controller that should operate in parallel. In general, the core controller utilizes 2-3 full processes. Various environments will also utilize multiple processes; for example, the MIMO Random Vibration uses 3 main processes to compute spectral quantities (FRFs, CPSDs, etc.), perform control calculations, and generate time histories simultaneously. If running virtual control, keep in mind that acquisition processes will be more fully subscribed due to the need to integrate the equations of motion rather than just read data off the data acquisition hardware.

While the exact computational requirements will depend on the channel count of the test and size of the control computations, the authors have had success using a 6-core processor with 32 GB RAM for multi-environment control approximately 20 control channels and 4 outputs. For a 200 acquisition channel test with 50 control channels and 8 outputs, the authors needed to upgrade to a 16 core, 32 GB RAM computer.

2.4. Obtaining Support

Rattlesnake was developed by a small team as a research tool, and as such will not be as polished as commercial vibration software. Therefore, it should be expected that bugs and errors will occur from time to time. If a bug occurs, please report it by creating a new issue in the GitHub issues board. This will notify the development team of the issue and they can work to solve it. If users have a feature request, these can also be submitted to the GitHub issues board.

The issue tracker provides templates for Bugs, Feature Requests, and Questions. The more thoroughly that these can be filled out, the greater the chance that the development team can solve the issue. For bug reports, files can also be attached to the issue, so the users can include the Rattlesnake.log file that is generated for each run of the Rattlesnake, as well as any screenshot of error messages that get shown in dialog boxes or the command window. The question template can be used for basic support questions, which will be answered by the developers as their time permits. Users should certainly consult this User's Manual and the Rattlesnake Source Code first to ensure their question is not covered by it.

3. Using Rattlesnake

This chapter will describe how to use Rattlesnake through its graphical user interface (GUI). Rattlesnake is capable of running several different types of control, therefore the GUI may look different for different tests. In general, the GUI consists of a tabbed interface across the top of the main window, and users must complete each tab before proceeding to the next. The tabs that exist in a given test will depend on which control type is being run. For example, in a combined environments test (see Chapter 16 Combined Environments) such as the one shown in Figure 3-1, there is a Test Profile tab that allows the user to define a testing timeline. Additionally, environments such as the MIMO Random Vibration environment (see Chapter 12 Multiple Input/Multiple Ouput Random Vibration) require a system identification phase where the controller identifies relationships between the output signals and the control degrees of freedom. Therefore, tests using the MIMO Random Vibration environment will also have a System Identification and Test Predictions tab. Figure 3-2, on the other hand, shows the GUI for a test that only utilizes the Time History environment (see Chapter 14 Time History Generatory) so these optional tabs are not displayed.

Figure 3-1. Rattlesnake GUI tabs when running a combined environments test with an environment that requires a system identification.

Users of Rattlesnake must be aware that depending on their test configuration, their GUI may not appear identical to images shown in this User's Manual. Additionally, users should be aware that the GUI library used by this software will inherit stylistic features from the operating system. There may therefore be cosmetic differences between the images of the GUI shown in this document and the GUI seen by the user. All images in this document were created using Microsoft Windows 10 or Windows 11 operating systems, so users with Mac or Linux operating systems will note a difference in GUI appearance.

Note that the Rattlesnake enforces an order to operations when defining a particular test by enabling and disabling tabs in the GUI. Initially, only the first tab will be enabled. As the users complete each tab, the next tab will become available. In Figures 3-1 and 3-2, it can be seen that only the initial tab is enabled, and subsequent tabs are disabled.

Figure 3-2. Rattlesnake GUI tabs when running a single environment with no system identification phase.

3.1. Environment Selection

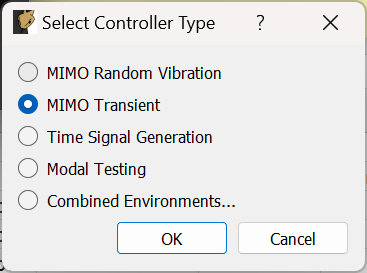

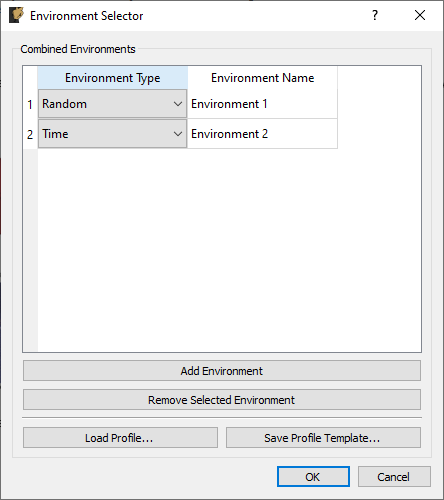

When Rattlesnake is opened, the first GUI window that the user will see allows the user to select the environment that they will run (Figure 3-3.). Users can select a single environment, or alternatively select a combined environments test (see Section 16 Combined Environments). The selection made in this dialog box will determine which tabs are set up in the main GUI.

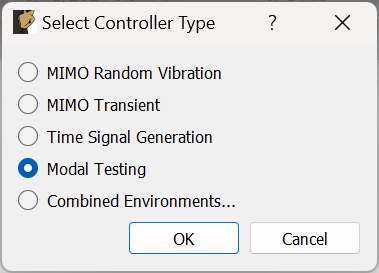

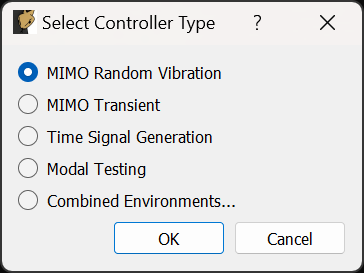

Figure 3-3. Initial Rattlesnake dialog to select the type of control that will be run.

3.2. Global Data Acquisition Settings

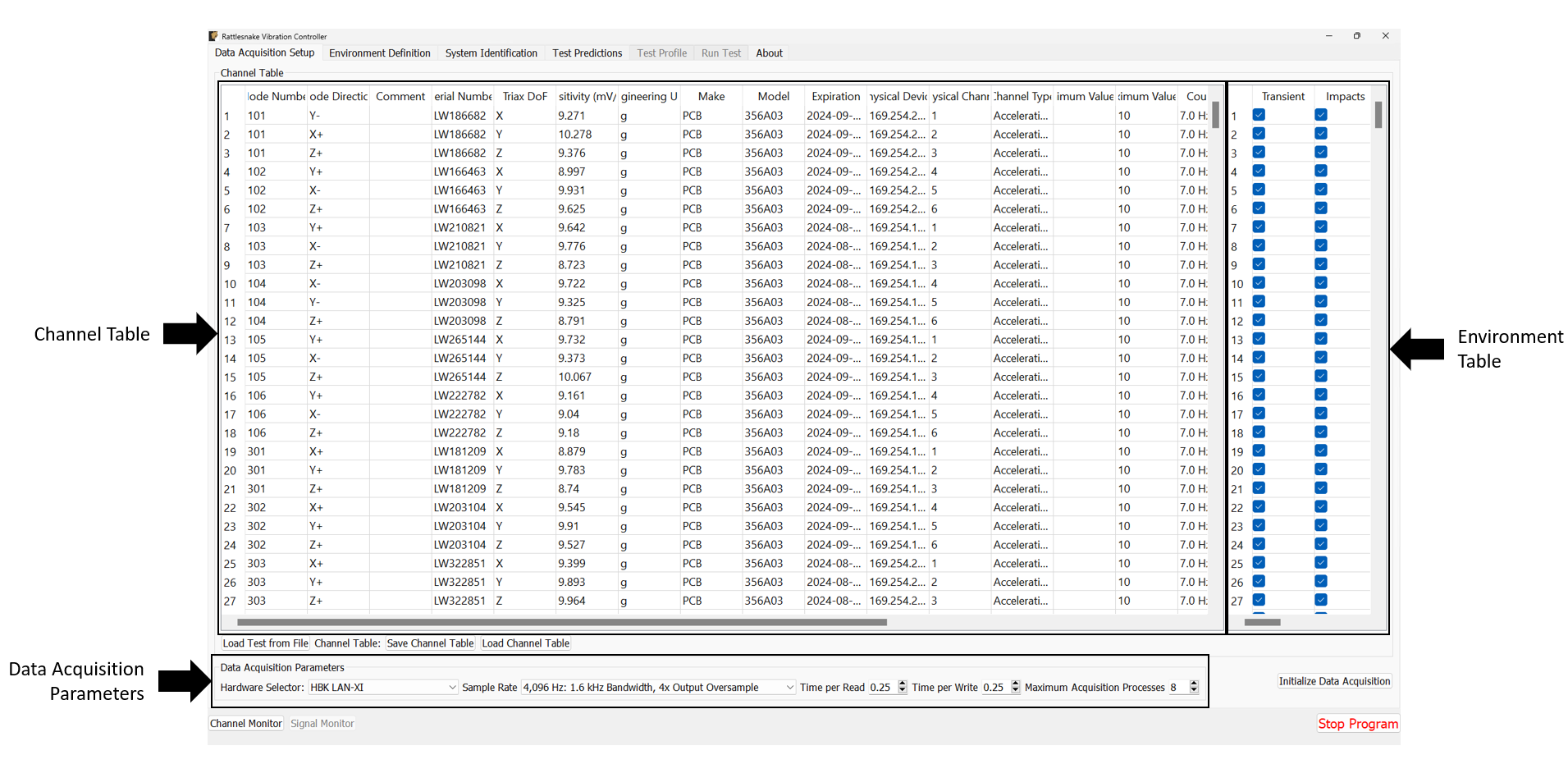

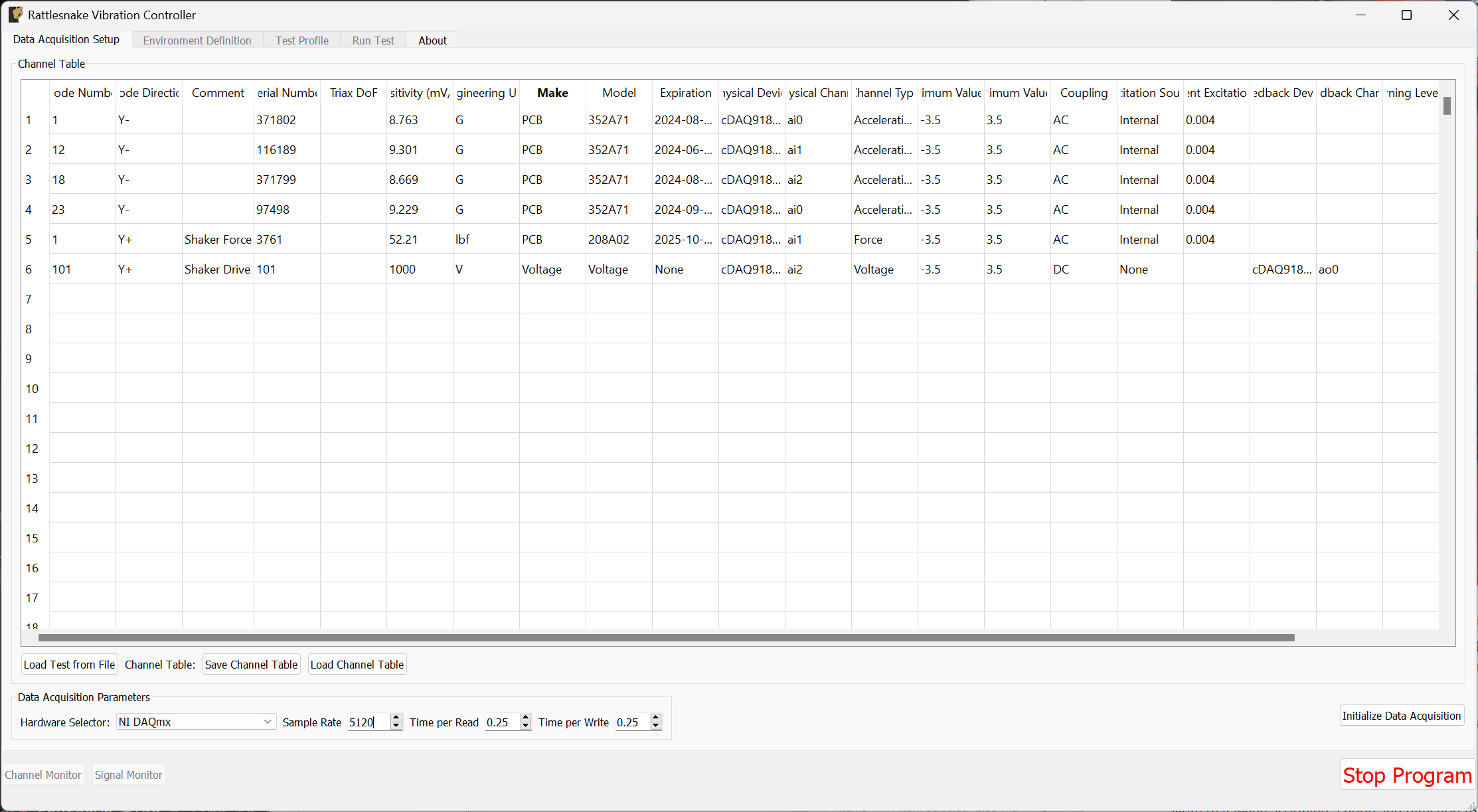

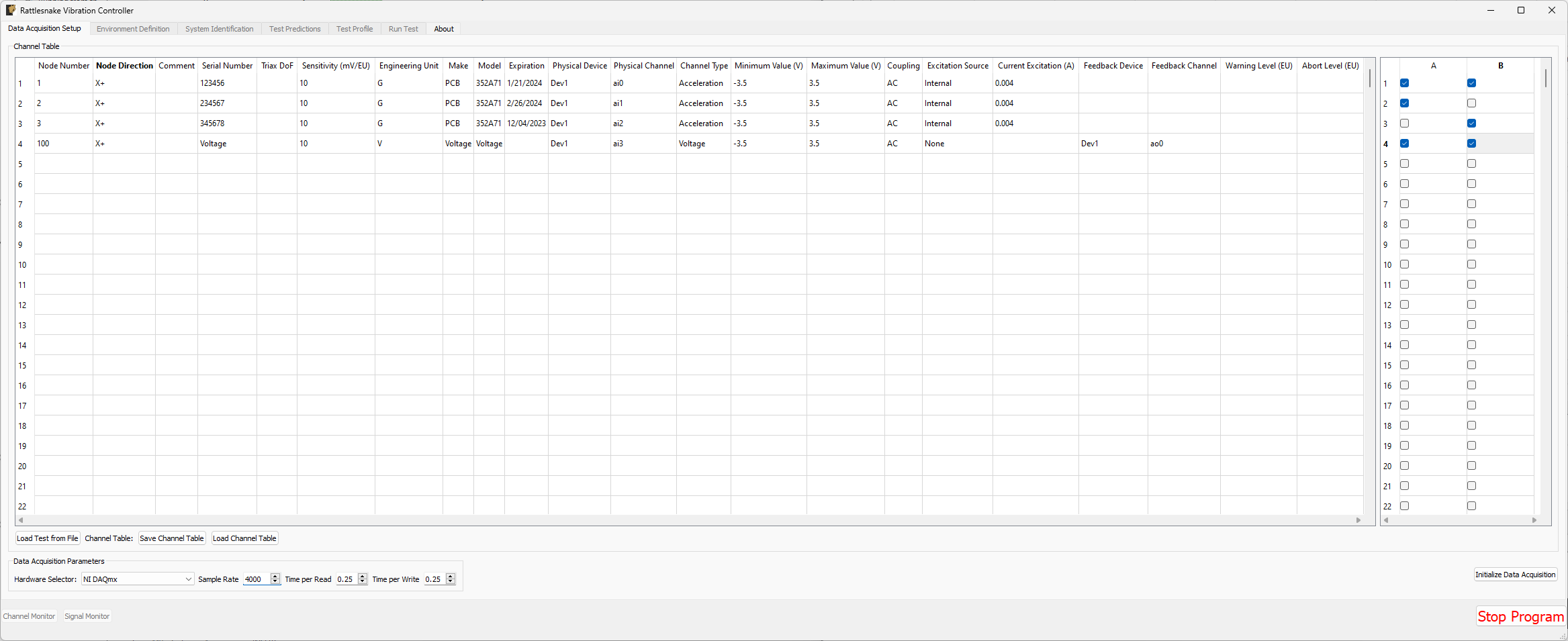

The Data Acquisition Setup tab of the Rattlesnake GUI specifies the global test parameters that the controller will use. Parameters are determined to be global when they affect all environments or the controller itself. The three main sections of this portion of the interface are the Channel Table, Environment Table, and Global Data Acquisition Parameters. Figure 3-4 shows this.

Figure 3-4. Data Acqisition Setup tab in the Rattlesnake Controller where the Channel Table, Environment Table, and Data Acquisition Parameters are specified.

3.2.1. Channel Table

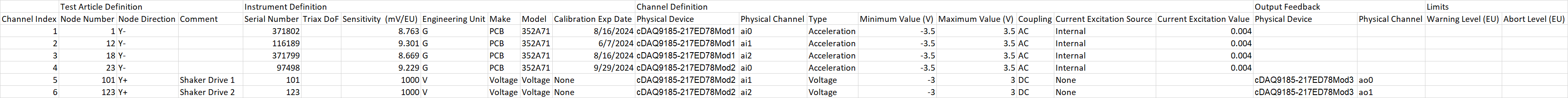

The channel table specifies how the instrument channels in a given test are connected to the data acquisition hardware, as well as how the data read from those channels are used by the software.

In general, for a given test there will be a set of excitation devices that use the output signals from Rattlesnake as well as instrumentation to record the test article's responses to those exciters. Rattlesnake requires each instrument (or each channel on each instrument for multi-axial instruments) as well as each excitation device to have a row in the channel table. This is perhaps contrary to other control software where only the response channels need to be set up in the channel table. However, to maintain the flexibility to run multiple types of hardware devices, some of which having limitations to their triggering capabilities, Rattlesnake must read in the signal from its output directly in order to be able to synchronize its outputs and the responses to those outputs. Therefore, for all Rattlesnake test setups, the output signal should be split using a tee to the exciter and the corresponding input channel. Because of this requirement, one should keep in mind that the number of acquisition channels required on the hardware device for a given test is actually the number of responses plus the number of outputs. Figure 3-5 shows a schematic of a four acquisition channel, two output channel LAN-XI module set up for use with Rattlesnake.

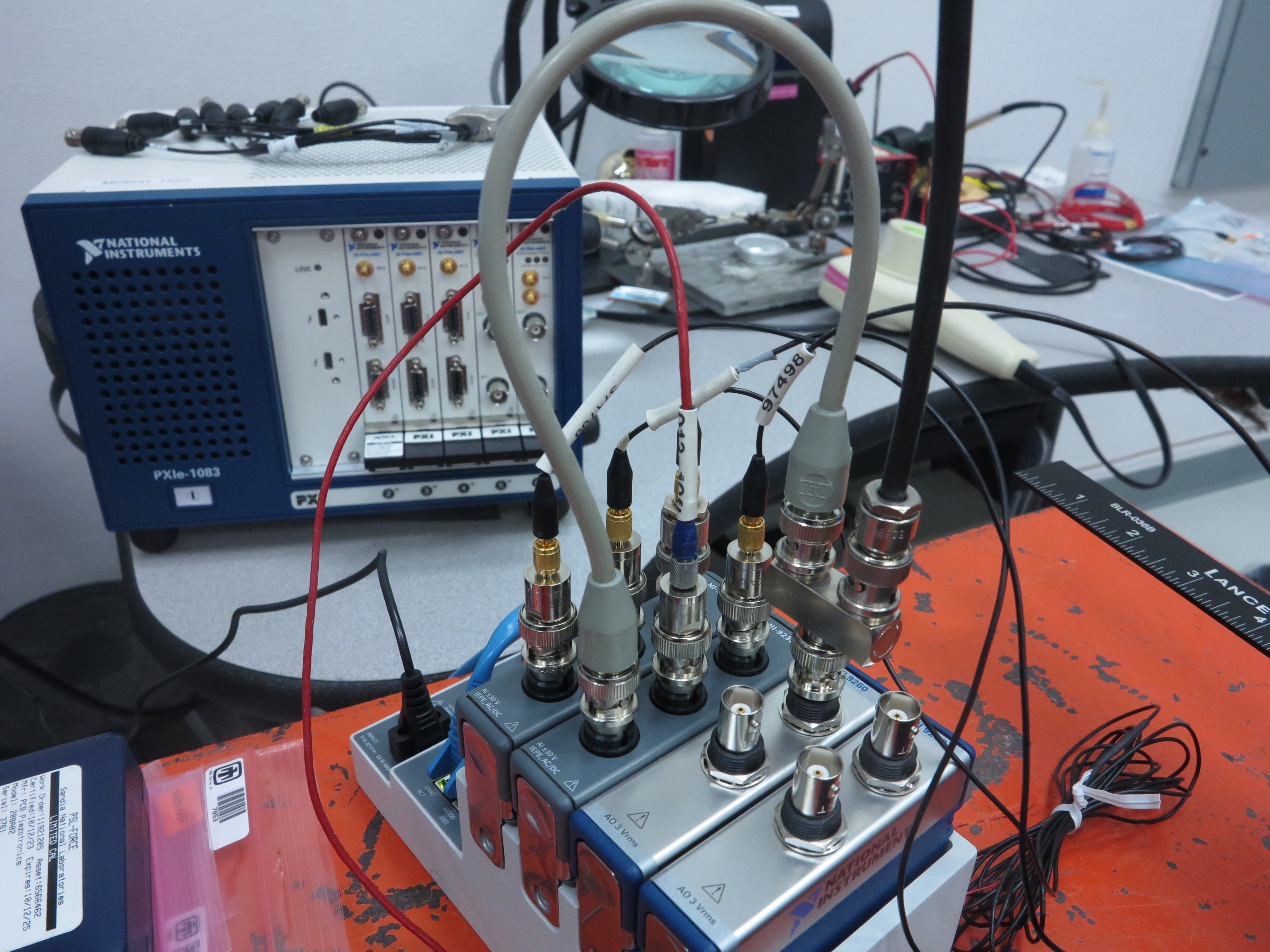

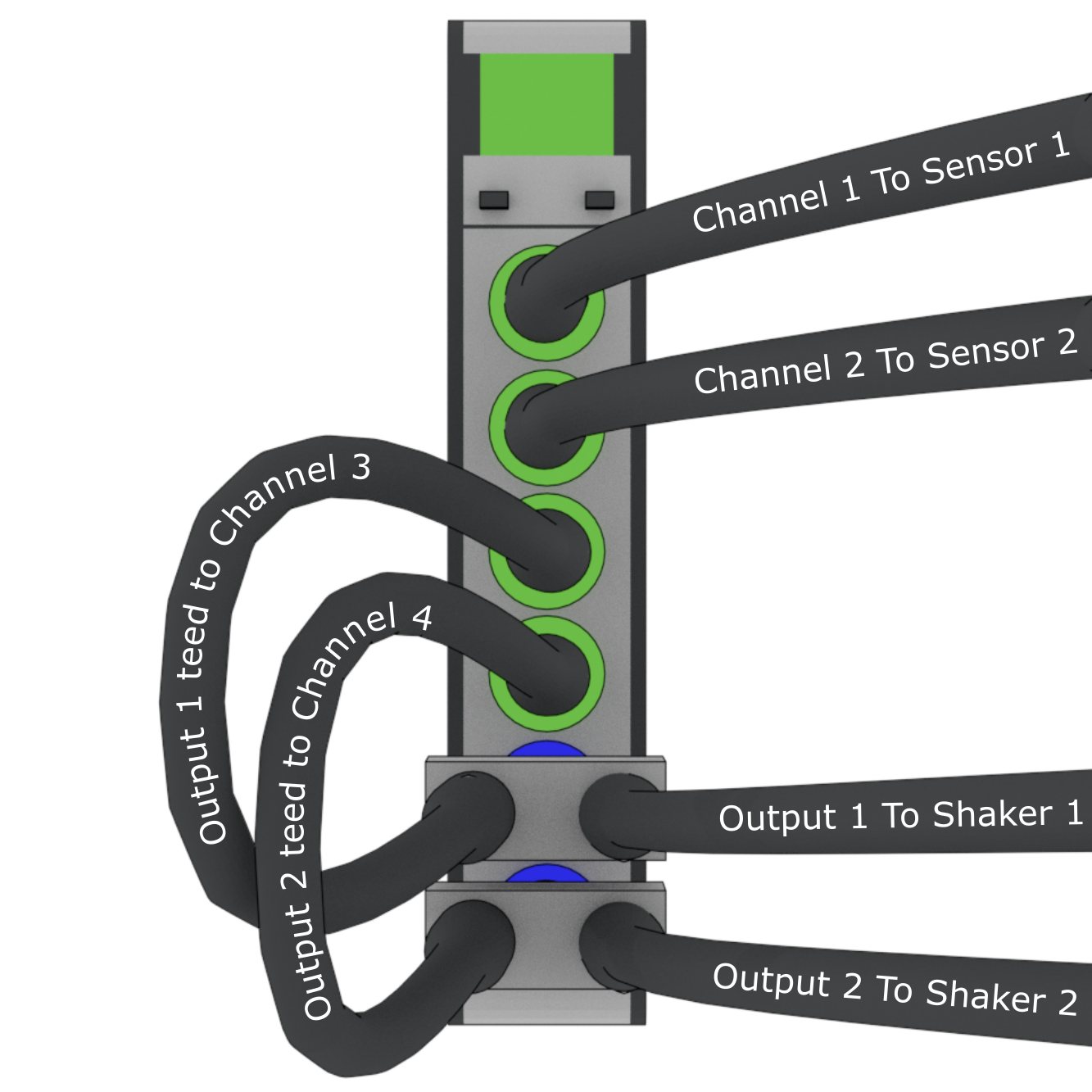

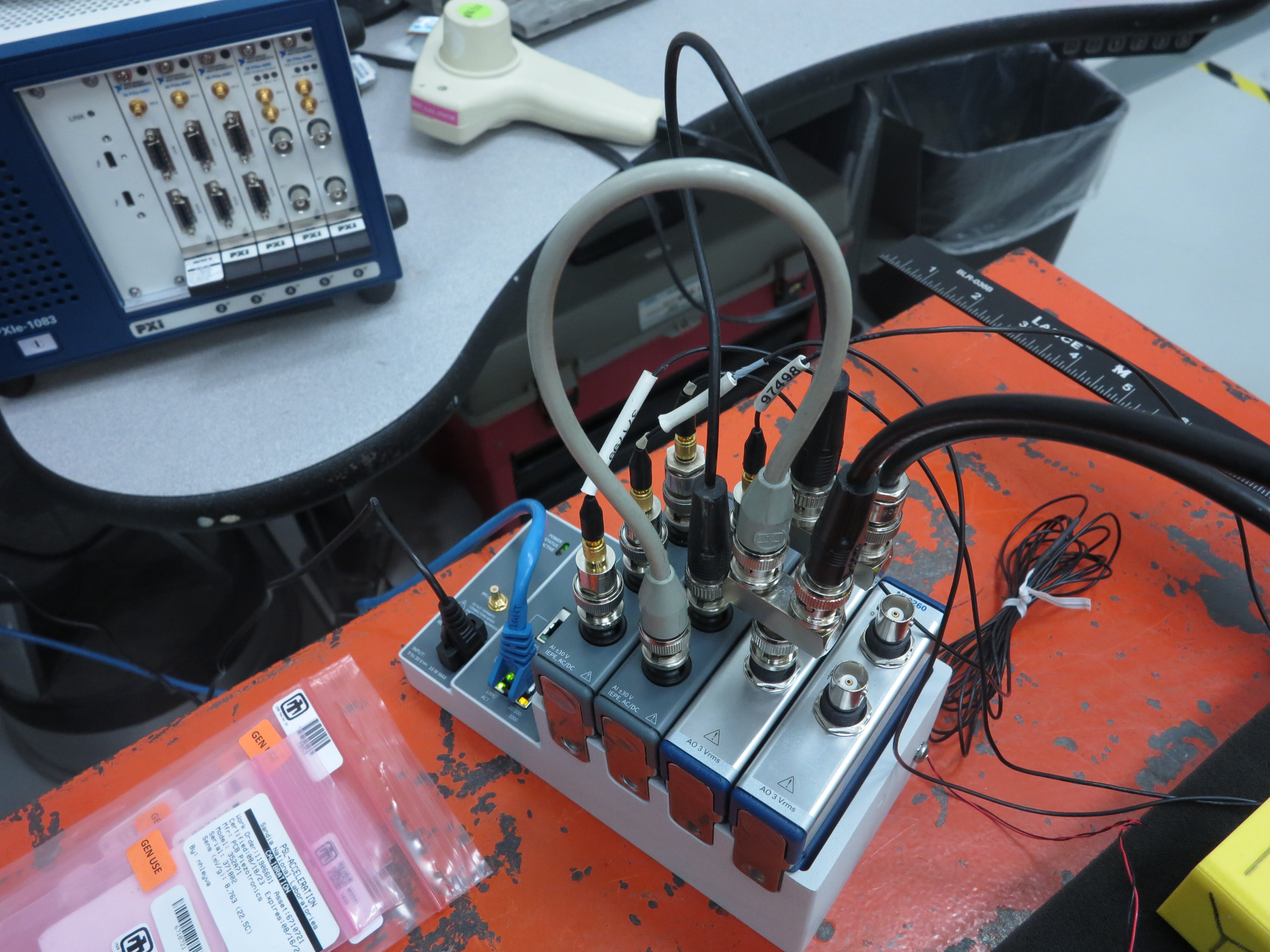

Figure 3-5. Output channels teed to acquisition channels so they can be read by the controller.

The required data input into the channel table varies with the physical or virtual hardware used for the test. For device-specific channel table requirements, see the appropriate section of Part II. In general, the entries to the channel table are as follows:

• Node Number Determines the instrumentation position on the test article. While not used directly by the controller except to label plots, it is important for book-keeping and test documentation. The node number will generally correspond to a node in a test geometry or FEM.
• Node Direction Determines the instrumentation direction on the test article at the position specified by the Node Number. Again, this is not used directly by the controller except to label plots, but it is important for book-keeping. The Node Direction will generally correspond to the node's local coordinate system if one exists in the test geometry.
• Comment Provides space for additional information about a channel that may not be captured by the Node Number and Node Direction.
• Serial Number The serial number of the instrument used for the given channel. This field is not used by the controller but will be stored with the test data and is important for data traceability to know which instruments were used to measure which channels.
• Triax DoF The degree of freedom on a given instrument corresponding to the given channel. This is primarily used to distinguish between the three axes of a triaxial accelerometer, but has the potential to be used for other multi-axis instrumentation types such as strain gauge rosettes.
• Sensitivity The sensitivity of the instrument in millivolts per Engineering Unit. This is used to transform the acquired data from a raw voltage to a engineering quantity such as acceleration or force.
• Engineering Unit The unit in which the measured signal for the given instrument will be reported. Certain hardware will limit the units that can be specified: see Part II for more information.
• Make The name of the instrument's manufacturer, used for data traceability.
• Model The product name or model number of the instrument, used for data traceability.
• Expiration The expiration date of the instrument's calibration certificate. Note that this is only for data traceability; no checking of this date with the current data to ensure a valid calibration is performed by the software.

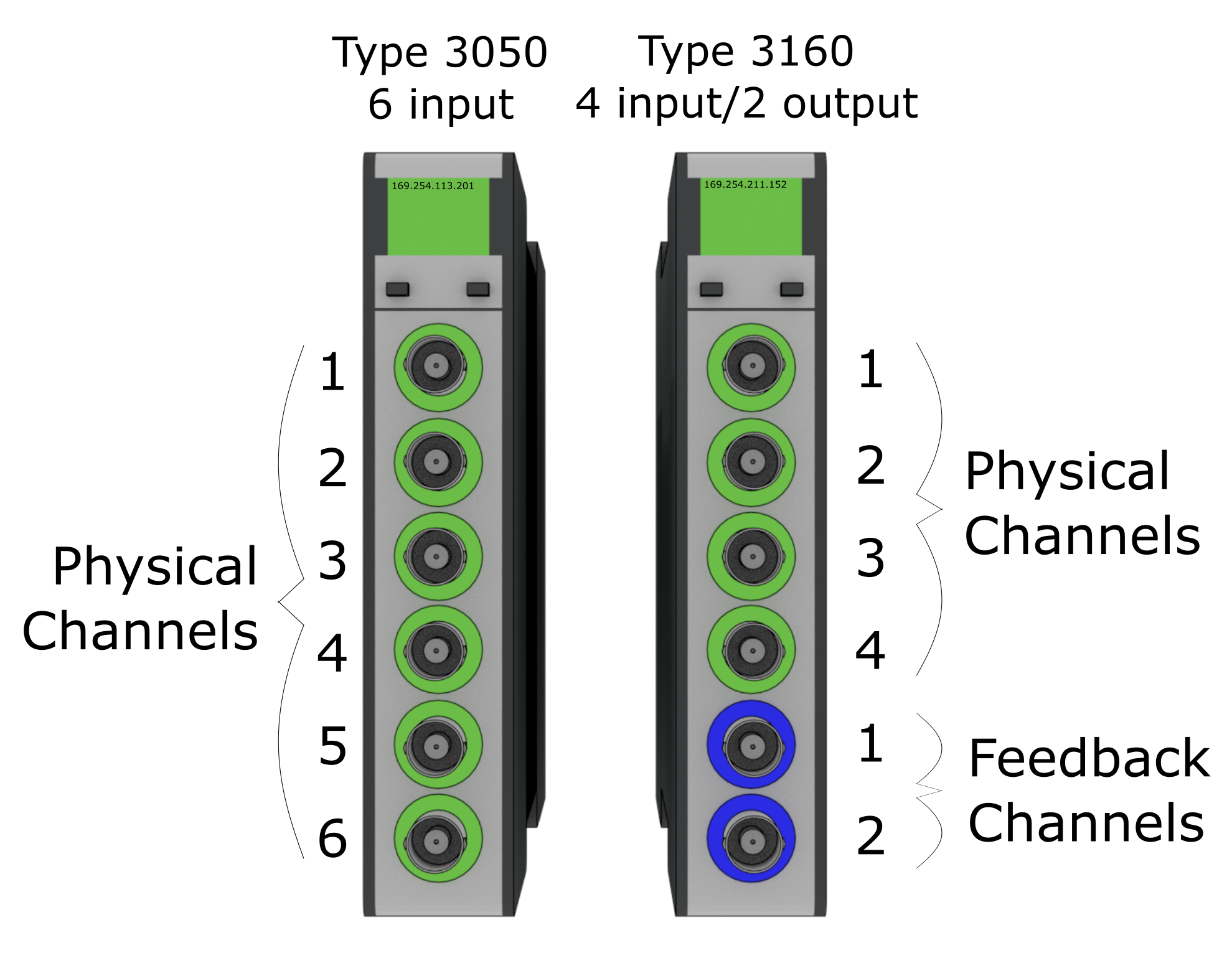

• Physical Device The reference to a physical device attached to the computer. The entries in this field will be specific to the acquisition hardware being used for a given test. For virtual control, this column must be filled to specify that a given channel is active. See Part II for more information.
• Physical Channel The reference to a channel on a physical device attached to the computer. The entries in this column will be specific to the acquisition hardware being used for a given test. See Part II for more information.
• Channel Type The type of the channel being used for a given test, such as Acceleration, Force, or Voltage. The allowable entries in this column will be specific to the acquisition hardware being used for a given test. See Part II for more information.
• Minimum Value (V) The minimum voltage that the data acquisition system can handle during a test. This is used to set the range on the data acquisition system. For hardware devices with symmetric ranges (e.g. $\pm$10V), this column can be left blank.
• Maximum Value (V)] The maximum voltage that the data acquisition system can handle during a test. This is used to set the range on the data acquisition system. For hardware devices with symmetric ranges (e.g. $\pm$10V), this column is used to set the maximum and minimum voltage values.
• Coupling The coupling used by the data acquisition system. This may include filtering in addition to AC/DC coupling, which is dependent on the hardware being used for a given test. See Part II for more information.
• Excitation Source Used to specify the signal conditioning that is required by the instrument. This column is generally where the constant current line drive (CCLD)/integrated electronics piezoelectric (IEPE)/integrated circuit piezoelectric (ICP) is specified for a given hardware device. See Part II for more information.
• Current Excitation (A) Used to specify the excitation current sent to the device for signal conditioning. Depending on whether the device has a fixed or variable excitation current, this field may be left empty. This can also be left empty if no signal conditioning is provided by the data acquisition system. See Part II for more information.
• Feedback Device For output channels, this is the reference to the output or excitation device that is being fed back into the current channel's Physical device. If the current channel is not an output channel, it should be left empty. A populated Feedback Device column tells the controller that the given channel is an output channel.
• Feedback Channel For output channels, this is the reference to the output channel on the output or excitation device that is being fed back into the current channel's Physical Device. As an example using generic device and channel names, if Channel 2 on Generator 1 is teed off to Channel 3 on Acquisition Card 2, the corresponding row in the channel table would have Acquisition Card 2 specified as the Physical Device, Channel 3 specified as the Physical Channel, Generator 1 specified as the Feedback Device and Channel 2 specified as the feedback channel.
• Warning Level A warning level can be implemented for each channel. The warning level is specified in the same units as the Engineering Unit column. When a channel hits the warning limit, it will be flagged as Yellow in the Channel Monitor (see Section 3.1). The warning level can be left blank if no warning is desired.
• Abort Level An abort level can be implemented for each channel. The abort level is specified in the same units as the Engineering Unit column. When a channel hits the abort limit, it will be flagged as Red in the Channel Monitor (see Section 3.1). The controller will also shut down if an abort level is reached. The abort level can be left blank if no abort is desired.

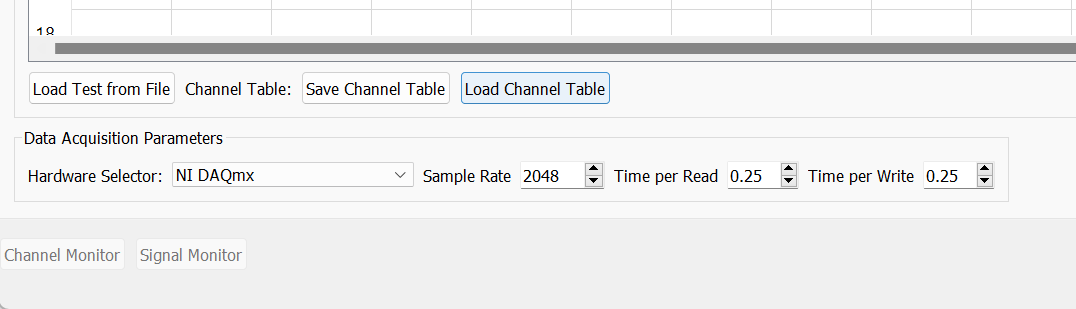

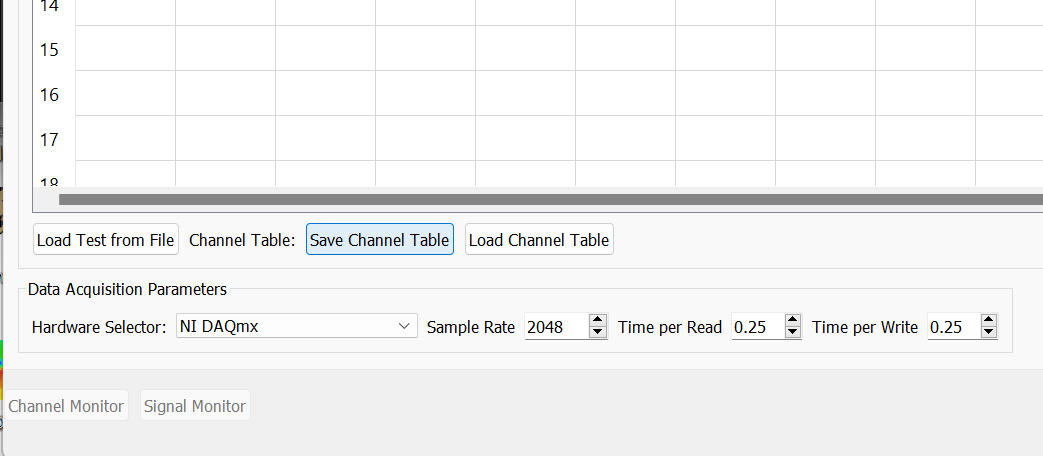

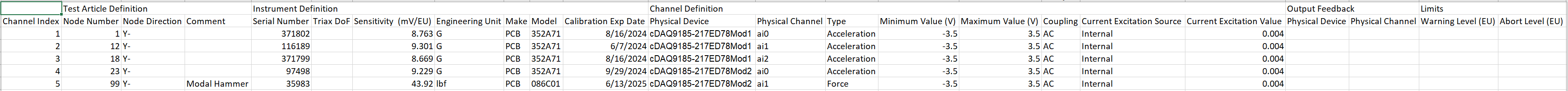

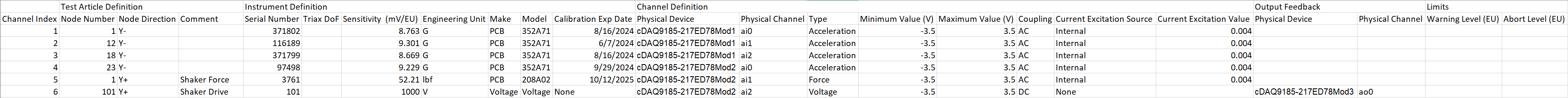

To limit the tediousness of inputting channel table information into the GUI by hand, the channel table can be loaded from an Excel spreadsheet or Comma-separated-value file. A channel table can be loaded by clicking the Load Channel Table button under the channel table, which will bring up a file selection dialog, enabling the user to select a file to load. For convenience, a template Excel spreadsheet is attached to this PDF: (TODO) \attachfile{attachments/channel_table_template.xlsx}. A template Excel file can also be generated by creating a test in Rattlesnake and saving the empty channel table by clicking the Save Channel Table button under the channel table. If a channel table is filled out in Rattlesnake's GUI, its contents will be saved to the file as well.

A complete test can be loaded by clicking the Load Test from File button. See Loading Rattlesnake Tests for more details.

3.2.2. Environment Table

For combined environments tests, an environment table is also provided to the right of the standard Channel Table. This table specifies which channels are used by which environments. A channel can be used for multiple environments, a single environment, or no environments. Channels used by no environments will still be measured and streamed to disk, but will not be sent to any environment for use in the respective control approaches. The environment table is also used to specify which excitation devices are used by which environment.

For single environment tests, the environment table is not visible, and the software assumes that all channels in the channel table are used by the single environment.

If importing a channel table from an Excel spreadsheet for a combined environments test, the Environment Table can be specified as the columns after the main Channel Table information (starting in Column X with one column for each environment) with the environment name specified in row 2 and an entry (e.g. an X or some other mark) in the row corresponding to a given channel if that channel is used for the given environment.

3.2.3. Data Acquisition Parameters

The final portion of Data Acquisition Setup tab specifies data acquisition parameters. These parameters may change depending on the hardware selected.

• Hardware Selector The physical or virtual hardware used for the test. See Part II for hardware specific details of the controller. For some devices, a file selector window will appear will appear when the device is selected, as that device needs more information to operate. This is primarily the case for virtual hardware where some model of the test article must be loaded. This is also used when a specific hardware device needs to access external functionality in a library such as a dll file.
• Sample Rate The sample rate of all hardware devices used for the test. Some devices will have arbitrary sample rates, and some devices have fixed sample rates, so the options available will depend on the acquisition hardware being used.
• Time per Read The amount of data that the acquisition system will acquire with each read from the hardware. By reading data in chunks, hardware input/output operations with relatively large overhead can be limited, and the buffer gives the controller time to catch up if e.g. the operating system decides to start a computationally intensive task in the background of the computer. Note that specifying large numbers for this quantity (e.g. 10) will reduce the responsiveness of the controller, because the controller will potentially not receive the acquired data until 10 seconds after it was acquired. Note also that this does not need to correspond to the Samples per Analysis Frame or any other signal processing parameter used by an environment. Each environment should be buffered such that it creates appropriately sized analysis windows from the differently sized acquisition chunks.
• Time per Write The amount of data that the output system will write with each write to the hardware. By writing data in chunks, hardware input/output operations with relatively large overhead can be limited, and the buffer gives the control time to catch up if e.g. the operating system decides to start a computationally intensive task in the background of the computer. Note that this output is also buffered, so it does not need to be equal to the size of the data that will be created during each control loop of the controller.
• Maximum Acquisition Processes For specific hardware devices with large channel count tests, it can be difficult to pull down large quantities of data fast enough for the controller to keep up using a single process. This option allows the user to specify how many processes can be given to the acquisition system to be used to stream data off the hardware. Note that too many processes will bog down the computer, and too few will result in the controller falling behind. Generally about 20-40 channels per processor is sufficient, but this will depend on the sample rate. For higher sample rates, more processors may be needed.
• Integration Oversample For synthetic hardware devices that integrate equations of motion, an integration oversample factor can be specified. This factor will be applied to the sample rate to determine the time step for the integration. Generally a factor of 10 is sufficient for reasonably accurate data without significant computational expense.

3.2.4. Initialize Data Acquisition

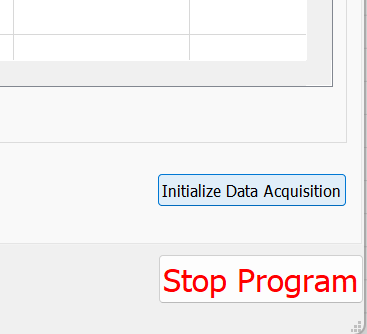

With the Data Acquisition Settings specified in the GUI, the Data Acquisition can be initialized by pressing the Initialize Data Acquisition button. At this point, the controller will go through and create the programming interfaces to the hardware device, specify the sampling parameters, and create the channels on the devices. The software will then proceed to the next tab.

Figure 3-6 shows a completed Data Acquisition Setup tab with three response channels and one output channel for a test with two environments A and B. The first response and output channels are used by both environments, while the second response channel is used only by environment A and the third response channel is used only by environment B.

Figure 3-6. Example of a completed Data Acquisition Setup tab with three response channels and one output channel.

3.3. Environment Definition

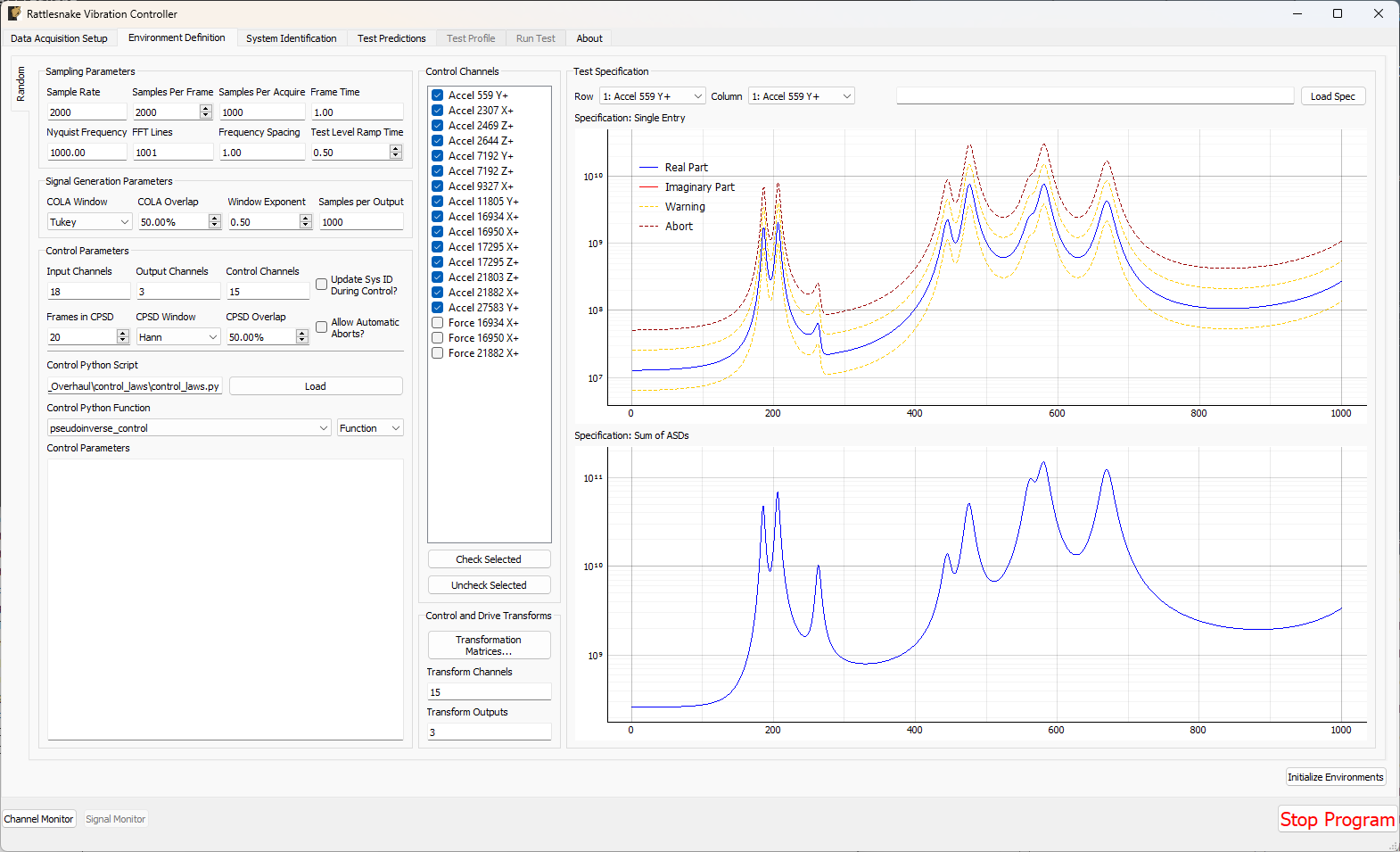

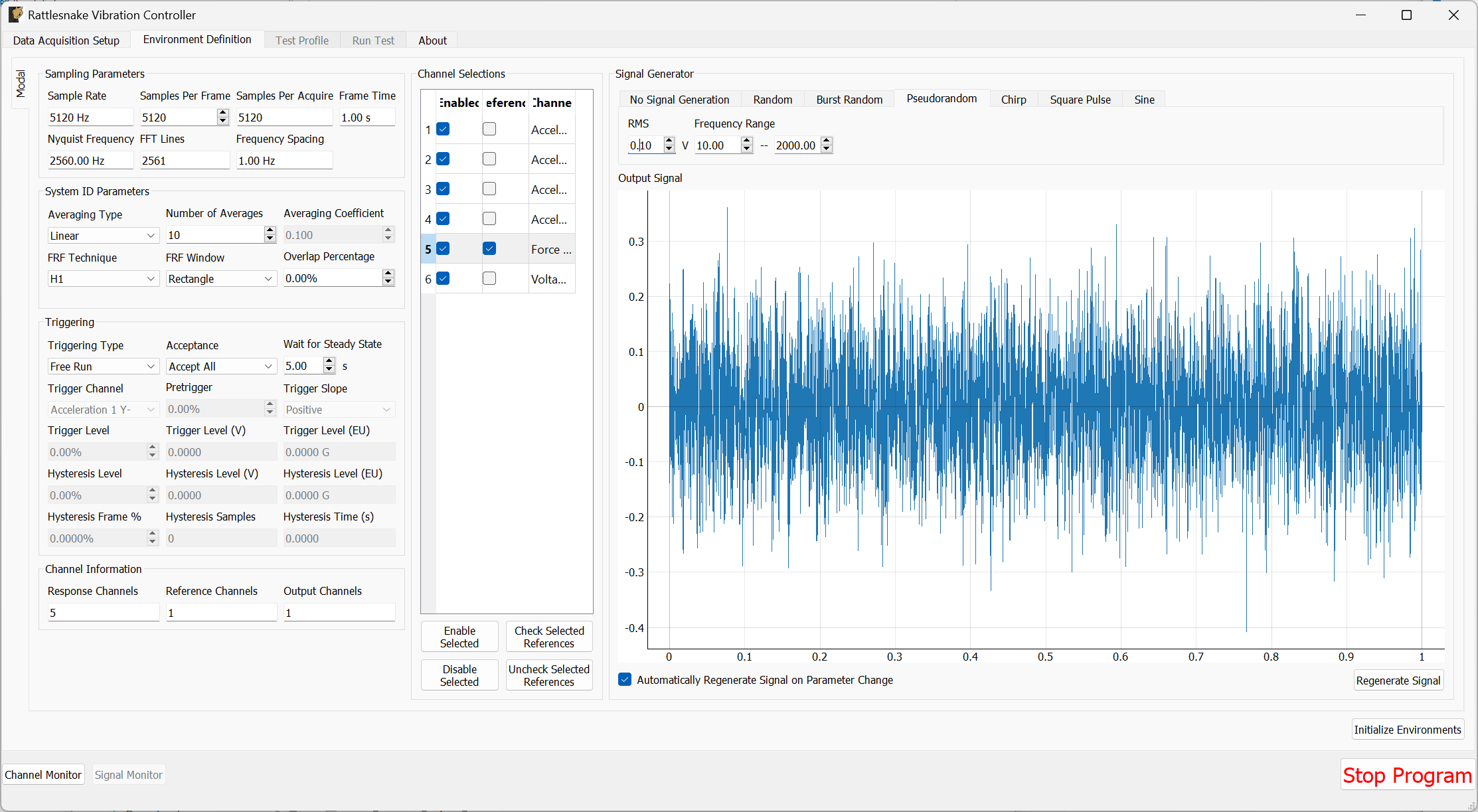

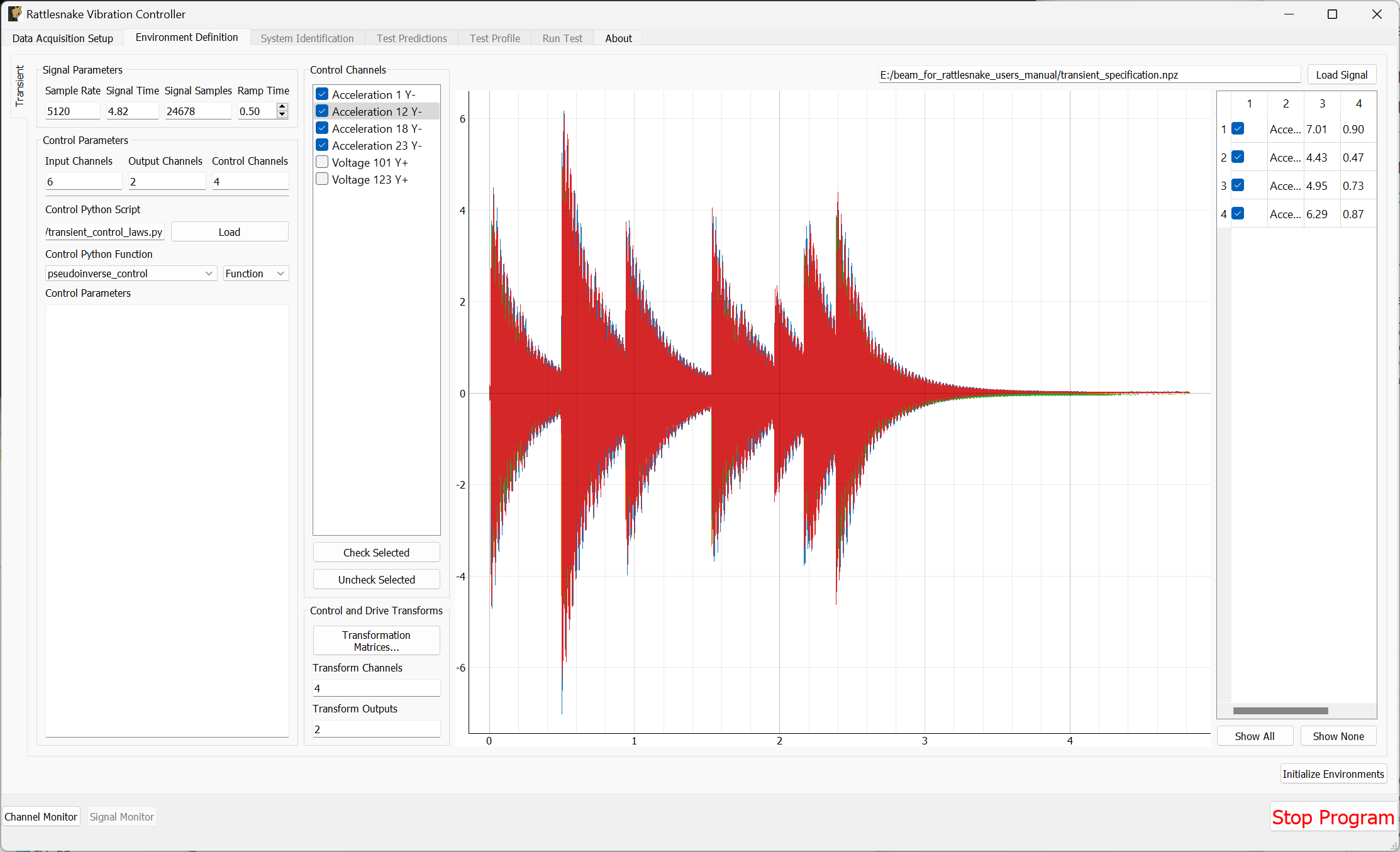

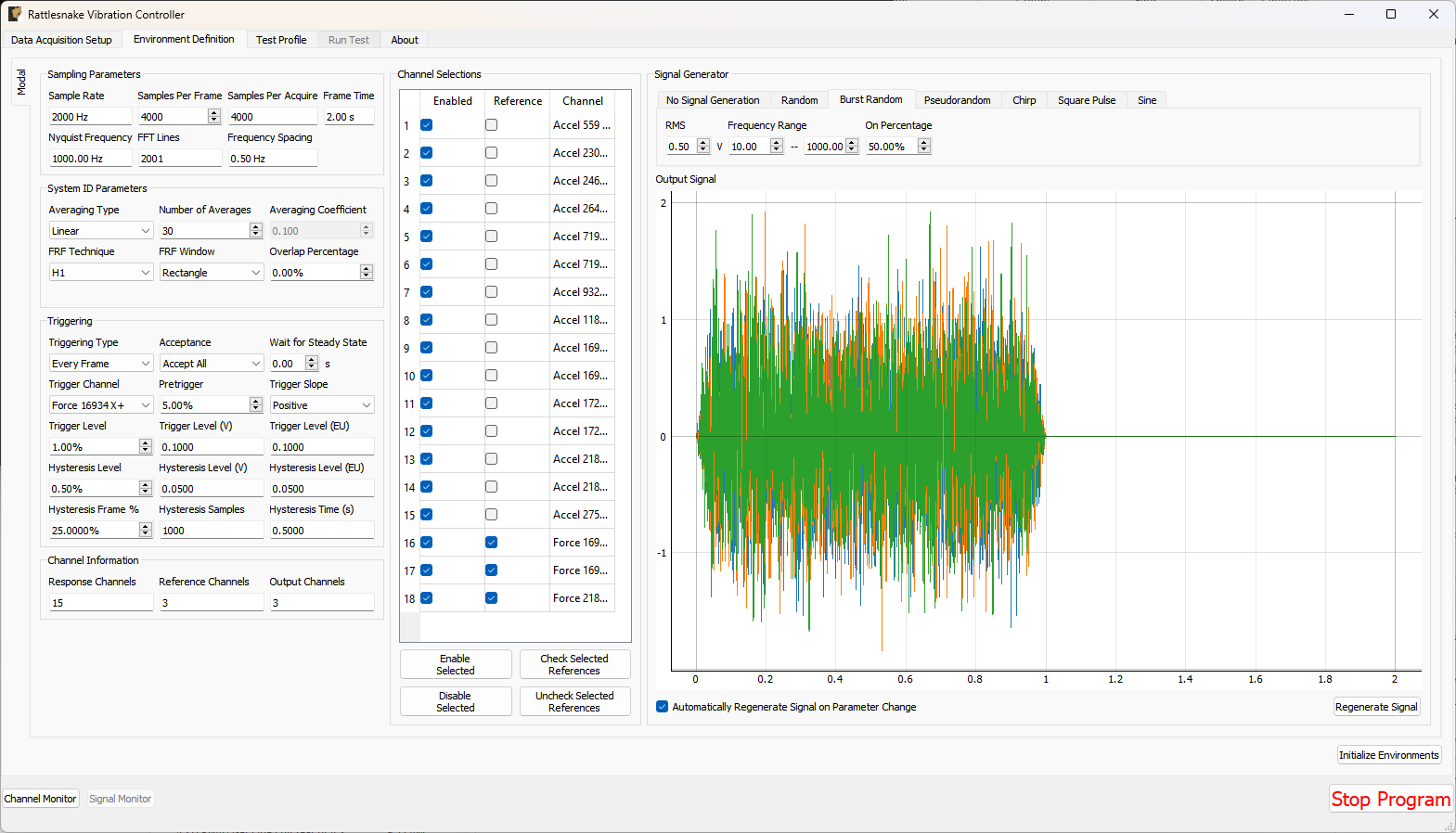

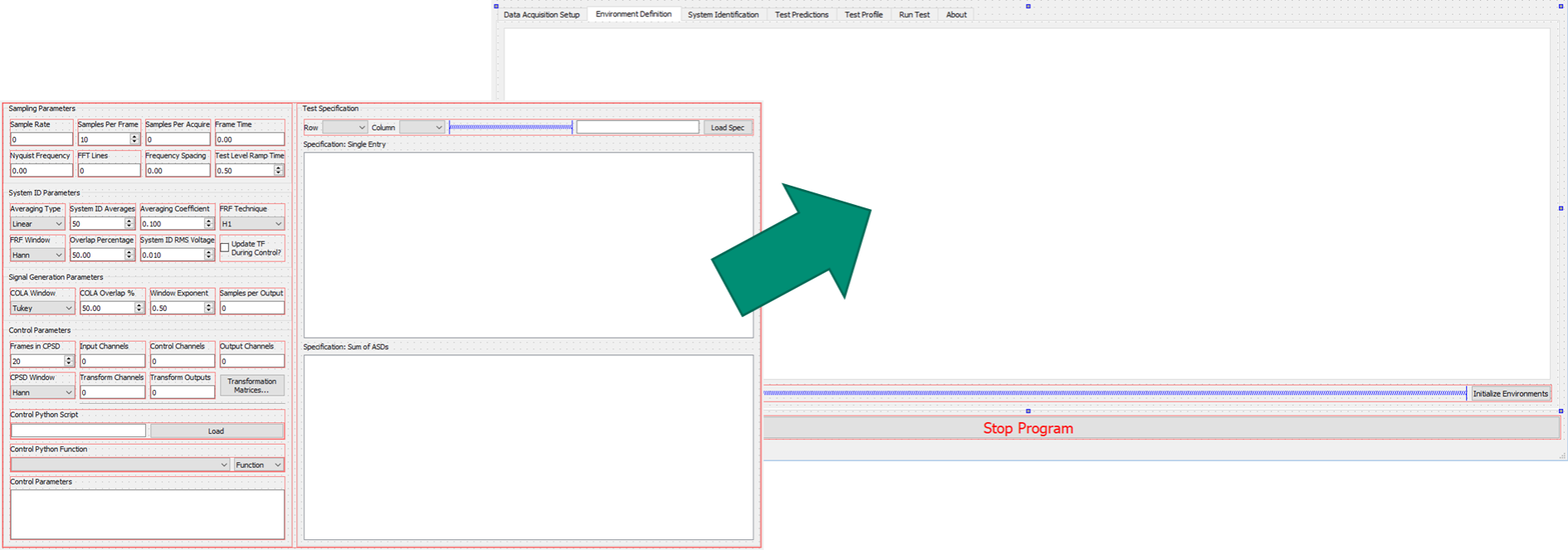

The Environment Definition tab is the second tab in the Rattlesnake software. It is in this tab that the various environments are defined. The main tab will have one sub-tab for each environment, as shown in Figure 3-7.

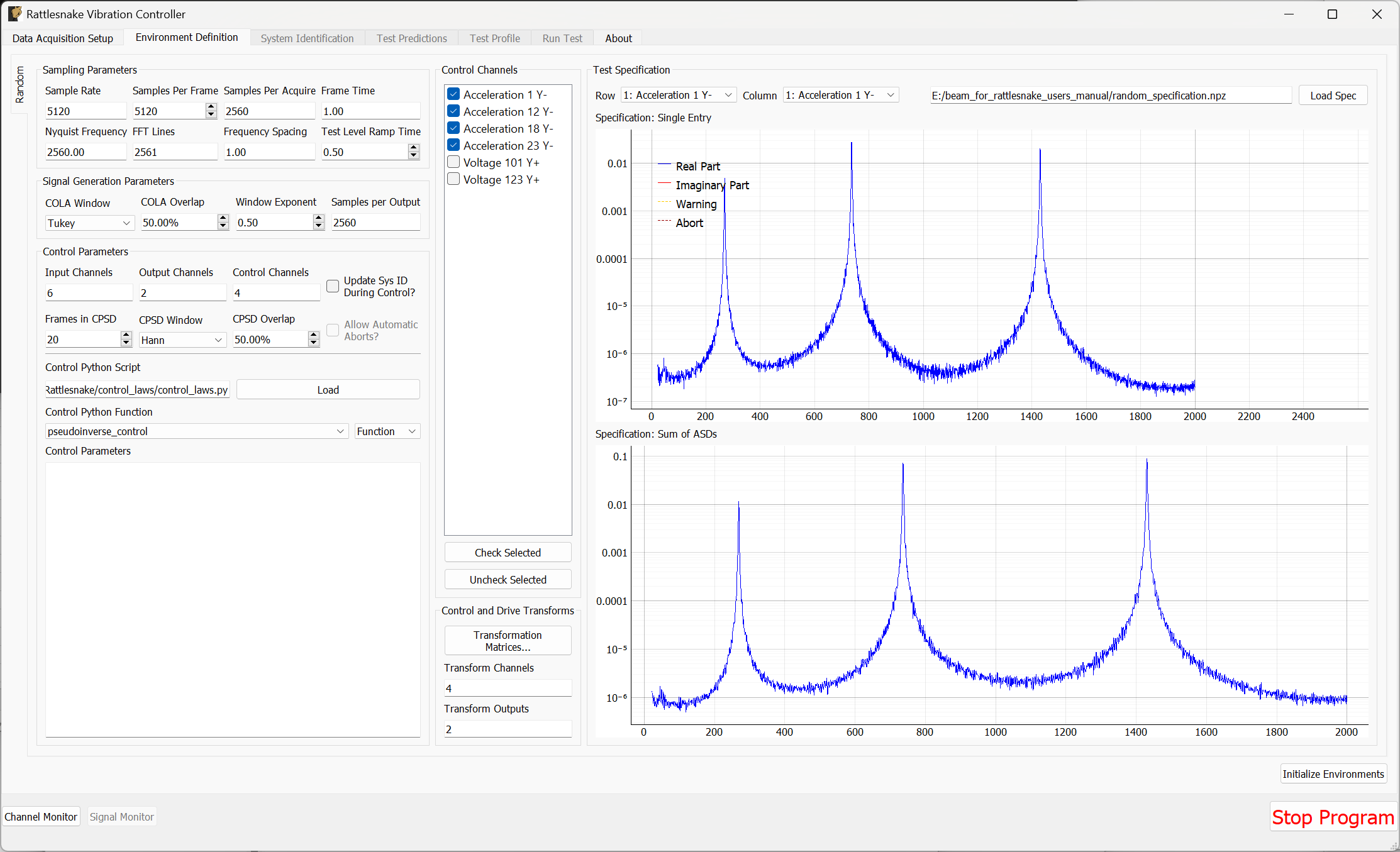

Figure 3-7. Sub-tabs for environments A and B in the Environment Definition tab.

Different environment types will have different parameters that can be set. See Part III for a description of each environment type in Rattlesnake and the parameters that define it.

When all environments are defined, the Initialize Environments button can be pressed to proceed to the next portion of the controller.

3.4. System Identification

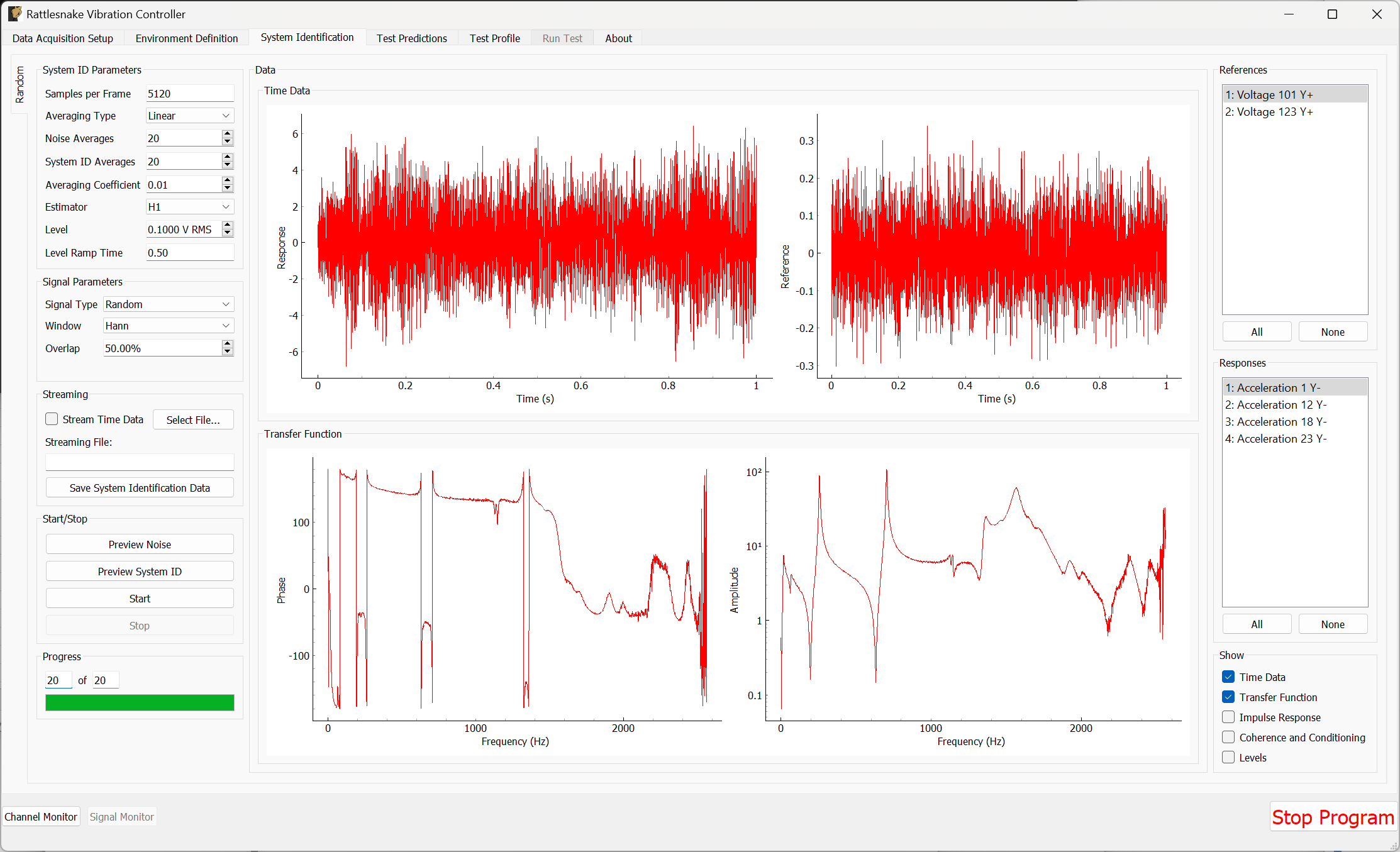

With the environments defined, the controller proceeds to the System Identification tab if required by any environment, shown in Figure 3-8. During this phase of the controller, the controller will develop relationships between the excitation signals and the responses of the test article to those excitation signals. It will also make a measurement of the noise floor of the test.

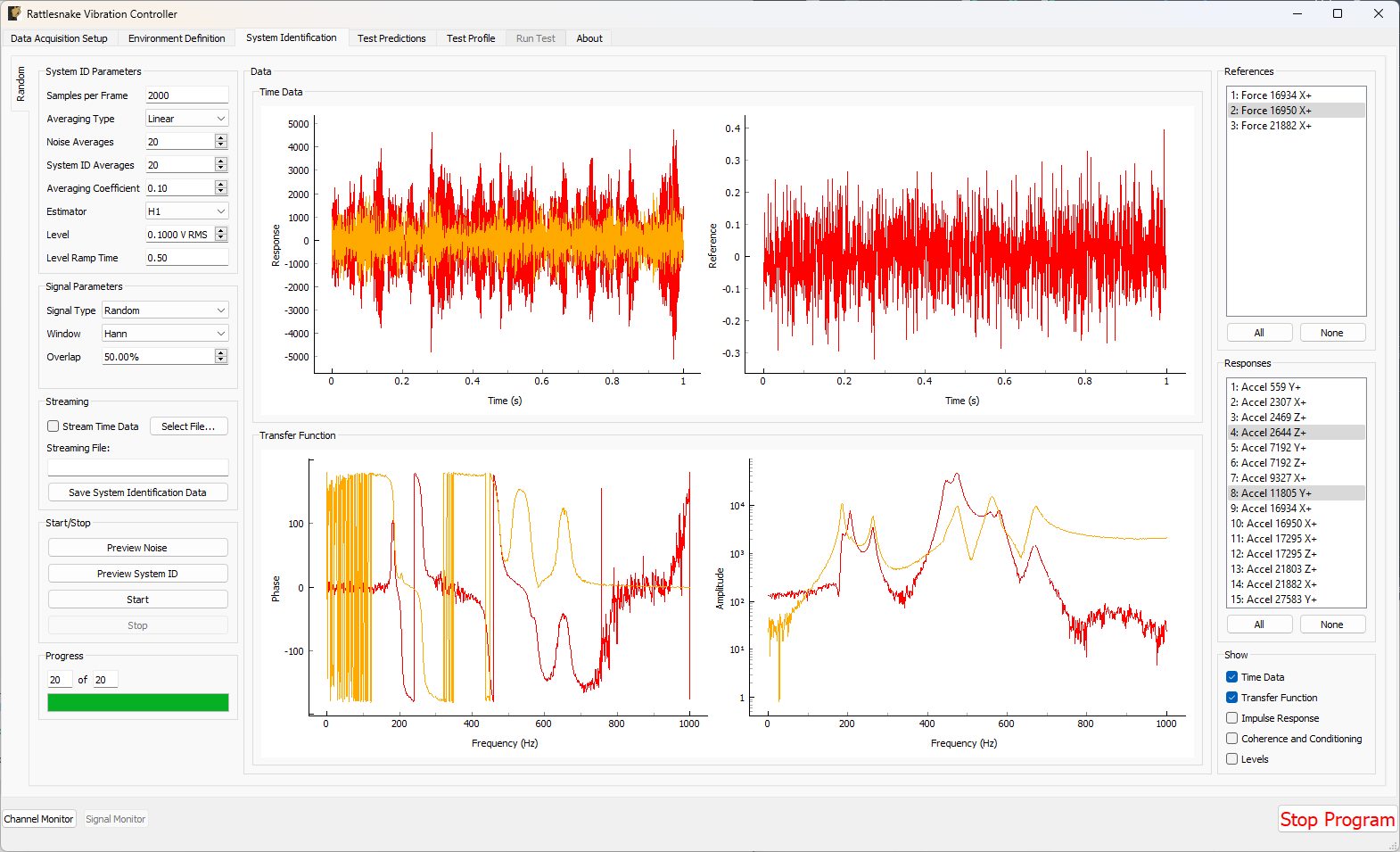

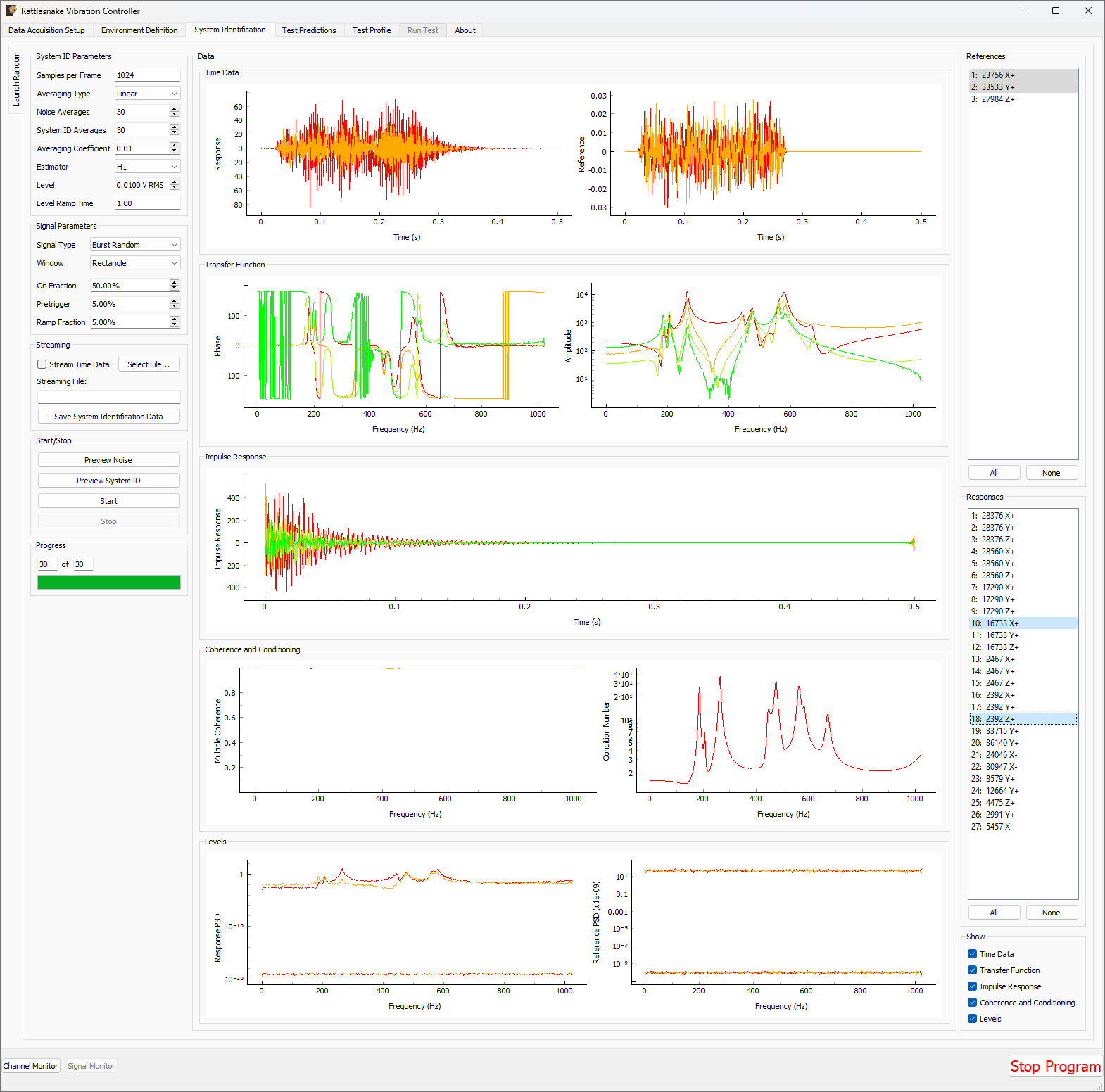

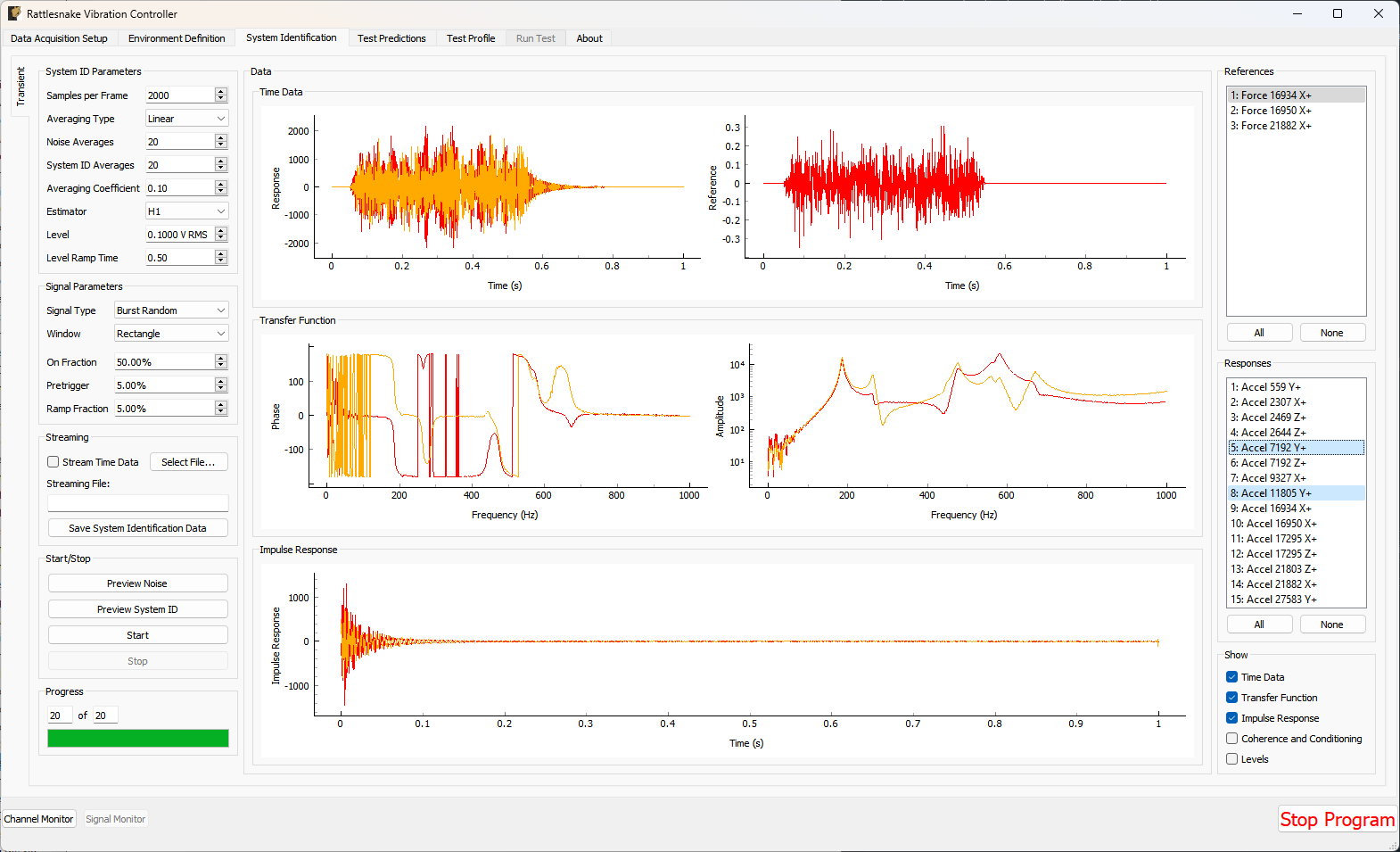

Figure 3-8. System identification tab showing various signals and spectral quantities that can be used to evaluate the test.

Not all environment types will require a system identification. For environments that simply stream output data, a system identification will generally not be required. However for any environment that aims to produce an output that creates some response on the test article, a system identification will be required to understand the relationships between the excitation signals and the response signals.

There will be one sub-tab for each environment that requires a System Identification. System identification must be run for each sub-tab before the test can be run. When system identification is performed, the software will first perform a noise floor measurement, where all channels are recorded, but no excitation signal is provided. After the noise floor calculation completes, the system identification will begin.

The System Identification tab has been significantly overhauled since the previous version of controller. The system identification now has a number of dedicated parameters on its tab that the user can select. These are:

• Samples per Frame The number of samples used in each measurement frame.
• Averaging Type The type of averaging used to compute the spectral quantities. Linear averaging weights each measurement frame equally. Exponential averaging weights more recent frames more heavily.
• Noise Averages The number of averages used in the noise characterization.
• System ID Averages The number of averages used in the System Identification characterization.
• Averaging Coefficient If Exponential Averaging is used, this is the weighting of the most recent frame compared to the weighting of the previous frames. If the averaging coefficient is $\alpha$, then the most recent frame will be weighted $\alpha$, the frame before that will be weighted $\alpha (1-\alpha )$, the frame before that will be $\alpha (1-\alpha {)}^2$, etc.
• Estimator The estimator used to compute transfer functions between voltage signals and responses.
• Level The RMS voltage level used for the system identification
• Level Ramp Time The startup and shutdown time of the system identification.

The new system identification tab also gives the option to select the signal to use for system identification.

• Signal Type The type of signal that will be used for System Identification. This can be Random, Burst Random, Chirp, or Pseudorandom. Random is the most flexible, but requires a Hann window which can distort data. Burst Random does not require a window, but the response signal must decay within the measurement frame. Chirp and Pseudorandom do not require windows, and do not need to decay, but they are only useful for environments with a single excitation device.
• Window The window function used for the system identification signal
• Overlap The overlap percentage between measurement frames used in System Identification
• On Fraction The fraction of the frame that the Burst Random signal is active for
• Pretrigger The fraction of the frame before the Burst Random signal starts
• Ramp Fraction The fraction of the Burst Random On Fraction that is used to ramp up and ramp down.

The system identification phase can stream time data to disk by selecting a streaming file and clicking the Stream Time Data checkbox. If streaming time data, the noise measurement will be saved to the variable name time_data and the system identification measurement will be saved to the variable name time_data_1 (TODO: see Section \ref{sec:using_rattlesnake_output_files} for more information on the structure of this file). The spectral data from the system identification can be saved to disk by clicking the Save System Identification Data button and selecting the file.

To run the system identification, there are buttons to Preview the Noise or System ID characterizations. When ready, the Start button can be clicked. It will run a Noise Characterization for the specified number of Noise Averages, and then subsequently run the System Identification characterization for the specified number of System ID Averages. If the user wishes to run either the noise or system identification phases continuously, they can click the Preview Noise or Preview System ID buttons.

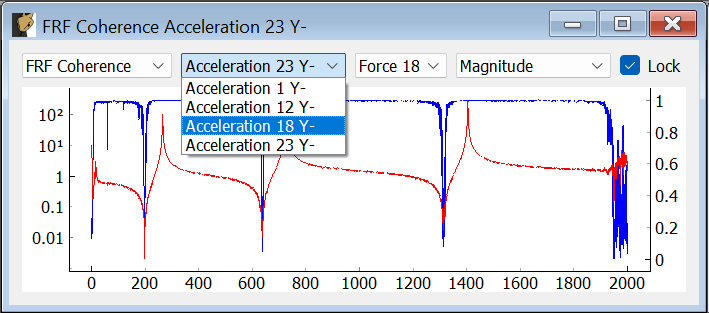

Data will be plotted as the system identification proceeds. The signals to visualize can be selected by clicking one or more of the References or Responses channels on the right side of the screen. In the bottom right corner, there are options to show or hide various quantities of interest. The System Identification tab can show the following:

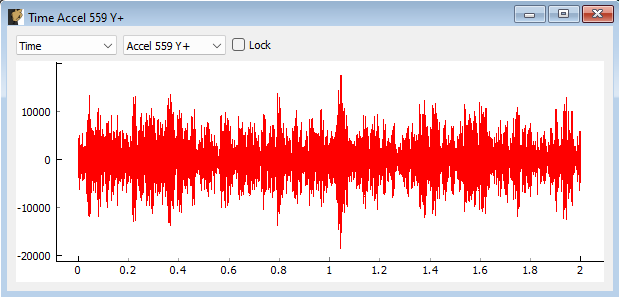

• Time Data Raw Time Data as it is streamed from the data acquisition system. Only data used in spectral computations is shown, so the users shouldn't see any data that is ramping up or down as if the controller is starting or stopping.

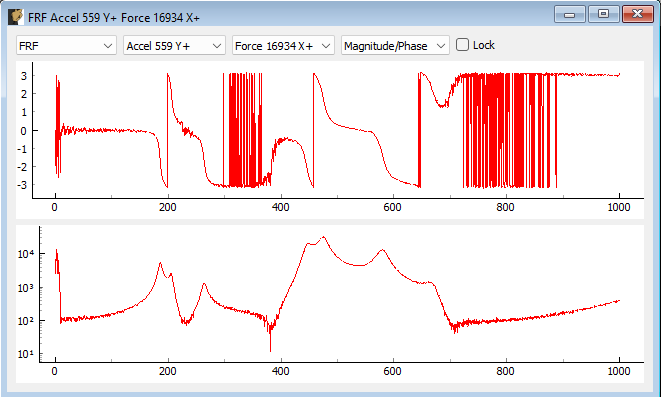

• Transfer Function These are the transfer functions between the References (e.g. voltage signals) and the Responses (e.g. Accelerations or Forces). The controller will use these transfer functions to develop excitation signals that will be played to the shaker to achieve a desired response.
• Impulse Response The impulse response of the system can be visualized. This can be helpful to debug issues with transient control.

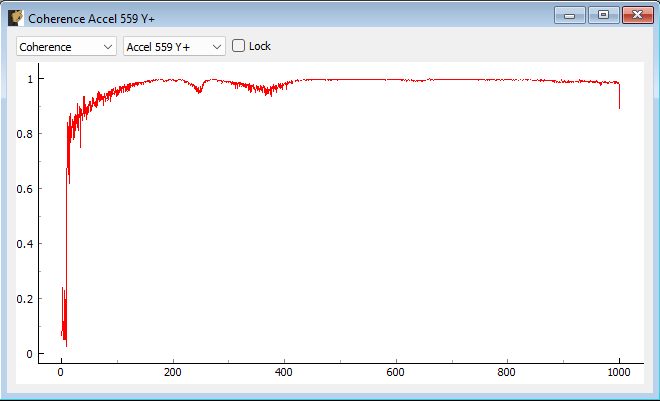

• Coherence and Conditioning Coherence will be displayed so the user can judge how satisfactory the input/output relationships that are developed are. If coherence is poor, it could suggest that the controller won't be able to control the structure properly. The condition number of the Transfer Function Matrix is also displayed. This can be useful to determine what level of regularization a control law might need to implement.
• Levels The autopower spectral density of each signal will be displayed both for the system identification as well as for the noise characterization. This can help identify if the system identification is high enough out of the noise floor.

3.5. Test Predictions

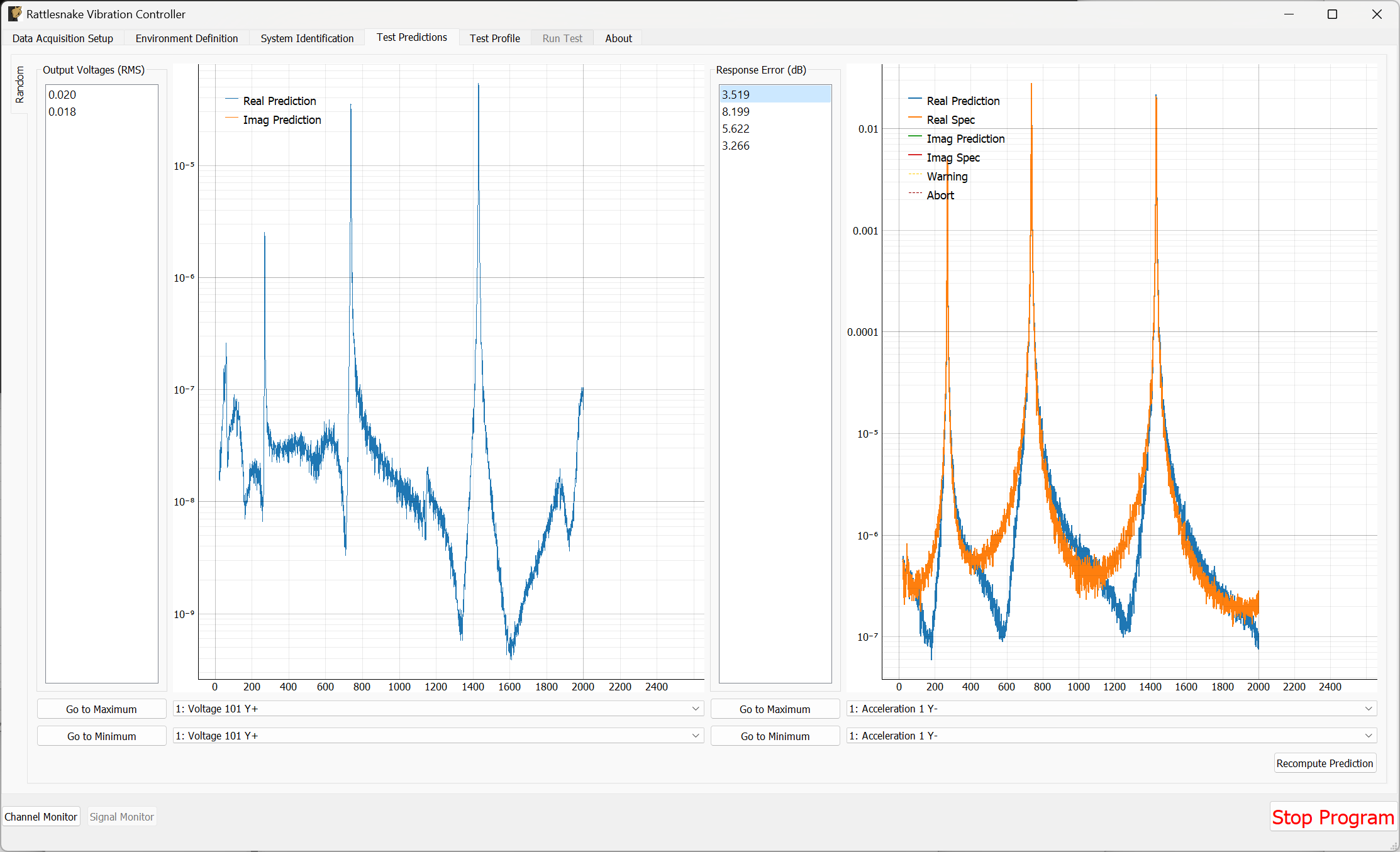

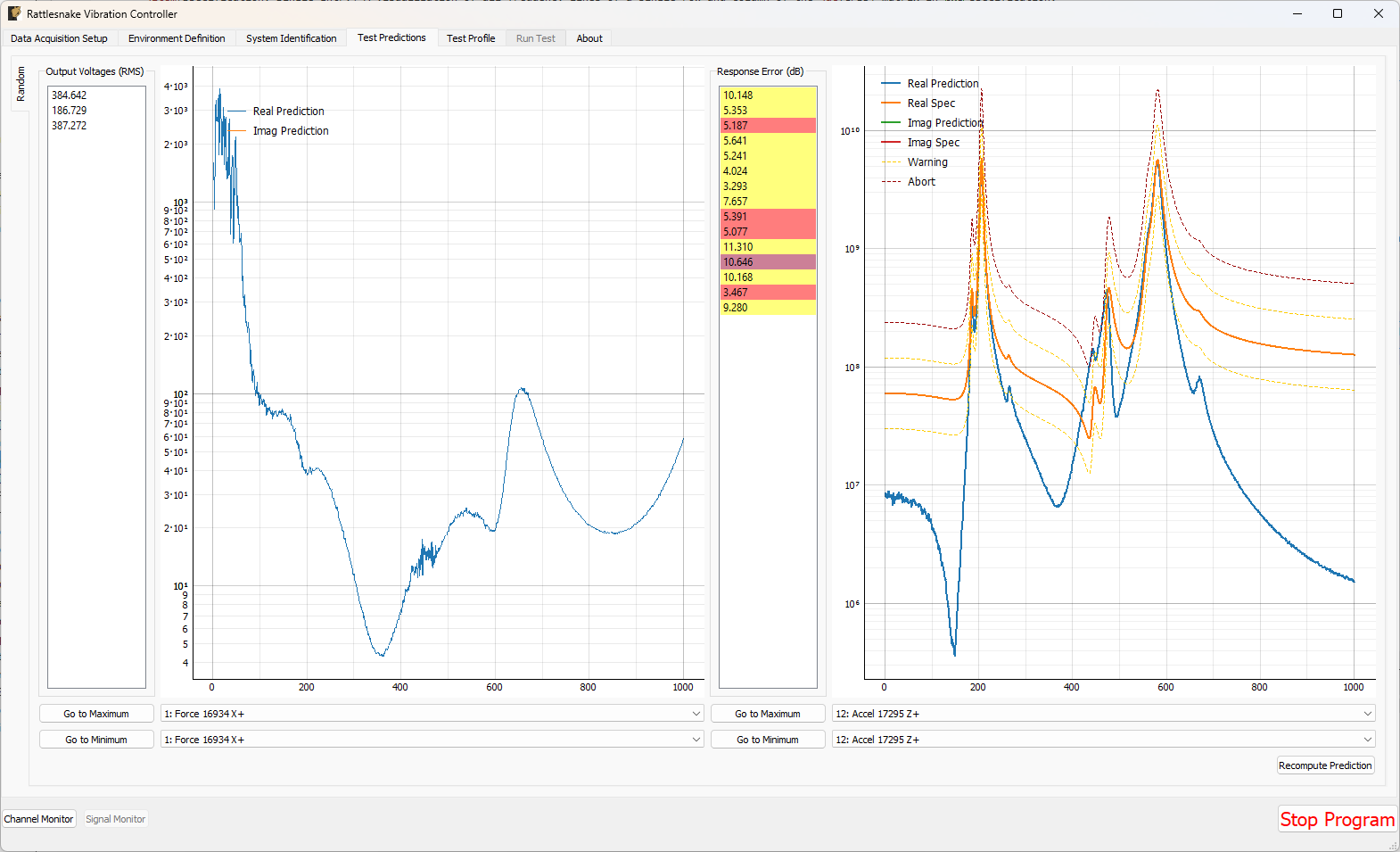

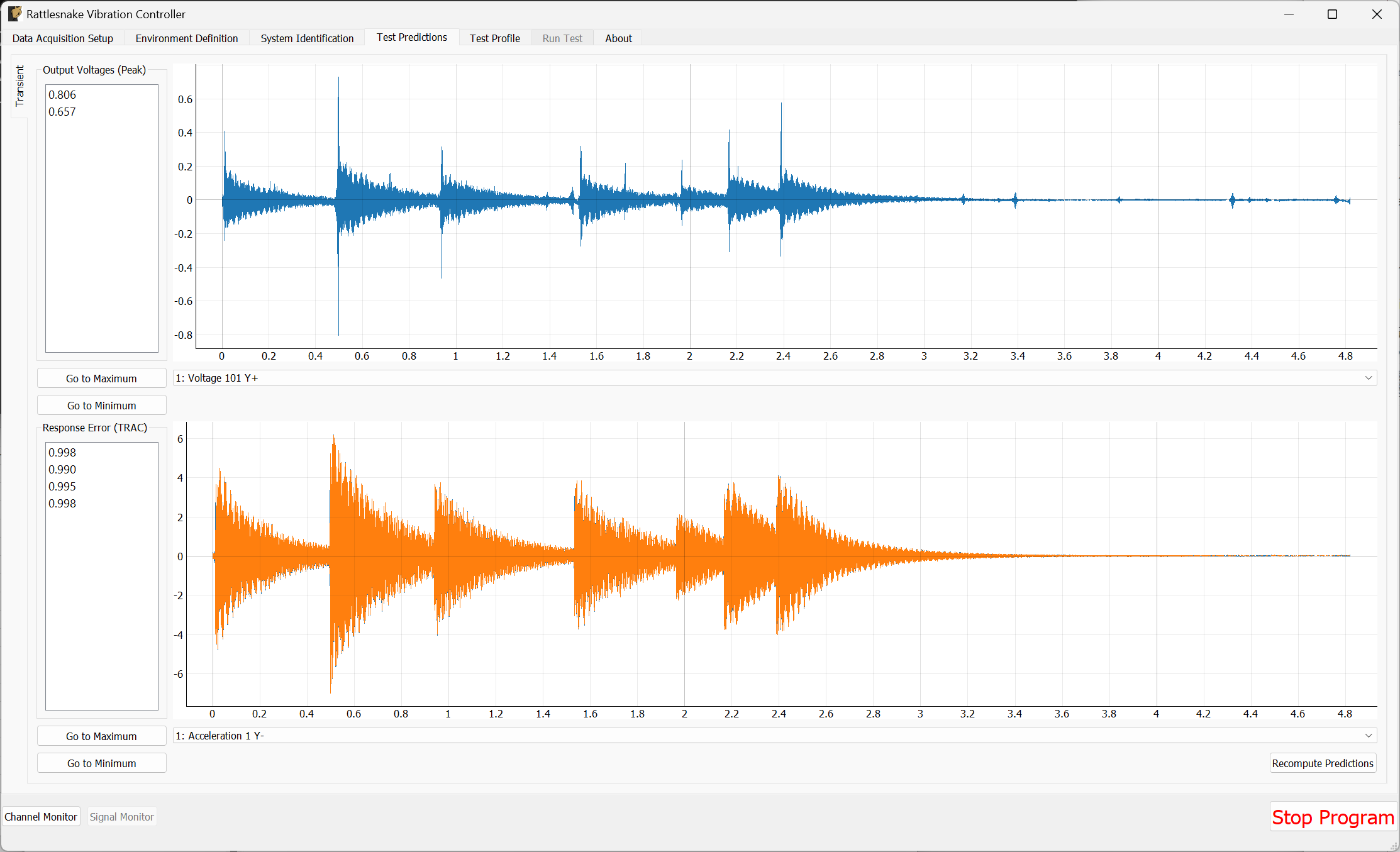

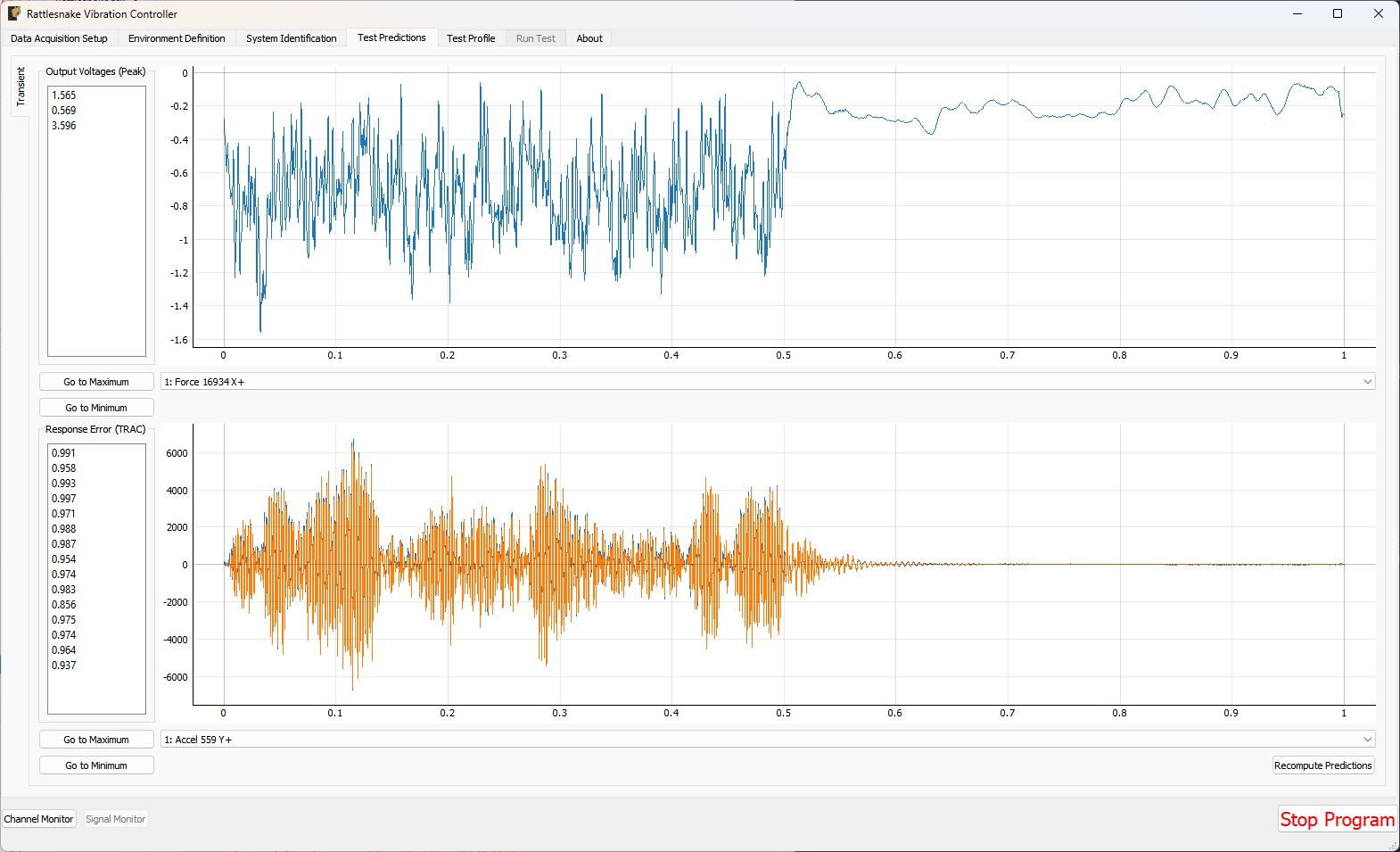

Once the system identification phase completes, the controller will compute a test prediction for each environment where system identification was completed. This prediction will be based on the measured transfer functions between output signals and measured responses, as well as the environment parameters specified on the Environment Definition tab. Predictions will be made both for outputs required as well as response accuracy. These predictions will be displayed on the Test Predictions tab.

3.6. Test Profiles

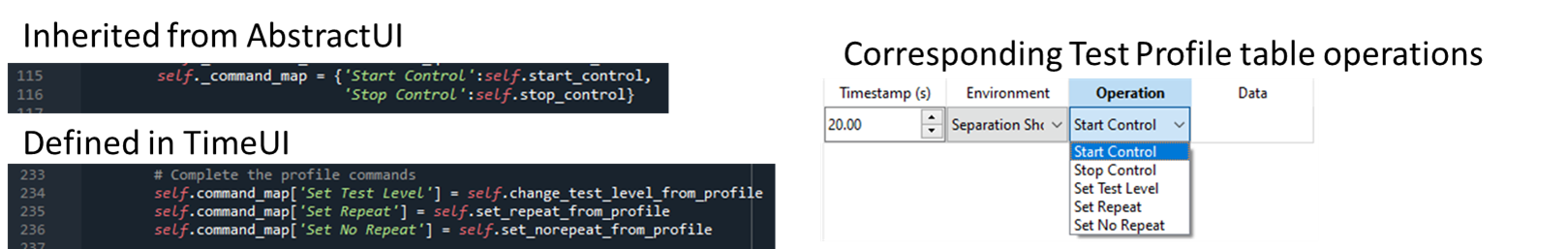

The Test Profile tab gives the user the ability to set up a test timeline for complex combined environments tests. The user can add a list of events that will be executed at certain times during the test. The tab will also display a graphical representation of the test timeline.

Events can be added or removed from the test timeline by clicking the Add Event or Remove Event buttons. Users can also load a series of events from an Excel spreadsheet.

For each event, the following parameters are defined:

• Timestamp (s) The time in seconds after the timeline has started that the event will be executed.
• Environment The environment in which the event will occur.
• Operation The operation that will occur to the event. Each environment defines its own set of operations that can be executed through the test profile interface.
• Data Any additional data that the operation requires. For example, if a "Set Test Level" event is chosen, the Data field should specify the value that the test level is set to.

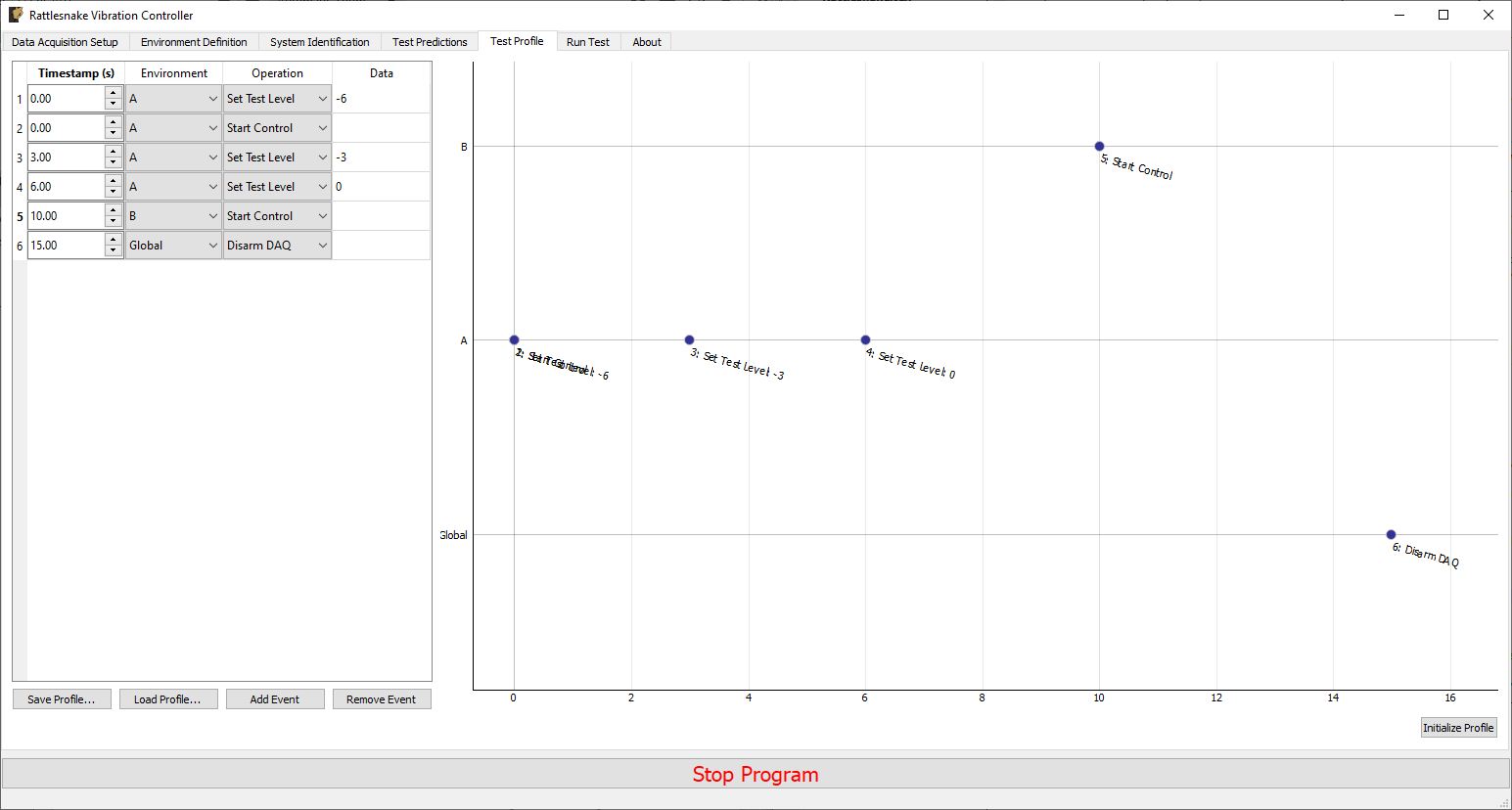

Figure 3-9 shows an example of a test profile that ramps up the test level of environment A from -6 to 0 dB, and then subsequently starts environment B.

Figure 3-9. Example test profile showing a ramp up of test level for environment A and subsequently starting environment B.

3.7. Run Test

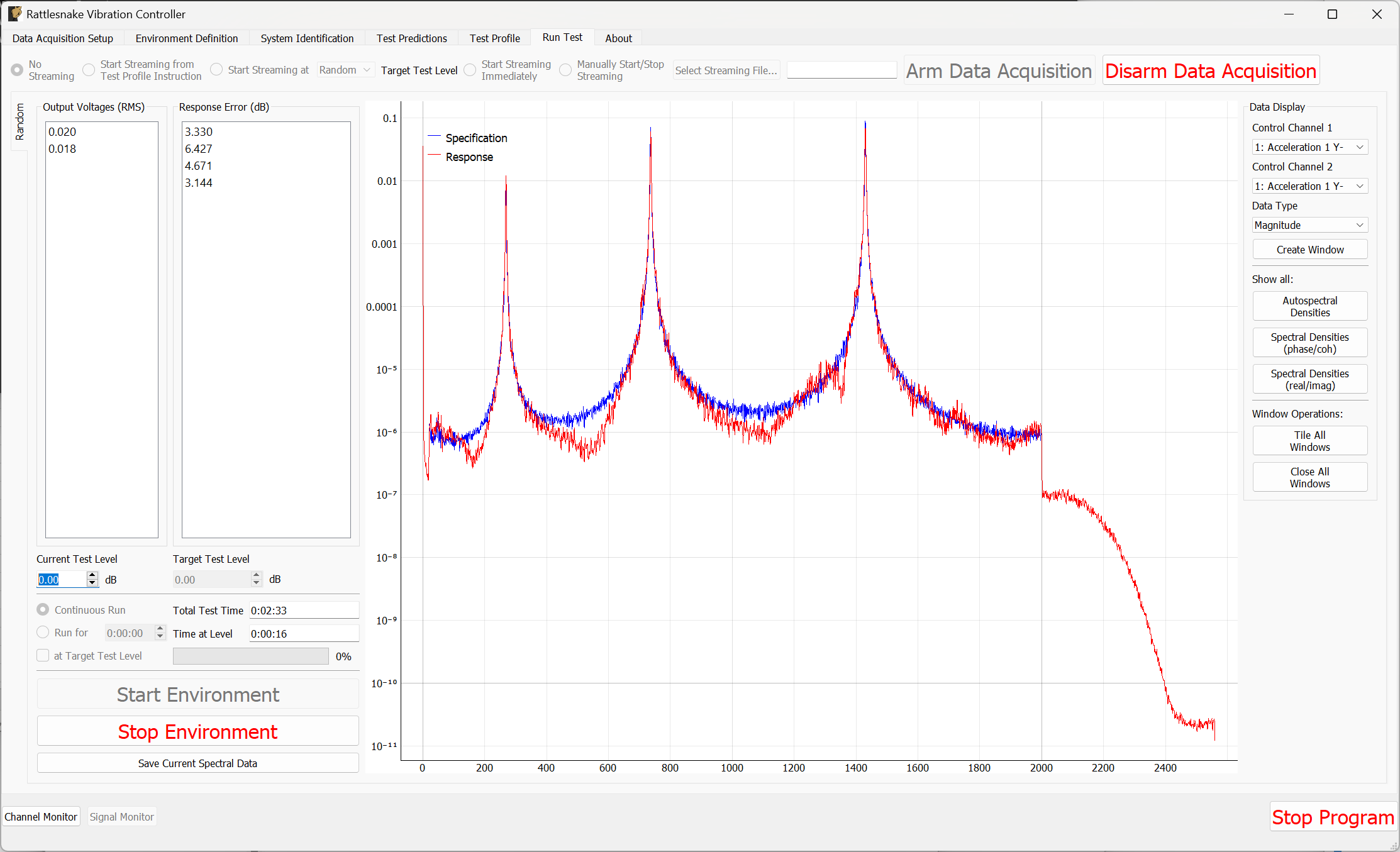

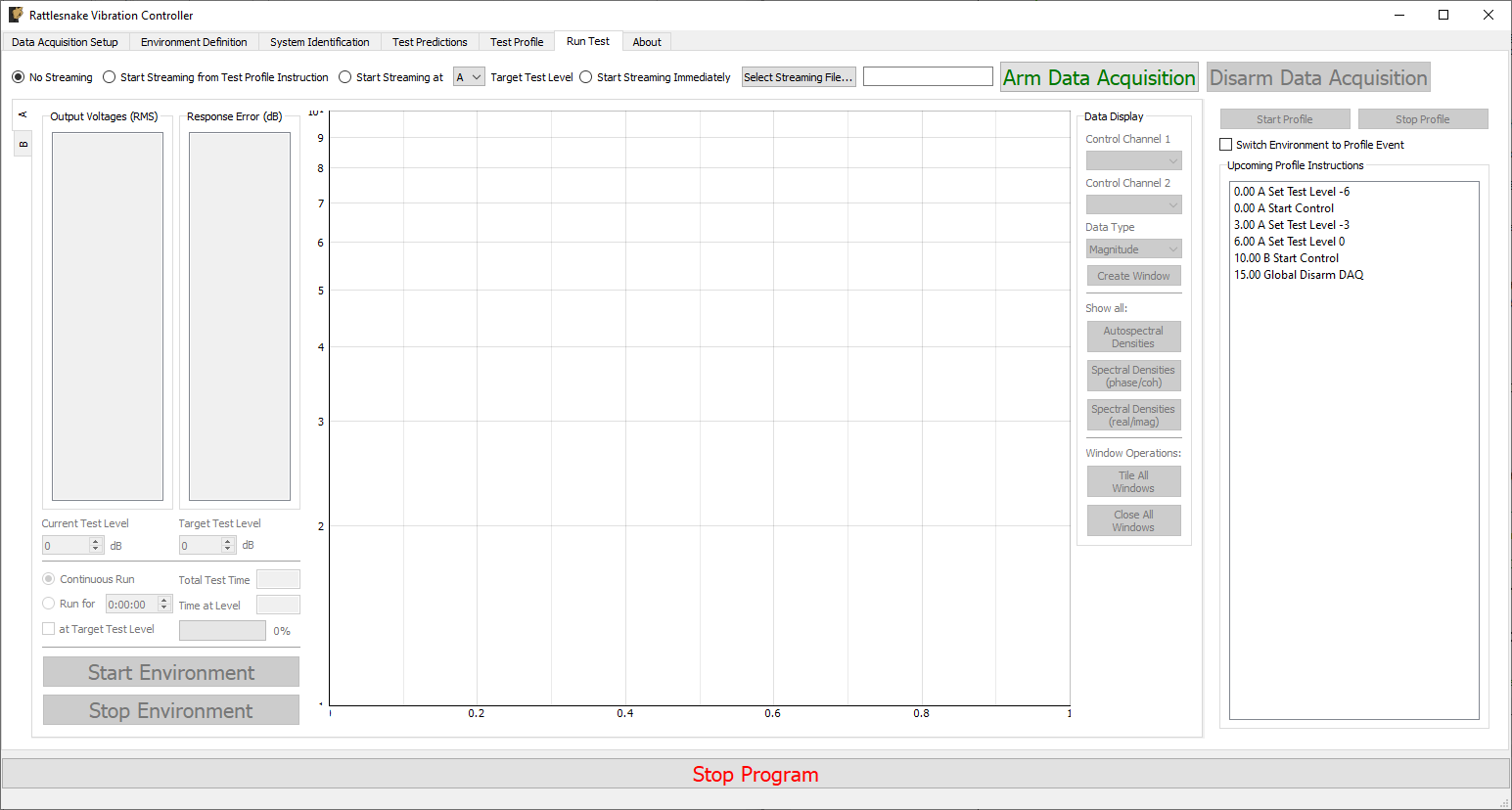

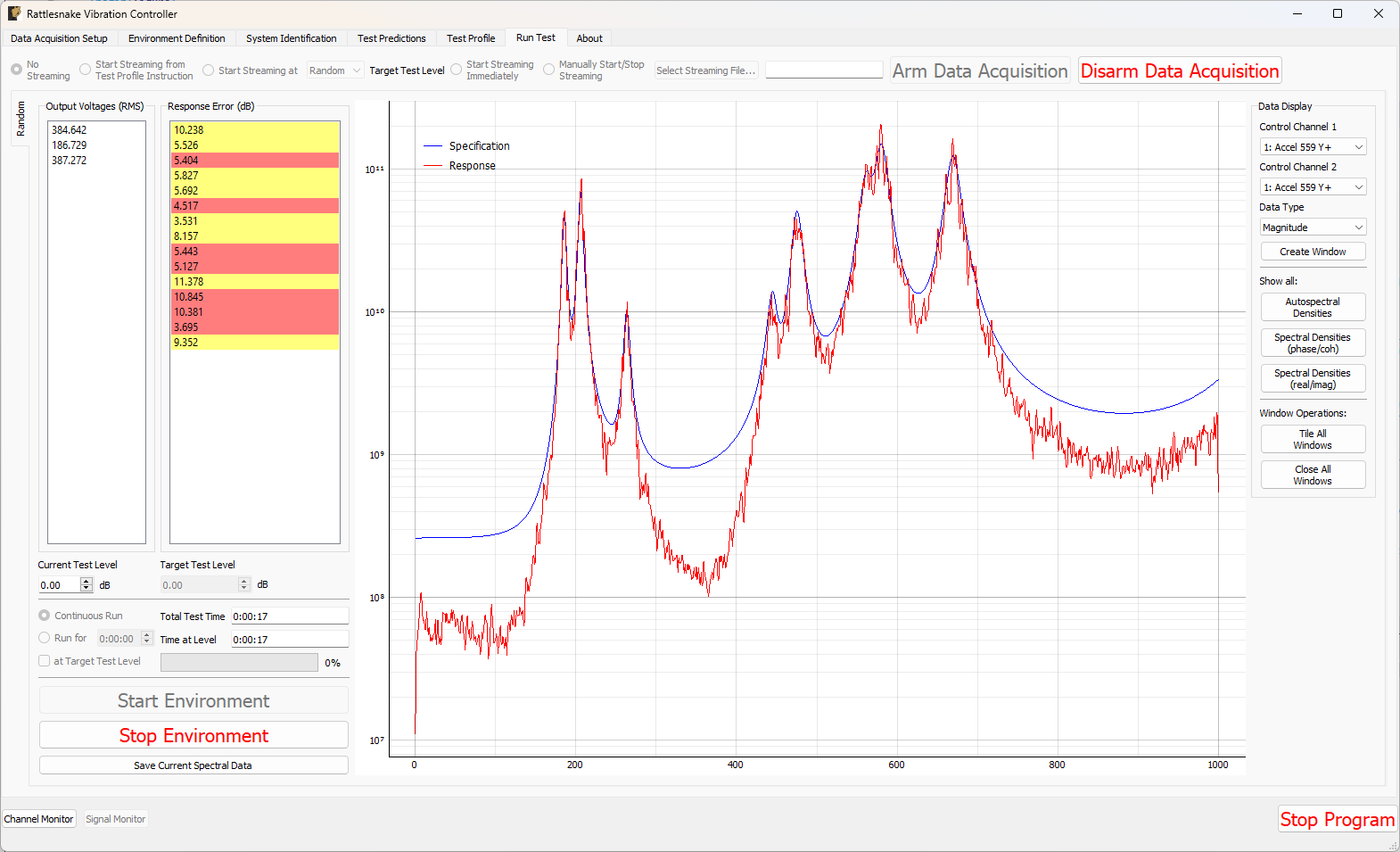

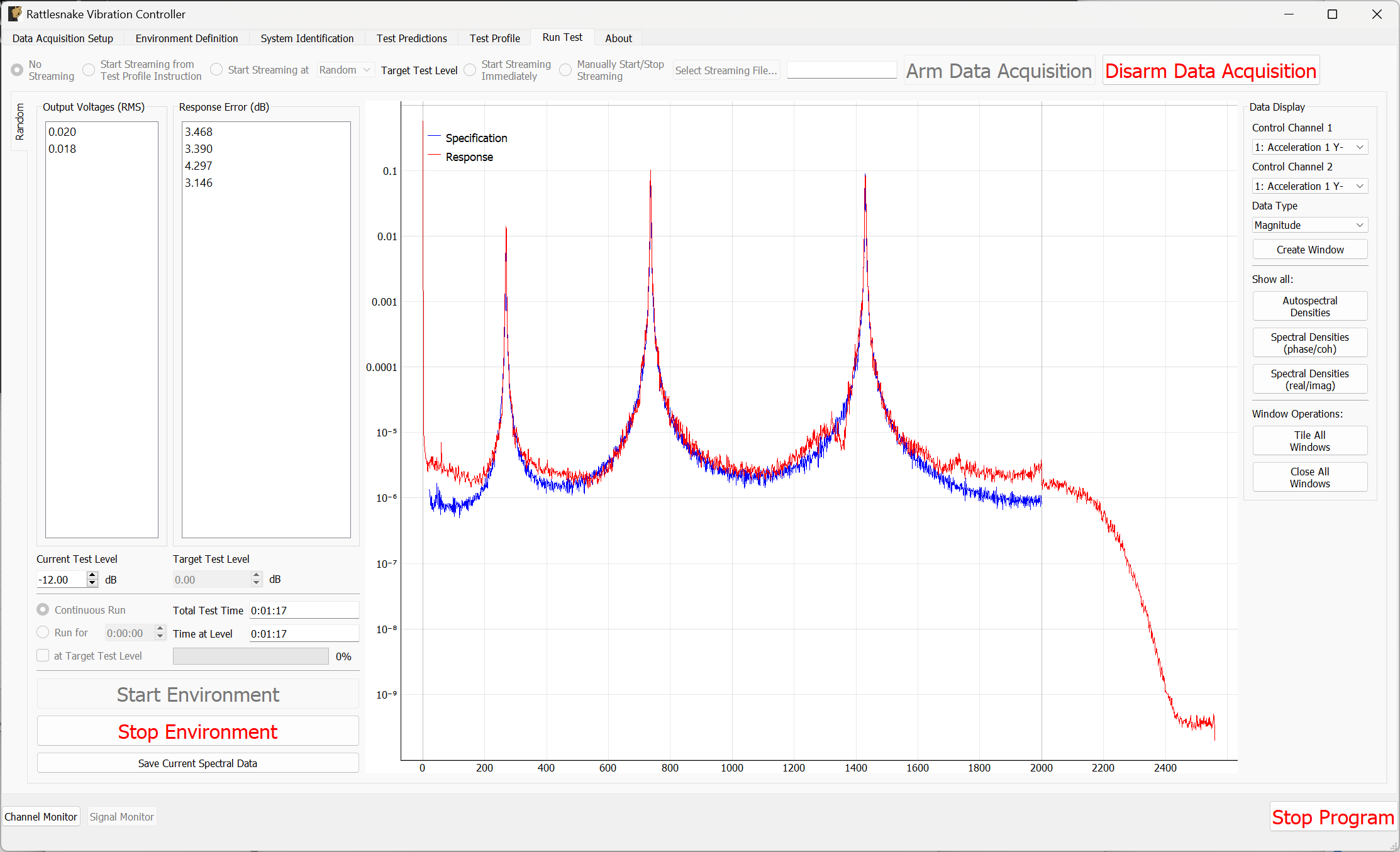

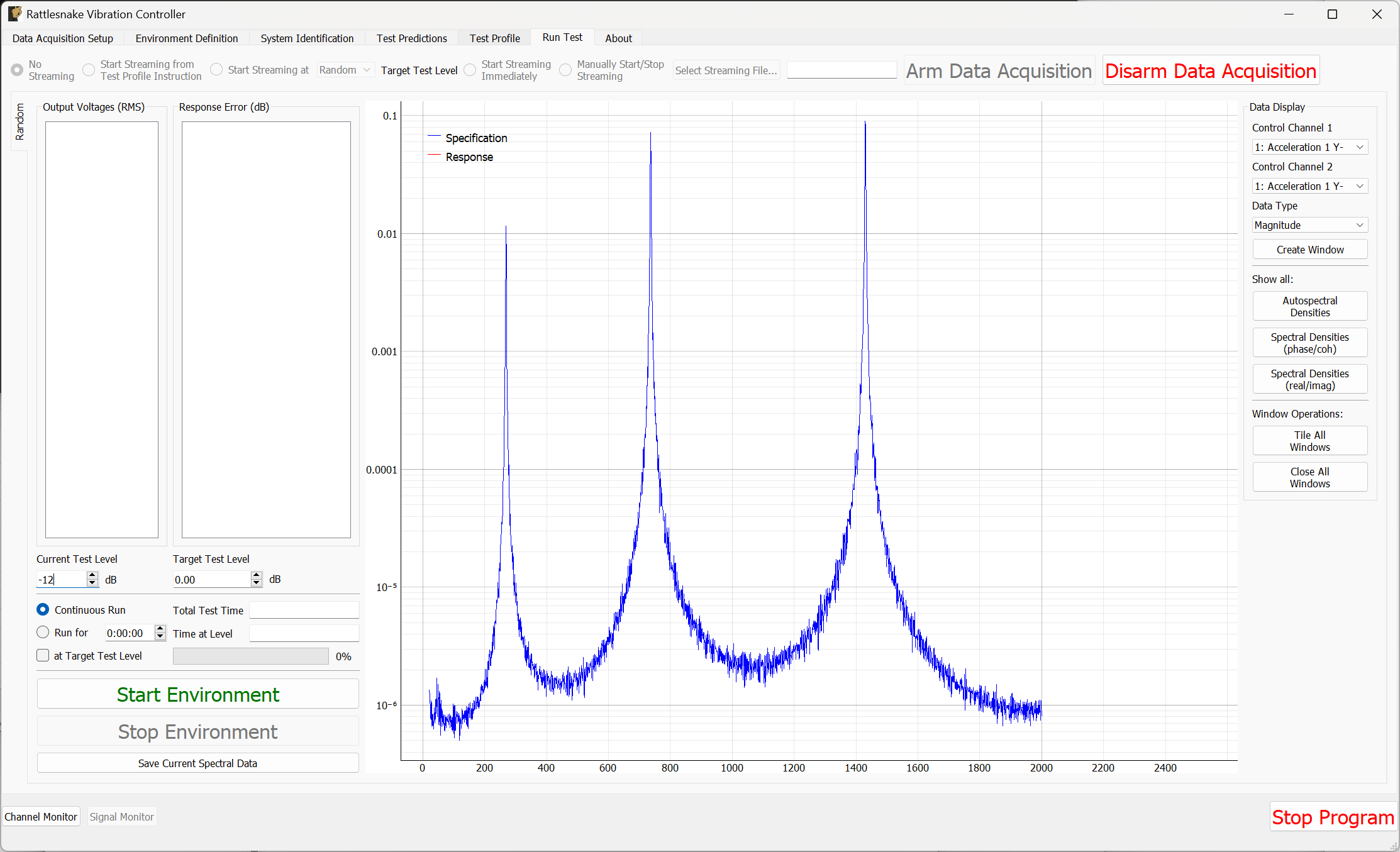

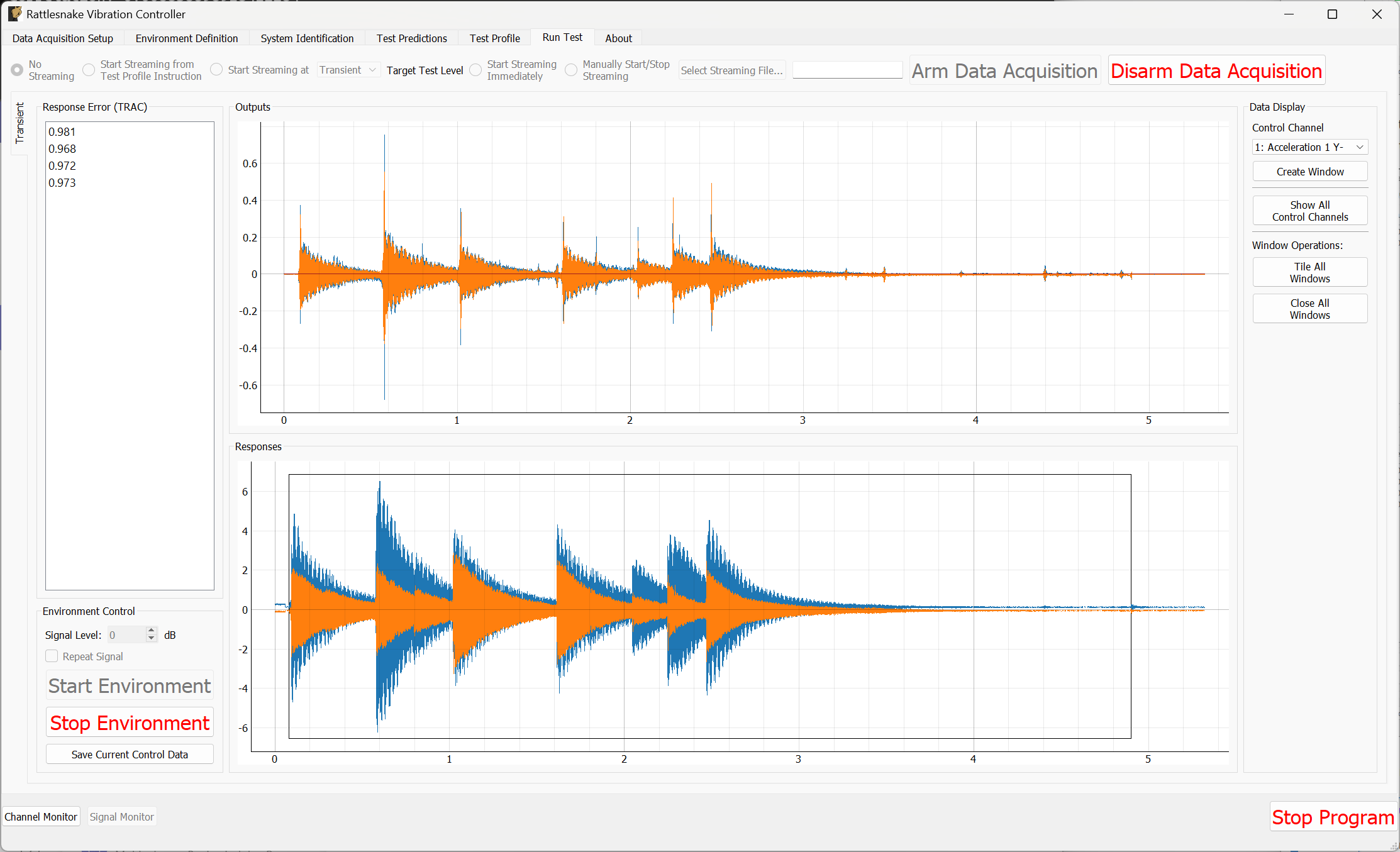

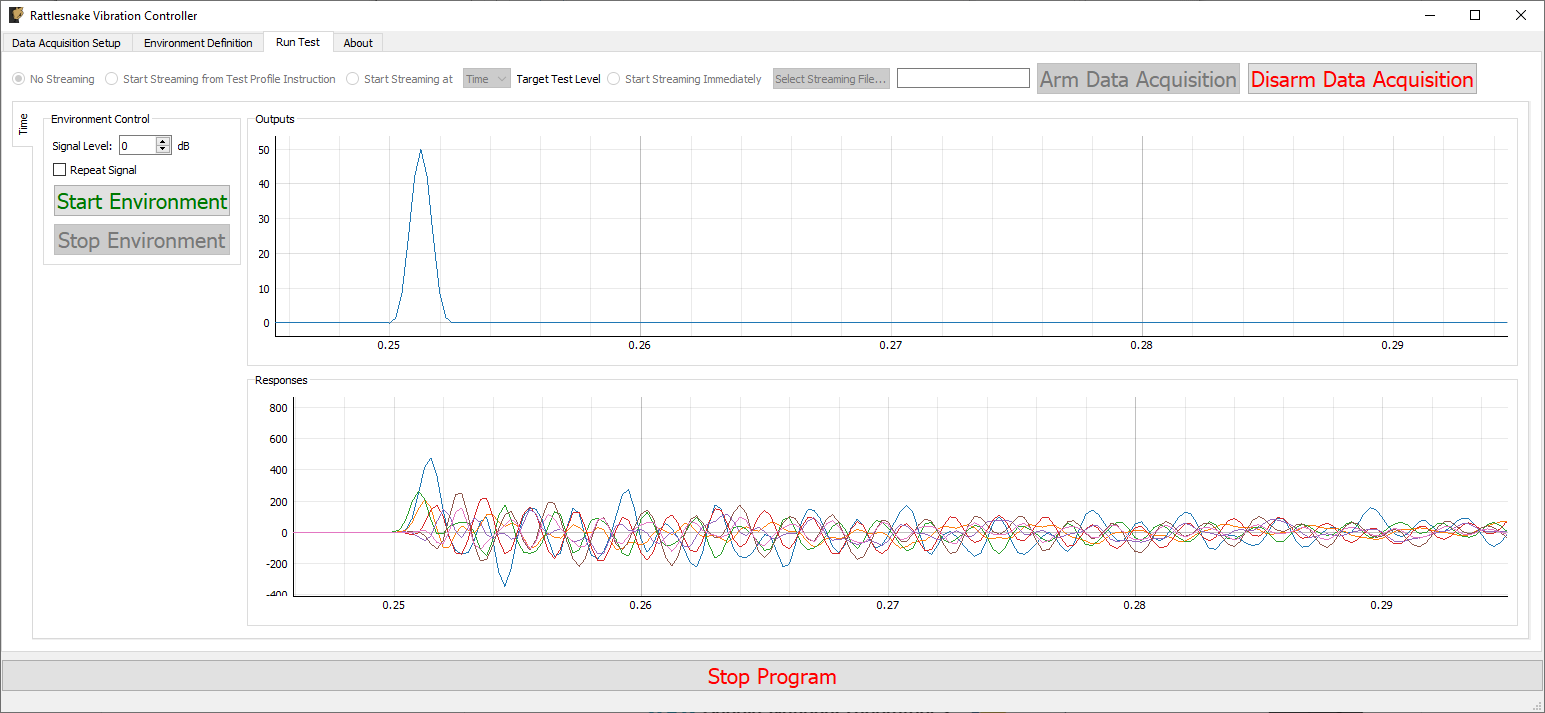

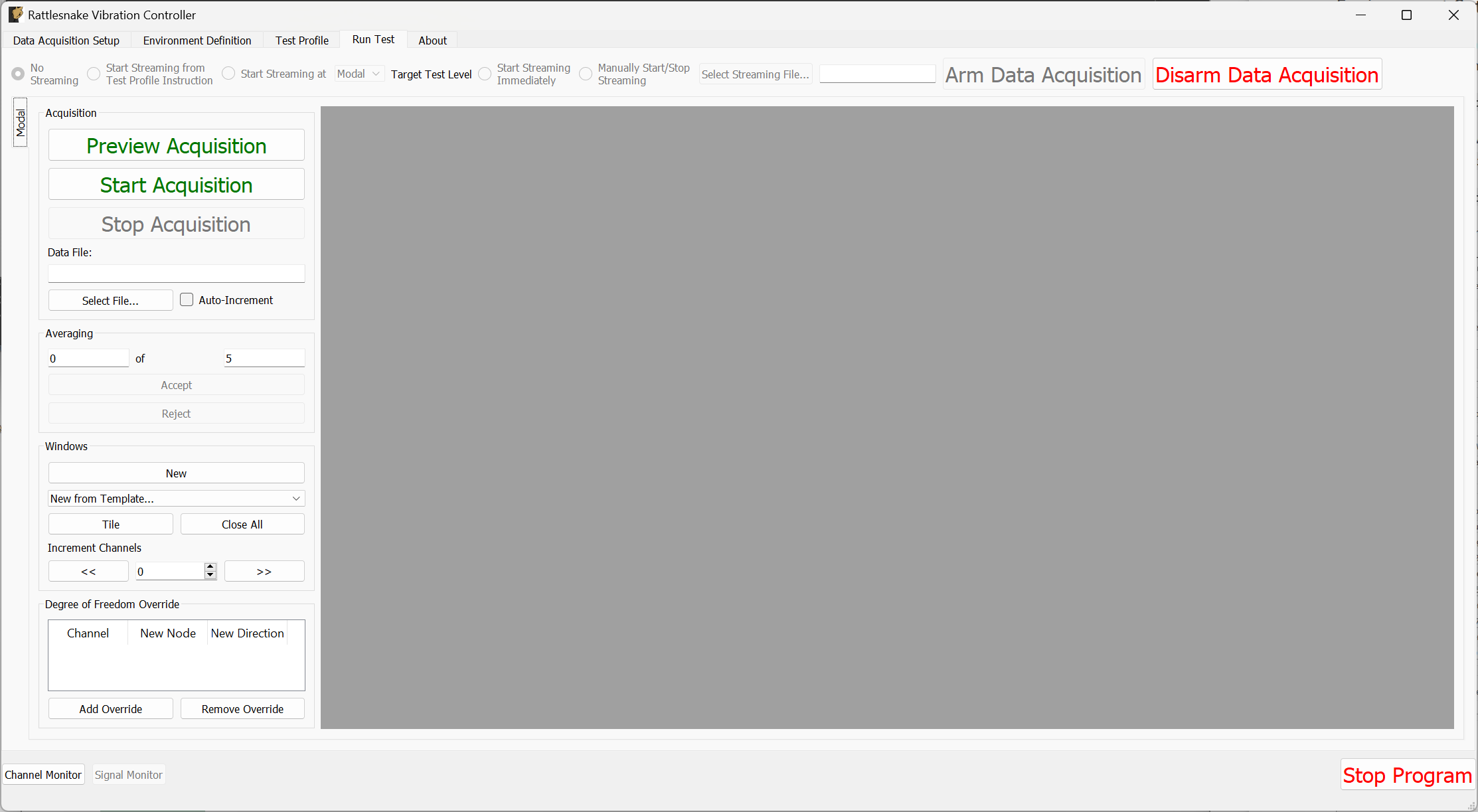

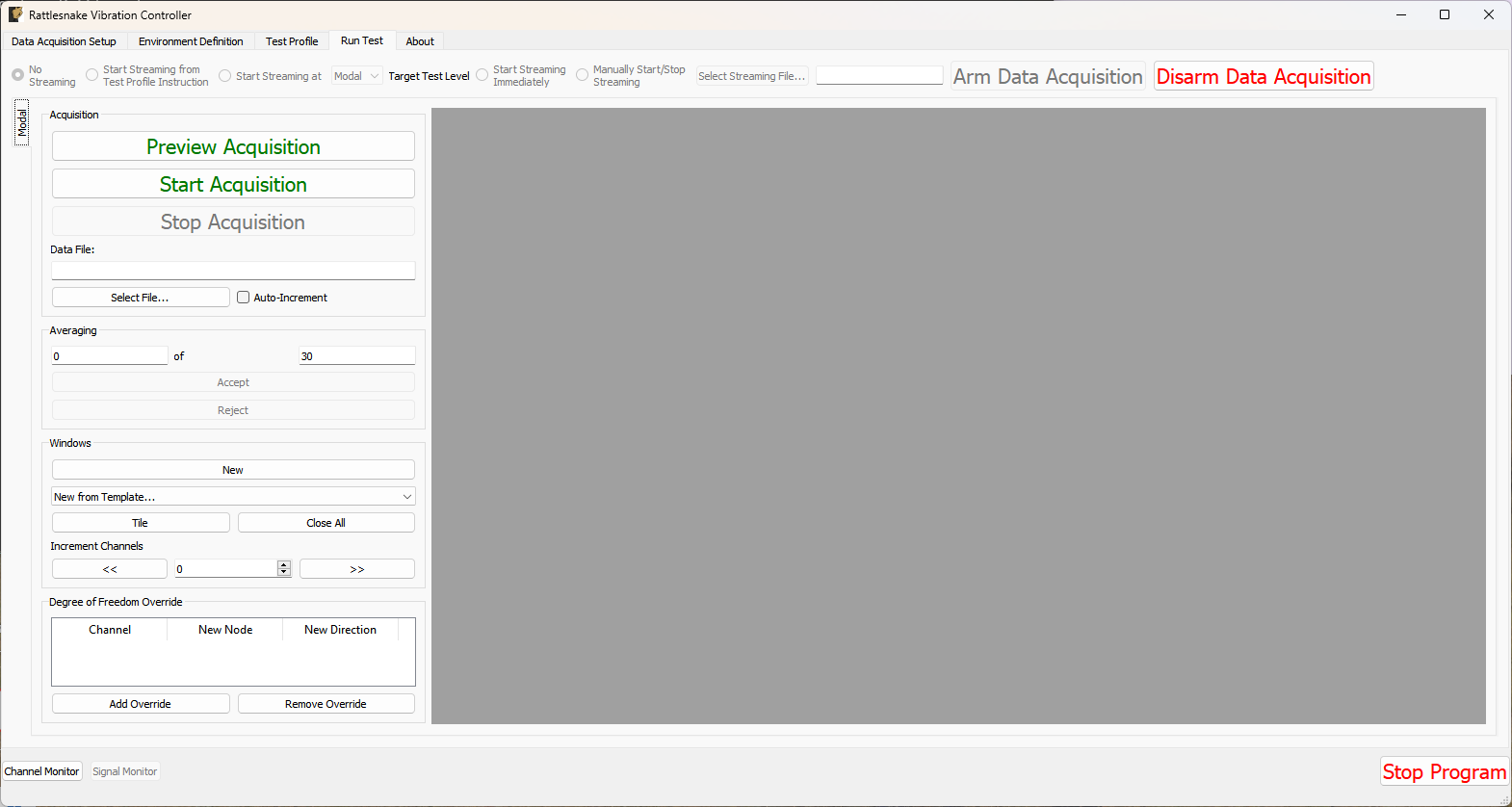

The Run Test tab is where Rattlesnake finally runs the test. This tab again has sub-tabs for the different environments in the test, however these sub-tabs will not be enabled until the data acquisition system is armed.

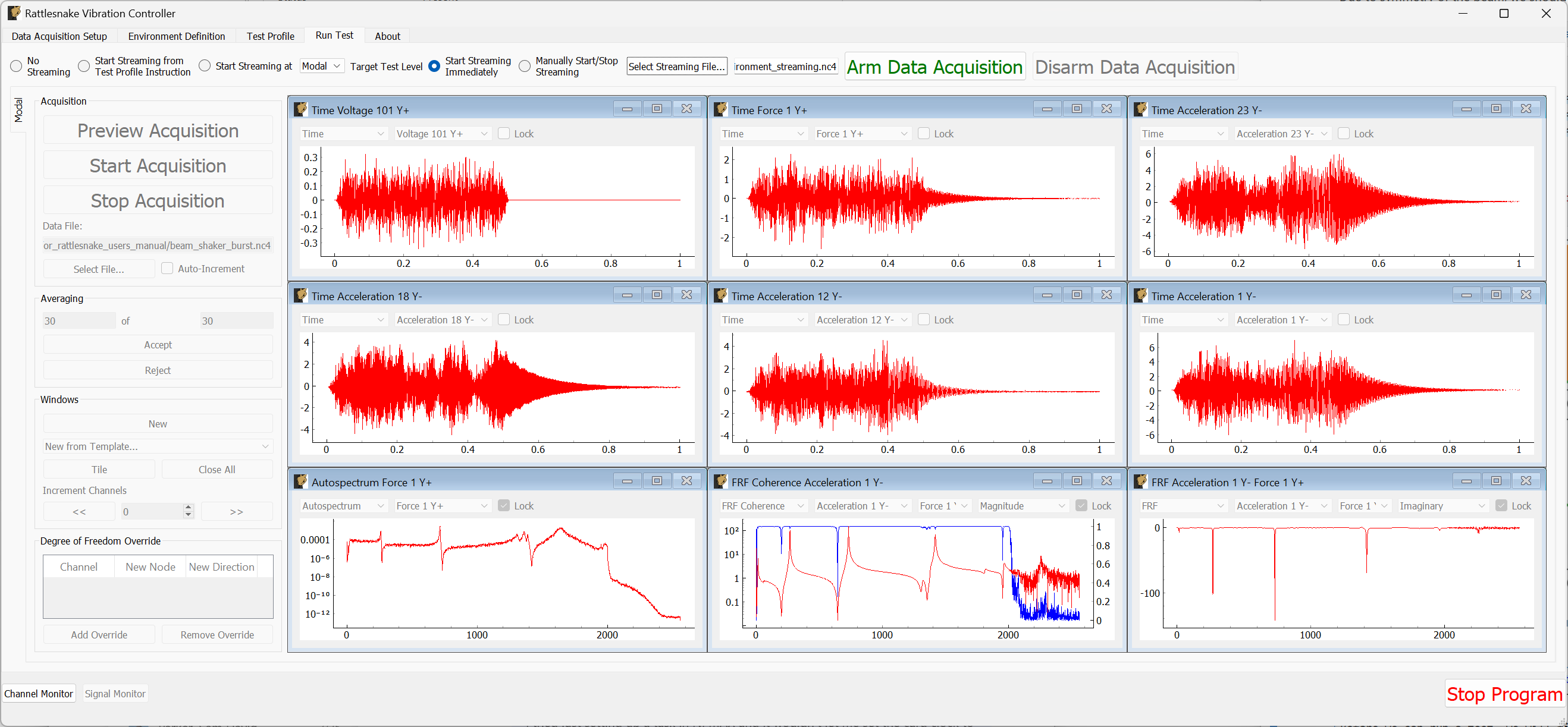

Rattlesnake gives the user many options to save data to the disk through a set of Radio buttons at the top of this tab. These options are:

• No Streaming Do not save data to disk, just run the test.
• Start Streaming from Test Profile Instruction Selecting this option allows data to be saved to disk after a "Global Start Streaming" event from the test profile is executed. This allows the user to fine tune at which point in the test data is acquired.
• Start Streaming at Target Test Level Selecting this option starts streaming data when the selected environment hits its target test level. This can be useful if, for example in a random environment, the user wishes to start at a low level and slowly creep up to the target test level. If all data is saved, it might require a large amount of file space, so instead only the data at the test level of interest can be saved.
• Start Streaming Immediately Saves all data from the time the first environment starts until the data acquisition system is disarmed.
• Manually Start/Stop Streaming Allows the user to start and stop the measurement periodically throughout the test. A Start Streaming button will appear when this option is selected. When clicked, the button will change to Stop Streaming. Multiple data streams can be saved in a given test. These will be stored to separate variables in the output NetCDF4 file (TODO: see Section \ref{sec:using_rattlesnake_output_files}).

When streaming data, it is important to note that the software does not stop streaming until the data acquisition system is disarmed by pressing the Disarm Data Acquisition button. This is because for a combined-environments test, the environments may have down-time between them where no environment is running, and that data should still be saved.

The Run Test tab contains global Arm Data Acquisition and Disarm Data Acquisition buttons that start and stop the data acquisition system. When the data acquisition system is armed, the user can no longer change streaming options, and the sub-tabs for each environment are enabled. The user can then start or stop each environment manually using the Start Environment or Stop Environment buttons on each environment's sub-tab. The sub-tab for each environment is described more thoroughly in Part III.

Alternatively, the user can start or stop the test profile by clicking on the Start Profile or Stop Profile buttons respectively. The profile capability also includes the option to switch the active environment sub-tab when an event is executed so the user can see the results. Note that the profile options only appear when a profile has been defined on the Test Profile tab.

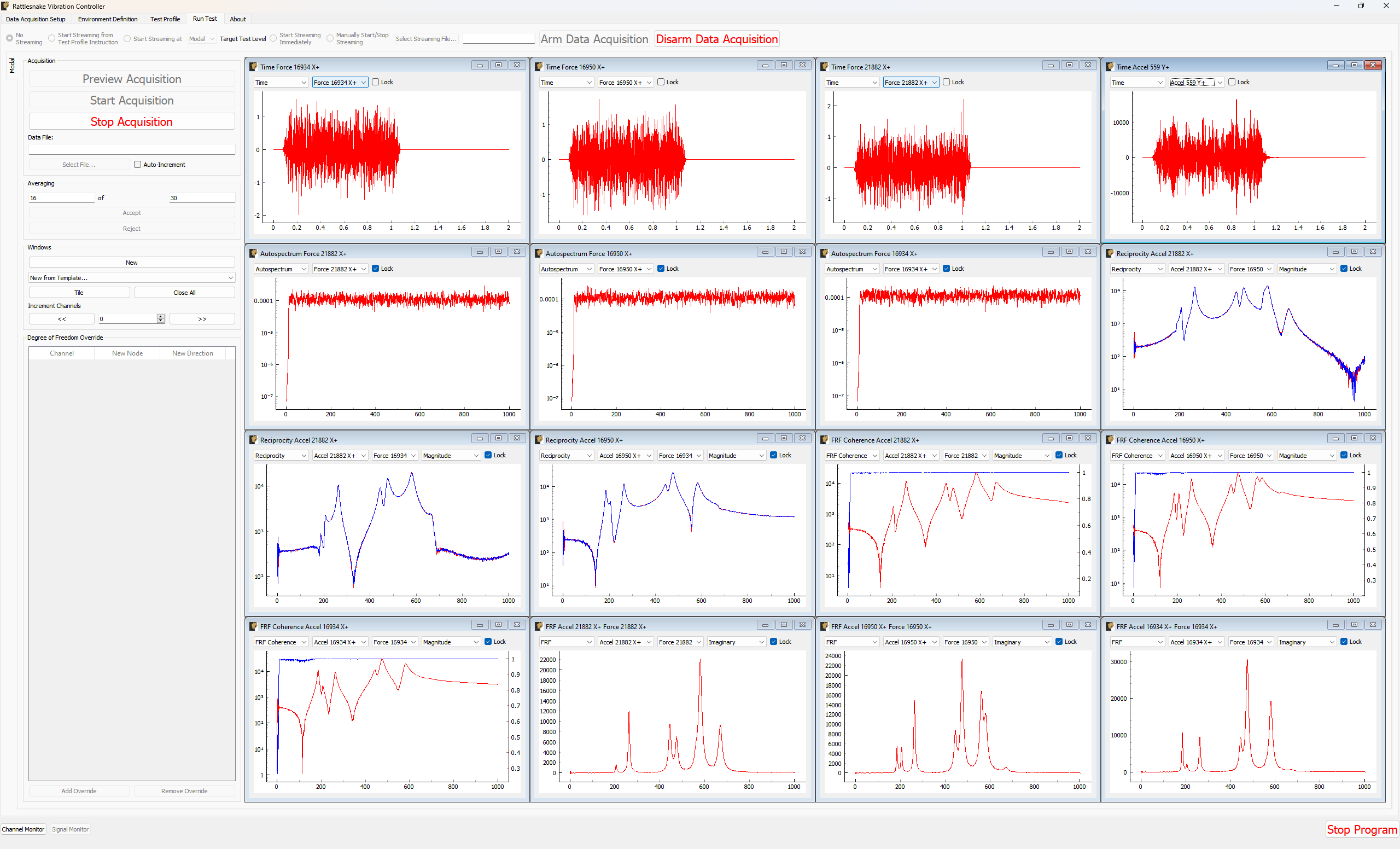

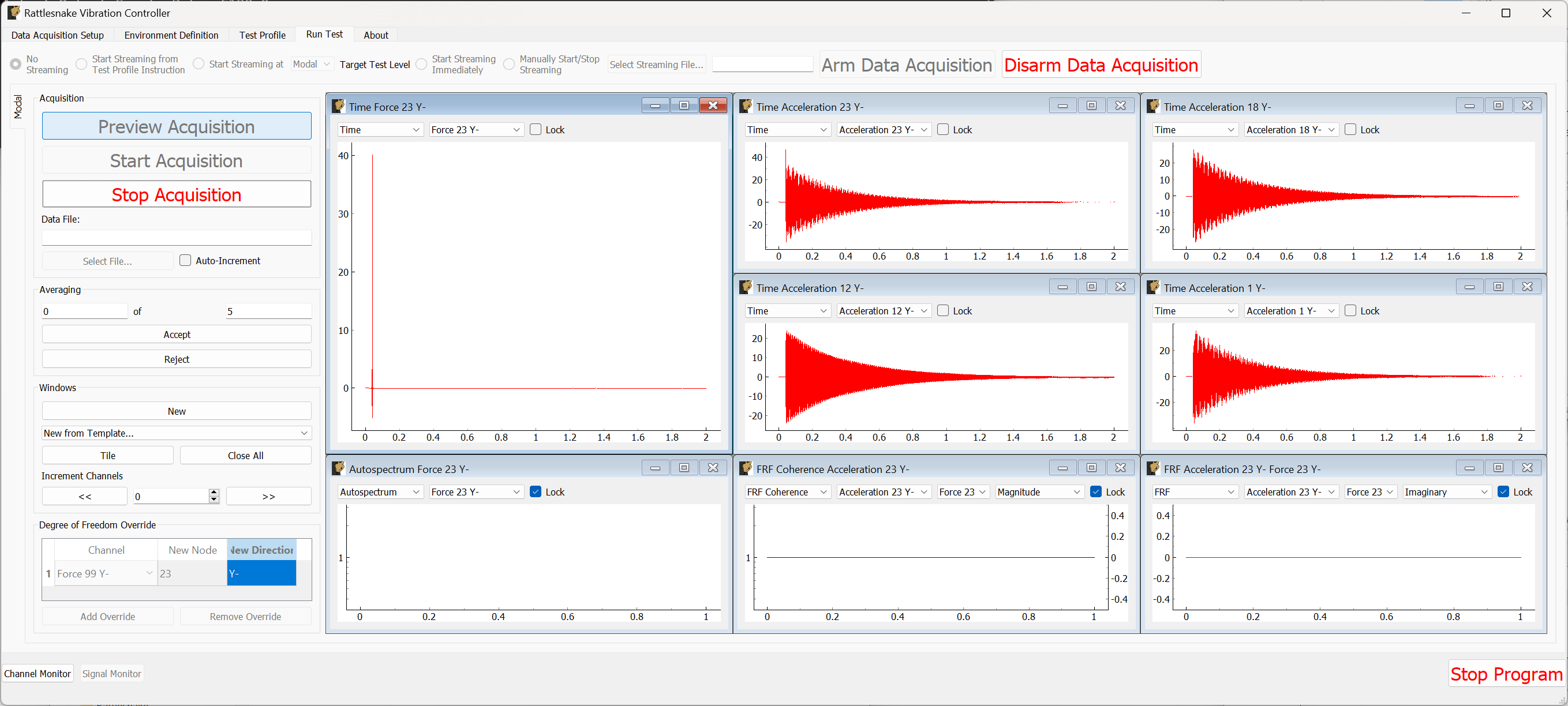

Figure 3-10 shows an example Run Test tab with test profile events.

Figure 3-10. Run Test Tab.

3.8. Rattlesnake Output Files

After data is acquired, the user may wish to analyze or plot the data acquired for a given test report. Rattlesnake stores data in a self-documenting netCDF file {{#cite unidata2019_netcdf}}, which can be read by multiple platforms. The output file is described as self-documenting because it contains all parameters necessary to reconstruct a given test using the Rattlesnake controller. Any parameter that is set by the user in the GUI is stored to the netCDF file.

A full description of the netCDF file format is out of this document's scope, but the important points are briefly described here. NetCDF files have a number of data structures. Variables are multi-dimensional arrays of data. Dimensions describe the axes of the variable arrays. Attributes are used to store small data such as scalars or 1D arrays. NetCDF files can be separated into different groups, and each group can have its own variables, dimensions, and attributes.

The Rattlesnake output files contain the following data members:

3.8.1. NetCDF Dimensions

• response_channels The number of response channels in a given test
• output_channels The number of output channels in a given test
• time_samples The number of time samples measured in the file, this dimension can expand as more data is acquired.
• time_samples_X If manual streaming is used and streaming is started multiple times, each subsequent stream will have the time_samples name with an underscore and appended number (e.g. time_samples_1, time_samples_2)
• num_environments The total number of environments in the test

3.8.2. NetCDF Attributes

• sample_rate The global sample rate of the data acquisition system
• time_per_write The amount of data put to the output hardware per write operation, in seconds
• time_to_read The amount of data read from the acquisition hardware per read operation, in seconds
• hardware The hardware index used for the test.
  • 0 -- National Instruments NI-DAQmx
  • 1 -- HBK LAN-XI Open API
  • 2 -- Data Physics Quattro
  • 3 -- Data Physics 900 Series
  • 4 -- Virtual Control defined by Exodus Modal Solution
  • 5 -- Virtual Control defined by State Space Matrices
  • 6 -- Virtual Control defined with a SDynPy System
• hardware_file The path to the file used to define the Virtual test article, or the path to the external code library used by the data acquisition hardware. Otherwise, it will be None
• maximum_acquisition_processes The maximum number of processes that the LAN-XI hardware can use for acquisition
• output_oversample The oversample used either due to sample rate restrictions on the data acquisition system, or due to oversampling the integration

3.8.3. NetCDF Variables

• time_data The measured data from the test. Type: 64-bit float; Dimensions: response_channels by time_samples
• time_data_X If manual streaming is used and streaming is started multiple times, each subsequent stream will have the time_data name with an underscore and appended number (e.g. time_data_1, time_data_2)
• environment_names The name of each environment. Type: string; Dimensions: num_environments
• environment_active_channels The channels active in each environment. 1 if active, 0 if not. Type: 8-bit int; Dimensions: response_channels $\times$ num_environments

3.8.4. Channels Group

The netCDF files from Rattlesnake store all channel information into a separate group called channels. Inside the channels group, there is a variable for each column of the channel table. See Section Channel Table for more complete descriptions of each channel variable.

• /channels/node_number The node number of each channel. Type: str; Dimensions: response_channels
• /channels/node_direction The instrument direction of each channel. Type: str; Dimensions: response_channels
• /channels/comment The commend for each channel. Type: str; Dimensions: response_channels
• /channels/serial_number The serial number of the instrument for each channel. Type: str; Dimensions: response_channels
• /channels/triax_dof The sensor degree of freedom for each channel. Type: str; Dimensions: response_channels
• /channels/sensitivity The sensitivity of the instrument for each channel. Type: str; Dimensions: response_channels
• /channels/unit The engineering unit of the instrument for each channel. Type: str; Dimensions: response_channels
• /channels/make The manufacturer of the instrument for each channel. Type: str; Dimensions: response_channels
• /channels/model The model number or product name of the instrument for each channel. Type: str; Dimensions: response_channels
• /channels/expiration The expiration date of the instrument's calibration for each channel. Type: str; Dimensions: response_channels
• /channels/physical_device The physical device that the instrument is connected to for each channel. Type: str; Dimensions: response_channels
• /channels/physical_channel The channel in the physical device that the instrument is attached to for each channel. Type: str; Dimensions: response_channels
• /channels/channel_type The type of quantity that is measured by the channel. Type: str; Dimensions: response_channels
• /channels/minimum_value The minimum voltage that the channel can accept. Type: str; Dimensions: response_channels
• /channels/maximum_value The maximum voltage that the channel can accept. Type: str; Dimensions: response_channels
• /channels/coupling The coupling type used by each channel (AC/DC/filter/etc.). Type: str; Dimensions: response_channels
• /channels/excitation_source The excitation source for each channel, used to specify CCLD/ICP/IEPE. Type: str; Dimensions: response_channels
• /channels/excitation The excitation current value used in the signal conditioning for each channel. Type: str; Dimensions: response_channels
• /channels/feedback_device The device that the channel's generator originates from if the channel is an output channel. Type: str; Dimensions: response_channels
• /channels/feedback_channel The channel that the channel's generator originates from if the channel is an output channel. Type: str; Dimensions: response_channels
• /channels/warning_level The warning level of each channel. Type: str; Dimensions: response_channels
• /channels/abort_level The abort level of each channel. Type: str; Dimensions: response_channels

3.8.5. Environment Groups

Environment-specific attributes, dimensions, and variables are also stored within a group corresponding to each environment. For example, in the case where there were two environments "A" and "B", parameters specific to environment "A" would be stored within the group "A" in the netCDF file, and similarly for "B". See Part III. Rattlesnake Environments for more information on environment-specific parameters.

3.8.6. Reading Rattlesnake Output Files using Python

To read data from a netCDF using Python, it is recommended to use the netCDF4 Python package. This library is a dependency of Rattlesnake, so if the user is not running Rattlesnake via an executable, this package should already be installed in the user's Python ecosystem.

netCDF4 provides a sleek Python interface into the data of a netCDF4 file. This section will assume the command import netCDF4 as nc4 was used to import the package, so nc4 is used as a shorter alias.

A netCDF4 dataset can be opened using the following command:

dataset = nc4.Dataset('path/to/netcdf4/file.nc4')

after which all data can be accessed through the dataset object.

Attribute names can be queried using the dataset.ncattrs() function and the attribute values can be accessed directly from the dataset object using that name.

>>> dataset.ncattrs()
['sample_rate',
'samples_per_write',
'samples_per_read',
'hardware',
'hardware_file']

>>> dataset.sample_rate
2048

Dimensions can be accessed using the dataset.dimensions property, which gives a Python dict where the keys are the dimension names and the values are references to the dimension. The size of the dimension can be accessed using the size parameter in each dimension object.

>>> dataset.dimensions
{'response_channels': <class 'netCDF4._netCDF4.Dimension'>: name = 'response_channels', size = 30,
'output_channels': <class 'netCDF4._netCDF4.Dimension'>: name = 'output_channels', size = 3,
'time_samples': <class 'netCDF4._netCDF4.Dimension'> (unlimited): name = 'time_samples', size = 31745,
'num_environments': <class 'netCDF4._netCDF4.Dimension'>: name = 'num_environments', size = 2}

>>> dataset.dimensions['response_channels'].size
30

Variables can be accessed similarly to dimensions using the dataset.variables property. Variables have many properties that may be interesting to the users, including the netCDF dimensions that were used to size the variable (accessible with the dimensions parameter) or the actual shape of the array (accessible with the shape parameter). The data inside the dimension can be accessed by slicing or indexing the array, or simply passing it to a numpy array. Note that slicing or indexing the variable returns the data in a numpy masked array which allows data to potentially to be missing from the array. Rattlesnake does not use the missing data capabilities of the netCDF file, so data can safely be transformed directly to a regular numpy array.

>>> dataset.variables
{'time_data': <class 'netCDF4._netCDF4.Variable'>
float64 time_data(response_channels, time_samples)
unlimited dimensions: time_samples
current shape = (30, 31745)
filling on, default _FillValue of 9.969209968386869e+36 used,
'environment_names': <class 'netCDF4._netCDF4.Variable'>
vlen environment_names(num_environments)
vlen data type: <class 'str'>
unlimited dimensions:
current shape = (2,),
'environment_active_channels': <class 'netCDF4._netCDF4.Variable'>
int8 environment_active_channels(response_channels, num_environments)
unlimited dimensions:
current shape = (30, 2)
filling on, default _FillValue of -127 ignored}

# Get the dimensions used by the variable
>>> dataset.variables['time_data'].dimensions
('response_channels', 'time_samples')

# Get the shape of the variable
>>> dataset.variables['time_data'].shape
(30, 31745)

# Access via slice returns a masked array
>>> dataset.variables['time_data'][0,0]
masked_array(data=-0.00312098,
mask=False,
fill_value=1e+20)

# Can pass directly to a numpy array to get the full variable data
>>> np.array(dataset.variables['time_data'])
array([[-3.12098493e-03,  4.26820006e-03,  3.77395182e-03, ...,
         2.00690958e-01,  3.38505511e-01,  0.00000000e+00],
        [-6.10438702e-03,  1.50628999e-02, -1.50619535e-02, ...,
         2.67639515e-01,  5.50047023e-01,  0.00000000e+00],
        [-3.42732089e-03,  7.76593927e-03, -2.66239267e-03, ...,
         2.05434816e-01,  3.21815820e-01,  0.00000000e+00],
         ...,
        [ 3.71743658e-06, -8.77497995e-08, -8.80558595e-06, ...,
         -5.26559214e-06,  0.00000000e+00,  0.00000000e+00],
        [-1.32020650e-05,  2.74453772e-05, -2.01551409e-05, ...,
         -1.02501347e-05,  0.00000000e+00,  0.00000000e+00],
        [-5.96816619e-07, -1.47868461e-05, -5.24157875e-05, ...,
         -1.61722666e-05,  0.00000000e+00,  0.00000000e+00]])

Group names in the netCDF dataset can be queried using dataset.groups, which returns a dictionary similar to the dimensions and variables. Groups can also be accessed by indexing the dataset directly with the group name. A group object can be treated exactly the same as the root-level dataset, and will have its own set of attributes, dimensions, and variables.

>>> dataset['channels'].variables['node_number']
<class 'netCDF4._netCDF4.Variable'>
vlen control(response_channels)
vlen data type: <class 'str'>
path = /channels
unlimited dimensions:
current shape = (30,)

3.8.7. Reading Rattlesnake Output Files using Matlab

Matlab can also be used to read netCDF files from Rattlesnake. The Matlab ncdisp function can be used to quickly determine which parameters are in a file.

>>> ncdisp('path/to/netcdf/file.nc4')
Source:
           path/to/netcdf/file.nc4
Format:
           netcdf4
Global Attributes:
           sample_rate       = 2048
           samples_per_write = 512
           samples_per_read  = 512
           hardware          = 2
           hardware_file     = 'path/to/hardware/file.exo'
Dimensions:
           response_channels = 30
           output_channels   = 3
           time_samples      = 31745 (UNLIMITED)
           num_environments  = 2
Variables:
    time_data
           Size:       31745x30
           Dimensions: time_samples,response_channels
           Datatype:   double
    environment_names
           Size:       2x1
           Dimensions: num_environments
           Datatype:   UNSUPPORTED DATATYPE
    environment_active_channels
           Size:       2x30
           Dimensions: num_environments,response_channels
           Datatype:   int8
Groups:
    /channels/
        Variables:
            node_number
                   Size:       30x1
                   Dimensions: /response_channels
                   Datatype:   UNSUPPORTED DATATYPE
       .
       .
       .

Attributes, dimensions, and other metadata can be read into Matlab using the ncinfo function. Variables information must be read using the \inlineCode{ncread} function.

>>> finfo = ncinfo('path/to/netcdf/file.nc4')

finfo =

  struct with fields:

      Filename: 'C:\Users\dprohe\Documents\Local_Respositories\Combined_Environments_Controller\test_data\BARC_Exodus_Test\barc_combined.nc4'
          Name: '/'
    Dimensions: [1x4 struct]
     Variables: [1x3 struct]
    Attributes: [1x5 struct]
        Groups: [1x3 struct]
        Format: 'netcdf4'

>>> finfo.Dimensions(1)

ans =

  struct with fields:

         Name: 'response_channels'
       Length: 30
    Unlimited: 0

>>> time_data = ncread('path/to/netcdf/file.nc4','time_data')

One issue with the Matlab interface is that string variables are unsupported. This means that the majority of the channel information cannot be read through the Matlab netCDF interface. However, they can be read using the lower level h5read function.

>>> ncread(file,'channels/node_number')
Error using netcdf.getVar (line 137)
12 is not a recognized netCDF datatype.

Error in internal.matlab.imagesci.nc/read (line 605)
                data = netcdf.getVar(gid, varid);

Error in ncread (line 66)
vardata = ncObj.read(varName, varargin{:});

>>> h5read(file,'/channels/node_number')

ans =

  30x1 cell array

3.9. Loading Rattlesnake Tests

It can be tedious to set up a test from scratch each time a test is to be run, so Rattlesnake offers two ways to load test settings from files.

On the Data Acquisition Setup page, selecting the Load Test From File button allows the user to load in a netCDF data file that was output from Rattlesnake. As all the test metadata is stored to this file, Rattlesnake can read the file and set itself up accordingly to reproduce a given test. Note that difficulties may arise using this approach if parameters specified by file paths are no longer valid. For example, if the control law is read from a given file on one computer, but the file is in a different place on a separate computer, Rattlesnake will not be able to find the file.

The second way to load in an entire test is by using the Test Profile functionality in the Combined Environments mode. While this capability was designed to make it easier to load in complex multi-environment test setups, it can be used just as effectively for single environment tests. See Chapter 16 Combined Environments for more information.

3.10. Channel Monitor

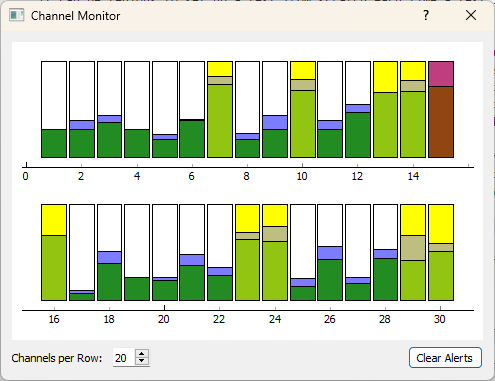

To aid with understanding the test levels and headroom available for the sensors in the test, a Channel Monitor is available where the levels are shown for each channel. The channel monitor is displayed by clicking on the Channel Monitor button on the lower left side of the GUI. The display shows both an instantaneous level (green) as well as a running historical maximum (blue). If a channel reaches the Warning or Abort level, it will be flagged with a yellow or red tint, respectively. These warnings "latch"; once the level is reached, it will stay highlighted in the channel monitor until the Clear Alerts button is clicked. Figure 3.11 shows an example channel monitor.

Figure 3-11. View of the Channel Monitor dialog box showing several channels that have reached the "warning" level (highlighted yellow) and one channel that has reached the "abort" level (highlighted red).

The aspect ratio of the Channel Monitor can be customized to different sizes modifying the Channels per Row.

Part II. Rattlesnake Hardware Devices

Designed for flexibility, Rattlesnake can be used with multiple hardware devices and even perform virtual control using a synthetic data acquisition system. This Part will cover the hardware-specific implementation details that must be considered when running Rattlesnake with each hardware device.

Rattlesnake is designed so there is minimal differences in software workflow when using different hardware devices. Nonetheless, there are some slight differences in how channels and devices must be specified, and these differences are primarily found on the Data Acquisition Setup tab in the Rattlesnake software.

The Chapters in this Part document the hardware devices that are able to be used by Rattlesnake, as well as the virtual devices that can be used to simulate control. Chapter 4 describes the implementation and utilization of NI-DAQmx devices. Chapter 5 describes the HBK LAN-XI hardware. Chapter 6 and Chapter 7 describe the Data Physics Quattro and 900-series hardware devices, respectively. Chapter 8, Chapter 9, and Chapter 10 describe virtual or synthetic hardware devices that are defined using state space matrices, eigensolution results stored in an exodus file, or a SDynPy System object, respectively.

If a user is interested in implementing a new hardware device, Chapter 11 describes some of the things to be aware of. Implementation of new hardware devices will require a good amount of knowledge of the Rattlesnake architecture.

4. NI-DAQmx Devices

Rattlesnake is able to run National Instruments devices that utilize the NI-DAQmx programming interface. See the NI-DAQmx Documentation for a list of supported devices for this programming interface. Note that users must have the proper drivers installed in order to communicate with their devices, though users need not have LabView or other NI software installed. See the instruction manual or online documentation for the specific device in use.

Drivers can be found here.

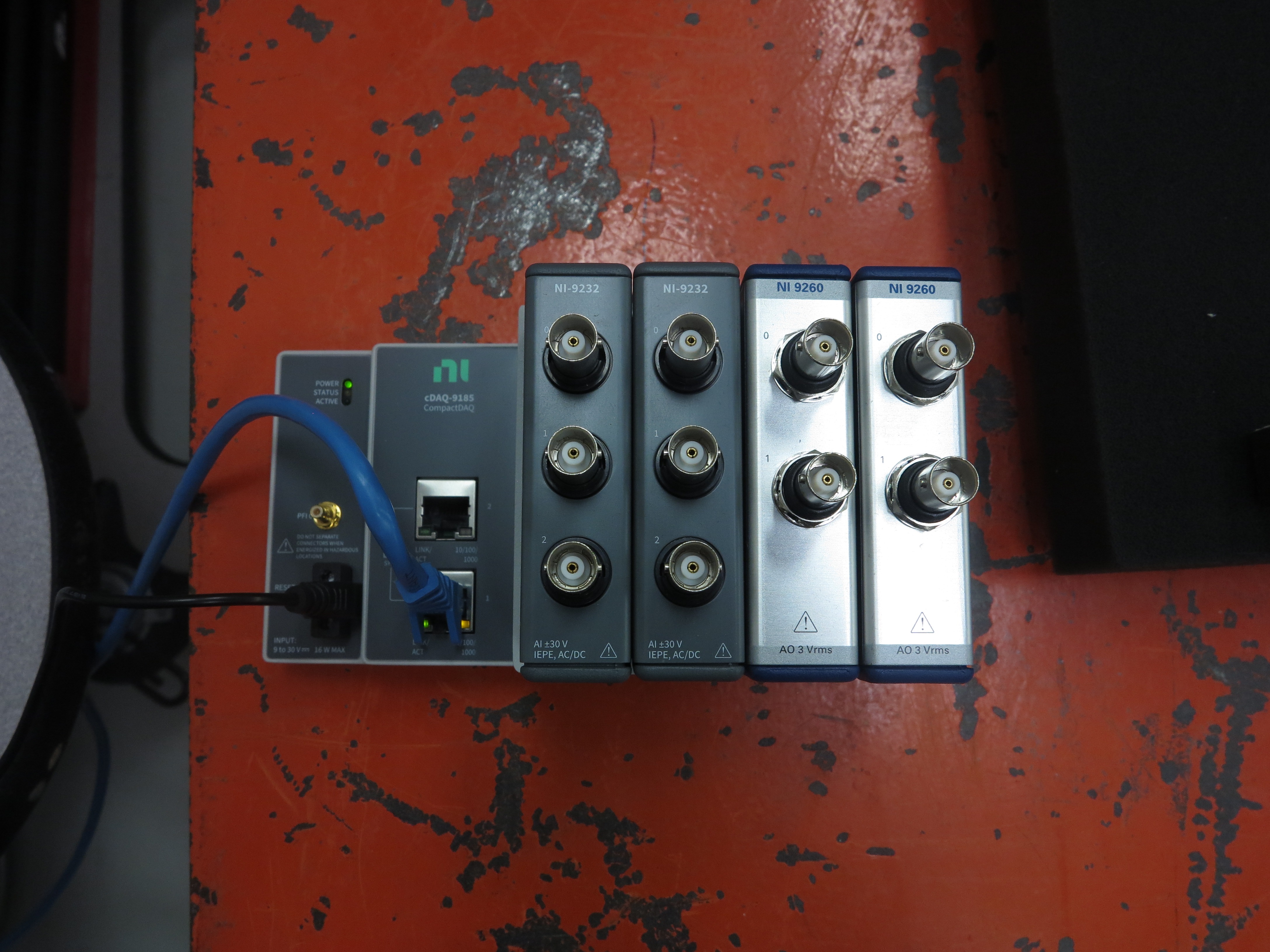

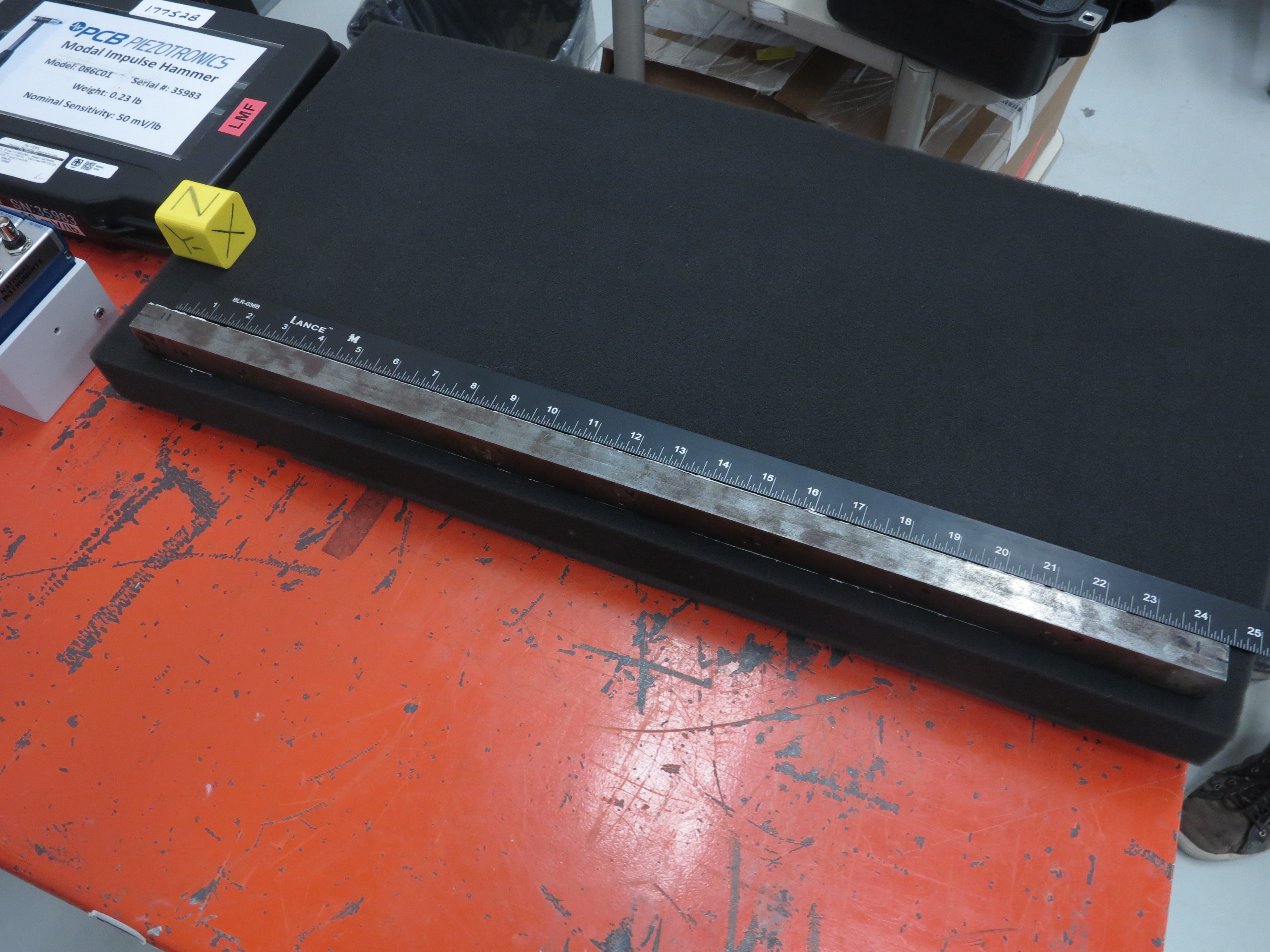

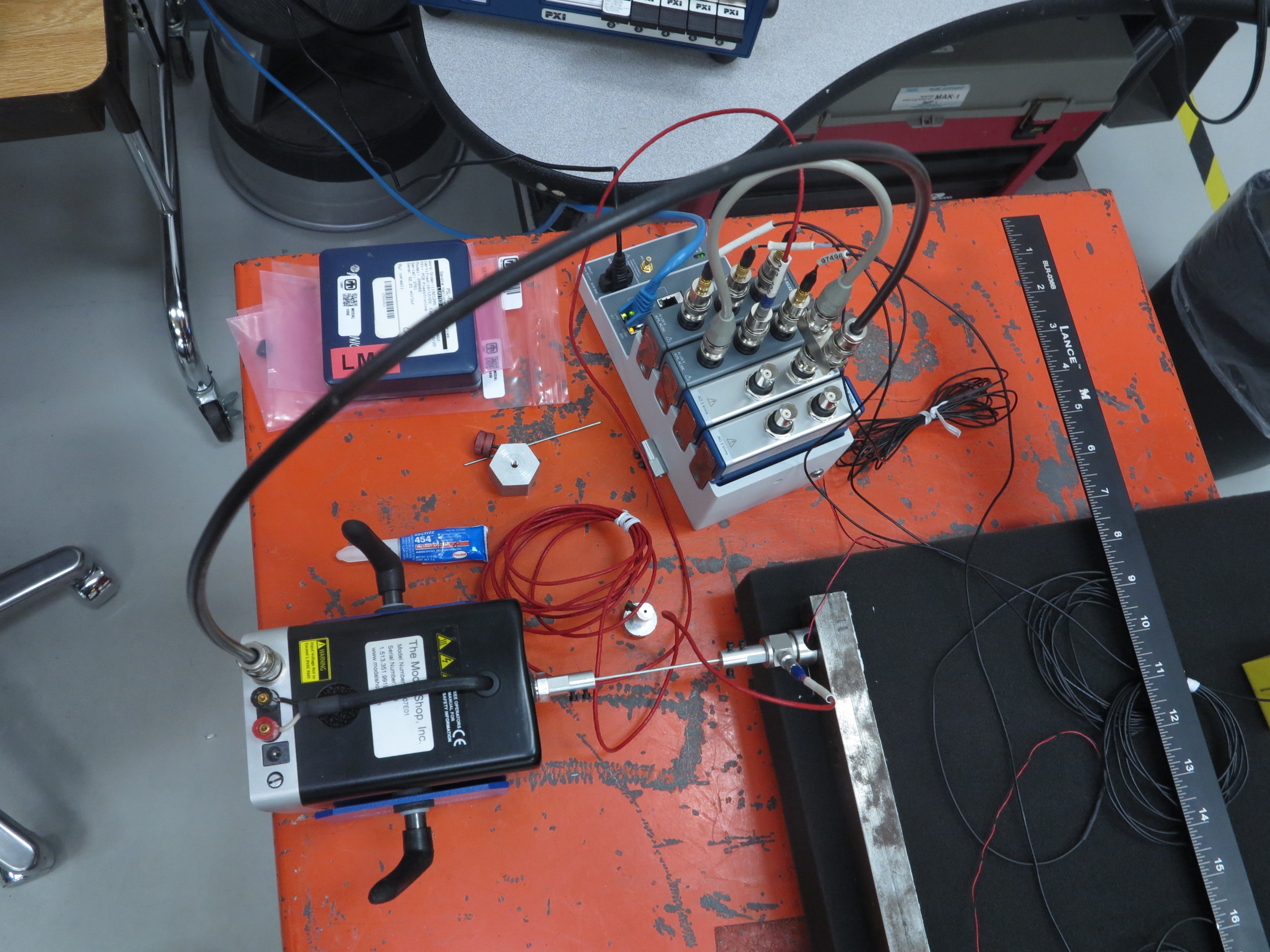

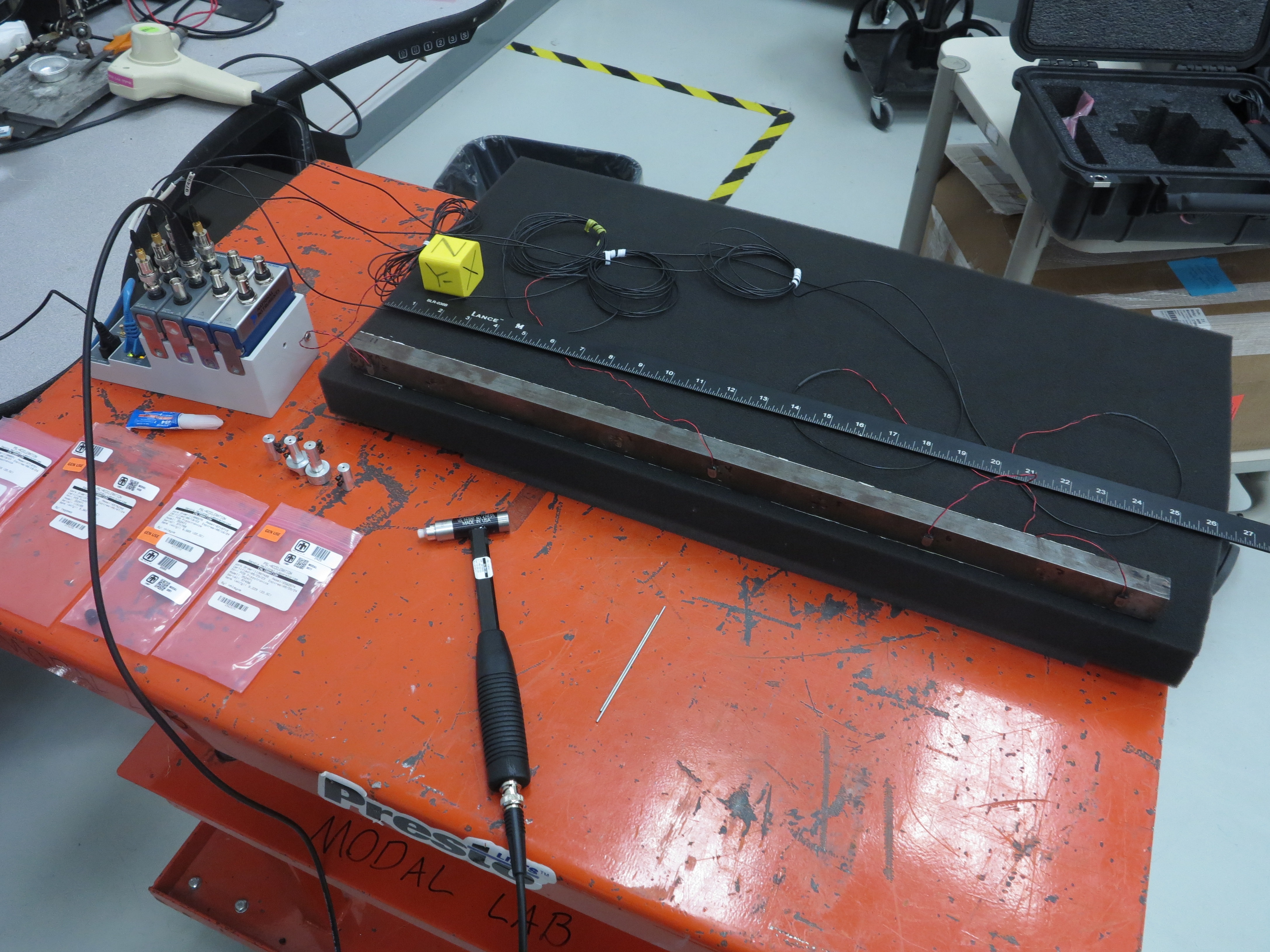

Appendix B shows a complete example problem using a NI data acquisition system.

4.1. Setting up the Channel Table for NI-DAQmx Device

This section lists the channel table requirements specific to NI-DAQmx.

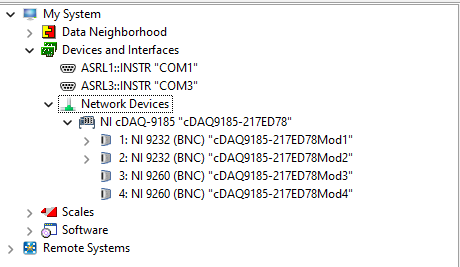

NI-DAQmx channels are identified by a device name and a channel name. Device names vary depending on the type of device used. For example, USB devices may simply be called Dev#, where # is a device number. cDAQ devices might be called cDAQ#Mod# where the first # denotes the data acquisition system number and the second represents the module within the data acquisition system. PXI/PXIe chassis devices will be similarly named PXI#Slot# where the first # is the chassis number and the second is the card number on the chassis. In general, the names of NI-DAQmx devices that are attached to a given computer can be found using the National Instruments Measurement Automation Explorer (NI MAX).

Channel names for NI-DAQmx devices generally are called ai for analog input and ao for analog output. A four acquisition channel, one output device might have acquisition channels ai0, ai1, ai2, and ai3 and output channel ao0. Again, see the Measurement Automation Explorer to determine the channels that exist on each device.

The channel type of a given channel determines what parameters are used and required for that channel. Valid channel types are Acceleration, Force, or Voltage.

Acceleration channel types must have a sensitivity specified in mV/G in the channel table, as the only valid Engineering Unit for an acceleration channel is G.

Force channel types must also have a sensitivity specified. Valid units for a force channel are pounds (specified by lb, pound, pounds, lbf, lbs, or lbfs, case insensitive) or newtons (specified by n, newton, newtons, or ns, case insensitive).

Voltage channel types need not have a sensitivity or unit specified, as they will always be reported in volts. A best practice is to fill out these columns anyways with the correct values V for engineering unit and sensitivity of 1000 mV/V. Note that specifying a different sensitivity for a voltage channel WILL NOT result in the voltage being scaled. The NI-DAQmx implementation does not have the ability to scale voltage channels. Users should specify 1000 mV/V as the sensitivity. Note that if a sensitivity is not specified, the Warning and Abort limits may not be correctly computed, as they rely on sensitivity information to convert between a measured raw voltage and the correct sensitivity unit.

The Physical Device and Physical Channel (as well as Feedback Device and Feedback Channel for output channels) should correspond to the device and channel names in the Measurement Automation Explorer. For example, channel ai3 on device PXI1Slot4 would have Physical Device set to PXI1Slot4 and Physical Channel set to ai3.

Maximum and Minimum Values should be specified based on the levels expected for the given test, taking into account that they are not outside the range acceptable for the device.

The Coupling column in the channel table is not currently used by the NI-DAQmx system, rather the coupling is specified automatically by the channel type (Acceleration and Force are AC coupled, Voltage is DC coupled).

Excitation Source should be set to either Internal or None. If set to Internal, the device will generate the ICP/CCLD/IEPE signal conditioning required by the sensor. If set to None, no signal conditioning will be provided by the hardware device.

Current Excitation should typically be set to 0.004 A (4 mA) unless the sensor requires a different current to be provided. The Current Excitation value is only used if the Excitation Source is set to Internal. If set to None, no current is generated.

4.2. Hardware Parameters

Besides the sample rate, no additional hardware-specific parameters must be specified for NI hardware. Figure 4.1 shows the parameters for NI-DAQmx hardware devices.

WARNING: Some NI-DAQmx devices have discrete allowable sample rates, while others can have any sample rate that is desired up to some maximum value. Please refer to the documentation of your device to determine which sample rates are allowable for your device. The NI-DAQmx drivers, when provided an incompatible sample rate, often simply select the closest available rate or the next highest rate, which can result in data being acquired at a rate that is not equivalent to the rate selected in the software. Additionally, further issues can occur when the sample rate of an output device is not compatible with the sample rate of an acquisition device, meaning the output is being delivered at a different rate than it is being measured, resulting in inconsistent data. Currently Rattlesnake does not do very rigorous checks to determine if the specified sample rate is allowable, so it falls on the user to ensure that it is!

Figure 4-1. NI-DAQmx Data Acquisition Parameters

4.3. Implmentation Details

This section contains details on the NI-DAQmx implementation in Rattlesnake, which may be helpful for users when diagnosing issues that arise in the controller.

4.3.1. NI-DAQmx Tasks

NI-DAQmx hardware interfaces are defined within Tasks. The acquisition exists within one task. The output exists within one or more more separate tasks with one task per type of output card. This multi-task output enables, for example, two different types of output cards to be used in the same chassis.

4.3.2. Sampling Parameters

Both acquisition and output operate in continuous mode. This means that if the controller cannot output signals fast enough and the hardware runs out of samples to generate, the controller will throw an error and stop abruptly. A buffer size of three times the number of samples per write is specified in the source code which gives a cushion against the controller falling behind. The output will accept a set of samples into the output buffer whenever there is less than two writes worth of samples remaining in the buffer. The buffer size is computed by subtracting the total samples generated by the output task from the current write position in the output tasks buffer.

4.3.3. Starting the Hardware

When a measurement is started, the output is set up and started first. The output task uses a start trigger from an analog input task (/<physical_device_name>/ai/StartTrigger) as its trigger, so once it starts, it effectively waits for the acquisition to be set up and started. To determine which start trigger is used, it checks if the device is a cDAQ device. If the device is a cDAQ device, it uses the start trigger from the cDAQ chassis. If it is not a cDAQ device, it utilizes the start trigger from the first analog input channel. This configuration has been tested with both cDAQ and PXI devices. When the acquisition is started, its start trigger will trigger the output to start outputting signals simultaneously. Because the system tries to use the analog input start trigger for all outputs, users may have trouble daisy-chaining multiple chassis together if the trigger signal is not able to be passed between all of the chassis.

5. LAN-XI Devices

Rattlesnake is able to run HBK LAN-XI devices using the hardware's OpenAPI. Rattlesnake communicates with the LAN-XI hardware via Ethernet, so for best results, the computer's Ethernet card should be connected with the LAN-XI hardware rather than using a USB Ethernet dongle, which in the author's experience can lead to lower network speeds and more time required to pull data off the hardware.

5.1. Setting up the Channel Table for LAN-XI Devices

This section describes the process to set a channel table in Rattlesnake for the LAN-XI hardware.

LAN-XI devices are defined by an IP address, which is displayed on each module when it is plugged into a computer or a LAN-XI frame. This IP address should be specified as the Physical Device or Feedback Device in the channel table for a acquisition or output channel, respectively. The Physical Channel or Feedback Channel range from 1 to the number of channels on the module. Figure 5-1 shows an example case for setting up a LAN-XI test.

Figure 5-1. Physical Channel and Feedback Channels for LAN-XI modules. The left device would have the Physical Device 169.254.113.201 and Physical Channels 1, 2, 3, 4, 5, and 6. The right device would have Physical Device 169.254.211.152 and Physical Channels 1, 2, 3, and 4. The right device would also have Feedback Device 169.254.211.152 and Feedback Channels 1 and 2

The Maximum Value column in the channel table is used to set the range on the LAN-XI hardware. The only two valid options for LAN-XI hardware ranges are 10 and 31.6. No other range is allowable. The Minimum Value column is not used and can be left blank.

The Coupling column in the channel table is used to specify the filter used in the LAN-XI hardware. Valid values for coupling are DC, 0.7 Hz, 7.0 Hz, 22.4 Hz, or Intensity.

Current Excitation Source is used to specify if a channel uses CCLD or not. If CCLD is to be used on a given channel the Current Excitation Source column should contain CCLD. If CCLD is not to be used for that channel, the column can be left blank.

5.2. Hardware Parameters

LAN-XI hardware devices have discrete sample rates, which are powers of 2 staring with 4096 samples per second. The minimum sample rate of the generator is 16,384 Hz, so the output must be over-sampled if the acquisition sample rate is less than 16,384 samples per second. Environments defined in Rattlesnake must be able to handle output oversampling when required by the hardware device.

For large channel count tests, Rattlesnake struggles to pull data off the acquisition device fast enough using just one process. Therefore, a maximum number of acquisition processes can be specified. If too few processes are used, it will take longer to read data off the hardware than it took to acquire the data. This will result in the controller falling behind and the data buffer on the hardware slowly filling. Alternatively if too many processes are used, the computer running Rattlesnake will get bogged down swapping between processes, and other parts of the controller (particularly the GUI) may become slow. Generally, 20-40 channels per process is a reasonable rule of thumb, though this will depend on the Sample Rate of the hardware.

Figure 5-2. LAN-XI data acquisition parameters.

5.3. Implementation Details

This section contains details on the LAN-XI implementation in Rattlesnake, which may be helpful for users when diagnosing issues that arise in the controller.

5.3.1. ReST API

Rattlesnake communicates with the LAN-XI using a ReST interface. Rattlesnake sends and receives JSON packages that define state transitions in the hardware using HTTP commands.

5.3.2. Setting up the LAN-XI

The LAN-XI hardware is set up primarily by the Output process of the controller. The LAN-XI hardware can be used in either single or multi-module mode. It will generally take a while to set up the LAN-XI configuration. Lights will flash on the LAN-XI hardware while the setup is occurring, and information will be printed to the command terminal that appears when Rattlesnake is run. When the LAN-XI setup is completed, the statement Data Acquisition Ready for Acquire will be printed to the command terminal. Do not start a test prior to seeing this message.

Various network issues and firewall settings can block or slow down data transfer between the LAN-XI hardware and the computer running Rattlesnake. These issues are out of the scope of this document to diagnose and correct; users are encouraged to contact their network administrator if such issues arise.

It has been found that for larger channel count tests (typically three or more 11-card frames used simultaneously) that individual cards can hang during this setup process. The authors currently do not know why this occurs, as the exact same setup configuration causes no issues with lower channel counts. Cycling power on the hardware devices has been found to resolve this issue.

5.3.3. Acquistion Processe

The LAN-XI interface used by Rattlesnake uses multiple processes to acquire data from the hardware. When starting to acquire data, Rattlesnake starts a number of processes less than or equal to the maximum number of acquisition processes allowed on the Data Acquisition Setup tab. Each process will generally handle multiple hardware modules, with each module having one socket over which the data communication occurs. After all sockets are connected, the measurement is started.

Raw data is read from each module by the various acquisition processes and put into queues that are read by the main acquisition process. The main acquisition process takes these data and assembles them into the data array that is required by the controller.

When an acquisition activity ends, the Rattlesnake process will attempt to recover the LAN-XI subprocesses. When all processes have been recovered, the LAN-XI interface will print All processes recovered, ready for next acquire. to the command terminal. Periodically, one of these processes may not be recovered successfully, which will cause the acquisition process to hang. It is currently unknown why this occurs.

5.3.4. Decoding Acquisition Data

Raw acquisition data is provided to the controller from the hardware as bytes that must be interpreted correctly to be meaningful. A data stream from the hardware consists of messages transmitted sequentially. The message header is always 28 bytes long and specifies what type of message is being transmitted as well as the total length of the message. This then allows the socket reader to receive the rest of the message. Message types read by the Rattlesnake can either be "interpretations" or "signals". Interpretation messages specify how the subsequent signal data is to be interpreted and are sent whenever a signal changes. Interpretations provide an offset and a scale factor to apply to the raw acquisition data to create the physical measurements. Signal messages carry the raw acquisition data. Rattlesnake uses Kaitai Struct to decode the binary data stream into Python objects which are accessed by the controller.

5.3.5. Encoding Output Data

Data is provided to the hardware for output in bytes as well. LAN-XI hardware accepts output data as the 32-bit integers with only the upper 24 bits used. Floating point signals that are desired to be output are divided by 10 and multiplied by 8,372,224. These values are then truncated to integers and converted to bytes. These bytes are then sent via socket communications to the generator on the LAN-XI module.

5.3.6. Output Oversampling

The generator on the LAN-XI module always runs at its full rate of 131,072 samples per second. If the acquisition sample rate is equal to or greater than 16,384 samples per second, the LAN-XI hardware performs over-sampling automatically. However, if the sample rate is less than 16,384, Rattlesnake must over-sample its output. It is left to each environment within Rattlesnake to determine how to handle the oversampling of its output data. For \ac{FFT}-based environments, this can be as simple as padding the FFT with zeros prior to creating the signal. For time-based environments, more thought must be given to ensure signals are not made to be discontinuous by the up-sampling procedure.

5.3.7. Starting Up and Running the LAN-XI Acquisition

When an acquisition is started, the LAN-XI will immediately start acquiring data. Rattlesnake may take some time to set up all of the required network connections to the device, so there may be a delay between starting the acquisition and receiving data in the Rattlesnake software. During this time, the buffer on the hardware will start to fill up. Once Rattlesnake starts pulling data off the LAN-XI device, the buffer will generally empty, as Rattlesnake ideally can pull data off the device faster than it is acquired. For each read, Rattlesnake will print the amount of time it took to read to the command terminal. Initially, the value reported will be smaller than the Time per Read value that is specified on the Data Acquisition Setup tab, because the software will be pulling data off of the hardware buffer that has accumulated during the delay in starting up the measurement. After the buffer is emptied, users should see that the value reported will hover around Time per Read value that is specified on the Data Acquisition Setup tab, because that is the amount of time it takes to fill the buffer enough for the next read. The value may be lower or higher for any given read, but on average, it should be approximately equal to the Time per Read value. For maximal controller responsiveness, we want the hardware buffer to be empty so we can react to new data as quickly as possible, so it is therefore a good practice to not start any environment until the time that it is taking to read data becomes approximately equal to the specified Time per Read value.

If the user notices that it is consistently taking more time to perform a single read than the Time per Read value that was specified, it typically means that the software cannot pull data off the hardware quickly enough. This could be due to poor network speeds or a firewall interfering with the transfer. It could also mean that the user should increase the Maximum Acquisition Processes value specified on the Data Acquisition Setup page. If it consistently takes more time per read than the value specified in the Time per Read field, this means that the hardware buffer is filling up. The controller will be responding to increasingly older data, and will not be responsive. Finally, if the hardware buffer becomes full, the acquisition may simply stop entirely as there is no room to put more data.

6. Data Physics Quattro Devices

Rattlesnake is able to run Data Physics Quattro devices through the programming interface exposed by DPQuattro.dll, which is provided with installation materials for the Quattro device. Users must have the proper drivers installed in order to communicate with the Quattro device. Issues with device installation and licensing are outside the scope of the document; users are encouraged to contact Data Physics support for issues communicating with the hardware. If users can run the examples provided by Data Physics for the Quattro device, it should also work with Rattlesnake, as the same library calls are used.

6.1. Setting up the Channel Table for Quattro Devices

This section lists the channel table requirements specific to the Data Physics Quattro device.

The Quattro is a single standalone device, and therefore needs not be referenced by a specific name. However, Rattlesnake requires an entry in the Physical Device column for each channel to show that the channel is active. It is recommended to put Quattro in that space to make it clear that the connected device is a Quattro device. The Physical Channel column should contain the channel number from the device that the row in the channel table represents. For a Quattro device, this should range from 1--4. Channels in Rattlesnake do not need to be in the same order as channels on the data acquisition system for Quattro devices.

The Minimum Value (V) column is not used. The Maximum Value (V) column specifies both the minimum and maximum frequency. Valid Ranges for the Quattro device are 0.1, 1.0, 10.0, and 20.0 V for acquisition channels and 2.0 and 10.0 V for output channels.

The Coupling column is where the channel coupling is specified. Valid coupling values are

AC Differential specified by the entry AC, AC Differential, or AC Diff (case insensitive) DC Differential specified by the entry DC, DC Differential, or DC Diff (case insensitive) AC Single-Ended specified by the entry AC Single, AC Single Ended, or AC Single-Ended (case insensitive) DC Single-Ended specified by the entry DC Single, DC Single Ended, or DC Single-Ended (case insensitive) AC IEPE specified by the entry IEPE, ICP, AC ICP, or CCLD (case insensitive)

The Quattro device handles all signal conditioning so there doesn't need to be anything entered in the Current Excitation Source or Current Excitation Value columns.

Recall for output channels, users of Rattlesnake must tee the output signal back into an acquisition channel. This means using Quattro's two outputs with Rattlesnake will leave only two acquisition channels remaining. The Feedback Device column must be populated in the row corresponding to the acquisition channel that the output is teed into, again using Quattro for convention, but otherwise any entry will suffice. The Feedback Channel will be the output channel on the Quattro that is used. This should range from 1--2. Outputs in Rattlesnake do not need to be in the same order as outputs on the data acquisition system for Quattro Devices.

6.2. Hardware Parameters

When the Quattro device is selected from the Hardware Selector, Rattlesnake will bring up a file dialog asking for a Data Physics API file. Users should navigate to the file DpQuattro.dll, which should have been delivered with the Quattro API media. This dll file contains the Quattro programming interface that Rattlesnake uses to communicate with the Quattro device. If users cannot find this file, please contact Data Physics support, as Rattlesnake maintainers cannot provide this file. Each file is licensed separately by Data Physics and cannot be shared. The dll file should be alongside a signal.001.qrt file, which is the license file specific to each Quattro device. If this license file is missing or is not the one paired to the Quattro hardware, the interface will not run.

The only other parameter specific to the Quattro device is the Sample Rate. Quattro devices used with Rattlesnake have discrete sampling rates available. These are 16, 20, 25, 32, 40, 50, 64, 80, 100, 128, 160, 200, 256, 320, 400, 512, 640, 800, 1024, 1280, 1600, 2048, 2560, 3200, 4096, 5120, 6400, 8192, 10240, 12800, 20480, 25600, 40960, 51200, 102400, or 204800 samples per second. This is a subset of the full set of Quattro sample rates, because Rattlesnake only deals with integer numbers of samples per second.

6.3. Implementation Details

This section contains details on the Quattro implementation in Rattlesnake, which may be helpful for users when diagnosing issues that arise in the controller.

6.3.1. Drivers

The Data Physics Quattro device connects to the computer via USB, and must have drivers installed to correctly connect. Drivers are found in the \Driver folder of the DpQuattro API package. If you have trouble finding or installing the drivers, please contact Data Physics support, as the Rattlesnake authors cannot provide these files.

6.3.2. Programming API

The Data Physics DpQuattro API is a 64-bit programming interface written in C/C++. It is compiled to a Windows dll, so it can be used by any other environment that can use a Windows-based C library. Therefore the Quattro device as implemented in Rattlesnake is only usable on 64-bit Windows operating systems, not Mac or Linux. Additionally, if you are not using a 64-bit Python executable, you will not be able to connect to the 64-bit dll, and will not be able to use the Quattro device.

The API is accessed using the Python ctypes module, by calling its WinDLL method on the path to the dll. The file components/data_physics_interface.py in the main Rattlesnake directory constructs an object-oriented Python interface from the functions in this dll. The file components/data_physics_hardware.py then defines the acquisition and output hardware objects with the correct methods that Rattlesnake will call.

6.3.3. Debugging

If issues with the Quattro devices are encountered, users can look at the Rattlesnake command prompt that appears when the software is loaded, or the command prompt from which Rattlesnake is run. The DpQuattro API will print messages to this prompt periodically that can be useful in debugging issues. These will generally be prefixed by CAceSys and provide some information on the issue encountered. Figure \ref{fig:quattroissuecommandline} shows an example that occurred if the Quattro devices is not connected to the computer. Other diagnostic messages are also printed, so a message appearing does not necessarily mean an error has occurred.

Figure 6-1. An example issue where the Quattro fails to connect.

For more debugging information, there is a DEBUG flag in the file components/data_physics_interface.py that is by default set to False. If users change that to DEBUG = True, then the Quattro interface will output a log file with more information about its activities.

7. Data Physics 900-series Devices

The Data Physics DP900 series device is not yet implemented with Rattlesnake. This will be implemented pending the release of the DP900 API by Data Physics. This chapter serves as a placeholder to describe that implementation. The implementation is expected to be very similar to the Quattro device.

8. Virtual Control using State Space Matrices

If no data acquisition hardware is available, it can still be advantageous to run Rattlesnake in a "virtual" mode by simulating responses to virtual forces using some kind of model. This would allow users of the software to develop new control laws and environments without risking damage to potentially expensive test hardware if the control law or environment is not implemented correctly. Additionally, synthetic control can be used to determine proper test parameters prior to the actual test occurring, which can help determine if a given test is feasible or not.

Rattlesnake is able to integrate linear time-invariant equations of motion using general state space matrices. The general form for state space equations of motion is

$$\dot{\mathbf{x}}=\mathbf{Ax}+\mathbf{Bu}\text{\hspace{1em}(8.1)}$$

$$\mathbf{y}=\mathbf{Cx}+\mathbf{Du}\text{\hspace{1em}(8.2)}$$

where $\mathbf{A}$ is the state matrix, $\mathbf{B}$ is the input matrix, $\mathbf{C}$ is the output matrix, $\mathbf{D}$ is the feedthrough matrix, $\mathbf{x}$ is the state vector, $\mathbf{u}$ is the input vector, and $\mathbf{y}$ is the output vector. Equation (8.1) defines how the state changes with time $\dot{\mathbf{x}}$ given the current state $\mathbf{x}$ and inputs $\mathbf{u}$ to the system. Equation (8.2) describes how the output degrees of freedom $\mathbf{y}$ are constructed from the current state and inputs to the system. When used within Rattlesnake, the output signals from Rattlesnake will be supplied to the system as $\mathbf{u}$, and the output degrees of freedom $\mathbf{y}$ will be acquired by Rattlesnake. A complete example for running this type of test can be found in Appendix D.

For many structural dynamic analyses, the user will have mass, stiffness, and damping matrices $\mathbf{M}$, $\mathbf{K}$, and $\mathbf{C}$, respectively, in the typical 2nd-order differential equations of motion

$$\mathbf{M}\ddot{\mathbf{z}}+\mathbf{C}\dot{\mathbf{z}}+\mathbf{Kz}=\mathbf{u}\text{\hspace{1em}(8.3)}$$

where $\mathbf{z}$ is treated as the displacement degrees of freedom of the system and $\mathbf{u}$ are the input forces. The state of the system is represented by

$$\mathbf{x}=\left[\begin{array}{c}\mathbf{z}\\ \dot{\mathbf{z}}\end{array}\right]\text{\hspace{1em}(8.4)}$$

and therefore the derivative of the state is

$$\dot{\mathbf{x}}=\left[\begin{array}{c}\dot{\mathbf{z}}\\ \ddot{\mathbf{z}}\end{array}\right]\text{\hspace{1em}(8.5)}$$

Given the state $\mathbf{x}$ and the inputs $\mathbf{u}$, equation (8.3) can be transformed into equation (8.1) with

$$\mathbf{A}=\left[\begin{array}{cc}0& \mathbf{I}\\ -{\mathbf{M}}^{-1}\mathbf{K}& -{\mathbf{M}}^{-1}\mathbf{C}\end{array}\right]\text{\hspace{1em}(8.6)}$$ $$\mathbf{B}=\left[\begin{array}{c}0\\ {\mathbf{M}}^{-1}\end{array}\right]\text{\hspace{1em}(8.7)}$$

where the first row partition is the trivial equation $\dot{\mathbf{z}}=\dot{\mathbf{z}}$.

The output degrees of freedom will then depend on which types of quantities are desired from the analysis. Displacements, velocities, accelerations, and forces can be recovered in the output degrees of freedom $\mathbf{y}$ using

$$\mathbf{C}=\left[\begin{array}{cc}\mathbf{I}& 0\\ 0& \mathbf{I}\\ -{\mathbf{M}}^{-1}\mathbf{K}& -{\mathbf{M}}^{-1}\mathbf{C}\\ 0& 0\end{array}\right]\text{\hspace{1em}(8.8)}$$ $$\mathbf{D}=\left[\begin{array}{c}0\\ 0\\ {\mathbf{M}}^{-1}\\ \mathbf{I}\end{array}\right]\text{\hspace{1em}(8.9)}$$

where the first row partition recovers displacements $\mathbf{z}$, the second row partition recovers velocities $\dot{\mathbf{z}}$, the third row partition recovers accelerations $\ddot{\mathbf{z}}$, and the fourth row partition recovers forces $\mathbf{u}$. Note that Rattlesnake requires its output signals (corresponding to the input signals to the system $\mathbf{u}$) to be measured in order to function (see Section \ref{sec:channel_table}) so the input signals to the system $\mathbf{u}$ must be passed through directly to output degrees of freedom $\mathbf{y}$ which are the acquired data in Rattlesnake. Practically, this means that there should always be at least one row partition of $\mathbf{C}$ containing zeros, and the same row partition of $\mathbf{D}$ should contain the identity matrix.

This chapter describes the setup and implementation details for running a synthetic control problem using state space matrices. For a complete example of using this type of control, see Appendix D.

8.1. Setting up the Channel Table for Virtual Control using State Space Matrics

Required channel table inputs for virtual control using state space matrices are minimal, as the $\mathbf{C}$ and $\mathbf{D}$ matrices effectively define the measured degrees of freedom. Still users are encouraged to fill out the channel table as much as possible for test documentation's sake. The only required parameters for virtual control are have an entry in the Physical Device column of the channel table. The authors recommend simply using the word "Virtual" to reinforce the fact that these are not real hardware channels, but instead virtual channels that exist only in software. The excitation channels must also have an entry in the Feedback Device column. The authors recommend simply using the word "Input" to make it clear that these channels are input channels to the system. One important consideration is that the number of channels in the channel table must be the same as the number of output degrees of freedom in $\mathbf{y}$ (and therefore the number of rows of matrices $\mathbf{C}$ and $\mathbf{D}$), and they must also be ordered identically. Similarly, the number of input channels to the system specified in the channel table must be the same as the number of input degrees of freedom in $\mathbf{u}$ (and therefore the number of columns of matrices $\mathbf{B}$ and $\mathbf{D}$), also ordered identically.

8.2. Hardware Parameters

Hardware parameters are similar to those found in Chapter 9. When the State Space Integration... hardware device is selected, Rattlesnake will bring up a file dialog box that will allow the user to specify a Numpy or Matlab file from which the state space matrices will be loaded. This file should contain fields A, B, C, and D containing the appropriately sized matrices. An additional parameter will appear in the Data Acquisition Parameters portion of the Data Acquisition Setup tab that allows the user to specify an Integration Oversample amount, as the integration time steps should generally be finer than the sample rate of the controller. A value of 10 is typically sufficient for integration of a linear system using lsim from scipy.signal.

8.3. Implementation Details

A scipy.signal.StateSpace model is created from the loaded matrices which are used for integration using the scipy.signal.lsim function.

8.3.1. Output Signal Force Buffering

Excitation signals coming into the state space virtual hardware are buffered to enable different read and write sizes. The excitation signals will be delivered to the hardware based on the specified Time per Write on the Data Acquisition Setup tab of the controller. The virtual hardware will then remove an amount of excitation signal from the buffer based on the specified Time per Read, as the acquisition task will perform the integration over time blocks equivalent to Time per Read.

8.3.2. Integration using LSIM

The scipy.signal.lsim function is used to integrate the state space model. When the acquisition is started, the state of the integration is initialized to zero. For subsequent integrations, the initial state is set to the final state of the previous integration. The excitation signals are taken from the force buffer discussed previously. Note that integration is performed at the rate specified by the Sample Rate of the data acquisition system multiplied by the Integration Oversample amount. After the integration is performed, the output is downsampled by the Integration Oversample amount to return to the sample rate of the controller. For subsequent integration blocks, the initial conditions of the integration are equivalent to the final value of the last integration block.

9. Virtual Control using Finite Element Results in Exodus Files

In addition to virtual control using state space matrices, Rattlesnake can also perform virtual control using results from FEM analyses. This is perhaps less complex to set up than the virtual control using state space matrices described in \ref{sec:rattlesnake_hardware_state_space}, but it offers less flexibility to the user and relies on the user having results in the Exodus file format.

Modern FEMs can contain thousands or even millions of degrees of freedom, so it is not realistic to be able to integrate the full finite element model's equations of motion in real time. Some model reduction is necessary to reduce the number of degrees of freedom that must be integrated. Rattlesnake instead integrates modal equations of motion rather than the full set of equations of motion. The modal transformation has the advantage of generally only requiring a small number of modal degrees of freedom to characterize the part over some frequency bandwidth. Additionally, modal degrees of freedom are uncoupled from one another, which makes for simpler integration strategies.

This chapter describes the setup and implementation details for running a synthetic control problem using Exodus FEM results.

9.1. Setting up the Channel Table for Virtual Control using a finite element model (FEM)

Setting up the channel table is very straightforward for a virtual control problem. The node number that is specified in the channel table corresponds to the node in the finite element model. Note that this corresponds to the node number not the node index, so users should be aware when picking out nodes for virtual control using visualization software whether or not the software is reporting node number or node index. The node direction can be specified as either a principal direction (X+, Y+, Z+, X-, Y-, or Z-) or a comma separated 3-vector with unit magnitude that specifies the measurement direction.

The modal damping value that will be applied to all modes in the model should be placed in the Comment column of the first channel. This should be specified as a fraction of critical damping (e.g. 0.01) rather than a percentage (e.g. 1%). For more complex damping capabilities, a State Space formulation should be used instead, see Chapter 8.

All active measurement degrees of freedom and output degrees of freedom must have an entry in the Physical Device column of the channel table. The authors recommend simply using the word Virtual to reinforce the fact that these are virtual channels. Any excitation channel must have an entry in the Feedback Device column. The authors here recommend simply using the word Input to make it clear that these channels are excitation channels.

All other columns of the channel table can be left empty, though it may be useful to put entries into them to document the virtual test better.

9.2. Hardware Parameters

When the Exodus Modal Solution... hardware device is selected, Rattlesnake will bring up a file dialog box that will allow the user to specify the Exodus file from which the modal solution will be loaded. An additional parameter will appear in the Data Acquisition Parameters portion of the Data Acquisition Setup tab that allows the user to specify an Integration Oversample amount, as the integration time steps should generally be finer than the sample rate of the controller. A value of 10 is typically sufficient for integration of a linear system using lsim from scipy.signal.

9.3. Implementation Details

This section contains implementation details of the virtual control using modal analysis solutions found in exodus files.

9.3.1. Creating State Space Matrices from Modal EOMs

To assemble the state space equations of motion, the mode shape matrix is used to transform between modal and physical degrees of freedom. A 3D displacement array is constructed from the DispX, DispY, and DispZ node variables in the Exodus file. A mode shape matrix is computed by taking the dot product of the direction vector specified by the direction in the channel table with the displacement vector for the node specified by the channel table for each mode shape.

9.3.1.1. State Degrees of Freedom

States for the virtual control using an Exodus modal solution are the modal displacements and velocities for the modes in the exodus file below 1.5$\times$ the Nyquist frequency of the controller. Mass normalized mode shapes are assumed, so the modal mass matrix is assumed to be the identify matrix, modal damping is assumed to be a diagonal matrix of damping coefficients $2{\zeta }_n{\omega }_n$, and modal stiffness is assumed to be a diagonal matrix of stiffness coefficients ${{\omega }_n}^2$. The state equation matrices $\mathbf{A}$ and $\mathbf{B}$ are then defined by equations (8.6) and (8.7).

9.3.1.2. Response Degrees of Freedom

Response degrees of freedom are defined using the $\mathbf{C}$ and $\mathbf{D}$ matrices defined by equations (8.8) and (8.9). This hardware device assumes responses are accelerations, so the third row partition of equations (8.8) and (8.9) are used. These are modal accelerations, so they are multiplied by the mode shape matrix to produce physical accelerations.

9.3.1.3. Excitation Degrees of Freedom

Excitation to the system is specified as modal forces, so the physical excitation forces provided by Rattlesnake are multiplied by the mode shape matrix transposed to create modal forces. To accommodate potentially different read and write sizes in the controller, physical forces to be output are appended to a force buffer and one write worth of forces are pulled from the buffer to be transformed to modal forces and applied to the system.

Rattlesnake's measurement strategy requires that excitation signals also be measured by the data acquisition, and this is also true for virtual control. Therefore, excitation signals must be returned as a measured response.

9.3.2. Integration of Equations of Motion

Once state space matrices are formed, the implementation of this virtual hardware is largely the same as the virtual control described in Chapter 8. See Section 8.3 for details on the integration scheme.

10. Virtual Control using SDYNPY System Objects

The final option for synthetic control in Rattlesnake is to load in a SDynPy System object, which gets stored from SDynPy using the sdyn.System.save method. SDynPy System objects store mass, stiffness, and damping matrices. They also store transformation matrices which transform its internal system space into the physical space. This allows SDynPy System objects to represent both "full" physical systems as well as "reduced" systems (e.g., Craig-Bampton or Modal systems). The final part of the SDynPy System is the degree of freedom information that is stored with the matrices. This maps rows of the transformation matrix (or rows of the mass, stiffness, and damping matrices if the transformation is the identity matrix) to physical degrees of freedom.

A complete example problem using a SDynPy System object can be found in Appendix C.

10.1. Setting up the Channel Table

Setting up the channel table is very straightforward for a SDynPy System. Degrees of freedom in the SDynPy system are selected in the Rattlesnake test by specifying the node and direction of the degree of freedom in the Node and Direction of the coordinate field of the SDynPy system. The node is specified as an integer, and the direction is specified as a string (X+, Y+, Z+, X-, Y-, or Z-).

All active measurement degrees of freedom and output degrees of freedom must have an entry in the Physical Device column of the channel table. The authors recommend simply using the word Virtual to reinforce the fact that these are virtual channels. Any excitation channel must have an entry in the Feedback Device column. The authors here recommend simply using the word Input to make it clear that these channels are excitation channels.

The Channel Type must also be specified. It is used to specify the derivative of the degree of freedom that will be acquired in the response channels. The Channel Type can be specified as Acceleration, Velocity, or Displacement, and the output matrices of the state space system that will be integrated will be assembled such that it will return the specified channel type. If an unknown channel type is specified or if none are specified, then displacement will be assumed. Note excitation degrees of freedom are not modified by a Channel Type modifier, they are applied directly as-is to the SDynPy system.

All other columns of the channel table can be left empty, though it may be useful to put entries into them to document the virtual test better.

10.2. Hardware Parameters

When the SDynPy System Integration... hardware device is selected, Rattlesnake will bring up a file dialog box that will allow the user to specify the file from which the SDynPy system will be loaded. An additional parameter will appear in the Data Acquisition Parameters portion of the Data Acquisition Setup tab that allows the user to specify an Integration Oversample amount, as the integration time steps should generally be finer than the sample rate of the controller. A value of 10 is typically sufficient for integration of a linear system using lsim from scipy.signal.

10.3. Implementation Details

This section describes the implementation details for the SDynPy System integration.

10.3.1. Setting up the State Space System

Rattlesnake is able to integrate linear time-invariant equations of motion using general state space matrices. The general form for state space equations of motion is given in Equations (8.1) and (8.2).

Chapter 8 describes how the state space equations can be constructed from mass, stiffness, and damping matrices. The state space formulation can be extended to allow for a transformation matrix between the mass, stiffness, and damping matrices, and the physical degrees of freedom.

$$\mathbf{C}=\left[\begin{array}{cc}{\mathbf{\Phi }}_r& 0\\ 0& {\mathbf{\Phi }}_r\\ -{\mathbf{\Phi }}_r{\mathbf{M}}^{-1}\mathbf{K}& -{\mathbf{\Phi }}_r{\mathbf{M}}^{-1}\mathbf{C}\\ 0& 0\end{array}\right]\text{\hspace{1em}(10.1)}$$ $$\mathbf{D}=\left[\begin{array}{c}0\\ 0\\ {\mathbf{\Phi }}_r{\mathbf{M}}^{-1}{{\mathbf{\Phi }}_e}^T\\ \mathbf{I}\end{array}\right]\text{\hspace{1em}(10.2)}$$

Here the system transformation $\mathbf{\Phi }$ is partitioned into the response degrees of freedom ${\mathbf{\Phi }}_r$ and excitation degrees of freedom ${\mathbf{\Phi }}_e$.

Matrices $\mathbf{A}$ and $\mathbf{B}$ are unchanged and defined in equations (8.6) and (8.7).

The state space matrices are then integrated using scipy.signal.lsim, similar to the State Space formulation described in Chapter 8.

11. Implementing New Hardware Devices with Rattlesnake

WARNING: This chapter contains advanced Rattlesnake operations that require a reasonably good understanding of the Rattlesnake software architecture. Understanding this chapter is not required to run the software successfully, and therefore this chapter can be skipped if the user is not interested in implementing a new hardware device.

Rattlesnake allows users to implement new hardware devices with minimal modifications to the controller. Within the GitHub repository, there is a source file components/abstract_hardware.py that defines abstract base classes HardwareAcquisition and HardwareOutput. All hardware devices used by Rattlesnake must implement acquisition and output classes that inherit from these abstract base classes and define functions that overwrite the abstract methods in these base classes. The acquisition and output will generally be run on separate processes in Rattlesnake to ensure that output can be streamed to the device as acquired data is simultaneously read from the device. A flowchart of the operations performed by each hardware process is shown in Figure 11-1.

Figure 11-1. Flowchart of Hardware Operations. Note that each process will proceed at its own pace, so it is generally not possible to ensure that an Acquisition function is called before or after an Output function. The only place where order of operations is enforced is at startup, where the Output start function finishes before the Acquisition start function is called.

The hardware setup in Rattlesnake generally assumes that separate processes are required for acquisition and output. However, this may not be the case for all hardware devices. If a device can only run on a single process, users can utilize a multiprocessing queue to pass the output data from the output process to the acquisition process and perform all hardware processes there. See, for example, the hardware implementation in components/state_space_virtual_hardware.py for more details on this approach; the excitation signal is obtained by the write method and immediately passed to a queue to deliver to the acquisition process.

Users implementing new hardware devices are encouraged to look at existing hardware implementations in the GitHub repository (components/nidaqmx_hardware_multitask.py, components/lanxi_hardware.py, components/data_physics_hardware.py, components/state_space_virtual_hardware.py, components/sdynpy_system_virtual_hardware.py, and components/exodus_modal_solution_hardware.py) to use as examples.

11.1. Defining a HardwareAcquisition Class

The acquisition portion of the data acquisition hardware is defined using a class that inherits the abstract base class HardwareAcquisition in components/abstract_hardware.py. A class inheriting from HardwareAcquisition must implement the following functions.

• __init__ The class constructor that initializes the hardware device. Here default parameters can be set up.
• set_up_data_acquisition_parameters_and_channels This function is called when the Data Acquisition Setup tab is initialized. This function will nominally set up the channels on the hardware as well as any other acquisition parameters such as sample rate or triggering that are required by the hardware. As arguments, this function receives an object defining the data acquisition parameters as well as a list of channels. Note that some hardware devices require separate setup for output and acquisition, while others may only need to be set up once for both hardware and acquisition. For the latter case, users should evaluate whether or not it makes sense to do the setup in the HardwareAcquisition or HardwareOutput class. Note also that there is no assurance made by the controller that operations in the set_up_data_acquisition_parameters_and_channels function will be called before or after operations in the the set_up_data_output_parameters_and_channels function from the HardwareOutput class, as they will both be called simultaneously by separate processes. If a specific order of operations for hardware setup must be enforced, those operations should be contained entirely in either the set_up_data_acquisition_parameters_and_channels function or the set_up_data_output_parameters_and_channels function from the HardwareOutput class.
• start This function is called when the acquisition system starts acquiring and should start the device recording. This function will always be called after the start function from the HardwareOutput class, so users can rely on that ordering for order of operations.
• read This function reads a set of data from the device. The returned data should be a Numpy array with number of rows equal to the number of measurement channels and number of columns equal to the number of samples read. The number of samples read is determined by the Sample Rate and Time per Read parameters that get specified on the Data Acquisition Setup tab.
• read_remaining This function reads the remaining data on the device, as it is called before the device is stopped. It returns a Numpy array with number of rows equal to the number of measurement channels and a number of columns equal to the number of samples remaining to be read on the device.
• get_acquisition_delay This function returns an integer number of samples that defines how much longer the acquisition should acquire after output shuts down. This is designed to accommodate any output buffering present in the hardware device.
• stop This function is called when the acquisition system should stop recording, so it should stop any data acquisition on the device. The controller makes no guarantee that the HardwareAcquisition stop function will be called before or after the HardwareOutput stop function, so the user should not rely on one stopping prior to the other.
• close This function is called when the controller is shutting down the hardware for good. It should gracefully shut down the hardware and release any memory or references related to it. The controller makes no guarantee that the HardwareAcquisition close function will be called before or after the HardwareOutput close function, so the user should not rely on one stopping prior to the other.

11.2. Defining a HardwareOuput Class

The acquisition portion of the data acquisition hardware is defined using a class that inherits the abstract base class HardwareOutput in components/abstract_hardware.py. A class inheriting from HardwareOutput must implement the following functions.

• __init__ The class constructor that initializes the hardware device. Here default parameters can be set up.
• set_up_data_output_parameters_and_channels This function is called when the Data Acquisition Setup tab is initialized. This function will nominally set up the channels on the hardware as well as any other output parameters such as sample rate or triggering that are required by the hardware. As arguments, this function receives an object defining the data acquisition parameters as well as a list of channels. Note that some hardware devices require separate setup for output and acquisition, while others may only need to be set up once for both hardware and acquisition. For the latter case, users should evaluate whether or not it makes sense to do the setup in the HardwareAcquisition or HardwareOutput class. Note also that there is no assurance made by the controller that operations in the HardwareAcquisition set_up_data_acquisition_parameters_and_channels function will be called before or after operations in the the set_up_data_output_parameters_and_channels function from the HardwareOutput class, as they will both be called simultaneously by separate processes. If a specific order of operations for hardware setup must be enforced, those operations should be contained entirely in either the set_up_data_acquisition_parameters_and_channels function from the HardwareAcquisition class or the set_up_data_output_parameters_and_channels function from the HardwareOutput class.
• start This function is called when the acquisition system starts acquiring and should start the device outputting signals. This function will always be called before the start function from the HardwareAcquisition class, so users can rely on that ordering for order of operations.
• ready_for_next_output This function is called prior to writing any data to the hardware to check whether or not the device is ready for new outputs. This function will return True if the device should accept new output signals, and False if it should not. If the controller was able to write data to the hardware as fast as possible, it might fill up the hardware buffer. This would make the controller very unresponsive as the buffer would need to be exhausted by outputting all stored samples prior to any new data being output. In general, the function should be set up such that the minimum amount of data is stored on the device (i.e. written to the device but not yet output) at any given time, while also ensuring that variations in the controller's performance due to other tasks being performed simultaneously do not result in the buffer running out of samples to output before the next set of samples is written to the device. Generally a buffer of two or three writes worth of samples is sufficient to ensure that the buffer does not exhaust itself.
• write This function accepts data as a Numpy array and writes it to the hardware. The array will be sized such that the number of rows is equal to the number of output signals and the number of columns is equal to the number of samples that are written per channel, which is determined by the Sample Rate and Time per Write parameters that get specified on the Data Acquisition Setup tab.
• stop This function is called when the acquisition system should stop outputting data, so it should stop any data output on the device. The controller makes no guarantee that the HardwareAcquisition stop function will be called before or after the HardwareOutput stop function, so the user should not rely on one stopping prior to the other.
• close This function is called when the controller is shutting down the hardware for good. It should gracefully shut down the hardware and release any memory or references related to it. The controller makes no guarantee that the HardwareAcquisition close function will be called before or after the HardwareOutput close function, so the user should not rely on one shutting down prior to the other.

11.3. Controller Modifications to Recognize New Hardware Devices

With the new hardware device implemented, the controller should be modified to find the new hardware device and allow the user to run it.

11.3.1. Graphical user interface (GUI) Modifications

In order for the user to select the newly-implemented hardware device, the hardware must be added to the Hardware Selector drop-down menu on the Data Acquisition Setup tab of the controller. This requires editing the components/combined_environments_controller.ui file. Editing of *.ui files is most easily done through the Qt Designer software, but can also be done by editing the *.ui file directly, as it contains XML. The widget that needs to be modified is a QComboBox widget with the name hardware_selector. An additional item needs to be added to the widget corresponding to the hardware device.

If the hardware requires additional user parameters to be specified, then further modifications to the GUI might be required. Such modifications will require a thorough understanding of the Rattlesnake source code. These modifications will be highly specific to the hardware being implemented, and are therefore out of scope for this User's Manual. Such modifications might include adding a dropdown to select a trigger channel to synchronize acquisition and output or adding integration parameters such as minimum or maximum timestep for a virtual hardware device that utilizes a nonlinear integrator.

11.3.2. Modifications to the User interface (UI) Callback Functions

With the GUI modified to enable selecting the hardware interface, the user might need to modify the Hardware Selector callback function in order to ensure the proper options are visible to the user. These callbacks are defined in the components/user_interface.py file in the Ui class. The hardware_update function may need to be modified to handle hiding or showing specific widgets when the new hardware device is selected.

If the hardware interface requires additional user parameters to be specified, then further modifications to the code will be required. These modifications will be highly specific to the hardware being implemented, so this User's Manual will only discuss where the changes will need to be made, but not necessarily what those changes need to be. If additional parameters are required, users may need to modify the DataAcquisitionParameters class found in components/utilities.py to add these additional parameters to the global parameter set. The user will also need to modify the code where the class is instantiated to include these new parameters, particularly in the initialize_data_acquisition function of the Ui class in components/user_interface.py.

11.3.3. Modifications to the Acquisition and Output Processes

Finally, the initialize_data_acquisition functions in both the AcquisitionProcess class in components/acquisition.py and the OutputProcess class in components/output.py will need to be modified to correctly initialize the hardware. A new elif statement should be added to the main if statement inside that function to accommodate the new hardware device index that was added to the Hardware Selector dropdown menu. The *.py file that contains the hardware implementation should be imported and the respective Acquisition or Output class should be instantiated. It is at this point that any additional arguments to the classes' __init__ functions are passed. The object instantiated from the class should be stored to the self.hardware property of the class.

Part III. Rattlesnake Environments

The key to Rattlesnake's flexibility is its implementation of various environment types. These environments can be run stand-alone or in combination with other environments. A general environment will receive response data from the controller and then perform some analysis on that data to create the next set of output signals that will be required by the controller. This Part will describe the existing environments in the controller and provide information required to implement additional environments.

Chapter 12 describes the MIMO Random Vibration environment where users will control to vibration spectra in the form of CPSD matrices. Chapter 13 describes the MIMO Transient Vibration environment, where users will control directly to time responses. Chapter 14 Time History Generator environment, which allows users to specify the signal played to the excitation devices. Chapter 15 describes the Modal environment, where users can perform dynamic characterization tests using shaker or impact hammer excitation. Chapter 16 describes the Combined Environments functionality in Rattlesnake which allows users to run multiple environments simultaneously.

Chapter 17 describes the general process to implement new environments. Implementing new environments in Rattlesnake is a very involved process that requires a good amount of knowledge of the Rattlesnake software architecture, as well as advanced programming concepts including object-oriented programming and inheritance, multiprocessing, and GUI design and implementation.

12. Multiple Input/Multiple Ouptut Random Vibration

The first environment implemented in the Rattlesnake controller was the MIMO Random Vibration environment. This environment aims to control the vibration response of a component to specified levels by creating output signals with the correct levels, coherence, and phase at each frequency line. The governing equation for MIMO Random Vibration is

$${\mathbf{G}}_{xx}={\mathbf{H}}_{xv}{\mathbf{G}}_{vv}{{\mathbf{H}}_{xv}}^H\text{\hspace{1em}(12.1)}$$

where the CPSD matrix of the responses ${\mathbf{G}}_{xx}$ result from some signals ${\mathbf{G}}_{vv}$ exciting the structure represented by transfer function matrices ${\mathbf{H}}_{xv}$. In a typical vibration control problem, the control system tries to compute the signal matrix ${\mathbf{G}}_{vv}$ that best reproduces the desired response ${\mathbf{G}}_{xx}$.

12.1. Specification Definition

The first step in defining a Random Vibration control problem is the definition of the vibration response that is desired. This vibration specification can be derived using various approaches, perhaps from test data from some environment test, predictions from a model, or derivations from a standard. Regardless of its source, the specification defines the response levels, coherence, and phase of each control channel at each frequency line in the test.

Rattlesnake accepts the specification in the form of a 3D array consisting of a complex CPSD matrix defined at each frequency line. Specification CPSD matrices can be loaded from Numpy *.npz files or Matlab *.mat files. For each of these files, Rattlesnake respects the natural dimension ordering of a dataset consisting of "stacks" of matrices that the specification can be visualized to be. For Matlab, which customarily uses the third dimension as the "stacking" dimension for 3D datasets, the specification dimensions should be $n_c\times n_c\times n_f$ where $n_c$ is the number of control channels and $n_f$ is the number of frequency lines. For Numpy/Python the more natural ordering is $n_f\times n_c\times n_c$, essentially taking the last dimension of the Matlab array and moving it to the first dimension in the Numpy array. Both Matlab *.mat and Numpy *.npz files should contain the following data fields:

• cpsd A $n_f\times n_c\times n_c$ (for *.npz files) or $n_c\times n_c\times n_f$ (for *.mat files) complex array containing the CPSD matrix at each frequency defined in f.
• f A $n_f$ array of frequencies corresponding to the frequency lines in the CPSD matrix.

For example, for a test consisting of three control channels has a given specification is defined from 10 Hz to 100 Hz with 2 Hz spacing, the variable f in the specification file would be length 46 and have values [10, 12, 14, ... 98, 100] and the variable cpsd would be size $46\times 3\times 3$ in a *.npz file or $3\times 3\times 46$ in a *.mat file.

The ordering of the rows and columns of the CPSD matrices defining the specification are the same order as the control channels in the Channel Table on the Data Acquisition Setup tab. This means that the first row and column of the CPSD matrix will correspond to the first channel that is selected as a control channel in the Control Channels list on the Environment Definitions tab. The second row and column to the second channel selected as a control channel, and so on. Note that if Control transformations are specified, then the first row and column of the specification will correspond to the first virtual control channel, which is the first row of the control transformation matrix. The second row and column will correspond to the second virtual control channel.

The specification is defined in units of $E{U}^2/Hz$ where $EU$ is the engineering unit specified by the Engineering Unit column of the channel table for the control channels.

Please note that Rattlesnake will not interpolate a specification for you! Any frequency line that is not defined in the specification will be set to zero. This allows a user to specify the specification only over certain bandwidths of interest. This also means that if a user provides a specification with 2 Hz frequency spacing but runs a test with parameters that result in 1 Hz frequency spacing, every second frequency line will end up being set to zero, which will generally result in very poor control.

Rattlesnake MIMO Random Vibration specification files can also contain optional warning and abort limits. Note that these limits only operate on the APSD portion (i.e. the diagonal) of the CPSD matrices. It is not currently possible to set a limit based on, for example, the coherence between two channels in Rattlesnake. These are defined in the specification files in fields:

• warning_upper A $n_f\times n_c$ (for *.npz files) or $n_c\times n_f$ (for *.mat files) array containing an upper warning level at each frequency defined in f for each control channel.
• warning_lower A $n_f\times n_c$ (for *.npz files) or $n_c\times n_f$ (for *.mat files) array containing a lower warning level at each frequency defined in f for each control channel.
• abort_upper A $n_f\times n_c$ (for *.npz files) or $n_c\times n_f$ (for *.mat files) array containing an upper abort level at each frequency defined in f for each control channel.
• abort_lower A $n_f\times n_c$ (for *.npz files) or $n_c\times n_f$ (for *.mat files) array containing a lower abort level at each frequency defined in f for each control channel.

Any combination of the above fields can be specified. For example, a lower limit can be defined without an equivalent upper limit. An abort limit can be defined without a warning limit. However, if the field is defined in the specification file, it must have the correct shape, which means that the limit must be defined for all frequency lines and for all control channels. If a user does not want to limit on specific frequency ranges or specific channels, the limit can be set to a value of NaN. Rattlesnake will ignore portions of the limit specifications that contain NaN values.

Throughout the MIMO Random Vibration environment, channels will be flagged as yellow if they cross a warning limit, and flagged as red if they cross an abort limit. Additionally, if the Allow Automatic Aborts? checkbox is checked on the Environment Definition tab, the environment will automatically stop if the abort limit is crossed.

12.2. Defining the MIMO Random Vibration Environment in Rattlesnake

In addition to the specification, there are a number of signal processing parameters that are used by the MIMO Random Vibration environment. These, along with the specification, are defined on the Environment Definition tab in the Rattlesnake controller on a sub-tab corresponding to a MIMO Random Vibration environment. Figure 12-1 shows a MIMO Random Vibration sub-tab. The following subsections describe the parameters that can be specified, as well as their effects on the analysis.

Figure 12-1. GUI used to define a MIMO Random Vibration environment.

12.2.1. Sampling Parameters

The Sampling Parameters section of the MIMO Random Vibration definition sub-tab consists of the following parameters:

• Sample Rate The global sample rate of the data acquisition system. This is set on the Data Acquisition Setup tab, and displayed here for convenience as a read-only value.
• Samples Per Frame The number of samples used when computing the FFT. Making this number larger will increase the frequency resolution of the measurement while also making each measurement frame longer. Note that this value should never be set so that the frequency resolution of the FFT is finer than the frequency resolution of the specification, otherwise the frequency lines without a corresponding value in the specification will be controlled to zero. Because adjusting this parameter will adjust the frequency resolution of the measurement, any loaded specification will need to be re-loaded with the new frequency resolution.
• Samples Per Aquire The number of additional samples required per measurement frame when taking into account overlapping of the signals that will occur in the system identification and CPSD calculations. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Frame Time The amount of time it takes to measure a frame of data, in seconds. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Nyquist Frequency The maximum bandwidth of the measurement given the sampling rate. This is the largest frequency value in the FFT. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• FFT Lines The number of frequency lines in the FFT. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Frequency Spacing The frequency resolution of the FFT. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Test Level Ramp Time The time it takes the environment to ramp between test levels. This is done to prevent sharp adjustments to the controller which may damage test hardware. This is also the time it takes for the controller to ramp up to the starting level from zero when the test is started, as well as to ramp back to zero from the final test level when testing is completed.

12.2.2. Signal Generation Parameters

The Signal Generation Parameters section of the MIMO Random Vibration definition sub-tab consists of the following parameters:

• COLA Window The window function used to smooth between individual time signal realizations during the COLA process.
• COLA Overlap The amount of overlap between signals when smoothing individual time signal realizations during the COLA process.
• Window Exponent The exponent used on the COLA window function. This should generally be left at 0.5, which will result in a signal with constant variance.
• Samples per Output The number of additional samples output per measurement frame when taking into account overlapping of the signals that will occur COLA calculations. This is a computed quantity presented for convenience, so the user cannot modify it directly.

12.2.3. Control Channels

The Control Channels list allows users to select the channels in the test that will be used by the environment to perform control calculations. These are the channels that will match the rows and columns of the specification file.

12.2.4. Control Parameters

The Control Parameters section of the MIMO Random Vibration definition sub-tab consists of the following parameters:

• Input Channels The total number of channels being measured by the Rattlesnake, including response channels and output channels. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Output Channels The number of excitation signals being used to control the vibration response of this environment. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Control Channels The number of response channels being used in the control. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Update System ID During Control? Selecting this option allows Rattlesnake to continue to update FRF during control. This can be useful for nonlinear systems as the structure may behave differently at higher levels of excitation. One should be aware that if signals become too correlated during a test, the FRF calculations may not be able to separate responses by exciter and the FRFs may be incorrect leading to poor control. Additionally, if something in the test setup breaks or comes loose, the controller may see that the responses are decreasing for a given excitation level and continually try to increase the excitation level, which could result damage to test equipment or the test article.
• Frames in CPSD The number of measurement frames used when computing the CPSD matrices of the responses and output signals. Note that if Allow Automatic Aborts? is active, the environment will not shut down the number of frames specified by this setting has been acquired. If fewer frames have been acquired than are specified by this setting, the CPSD matrix might be noisy due to only having acquired a small number of measurement frames.
• CPSD Window The window function applied during the CPSD matrix calculations.
• CPSD Overlap The percentage overlap between measurements frames used to compute the CPSD matrix.
• Allow Automatic Aborts? Selecting this option will allow the environment to shut itself down if an abort limit is reached as defined in the specification file. If not selected, the channel will be flagged red, but the environment will still continue to run.

The Control Parameters section of the MIMO Random Vibration definition sub-tab also includes functionality for loading in custom control laws. See Section 12.7. Writing a Custom Control Law for information on defining a custom control law.

• Control Python Script The Python script containing a custom control law that is currently loaded into the Rattlesnake controller.
• Load Pressing this button will bring up a file selection dialog to load in a new Python script containing a custom control law.
• Control Python Function This selector presents the functions, generators, and classes within the loaded Python script that can be used as custom control laws.
• Control Parameters This text box allows arbitrary input to be passed to custom control laws as a string. It is up to the control law to specify what this extra input must be and parse whatever input the user gives it.

12.2.5. Control and Drive Transforms

The Control and Drive Transforms section of the MIMO Random Vibration definition sub-tab consists of the following parameters:

• Transformation Matrices... Selecting this button will bring up the transformation matrices dialog box, which allows the user to specify linear transformations between the physical responses and excitation signals and virtual responses and excitation signals. See Section 12.8. Using Transformation Matrices for more information.
• Transform Channels The number of virtual control degrees of freedom after applying transformation matrices. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Transform Outputs The number of virtual excitation devices after applying transformation matrices. This is a computed quantity presented for convenience, so the user cannot modify it directly.

Note that if Transformation matrices are defined, the number of control channels ends up being the number of rows of the Response Transformation Matrix, rather than the number of physical control channels. The number of physical control channels will be equal to the number of columns of the transformation matrix. The number of rows and columns of the specification loaded should be equal to the number of rows in the transformation.

12.2.6. Test Specifications

The test specification is loaded into the environment in the Test Specification section of the MIMO Random Vibration definition:

• Row A drop-down menu consisting of all response channels used to visualize a certain row and column of the specification.
• Column A drop-down menu consisting of all the response channels used to visualize a certain row and column of the specification.
• Load Spec A button that when pressed will bring up a file selection dialog to read in a specification from a Numpy *.npz or Matlab *.mat file.
• Specification: Single Entry A visualization of all frequency lines of a single row and column of the CPSD matrix in the specification.
• Specification: Sum of ASDs The sum of the diagonal entries of the CPSD matrix at each frequency line, which is commonly used as a test metric.

12.3. System Identification for the MIMO Random Vibration Environment

When all environments are defined and the Initialize Environments button is pressed, Rattlesnake will proceed to the next phase of the test, which is defined on the System Identification tab.

MIMO Random Vibration requires a system identification phase to compute the matrices ${\mathbf{H}}_{xv}$ used in the control calculations of equation (12.1). Figure 12-2 shows the GUI used to perform this phase of the test.

Figure 12-2. System identification GUI used by the MIMO Random Vibration environment.

Rattlesnake's system identification phase will start with a noise floor check, where the data acquisition records data on all the channels without specifying an output signal. After the noise floor is computed, the system identification phase will play out the specified signals to the excitation devices, and transfer functions will be computed using the responses of the control channels to those excitation signals. Section Section 3.4. System Identification describes the System Identification tab and its various parameters and capabilities.

12.4. Test Predictions for the MIMO Random Vibration Environment

Once the system identification is performed, a test prediction will be performed and results displayed on the Test Predictions tab, shown in Figure 12-3. This is meant to give the user an idea of the test feasibility. The left side of the window displays excitation information, including RMS signal levels required as well as the excitation spectra expected. The right side of the window displays the predicted responses compared to the specification as well as the predicted RMS dB error. This figure will also show any abort or warning limits imposed. Channels will be highlighted in yellow if they cross a warning level and will be highlighted in red if they cross an abort level. For example in the test in Figure 12-3, all channels are predicted to cross the warning threshold, and a handful are predicted to cross the abort threshold.

Figure 12-3. Test prediction GUI which gives the user some idea of the test feasibility.

12.5. Running the MIMO Random Vibration Environment

The MIMO Random Vibration environment is then run on the Run Test tab of the controller.

With the data acquisition system armed, the environment can be started manually with the Start Environment button. Once running, it can be stopped manually with the Stop Environment button. With the data acquisition system armed and the environment running, the GUI looks like Figure 12.4.

Figure 12-4. GUI for running the MIMO Random Vibration environment.

There are various operations that can be performed when setting up and running the MIMO Random Vibration environment, and many visualization operations as well.

12.5.1. Test Level

Two test levels exist in the MIMO Random Vibration Environment. The Current Test Level specifies the current level of the control in decibels relative to the specification level, which is 0 dB. Note that all data and visualizations on the Run Test window are scaled back to full level, so users should not be surprised if for example the values reported in the Output Voltages (RMS) table do not change significantly with test level. See Chapter 12.9. Generation of Time Histories for more information on this implementation detail.

The second test level is the Target Test Level. This option can be used to specify a level at which data starts streaming to the disk if the user does not wish to save low level data. Additionally, the controller can be made to stop controlling automatically after a certain time at a target test level. This is done to ensure that the controller does not spend too much time at a level that could eventually damage a part.

12.5.2. Test Timing

The MIMO Random Vibration environment has multiple options for test timing. If Continuous Run is selected, the environment will continue until it is manually stopped. A specific run time can be specified using the Run for h:mm:ss option and specifying a time in the h:mm:ss selector. The at Target Test Level checkbox specifies whether or not to activate the timer at any test level or only when the test is at the target test level.

The MIMO Random Vibration environment will constantly update the Total Test Time and Time At Level time displays when the environment is active. A progress bar will be displayed when the controller is set to only run for a specified time. When the progress bar reaches 100%, the environment will shut down automatically.

12.5.3. Test Metrics and Visualization

The MIMO Random Vibration environment displays a number of global metrics to help evaluate the success of a test. RMS signal voltage values are displayed in the Output Voltages (RMS) table. RMS dB errors for each control channel are displayed in the Response Error (dB) table. These errors will also be colored yellow or red if the given channel is crossing a warning or abort level. If an abort level is reached and the Allow Automatic Aborts? option is selected on the Environment Definition page, then the environment will shut down automatically.

The Run Test tab for the MIMO Random Vibration environment displays the sum of APSD functions of the response CPSD matrix compared to the sum of APSD functions of the specification in a large plot in the middle of the main window, which can be seen in Figure 12-4 . This can be considered an "Average" response level for the test compared to the "Average" specification level.

To interrogate specific channels, the Data Display section of the Run Test window offers several options. The row and column of the CPSD matrix can be selected using Control Channel 1 and Control Channel 2 selectors. The Data Type of the plot can be specified as Magnitude, Phase, Coherence, Real, or Imaginary. Pressing the Create Window button then creates the specified plot.

Some convenience operations are also included to visualize all channels. In the Show all: section, pressing the Autospectral Densities button will bring up one window per control channel and display the APSD function for each. Pressing the Spectral Densities (phase/coh) or Spectral Densities (real/imag) buttons will attempt to display the entire CPSD matrix, displaying either the phase and coherence or real and imaginary parts in the upper and lower triangular portions of the matrix. Be aware that these convenience functions with a large number of control channels can easily overwhelm the computer with plotting operations causing the GUI to become unresponsive, so use these operations with caution. Figure 12-5 shows an example displaying the full CPSD matrix with coherence and phase for a test with six control degrees of freedom.

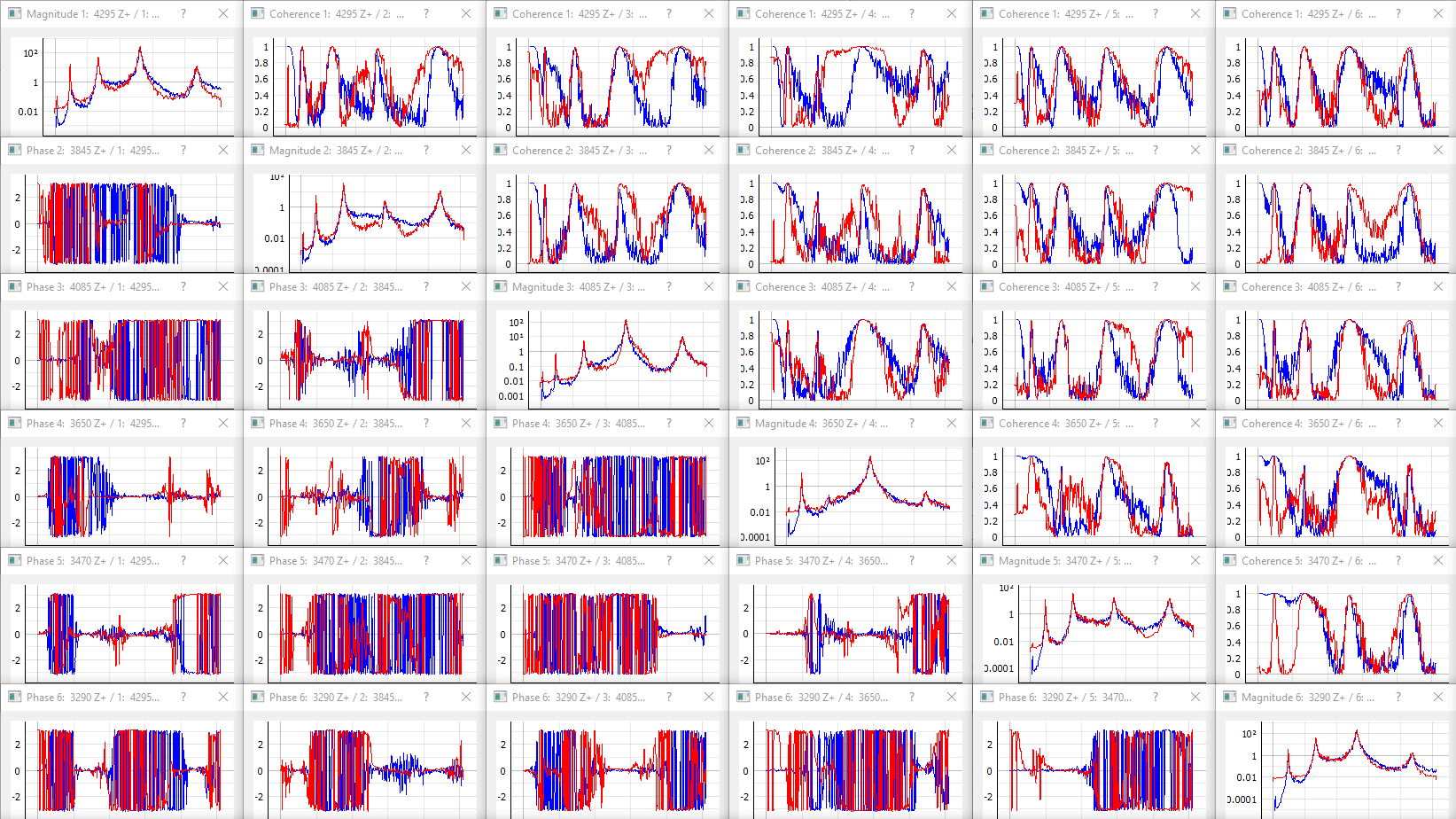

Figure 12-5. Visualizing individual channels (magnitude, coherence, and phase).

If a specification has warning and abort limits defined, these will also be plotted, as shown in Figure 12-6.

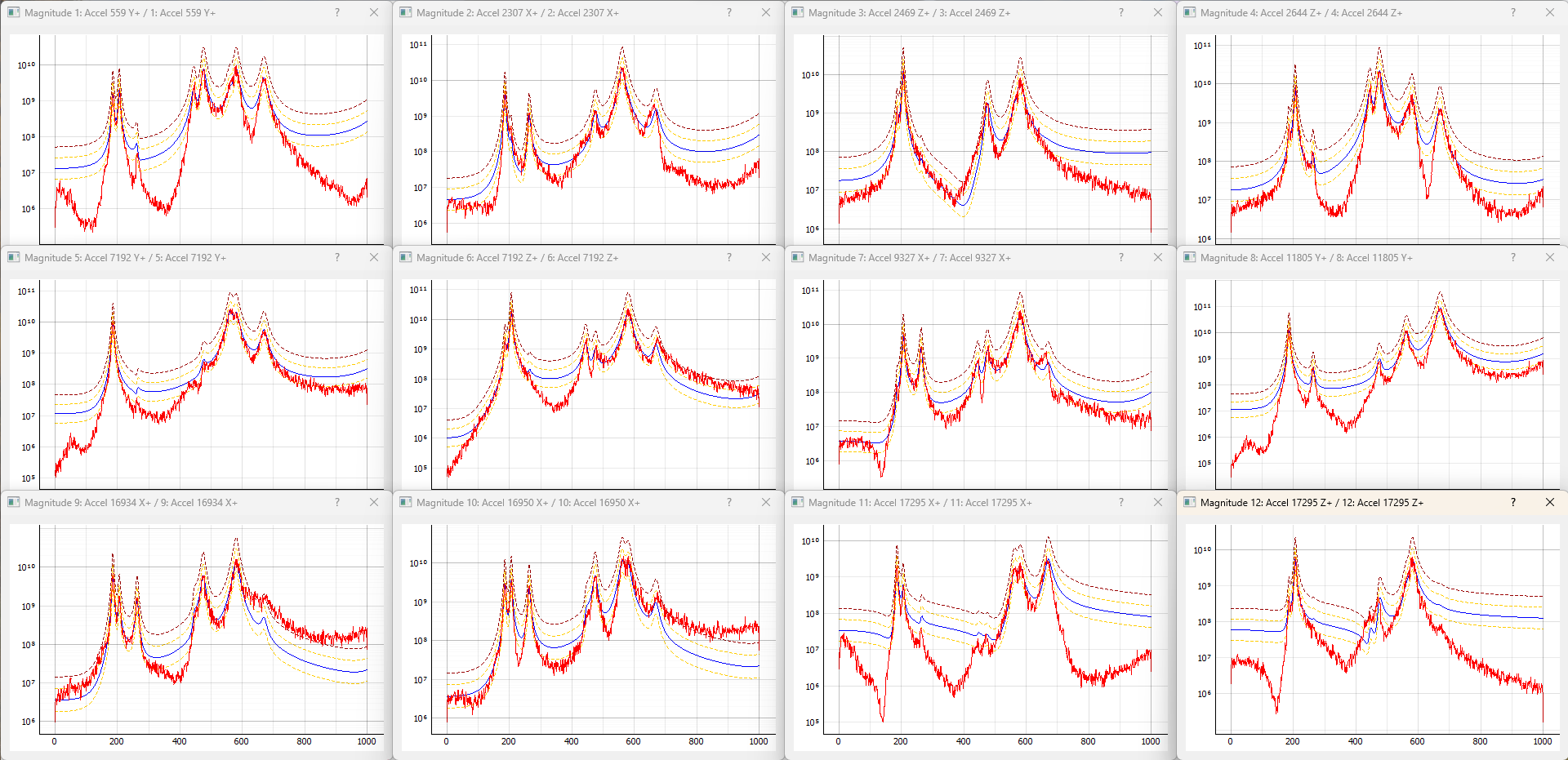

Figure 12-6. Figure showing the APSD data for each channel, as well as the warning and abort limits.

Further convenience operations are available in the Window Operations: section. Pressing Tile All Windows will rearrange all channel windows neatly across the screen. Pressing Close All Windows will close all open channel windows.

12.5.4. Saving Data from the MIMO Random Environment

Time data can be saved from the MIMO random vibration environment through Rattlesnake's streaming functionality, described in Section 3.7. Run Test.

Users can also directly write the spectral data from the environment to a file. This will also result in a netCDF file, however the fields will be slightly different. This is described more fully in Section 12.6. Output NetCDF File Structure.

12.6. Output NetCDF File Structure

When Rattlesnake streams time data to a netCDF file, environment-specific parameters are stored in a netCDF group with the same name as the environment name. Similar to the root netCDF structure described in Section 3.8. Rattlesnake Output Files , this group will have its own attributes, dimensions, and variables, which are described here.

12.6.1. NetCDF Dimensions

• fft_lines The number of frequency lines in the FFT.
• two A dimension of size 2, which is required for the warning and abort variables (there are two limits, upper and lower).
• specification_channels The number of channels defined in the specification provided to the MIMO Random Vibration environment.
• response_transformation_rows The number of rows in the response channel transformation (See Section 12.8 Using Tranformation Matrices). This is not defined if no response transformation is used.
• response_transformation_cols The number of columns in the response channel transformation (See Section 12.8 Using Transformation Matrices). This is not defined if no response transformation is used.
• reference_transformation_rows The number of rows in the output transformation (See Section 12.8 Using Transformation Matrices). This is not defined if no output transformation is used.
• reference_transformation_cols The number of columns in the output transformation (See Section 12.8 Using Transformation Matrices). This is not defined if no output transformation is used.
• control_channels The number of physical channels used for control. Note that this may be different from the specification_channels due to the presence of a transformation matrix.

12.6.2. NetCDF Attributes

• sysid_frame_size The number of samples per measurement frame in the system identification
• sysid_averaging_type The type of averaging used in the system identification, linear or exponential
• sysid_noise_averages The number of measurement frames acquired for the noise floor calculation
• sysid_averages The number of measurement frames acquired for the system identification calculation
• sysid_exponential_averaging_coefficient The weighting coefficient used for new frames in the exponential averaging scheme
• sysid_estimator The FRF estimator used to compute the transfer functions during the system identification
• sysid_level The level used by the system identification in volts RMS.
• sysid_level_ramp_time The time to ramp up to the test level when starting and ramp back to zero when stopping the system identification
• sysid_signal_type The signal type used by the system identification
• sysid_window The window function applied to the time data during the system identification
• sysid_overlap The overlap fraction between measurement frames used for system identification
• sysid_burst_on The fraction of a measurement frame that a burst is active for burst random excitation during system identification
• sysid_pretrigger The fraction of a measurement used as a pre-trigger for burst random excitation during system identification
• sysid_burst_ramp_fraction The fraction of a measurement frame used to ramp the burst up to full level and back to zero
• samples_per_frame The number of samples per measurement frame used in the FFT
• test_level_ramp_time The time to ramp between test levels
• cpsd_overlap The percentage overlap used when computing FRF and CPSD matrices
• update_tf_during_control 1 if transfer functions were updated during control, 0 otherwise
• cola_window The window function used by the COLA process
• cola_overlap The overlap between realizations of excitation signals used during the COLA process
• cola_window_exponent The exponent on the COLA window function
• frames_in_cpsd The number of frames used to compute CPSD matrices
• cpsd_window The window function used to compute CPSD matrices
• control_python_script The path to the Python script used to control the MIMO Random Vibration environment
• control_python_function The function (or class or generator function) in the Python script used to control the MIMO Random Vibration environment
• control_python_function_type The type of the object used for the control law (function, generator, or class)
• control_python_function_parameters The extra parameters passed to the control law.

12.6.3. NetCDF Variables

• specification_frequency_lines The frequency values in the specification associated with each frequency line. Type: 64-bit float; Dimensions: fft_lines
• specification_cpsd_matrix_real The real part of the MIMO Random Vibration specification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ specification_channels
• specification_cpsd_matrix_imag The imaginary part of the MIMO Random Vibration specification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ specification_channels
• specification_warning_matrix The data used to define the warning limits in the specification. The first index in the first dimension defines the lower limit, and the second index in the first dimension defines the upper limit. Type: 64-bit float; Dimensions: two $\times$ specification_channels
• specification_abort_matrix The data used to define the abort limits in the specification. The first index in the first dimension defines the lower limit, and the second index in the first dimension defines the upper limit. Type: 64-bit float; Dimensions: two $\times$ specification_channels
• response_transformation_matrix The response transformation matrix (See Section 12.8. Using Tranformation Matrices). This is not defined if no response transformation is used. Type: 64-bit float; Dimensions: response_transformation_rows $\times$ response_transformation_cols
• output_transformation_matrix The output transformation matrix (See Section 12.8. Using Transformation Matrices). This is not defined if no output transformation is used. Type: 64-bit float; Dimensions: output_transformation_rows $\times$ output_transformation_cols
• control_channel_indices The indices of the active control channels in the environment. Type: 32-bit int; Dimensions: control_channels

12.6.4. Saving Spectral Data

In addition to time streaming, Rattlesnake's MIMO Random Vibration environment can also save the current realization of spectral data directly to the disk by clicking the Save Current Spectral Data button. The spectral data is stored in a NetCDF file similar to the time streaming data; however, it has additional dimensions and variables to store the spectral data.

The single additional dimension is:

• drive_channels The number of drive channels active in the environment.

There are also several additional variables to store the spectral data:

• frf_data_real The real part of the most recently computed value for the transfer functions between the excitation signals and the control response signals. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ drive_channels
• frf_data_imag The imaginary part of the most recently computed value for the transfer functions between the excitation signals and the control response signals. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ drive_channels
• frf_coherence The multiple coherence of the control channels computed during the test. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels
• response_cpsd_real The real part of the most recently computed value for the CPSD matrix at the control channels. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ specification_channels
• response_cpsd_imag The imaginary part of the most recently computed value for the CPSD matrix at the control channels. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ specification_channels
• drive_cpsd_real The real part of the most recently computed value for the CPSD matrix at the excitation channels. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ drive_channels $\times$ drive_channels
• drive_cpsd_imag The imaginary part of the most recently computed value for the CPSD matrix at the excitation channels. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ drive_channels $\times$ drive_channels
• response_noise_cpsd_real The real part of the CPSD matrix at the control channels during the noise floor measurement that occurred during system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ specification_channels
• response_noise_cpsd_imag The imaginary part of the CPSD matrix at the control channels during the noise floor measurement that occurred during system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ specification_channels
• drive_noise_cpsd_real The real part of the CPSD matrix at the excitation channels during the noise floor measurement that occurred during system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ drive_channels $\times$ drive_channels
• drive_noise_cpsd_imag The imaginary part of the CPSD matrix at the excitation channels during the noise floor measurement that occurred during system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ drive_channels $\times$ drive_channels

12.7. Writing a Custom Control Law

The flexibility of the Rattlesnake framework is highlighted by the ease in which users can implement and iterate on their own ideas. For the MIMO Random Vibration control type, users can implement custom control laws using a custom Python function, or alternatively a generator function or class which allow state to be maintained between function calls. This section will provide instructions and examples for implementing a custom control law.

The controller will provide various data types to the control law functions which are:

• specification The target CPSD matrix for the control channels; complex 3D array ($n_f\times n_c\times n_c$)
• warning_levels The warning levels provided with the specification; complex 2D array ($2\times n_f\times n_c$)
• abort_levels The abort levels provided with the specification; complex 2D array ($2\times n_f\times n_c$)
• transfer_function The current estimate of the transfer function between the control responses and the excitation voltages; complex 3D array ($n_f\times n_c\times n_o$)
• noise_response_cpsd The levels and correlation of the noise floor measurement on the control channels obtained during system identification; complex 3D array ($n_f\times n_c\times n_c$)
• noise_reference_cpsd The levels and correlation of the noise floor measurement on the excitation channels obtained during system identification; complex 3D array ($n_f\times n_o\times n_o$)
• sysid_response_cpsd The levels and correlation of the control channels obtained during system identification; complex 3D array ($n_f\times n_c\times n_c$)
• sysid_reference_cpsd The levels and correlation of the noise floor measurement on the excitation channels obtained during system identification; complex 3D array ($n_f\times n_o\times n_o$)
• multiple_coherence The multiple coherence for each control channel; real 2D array ($n_f\times n_c$)
• frames The number of measurement frames acquired so far, used to compute various parameters in the control law. This can be compared to total_frames to determine if a full set of measurement frames has been acquired, or if the estimation of the various parameters could improve with continued averaging; scalar integer
• total_frames The total number of frames used to compute the CPSD and FRF matrices; scalar integer
• extra_parameters Extra parameters provided to the controller. The control law can parse this value to allow extra arguments to be passed to the control law; string
• last_response_cpsd The most recent control CPSD, which can be used for error-based control; complex 3D array ($n_f\times n_c\times n_c$)
• last_output_cpsd The most recent excitation CPSD, which can be used for drive-based control; complex 3D array ($n_f\times n_o\times n_o$)

where size $n_f$ is the number of frequency lines, $n_c$ is the number of control channels, and $n_o$ is the number of output signals. Note that the values passed into the function may be defined using arbitrary variable names (e.g. transfer_function may be instead called H, or specification may be instead called spec or Syy); however, the order of the variables passed into each function will always be consistent.

12.7.1. Defining a control law using a Python function

Python functions are the simplest approach to define a custom control law that can be used with the Rattlesnake software; however, they are limited in that a function's state is completely lost when a function returns. Still, they can be used to implement relatively complex control laws as long as no state persistence is required.

A Python function used to define a MIMO Random Vibration control law in Rattlesnake would have the following general structure within a Python script.

# Any module imports, initialization code, or helper functions would go here

# Now we define the control law.  It always receives the same arguments from the controller.
def control_law(specification, # Specifications
                warning_levels, # Warning levels
                abort_levels, # Abort Levels
                transfer_function,  # Transfer Functions
                noise_response_cpsd,  # Noise levels and correlation
                noise_reference_cpsd, # from the system identification
                sysid_response_cpsd,  # Response levels and correlation
                sysid_reference_cpsd, # from the system identification
                multiple_coherence, # Coherence from the system identification
                frames, # Number of frames in the CPSD and FRF matrices
                total_frames, # Total frames that could be in the CPSD and FRF matrices
                extra_parameters = '', # Extra parameters for the control law
                last_response_cpsd = None, # Last Control Response for Error Correction
                last_output_cpsd = None, # Last Control Excitation for Drive-based control
                ):

    # Code to perform the control would go here
    output_cpsd = ...

    # Finally, we need to return an output CPSD matrix
    return output_cpsd

Listing 12.1 General Python function structure for defining a custom Random Vibration control law called control_law in Rattlesnake

The function must return an output_cpsd, which is a complex 3D array with size ($n_f\times n_o\times n_o$).

Three examples are presented to illustrate how a control function may be created.

12.7.1.1. Pseudoinverse Control

Perhaps the simplest strategy to perform MIMO control is to simply invert the transfer function matrix to recover the least-squares solution of the optimal output signal from the desired responses. This first example will demonstrate that approach.

The mathematics for this control strategy are relatively simple; pre- and post-multiply the specification ${\mathbf{G}}_{xx}$ by the pseudoinverse (${}^{+}$) of the transfer function matrix ${\mathbf{H}}_{xv}$, noting that the post-multiplicand is complex-conjugate transposed (${}^H$). This calculation is performed for each frequency line.

$${\mathbf{G}}_{vv}={{\mathbf{H}}_{xv}}^{+}{\mathbf{G}}_{xx}{{{\mathbf{H}}_{xv}}^{+}}^H$$

In Python code, the above mathematics would look like

import numpy as np # Import numpy to get access to the pseudoinverse (pinv) function

H_pinv = np.linalg.pinv(H_xv) # Invert the transfer function and assign to a variable so we don't have to invert twice

G_vv = H_pinv@G_xx@H_pinv.conjugate().transpose(0,2,1) # Perform the mathematics described above.

Listing 12.2. Computing the pseudoinverse calculation to solve for a least-squares output CPSD matrix

For users not familiar with Python and its numeric library numpy, the following points are clarified

• numpy is imported and assigned to the alias np, which lets us just type in np rather than the longer name numpy when we want to access numpy functions.
• The numpy pseudoinverse function pinv is stored in the linear algebra package linalg within numpy, therefore to access pinv, we need to call np.linalg.pinv
• The pinv can perform a pseudoinverse on "stacks" of matrices, so even though we are only calling the pinv function once, it is actually performing the pseudoinverse over all frequency lines
• The @ symbol in Python is the matrix multiplication operation. Unlike Matlab, Python doesn't support the syntax .* to differentiate elementwise and matrix multiplcation. In Python, * is elementwise and @ is matrix multiplication. This operation also works over stacks of matrices, so G_vv is computed over all frequency lines.
• The transpose function of a numpy array accepts as its arguments the new ordering of the indices. Recalling that in Python, the first index is index 0, the second is index 1, etc., essentially what this command is doing is taking the existing indices (0,1,2) and re-ordering them as (0,2,1), or said another way (frequency_line,row,column) re-ordered as (frequency_line,column,row), effectively transposing each matrix in the stack without modifying the 0-index corresponding to frequency line.

Wrapping the above mathematics into the function definition from Listing 12.1, the control law can be defined as

import numpy as np

def pseudoinverse_control(
        specification, # Specifications
        warning_levels, # Warning levels
        abort_levels, # Abort Levels
        transfer_function,  # Transfer Functions
        noise_response_cpsd,  # Noise levels and correlation
        noise_reference_cpsd, # from the system identification
        sysid_response_cpsd,  # Response levels and correlation
        sysid_reference_cpsd, # from the system identification
        multiple_coherence, # Coherence from the system identification
        frames, # Number of frames in the CPSD and FRF matrices
        total_frames, # Total frames that could be in the CPSD and FRF matrices
        extra_parameters = '', # Extra parameters for the control law
        last_response_cpsd = None, # Last Control Response for Error Correction
        last_output_cpsd = None, # Last Control Excitation for Drive-based control
        ):
    # Invert the transfer function using the pseudoinverse
    tf_pinv = np.linalg.pinv(transfer_function)
    # Return the least squares solution for the new output CPSD
    return tf_pinv@specification@tf_pinv.conjugate().transpose(0,2,1)

Listing 12.3 A pseudoinverse control law that can be loaded into Rattlesnake

where the variables have been renamed from single letters (G, H) to something more meaningful (specification, transfer_function).

This example shows that a control law can be implemented in only two lines of code in addition to the function boilerplate code. Therefore even users not familiar with the Python programming language should not be intimidated by the coding required to implement custom control laws.

12.7.1.2. Adding Optional Arguments

When performing the pseudoinverse, users may be wary of having an ill-conditioned transfer function matrix. This can be due to the fact that at a resonance of the structure, all responses tend to look like the mode shape at that resonance. Therefore the condition number of the FRF matrix can be quite high. numpy's pinv function can accept an optional argument rcond which performs singular value truncation for very small singular values. We can allow users to enter an rcond value through the extra_parameters argument.

In this implementation, we try to convert the data passed as an extra parameter to a floating point number. If we can, we use that as the rcond value. If we can't we just use a default value of rcond.

import numpy as np

def pseudoinverse_control(
        specification, # Specifications
        warning_levels, # Warning levels
        abort_levels, # Abort Levels
        transfer_function,  # Transfer Functions
        noise_response_cpsd,  # Noise levels and correlation
        noise_reference_cpsd, # from the system identification
        sysid_response_cpsd,  # Response levels and correlation
        sysid_reference_cpsd, # from the system identification
        multiple_coherence, # Coherence from the system identification
        frames, # Number of frames in the CPSD and FRF matrices
        total_frames, # Total frames that could be in the CPSD and FRF matrices
        extra_parameters = '', # Extra parameters for the control law
        last_response_cpsd = None, # Last Control Response for Error Correction
        last_output_cpsd = None, # Last Control Excitation for Drive-based control
        ):
    try:
        rcond = float(extra_parameters)
    except ValueError:
        rcond = 1e-15
    # Invert the transfer function using the pseudoinverse
    tf_pinv = np.linalg.pinv(transfer_function,rcond)
    # Return the least squares solution for the new output CPSD
    output = tf_pinv@specification@tf_pinv.conjugate().transpose(0,2,1)
    return output

Listing 12.4 A pseudoinverse control law that can be loaded into Rattlesnake that utilizes extra parameters

12.7.1.3. Trace-matching Pseudoinverse Control

While the previous example showed that a simple control law could be implemented in a few lines of code, users may argue that this simple control scheme is not representative of a control law that one might use in practice. Therefore, the next example will illustrate the transformation of the first example into a closed-loop control law that corrects for error at each frequency line. This is the essence of a closed-loop controller: the controller is able to respond to errors in the response and modify the output to accommodate.

This control strategy is implemented by computing the trace (the sum of the diagonal of the matrix) of the specification and the trace of the last response, and then multiplying the last output CPSD by the ratio of the two at each frequency line. The trace can be computed efficiently using the numpy einsum function.

def trace(cpsd):
    return np.einsum('ijj->i',cpsd)

Listing 12.5 A short function to compute the trace of a CPSD matrix in Python

The first time through the control law, when there is no previous data to use for error correction, the control strategy will perform a simple pseudoinverse control scheme.

tf_pinv = np.linalg.pinv(transfer_function)
output = tf_pinv@specification@tf_pinv.conjugate().transpose(0,2,1)

Subsequent times through the control law, the trace ratio is computed from the previous responses, and the ratio is multiplied by the previous output. The trace ratio is also checked for nan quantities to ensure that there are no divide-by-zero errors.

trace_ratio = trace(specification)/trace(last_response_cpsd)
trace_ratio[np.isnan(trace_ratio)] = 0
output = last_output_cpsd*trace_ratio[:,np.newaxis,np.newaxis]

The final code for the closed-loop control law shown in Listing 12.6. On the first run-through, the last_response_cpsd and last_output_cpsd are set to None which is how the function knows whether or not to compute the output using the pseudoinverse control or by updating the trace.

def match_trace_pseudoinverse(
        specification, # Specifications
        warning_levels, # Warning levels
        abort_levels, # Abort Levels
        transfer_function,  # Transfer Functions
        noise_response_cpsd,  # Noise levels and correlation
        noise_reference_cpsd, # from the system identification
        sysid_response_cpsd,  # Response levels and correlation
        sysid_reference_cpsd, # from the system identification
        multiple_coherence, # Coherence from the system identification
        frames, # Number of frames in the CPSD and FRF matrices
        total_frames, # Total frames that could be in the CPSD and FRF matrices
        extra_parameters = '', # Extra parameters for the control law
        last_response_cpsd = None, # Last Control Response for Error Correction
        last_output_cpsd = None, # Last Control Excitation for Drive-based control
        ):
    try:
        rcond = float(extra_parameters)
    except ValueError:
        rcond = 1e-15
    # If it's the first time through, do the actual control
    if last_output_cpsd is None:
        # Invert the transfer function using the pseudoinverse
        tf_pinv = np.linalg.pinv(transfer_function,rcond)
        # Return the least squares solution for the new output CPSD
        output = tf_pinv@specification@tf_pinv.conjugate().transpose(0,2,1)
    else:
        # Scale the last output cpsd by the trace ratio between spec and last response
        trace_ratio = trace(specification)/trace(last_response_cpsd)
        trace_ratio[np.isnan(trace_ratio)] = 0
        output =  last_output_cpsd*trace_ratio[:,np.newaxis,np.newaxis]
    return output

Listing 12.6 A closed-loop control law to match the trace of the CPSD matrix at each frequency line.

As can be seen in the previous Listing, the simple pseudoinverse control law can be extended to a closed-loop, error-correcting control law simply by the addition of perhaps 10 more lines of code. This again shows that even relatively complex control strategies can be implemented easily within the Rattlesnake framework.

12.7.1.4. Shape-Constrained Control

The final example control law that will be shown in this section is a more complex control law that constrains the exciters to work together to reduce the force required in a given test {{#cite schultz2020_shape_constrained_input_estimation_efficient_multishaker_vibration_testing}}. This shape-constrained approach utilizes a singular value decomposition of the transfer function matrix to determine the constraints to apply to the shakers as well as how many shapes to keep at each frequency line.

A set of shapes used as a constraint can be defined by a matrix $\mathbf{C}$ to form a constrained transfer function matrix ${\mathbf{H}}_c$

$${\mathbf{H}}_c={\mathbf{H}}_{xv}\mathbf{C}$$

where $\mathbf{C}$ will generally have fewer columns than rows. This matrix effectively reduces the number of control degrees of freedom at a frequency line. The control equation then looks like

$${\hat{\mathbf{G}}}_{vv}=[{\mathbf{H}}_{xv}\mathbf{C}{]}^{+}{\mathbf{G}}_{xx}{[{\mathbf{H}}_{xv}\mathbf{C}{]}^{+}}^H$$

The CPSD matrix ${\hat{\mathbf{G}}}_{vv}$ is defined using the constrained control degrees of freedom. The true physical degrees of freedom can be computed from the constrained set by

$${\mathbf{G}}_{vv}=\mathbf{C}{\hat{\mathbf{G}}}_{vv}{\mathbf{C}}^H$$

To select the constraint shapes $\mathbf{C}$, the right singular vectors $\mathbf{V}$ of the singular value decomposition of the transfer function matrix are used. A singular value threshold is used to only keep the right singular vectors ${\mathbf{V}}_1$ corresponding to large singular values, and discarding the right singular vectors ${\mathbf{V}}_2$ corresponding to the small singular values.

$${\mathbf{H}}_{xv}=\mathbf{U\Sigma }{\mathbf{V}}^H$$ $$\mathbf{V}=[{\mathbf{V}}_1{\mathbf{V}}_2]$$ $${\mathbf{H}}_{xv}\mathbf{C}=\mathbf{U\Sigma }{\mathbf{V}}^H{\mathbf{V}}_1$$

Converting this control strategy into a Python control law is reasonably straightforward. The first approach is to perform the SVD on the transfer function matrix.

[U,S,Vh] = np.linalg.svd(H,full_matrices=False)
V = Vh.conjugate().transpose(0,2,1)

Here, we use the numpy singular value decomposition function svd. Again, like many numpy functions, this function behaves correctly on stacks of matrices, so the svd function need be called only once to perform the operation over all frequency lines. The full_matrices argument essentially asks whether or not the null space of the larger singular vector matrix is computed (returning an $m\times m$ U matrix rather than an $m\times k$ matrix where $k$ is the number of singular values). That isn't required for this operation, so it is set to False. The output from the svd function returns ${\mathbf{V}}^H$, so it is complex-conjugate transposed to get $\mathbf{V}$.

The next step is to compute the singular values to keep based off the singular value ratios. Singular values are kept if they are above a certain ratio to the primary singular value.

singular_value_ratios = S/S[:,0,np.newaxis]
num_shape_vectors = np.sum(singular_value_ratios >= shape_constraint_threshold,axis=1)

At this point, we perform the shape constrained control. A for loop is required to iterate through the frequency lines because a different number of vectors is used for each frequency line. The constraint matrix is computed using the right singular vectors corresponding to the singular values that are above the threshold. The transfer function matrix is then constrained and the control problem is solved using the constrained transfer function matrix. The constrained output response is then transformed back to the physical space using the constraint matrix.

output = np.empty((transfer_function.shape[0],transfer_function.shape[2],transfer_function.shape[2]),dtype=complex)
for i_f,(V_f,spec_f,H_f,num_shape_vectors_f) in enumerate(zip(V,specification,transfer_function,num_shape_vectors)):
    # Form constraint matrix
    constraint_matrix = V_f[:,:num_shape_vectors_f]
    # Constraint FRF matrix
    HC = H_f@constraint_matrix
    HC_pinv = np.linalg.pinv(HC)
    # Estimate inputs (constrained)
    SxxC = HC_pinv@spec_f@HC_pinv.conjugate().T
    # Convert to full inputs
    output[i_f] = constraint_matrix@SxxC@constraint_matrix.conjugate().T

The entire script is then shown below. Note that the singular value threshold is passed to the function in the extra_parameters string, which is converted from a string to a floating point number.

import numpy as np

def shape_constrained_pseudoinverse(
        specification, # Specifications
        warning_levels, # Warning levels
        abort_levels, # Abort Levels
        transfer_function,  # Transfer Functions
        noise_response_cpsd,  # Noise levels and correlation
        noise_reference_cpsd, # from the system identification
        sysid_response_cpsd,  # Response levels and correlation
        sysid_reference_cpsd, # from the system identification
        multiple_coherence, # Coherence from the system identification
        frames, # Number of frames in the CPSD and FRF matrices
        total_frames, # Total frames that could be in the CPSD and FRF matrices
        extra_parameters = '', # Extra parameters for the control law
        last_response_cpsd = None, # Last Control Response for Error Correction
        last_output_cpsd = None, # Last Control Excitation for Drive-based control
        ):
    shape_constraint_threshold = float(extra_parameters)
    # Perform SVD on transfer function
    [U,S,Vh] = np.linalg.svd(transfer_function,full_matrices=False)
    V = Vh.conjugate().transpose(0,2,1)
    singular_value_ratios = S/S[:,0,np.newaxis]
    # Determine number of constraint vectors to use
    num_shape_vectors = np.sum(singular_value_ratios >= shape_constraint_threshold,axis=1)
    # We have to go into a For Loop here because V changes size on each iteration
    output = np.empty((transfer_function.shape[0],transfer_function.shape[2],transfer_function.shape[2]),dtype=complex)
    for i_f,(V_f,spec_f,H_f,num_shape_vectors_f) in enumerate(zip(V,specification,transfer_function,num_shape_vectors)):
        # Form constraint matrix
        constraint_matrix = V_f[:,:num_shape_vectors_f]
        # Constraint FRF matrix
        HC = H_f@constraint_matrix
        HC_pinv = np.linalg.pinv(HC)
        # Estimate inputs (constrained)
        SxxC = HC_pinv@spec_f@HC_pinv.conjugate().T
        # Convert to full inputs
        output[i_f] = constraint_matrix@SxxC@constraint_matrix.conjugate().T
    return output

Listing 12.7 A shape-constrained control law that can be used in the Rattlesnake controller

This example shows that even complex control laws can be written in less than 100 lines of code.

12.7.2. Defining a control law using state-persistent approaches

While the function approach is useful in its simplicity there are certain applications where it is not sufficient. These primarily revolve around cases where there is a significant amount of setup computations or response history that must be tracked. To demonstrate, the Buzz Test approach by Daborn is used for illustration {{#cite daborn2014_smarter_dynamic_testing_critical_structures}}.

The Buzz Test control strategy uses a flat random "buzz" test of the part to determine preferred phasing and coherence between the control degrees of freedom. This "buzz" comes from the system identification phase of the controller, which is one of the inputs to the control law. The specification is then modified so the coherence and phase of the buzz test are matched by the specification. The same pseudoinverse control is then performed as described above, except now with the modified specification.

For this case, it is helpful to define several smaller functions. The first function will compute the coherence of each entry in a CPSD matrix

$${{\gamma }^2}_{ij}=\frac{{\Vert G_{ij}\Vert }^2}{G_{ii}{G}_{jj}}$$

A vectorized Python implementation of this function is

def cpsd_coherence(cpsd):
    num = np.abs(cpsd)**2
    den = (cpsd[:,np.newaxis,np.arange(cpsd.shape[1]),np.arange(cpsd.shape[2])]*
           cpsd[:,np.arange(cpsd.shape[1]),np.arange(cpsd.shape[2]),np.newaxis])
    den[den==0.0] = 1 # This prevents divide-by-zero errors from ruining the matrix for frequency lines where the specification is zero
    return np.real(num/den)

Similarly, a second function is defined that computes the phase of each entry in a CPSD matrix.

$${\varphi }_{ij}=\angle G_{ij}$$

and the vectorized Python function is

def cpsd_phase(cpsd):
    return np.angle(cpsd)

We also need a function that can get the APSD functions (diagonal terms) from a CPSD matrix. This can be done very efficiently with the numpy Einstein Summation function einsum.

def cpsd_autospectra(cpsd):
    return np.einsum('ijj->ij',cpsd)

Now that functions are defined to extract the various parts of a CPSD matrix, a function is defined that assembles a CPSD matrix from those parts. This will look like

$$G_{jk}=e^{i{\varphi }_{jk}}\sqrt{{{\gamma }^2}_{jk}{G}_{jj}{G}_{kk}}$$

which in vectorized numpy Python looks like

def cpsd_from_coh_phs(asd,coh,phs):
    return np.exp(phs*1j)*np.sqrt(coh*asd[:,:,np.newaxis]*asd[:,np.newaxis,:])

Then finally, function is defined that will extract the autospectra from one CPSD matrix and assemble a new CPSD matrix using the coherence and phase from a second CPSD matrix.

def match_coherence_phase(cpsd_to_modify,cpsd_to_match):
    coh = cpsd_coherence(cpsd_to_match)
    phs = cpsd_phase(cpsd_to_match)
    asd = cpsd_autospectra(cpsd_to_modify)
    return cpsd_from_coh_phs(asd,coh,phs)

In a Buzz Test control law defined using a Python function, the specification is updated using the phase and coherence of the CPSD from the system identification phase, and control is performed using pseudoinverse control to the updated specification.

def buzz_control(
        specification, # Specifications
        warning_levels, # Warning levels
        abort_levels, # Abort Levels
        transfer_function,  # Transfer Functions
        noise_response_cpsd,  # Noise levels and correlation
        noise_reference_cpsd, # from the system identification
        sysid_response_cpsd,  # Response levels and correlation
        sysid_reference_cpsd, # from the system identification
        multiple_coherence, # Coherence from the system identification
        frames, # Number of frames in the CPSD and FRF matrices
        total_frames, # Total frames that could be in the CPSD and FRF matrices
        extra_parameters = '', # Extra parameters for the control law
        last_response_cpsd = None, # Last Control Response for Error Correction
        last_output_cpsd = None, # Last Control Excitation for Drive-based control
        ):
    # Create a new specification using the autospectra from the original and
    # phase and coherence of the buzz_cpsd
    spec = match_coherence_phase(specification,sysid_response_cpsd)
    # Invert the transfer function using the pseudoinverse
    tf_pinv = np.linalg.pinv(transfer_function)
    # Return the least squares solution for the new output CPSD
    return tf_pinv@spec@tf_pinv.conjugate().transpose(0,2,1)

The entire control script that is loaded into the Rattlesnake controller is then here:

import numpy as np

# Helper functions
def cpsd_coherence(cpsd):
    num = np.abs(cpsd)**2
    den = (cpsd[:,np.newaxis,np.arange(cpsd.shape[1]),np.arange(cpsd.shape[2])]*
           cpsd[:,np.arange(cpsd.shape[1]),np.arange(cpsd.shape[2]),np.newaxis])
    den[den==0.0] = 1 # This prevents divide-by-zero errors from ruining the matrix for frequency lines where the specification is zero
    return np.real(num/
    den)

def cpsd_phase(cpsd):
    return np.angle(cpsd)

def cpsd_autospectra(cpsd):
    return np.einsum('ijj->ij',cpsd)

def cpsd_from_coh_phs(asd,coh,phs):
    return np.exp(phs*1j)*np.sqrt(coh*asd[:,:,np.newaxis]*asd[:,np.newaxis,:])

def match_coherence_phase(cpsd_to_modify,cpsd_to_match):
    coh = cpsd_coherence(cpsd_to_match)
    phs = cpsd_phase(cpsd_to_match)
    asd = cpsd_autospectra(cpsd_to_modify)
    return cpsd_from_coh_phs(asd,coh,phs)

def buzz_control(
        specification, # Specifications
        warning_levels, # Warning levels
        abort_levels, # Abort Levels
        transfer_function,  # Transfer Functions
        noise_response_cpsd,  # Noise levels and correlation
        noise_reference_cpsd, # from the system identification
        sysid_response_cpsd,  # Response levels and correlation
        sysid_reference_cpsd, # from the system identification
        multiple_coherence, # Coherence from the system identification
        frames, # Number of frames in the CPSD and FRF matrices
        total_frames, # Total frames that could be in the CPSD and FRF matrices
        extra_parameters = '', # Extra parameters for the control law
        last_response_cpsd = None, # Last Control Response for Error Correction
        last_output_cpsd = None, # Last Control Excitation for Drive-based control
        ):
    # Create a new specification using the autospectra from the original and
    # phase and coherence of the buzz_cpsd
    spec = match_coherence_phase(specification,sysid_response_cpsd)
    # Invert the transfer function using the pseudoinverse
    tf_pinv = np.linalg.pinv(transfer_function)
    # Return the least squares solution for the new output CPSD
    return tf_pinv@spec@tf_pinv.conjugate().transpose(0,2,1)

Listing 12.8 A Buzz Test control law defined using a Python function that can be used with the Rattlesnake software.

12.7.2.1. Defining Control Laws with Generator Functions

Note that while the above is a usable control law, it is not optimal. Note that every time the function is called, the modified specification is recomputed, which can result in a significant amount of computation for large control problems. Even if we could tell the control law to only compute it the first time (for example, by checking if last_response_cpsd or last_output_cpsd is None as was done previously) there is no way to store the modified specification as all variables local to the function are lost when the function returns.

For this reason, Rattlesnake has alternative approaches to defining control laws that allow state persistence. The second strategy to define a control law in Rattlesnake is to use a Generator Function. A generator function is simply a function that maintains its internal state between function calls.

Listing 12.9 shows the Buzz test approach described above in a generator format.

import numpy as np

def cpsd_coherence(cpsd):
    num = np.abs(cpsd)**2
    den = (cpsd[:,np.newaxis,np.arange(cpsd.shape[1]),np.arange(cpsd.shape[2])]*
           cpsd[:,np.arange(cpsd.shape[1]),np.arange(cpsd.shape[2]),np.newaxis])
    den[den==0.0] = 1 # Set to 1
    return np.real(num/
                   den)

def cpsd_phase(cpsd):
    return np.angle(cpsd)

def cpsd_from_coh_phs(asd,coh,phs):
    return np.exp(phs*1j)*np.sqrt(coh*asd[:,:,np.newaxis]*asd[:,np.newaxis,:])

def cpsd_autospectra(cpsd):
    return np.einsum('ijj->ij',cpsd)

def match_coherence_phase(cpsd_original,cpsd_to_match):
    coh = cpsd_coherence(cpsd_to_match)
    phs = cpsd_phase(cpsd_to_match)
    asd = cpsd_autospectra(cpsd_original)
    return cpsd_from_coh_phs(asd,coh,phs)

def buzz_control_generator():
    output_cpsd = None
    modified_spec = None
    while True:
        (specification, # Specifications
         warning_levels, # Warning levels
         abort_levels, # Abort Levels
         transfer_function,  # Transfer Functions
         noise_response_cpsd,  # Noise levels and correlation
         noise_reference_cpsd, # from the system identification
         sysid_response_cpsd,  # Response levels and correlation
         sysid_reference_cpsd, # from the system identification
         multiple_coherence, # Coherence from the system identification
         frames, # Number of frames in the CPSD and FRF matrices
         total_frames, # Total frames that could be in the CPSD and FRF matrices
         extra_parameters, # Extra parameters for the control law
         last_response_cpsd, # Last Control Response for Error Correction
         last_output_cpsd, # Last Control Excitation for Drive-based control
            ) = yield output_cpsd
        # Only comput the modified spec if it hasn't been yet.
        if modified_spec is None:
            modified_spec = match_coherence_phase(specification,sysid_response_cpsd)
         # Invert the transfer function using the pseudoinverse
        tf_pinv = np.linalg.pinv(transfer_function)
        # Assign the output_cpsd so it is yielded next time through the loop
        output_cpsd = tf_pinv@modified_spec@tf_pinv.conjugate().transpose(0,2,1)

Listing 12.9 A Buzz Test control law defined using a Python generator function to allow for state persistence

Note that the generator function itself is not called with any arguments, as the initial function call simply starts up the generator. Also note that there is no return statement in a generator function, only a yield statement. When a program requests the next value from a generator, the generator code proceeds until it hits a yield statement, at which time it pauses and waits for the next value to be requested. During this pause, all internal data is maintained inside the generator function. The yield statement also accepts new data into the generator function, so this is where the same arguments used to define a control law using a Python function are passed in to the generator control law. Therefore, by creating a while loop inside a generator function, the generator can be called infinitely many times to deliver data to the controller.

To implement the Buzz test as shown in Listing 12.9 the modified specification is initialized as None, which enables the generator to check whether or not it has been computed yet. If it has, then there is no need to compute it again.

12.7.2.2. Defining Control Laws using Classes

A final way to implement more complex control laws is using a Python class. This approach allows for the near infinite flexibility of Python's object-oriented programming at the expense of more complex syntax. Users not familiar with Python's object-oriented programming paradigms are encouraged to learn more about the topic prior to reading this section.

A class in Python is effectively a container that can have functions and properties stored inside of it, so it provides a good way to encapsulate all the parameters and helper functions associated with a given control law into one place. A class allows for arbitrary properties to be stored within it, so arbitrary data can be made persistent between control function calls.

For the Rattlesnake implementation of a control law, the class must have at a minimum of three functions defined. These are the class constructor __init__ that is called when the class is instantiated, a system_id_update function that is called upon completion of the System Identification portion of the controller, and a control function that actually computes the output CPSD matrix. A general class structure is shown below

# Any module imports or constants would go here

class ControlLawClass:
    def __init__(
            self,
            specification : np.ndarray, # Specifications
            warning_levels  : np.ndarray, # Warning levels
            abort_levels  : np.ndarray, # Abort Levels
            extra_parameters : str, # Extra parameters for the control law
            transfer_function : np.ndarray = None,  # Transfer Functions
            noise_response_cpsd : np.ndarray = None,  # Noise levels and correlation
            noise_reference_cpsd : np.ndarray = None, # from the system identification
            sysid_response_cpsd : np.ndarray = None,  # Response levels and correlation
            sysid_reference_cpsd : np.ndarray = None, # from the system identification
            multiple_coherence : np.ndarray = None, # Coherence from the system identification
            frames = None, # Number of frames in the CPSD and FRF matrices
            total_frames = None, # Total frames that could be in the CPSD and FRF matrices
            last_response_cpsd : np.ndarray = None, # Last Control Response for Error Correction
            last_output_cpsd : np.ndarray = None, # Last Control Excitation for Drive-based control
            ):
        # Code to initialize the control law would go here

    def system_id_update(
            self,
            transfer_function : np.ndarray = None,  # Transfer Functions
            noise_response_cpsd : np.ndarray = None,  # Noise levels and correlation
            noise_reference_cpsd : np.ndarray = None, # from the system identification
            sysid_response_cpsd : np.ndarray = None,  # Response levels and correlation
            sysid_reference_cpsd : np.ndarray = None, # from the system identification
            multiple_coherence : np.ndarray = None, # Coherence from the system identification
            frames = None, # Number of frames in the CPSD and FRF matrices
            total_frames = None, # Total frames that could be in the CPSD and FRF matrices
            ):
        # Code to update the control law with system identification information would go here

    def control(
            self,
            transfer_function : np.ndarray = None,  # Transfer Functions
            multiple_coherence : np.ndarray = None, # Coherence from the system identification
            frames = None, # Number of frames in the CPSD and FRF matrices
            total_frames = None, # Total frames that could be in the CPSD and FRF matrices
            last_response_cpsd : np.ndarray = None, # Last Control Response for Error Correction
            last_output_cpsd : np.ndarray = None) -> np.ndarray:
        # Code to perform the actual control operations would go here

    # Any helper functions or properties that belong with the class could go here

Listing 12.10 Structure for a class defining a control law in Rattlesnake

The class's __init__ constructor function is called whenever a class is instantiated (e.g. control_law_object = ControlLawClass(specification,warning_levels,...)). Note that the the constructor function accepts as arguments not only the data available at the time (e.g. the specification and any extra control parameters) but also any parameters that will eventually exist. This is because it needs to be able to seamlessly transition in case the control law is changed during control when there is already a transfer function, buzz CPSD, etc.

The system_id_function is called after the system identification is complete, so inside this function is where all setup calculations that require a transfer function or buzz CPSD would go. In the case of the buzz test approach currently under consideration, this function is where the modified specification would be computed.

The control function is then the function that actually performs the control operations to compute the output CPSD matrix using the updated transfer functions or last response or output CPSD matrices in addition to any data that had been stored inside the class.

The class implementation of the buzz test control is shown in Listing 12.11. Note how all the helper functions can be stored directly within the class.

import numpy as np

class buzz_control_class:
    def __init__(
            self,
            specification : np.ndarray, # Specifications
            warning_levels  : np.ndarray, # Warning levels
            abort_levels  : np.ndarray, # Abort Levels
            extra_parameters : str, # Extra parameters for the control law
            transfer_function : np.ndarray = None,  # Transfer Functions
            noise_response_cpsd : np.ndarray = None,  # Noise levels and correlation
            noise_reference_cpsd : np.ndarray = None, # from the system identification
            sysid_response_cpsd : np.ndarray = None,  # Response levels and correlation
            sysid_reference_cpsd : np.ndarray = None, # from the system identification
            multiple_coherence : np.ndarray = None, # Coherence from the system identification
            frames = None, # Number of frames in the CPSD and FRF matrices
            total_frames = None, # Total frames that could be in the CPSD and FRF matrices
            last_response_cpsd : np.ndarray = None, # Last Control Response for Error Correction
            last_output_cpsd : np.ndarray = None, # Last Control Excitation for Drive-based control
            ):
        # Store the specification to the class
        if sysid_response_cpsd is None: # If it's the first time through we won't have a buzz test yet
            self.specification = specification
        else: # Otherwise we can compute the modified spec right away
            self.specification = self.match_coherence_phase(specification, sysid_response_cpsd)

    def system_id_update(
            self,
            transfer_function : np.ndarray = None,  # Transfer Functions
            noise_response_cpsd : np.ndarray = None,  # Noise levels and correlation
            noise_reference_cpsd : np.ndarray = None, # from the system identification
            sysid_response_cpsd : np.ndarray = None,  # Response levels and correlation
            sysid_reference_cpsd : np.ndarray = None, # from the system identification
            multiple_coherence : np.ndarray = None, # Coherence from the system identification
            frames = None, # Number of frames in the CPSD and FRF matrices
            total_frames = None, # Total frames that could be in the CPSD and FRF matrices
            ):
        # Update the specification with the buzz_cpsd
        self.specification = self.match_coherence_phase(self.specification,sysid_response_cpsd)

    def control(
            self,
            transfer_function : np.ndarray = None,  # Transfer Functions
            multiple_coherence : np.ndarray = None, # Coherence from the system identification
            frames = None, # Number of frames in the CPSD and FRF matrices
            total_frames = None, # Total frames that could be in the CPSD and FRF matrices
            last_response_cpsd : np.ndarray = None, # Last Control Response for Error Correction
            last_output_cpsd : np.ndarray = None) -> np.ndarray:
        # Perform the control
        tf_pinv = np.linalg.pinv(transfer_function)
        return tf_pinv @ self.specification @ tf_pinv.conjugate().transpose(0,2,1)

    def cpsd_coherence(self,cpsd):
        num = np.abs(cpsd)**2
        den = (cpsd[:,np.newaxis,np.arange(cpsd.shape[1]),np.arange(cpsd.shape[2])]*
               cpsd[:,np.arange(cpsd.shape[1]),np.arange(cpsd.shape[2]),np.newaxis])
        den[den==0.0] = 1 # Set to 1
        return np.real(num/
                       den)

    def cpsd_phase(self,cpsd):
        return np.angle(cpsd)

    def cpsd_from_coh_phs(self,asd,coh,phs):
        return np.exp(phs*1j)*np.sqrt(coh*asd[:,:,np.newaxis]*asd[:,np.newaxis,:])

    def cpsd_autospectra(self,cpsd):
        return np.einsum('ijj->ij',cpsd)

    def match_coherence_phase(self,cpsd_original,cpsd_to_match):
        coh = self.cpsd_coherence(cpsd_to_match)
        phs = self.cpsd_phase(cpsd_to_match)
        asd = self.cpsd_autospectra(cpsd_original)
        return self.cpsd_from_coh_phs(asd,coh,phs)

Listing 12.11 lass implementation of the buzz test approach

Note that the number of lines of code for a class implementation of the buzz test approach is not significantly more than the simpler function implementation, therefore users should not immediately discard the class-based approach as too difficult to implement in favor of the simpler function implementation. Each approach has its merits and limitations, so it is up to the user to decide the best approach for their control law.

12.8. Using Transformation Matrices

The MIMO Random Vibration and Transient (see Section 13) environments allow the use of transformation matrices to constrain or transform response measurements or output signals into more favorable degrees of freedom. The basic usage of the transformation matrix is

$$\hat{\mathbf{x}}=\mathbf{Tx}$$

where $\mathbf{x}$ is the measurement or signal in the physical degrees of freedom, $\mathbf{T}$ is the transformation matrix, and $\hat{\mathbf{x}}$ is the transformed quantity.

By this definition, a response transformation must have the same number of columns as there are control channels in the environment. Similarly, an output transformation must have the same number of columns as excitation signals in the environment. The number of rows in these matrices will then be the number of virtual control degrees of freedom or virtual excitation signals that will be used by the environment.

A common application of transformation matrices is for so-called 6DoF testing, where shakers are constrained to excite the six rigid body motions of a rigid table. A representative 6DoF configuration is shown in Figure 12-7 with 12 shakers exciting a rigid table on which a test article is mounted. To measure the table response, four triaxial gauges are positioned symmetrically across the table.

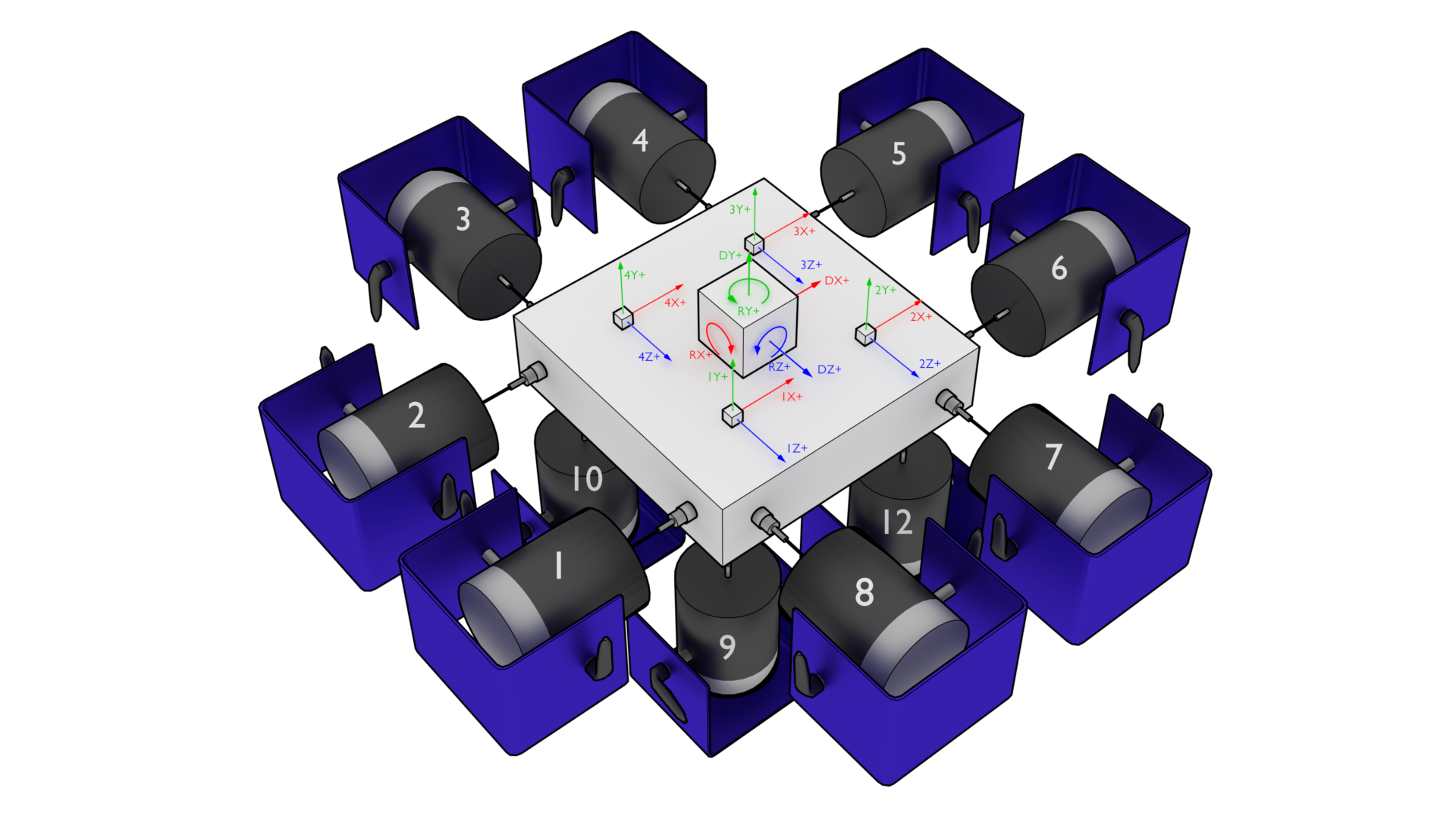

Figure 12-7. Representative 6DoF setup showing 12 shakers attached to a rigid table with four triaxial accelerometers measuring the table's response. Note that shaker 11 is occluded by the table in this figure.

To set up the output transformation, one should examine the geometry of the test setup to identify which shakers excite which motions. For example, to move the table vertically in the Y+ direction, the four bottom shakers (9, 10, 11, and 12) should excite with a positive signal (here, a positive signal is assumed to be compressive, pushing the table away from the shaker; this may vary depending on shaker wiring). For this case, the row of the output transformation matrix should contain a 1 for shaker signals 9, 10, 11, and 12, and a zero for other shakers. Similar reasoning can be used for rotations: to rotate about the positive Z+ direction, shakers 11 and 12 should push with a positive signal and shakers 9 and 10 should pull with a negative signal. Therefore, the row corresponding to this degree of freedom would have -1 for shakers 9 and 10 and +1 for 11 and 12. The full output transformation for this case can be seen in Table 12-1. This matrix transforms the 12 physical shaker signals into 6 rigid body motions of the table.

Table 12-1. Output transformation for the 6DoF test shown in Figure 12-7

To generate the response transformation matrix, it is often helpful to construct the inverse transformation and then invert it to recover the response transformation matrix. As an example, we will investigate the measured signals by the accelerometers if the table is translated one unit in the X+ direction. In this case, all accelerometers pointing in the X+ direction would see a one unit signal. Therefore the column of the inverse transformation corresponding to a X+ direction motion would have 1 for all channels pointing in that direction. If the table is rotated about the Y+ direction, the 1X+, 1Z+, 2X+, and 4Z+ channels will see positive motion, and the 2Z+, 3X+, 3Z+ and 4X+ channels will see negative motions, so the rows corresponding to those channels should be populated with +1 or -1, respectively. Note that there technically should be a moment arm computed by the distance from the accelerometer to the center-line of the table in the real rotation calculation; however, if all accelerometers are equidistant, this term can be dropped, and the system identification will compensate accordingly. Table 12-2 shows the constructed inverse transformation, and Table 12-3 shows the response transform matrix that should be provided to Rattlesnake.

Table 12-2. Inverse response transformation for the 6DoF test shown in Figure 12-7

Table 12-3 Response transformation for the 6DoF test shown in Figure 12-7

Note that when a response transformation matrix is used, the vibration specification must be delivered to Rattlesnake in terms of the transformed coordinates. Note that the specification in terms of physical measurement can be transformed into the virtual quantities in the same way that the physical quantities themselves are transformed.

$${\hat{\mathbf{G}}}_{xx}=\mathbf{T}{\mathbf{G}}_{xx}{\mathbf{T}}^H$$

Transformation matrices can be used for more general coordinate system transformations. Perhaps the vibration specification has been derived from a finite element model, but the test article has instrumentation mounted obliquely to the global finite element coordinate system. A transformation matrix consisting a rotation matrices can be used to transform between coordinate systems in the model and coordinate systems in the test. Additionally, transformation matrices can be used to perform spatial filtering for example to control to specific modes of the structure $\mathbf{q}$. Given the modal transformation

$$\mathbf{x}=\mathbf{\Phi q}$$

the modal quantities $\mathbf{q}$ can be computed from physical quantities $\mathbf{x}$ as

$$\mathbf{q}={\mathbf{\Phi }}^{+}\mathbf{x}$$

In this case, the transformation matrix is simply the inverse mode shape matrix $\mathbf{\Phi }$, which acts as a modal filter.

12.9. Generation of Time Histories

Rattlesnake's MIMO Random Vibration environment allows users to run custom control laws that produce CPSD matrices. Rattlesnake must then create time histories from those CPSD matrices to send to the shakers. This section will discuss some of the implementation details of this process that may be useful for users to understand.

12.9.1. Creating Time Signal Realizations from CPSD Matrices

TODO: Bibliography item.

To start the signal generation process, the signal generation routine receives an output CPSD matrix from the custom control law provided by the user. The controller uses the process described in \cite{schultz2020_input_signal_synthesis_openloop_multipleinput_multipleoutput_testing} to create a time history realization from the CPSD matrix. Note that for large control problems, it might take more than one measurement frame to perform the control problem, so there might not be an output CPSD matrix ready when the controller requires it. In that case, the previous output CPSD matrix is used.

To generate a time history realization, the square root of the CPSD matrix is taken using a SVD approach. This creates linear spectra $\mathbf{L}$ from the power spectra.

$${\mathbf{G}}_{vv}=\mathbf{US}{\mathbf{V}}^H$$

$$\mathbf{L}=\mathbf{U}\sqrt{\mathbf{S}}{\mathbf{V}}^H$$

A random process vector is computed using Gaussian real and imaginary components ${\mathbf{A}}_k$ and ${\mathbf{B}}_k$.

$$\mathbf{\Psi }=\frac{1}{df\sqrt{2}}({\mathbf{A}}_k+i{\mathbf{B}}_k)$$

where $df$ is the frequency spacing and $i$ is the complex variable.

A realization of the linear spectra is computed by multiplying the random process vector by the linear spectra

$${\mathbf{X}}_v=\mathbf{L\Psi }$$

Taking the inverse FFT then transforms the linear spectra into time signals that can be sent to the shakers.

$${\mathbf{x}}_v={\mathcal{F}}^{-1}{\mathbf{X}}_v$$

Note that this signal has the length of one FFT frame, which is generally not long enough to be immediately useful for vibration testing. Multiple signals can be generated by taking additional realizations of the random process vector; however, simply concatenating multiple realizations will result in discontinuous signals, as there is no guarantee that these signals will start and end at the same levels.

12.9.2. Synthesizing Continuous Time Histories using COLA

To handle the synthesis of longer signals, a COLA process is used. This process is also described in detail in \cite{schultz2020_input_signal_synthesis_openloop_multipleinput_multipleoutput_testing}. A COLA window function is specified that allows each time history realization to start and end at zero. To ensure the proper variance is maintained, the square root of the window function is applied to the signal (specified using the Window Exponent parameter in the Environment Definition tab). The overlap is specified such that the original (un-square-rooted) window function sums to one over the signal. The windowed signals are then added together to form a continuous signal.

Rattlesnake cannot realistically compute a large number of realizations all at once to create one long signal, as this would impede its ability to respond to changing test conditions, effectively making it an open-loop control system. Instead, Rattlesnake must compute this COLA operation on the fly. It does this by keeping two output signals in memory at once. It overlaps the last part of the first signal with the first part of the next signal and sends that overlapped portion of the signal to the output of the controller. Then, the previous next signal becomes the next first signal and a new realization replaces the previous next signal and the process continues.

12.9.3. Setting the Test Level

The final operation performed on the output signal is to adjust for test level. Initial versions of the Rattlesnake simply scaled the vibration specification so the controller would naturally scale its output to match the scaled specification. This was found to be lacking especially for large control problems where it could take a second or more to perform a control calculation. This combined with the COLA approach meant that it could take several seconds for a test level change to be realized, which was more than enough time to damage test hardware. Another issue with this approach was for error-based control approaches. The controller would immediately recognize that it was in error due to the change in test level and produce a modified output. However, there could be 20 or more frames of data being used in the computation of CPSD matrices that would need to be overwritten prior to the controller recovering. In practice, this meant that the controller would severely overshoot the desired level as it further and further modified the output with very little change in the response CPSD. One final issue is that it relied on the COLA process to smooth jumps between test levels. As the COLA overlap regions could be quite short, this lead to fairly severe level changes that could damage test hardware.

Recent versions of the Rattlesnake have moved away from scaling the vibration specification and started scaling the output signal directly. The acquired data is then scaled back to full level prior to control calculations taking place. For this reason, all information written to the Run Test tab in the GUI is presented as if it were at full level. Because the time histories are modified directly, it allows ramping between test levels to be implemented directly and at whatever speed is required for hardware safety. Data acquired during the ramp between test levels is generally ignored; only data acquired while the test level is constant is used for spectral computations.

13. Multiple Input/Multiple Output Transient Control

The MIMO Transient environment aims to control the vibration response of a component to a specific time history by creating output signals with the correct levels and phasing. The governing equation for MIMO Transient control is

$$\mathbf{X}={\mathbf{H}}_{xv}\mathbf{V}\text{\hspace{1em}(13.1)}$$

where the frequency spectrum matrix of the responses $\mathbf{X}$ result from some signals $\mathbf{V}$ exciting the structure represented by transfer function matrices ${\mathbf{H}}_{xv}$. In a typical transient control problem, the control system tries to compute the a signal with spectrum matrix $\mathbf{V}$ that best reproduces the desired response with frequency spectrum $\mathbf{X}$.

13.1. Signal Definition

The first step in defining a transient control problem is the definition of the response signal that is desired. Rattlesnake accepts the specification in the form of a 2D array consisting of a time response of one or more channels in the test. Signals can be loaded from Numpy *.npy or *.npz files or Matlab *.mat files. Both Matlab *.mat and Numpy *.npz files should contain the following data members:

• signal: A $n_c\times n_s$ array containing the time signal the controller will try to reproduce on the test article. For *.npy files which do not have fields, the signal array is stored directly to the file.
• t: A $n_s$ array of times corresponding to columns of the signal field. If not specified (either by not including a t field in a *.mat or *.npz file or by using an *.npy file), the signal will be assumed to be at the sample rate defined in the controller. If t is specified but is not at the sample rate of the controller, the signal will be linearly interpolated to be at the sample rate of the controller.

The ordering of the rows of the array defining the signal is the same order as the control channels in the Channel Table on the Data Acquisition Setup tab that are selected as control channels on the Environment Definition tab. The specification is defined in the engineering units specified by the Engineering Unit column of the channel table for the control channels.

13.2. Defining the MIMO Transient Environment in Rattlesnake

In addition to the specification, there are a number of signal processing parameters that are used by the MIMO Transient environment. These, along with the specification, are defined on the Environment Definition tab in the Rattlesnake controller on a sub-tab corresponding to a MIMO Transient environment. Figure 13-1 shows a MIMO Transient sub-tab. The following subsections describe the parameters that can be specified, as well as their effects on the analysis.

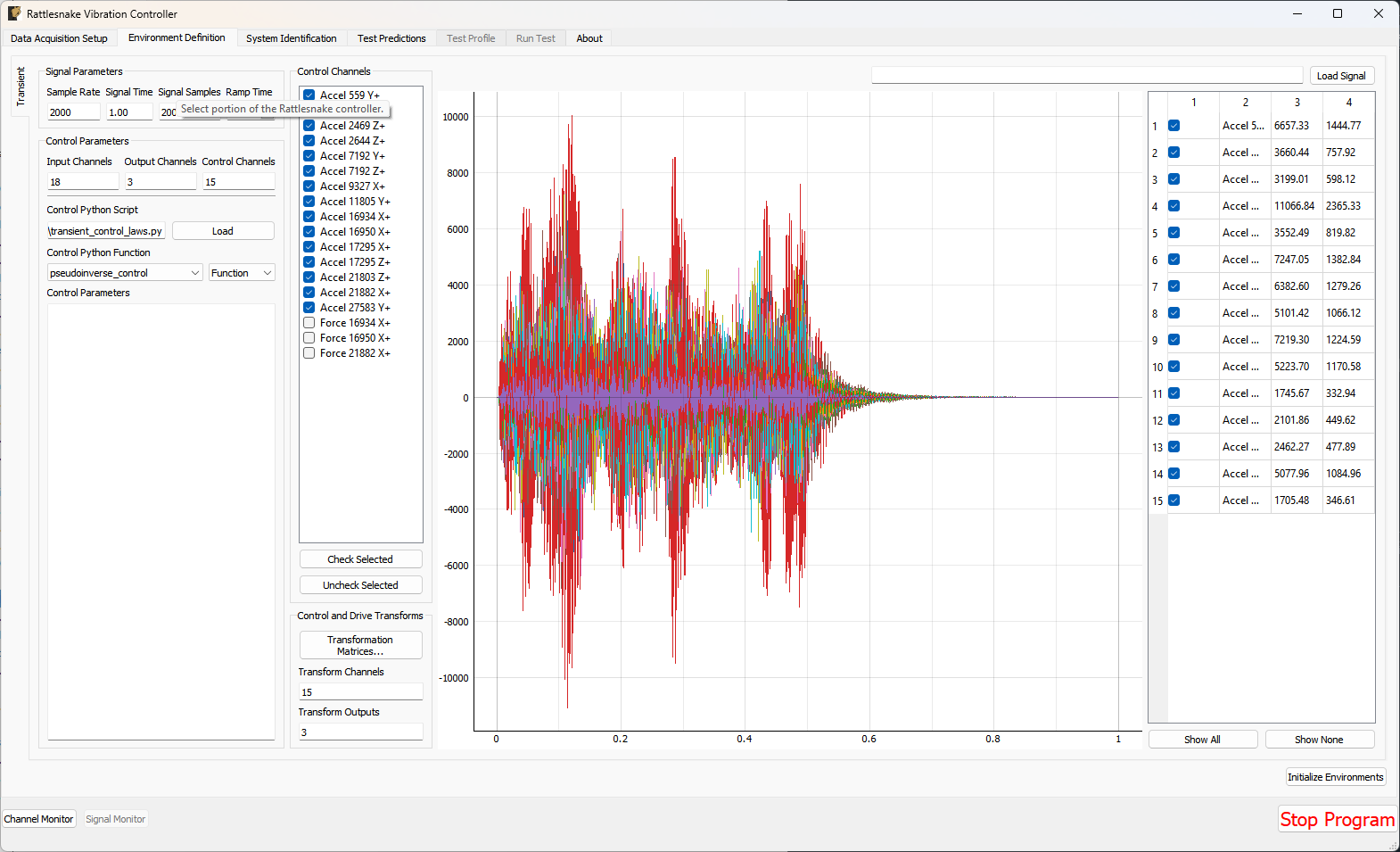

Figure 13-1. GUI used to define a MIMO Transient environment.

13.2.1. Signal Parameters

The Signal Parameters section of the MIMO Transient definition sub-tab consists of the following parameters:

• Sample Rate: The global sample rate of the data acquisition system. This is set on the Data Acquisition Setup tab, and displayed here for convenience as a read-only value.
• Signal Time: The total time it will take to play the signal that the controller will attempt to reproduce on the test article.
• Signal Samples: The number of time steps in the signal that the controller will attempt to reproduce on the test article.
• Ramp Time: The time taken to ramp the signal to zero when the signal is stopped, preventing “Hard Stops” that could damage equipment if the test is aborted midway through.

13.2.2. Control Channels

The Control Channels list allows users to select the channels in the test that will be used by the environment to perform control calculations. These are the channels that will match the rows and columns of the specification file.

13.2.3. Control Parameters

The Control Parameters section of the MIMO Transient definition sub-tab consists of the following parameters:

• Input Channels: The total number of channels being measured by the Rattlesnake, including response channels and output channels. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Output Channels: The number of excitation signals being used to control the vibration response of this environment. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Control Channels: The number of response channels being used in the control. This is a computed quantity presented for convenience, so the user cannot modify it directly.

The Control Parameters section of the MIMO Transient definition sub-tab also includes functionality for loading in custom control laws. See Section 13.7. Writing a Custom Control Law for information on defining a custom transient control law.

• Control Python Script: The Python script containing a custom control law that is currently loaded into the Rattlesnake controller.
• Load: Pressing this button will bring up a file selection dialog to load in a new Python script containing a custom control law.
• Control Python Function: This selector presents the functions, generators, and classes within the loaded Python script that can be used as custom control laws.
• Control Parameters: This text box allows arbitrary input to be passed to custom control laws as a string. It is up to the control law to specify what this extra input must be and parse whatever input the user gives it.

13.2.4. Control and Drive Transforms

The Control and Drive Transforms section of the MIMO Random Vibration definition sub-tab consists of the following parameters:

• Transformation Matrices...: Selecting this button will bring up the transformation matrices dialog box, which allows the user to specify linear transformations between the physical responses and excitation signals and virtual responses and excitation signals. See Section 12.8. Using Transformation Matrices for more information.
• Transform Channels: The number of virtual control degrees of freedom after applying transformation matrices. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Transform Outputs: The number of virtual excitation devices after applying transformation matrices. This is a computed quantity presented for convenience, so the user cannot modify it directly.

Note that if Transformation matrices are defined, the number of control channels ends up being the number of rows of the Response Transformation Matrix, rather than the number of physical control channels. The number of physical control channels will be equal to the number of columns of the transformation matrix. The number of rows of the specification loaded should be equal to the number of rows in the transformation.

13.2.5. Signal Specification

The control signal is loaded and displayed on the right side of the MIMO Transient definition tab:

• Load Signal: A button that when pressed will bring up a file selection dialog to read in a specification from a Numpy *.npz or *.npy or Matlab *.mat file.
• Signal Plot: A visualization of the signals loaded into the controller.
• Signal Table: A table showing statistics of each of the signals loaded into the controller. The user can also select which signals to plot using the checkboxes in the table.

13.3. System Identification for the MIMO Transient Environment

When all environments are defined and the Initialize Environments button is pressed, Rattlesnake will proceed to the next phase of the test, which is defined on the System Identification tab.

MIMO Transient requires a system identification phase to compute the matrix ${\mathbf{H}}_{xv}$ used in the control calculations of equation (12.1). Unlike the MIMO Random Vibration environment, the MIMO Transient environment's system identification phase can have a number of samples per measurement frame that is not equal to the length of the signal. Control laws written for this environment must be able to handle this, either by doing a COLA scheme or interpolating the FRF. Figure 13-2 shows the GUI used to perform this phase of the test. Given the nature of the MIMO Transient environment, it may be useful to visualize impulse response functions as the system identification is proceeding.

Figure 13-2. System identification GUI used by the MIMO Transient environment.

Rattlesnake's system identification phase will start with a noise floor check, where the data acquisition records data on all the channels without specifying an output signal. After the noise floor is computed, the system identification phase will play out the specified signals to the excitation devices, and transfer functions will be computed using the responses of the control channels to those excitation signals. Section 3.4. System Identification describes the System Identification tab and its various parameters and capabilities.

13.4. Test Predictions for the MIMO Transient Environment

Once the system identification is performed, a test prediction will be performed and results displayed on the Test Predictions tab, shown in Figure 13-3. This is meant to give the user an idea of the test feasibility. The top portion of the window displays excitation information, including peak signal levels required as well as the excitation time history that will be output. The bottom portion of the window displays the predicted responses compared to the specification as well as the TRAC between the signals. The TRAC is a metric that compares two time signals, and has a value of 1 if the signals are identical or 0 if the signals are not related.

Figure 13-3. Test prediction GUI which gives the user some idea of the test feasibility.

13.5. Running the MIMO Transient Environment

The MIMO Transient environment is then run on the Run Test tab of the controller.

With the data acquisition system armed, the environment can be started manually with the Start Environment button. Once running, it can be stopped manually with the Stop Environment button. With the data acquisition system armed and the environment run, the GUI looks like Figure 13-4.

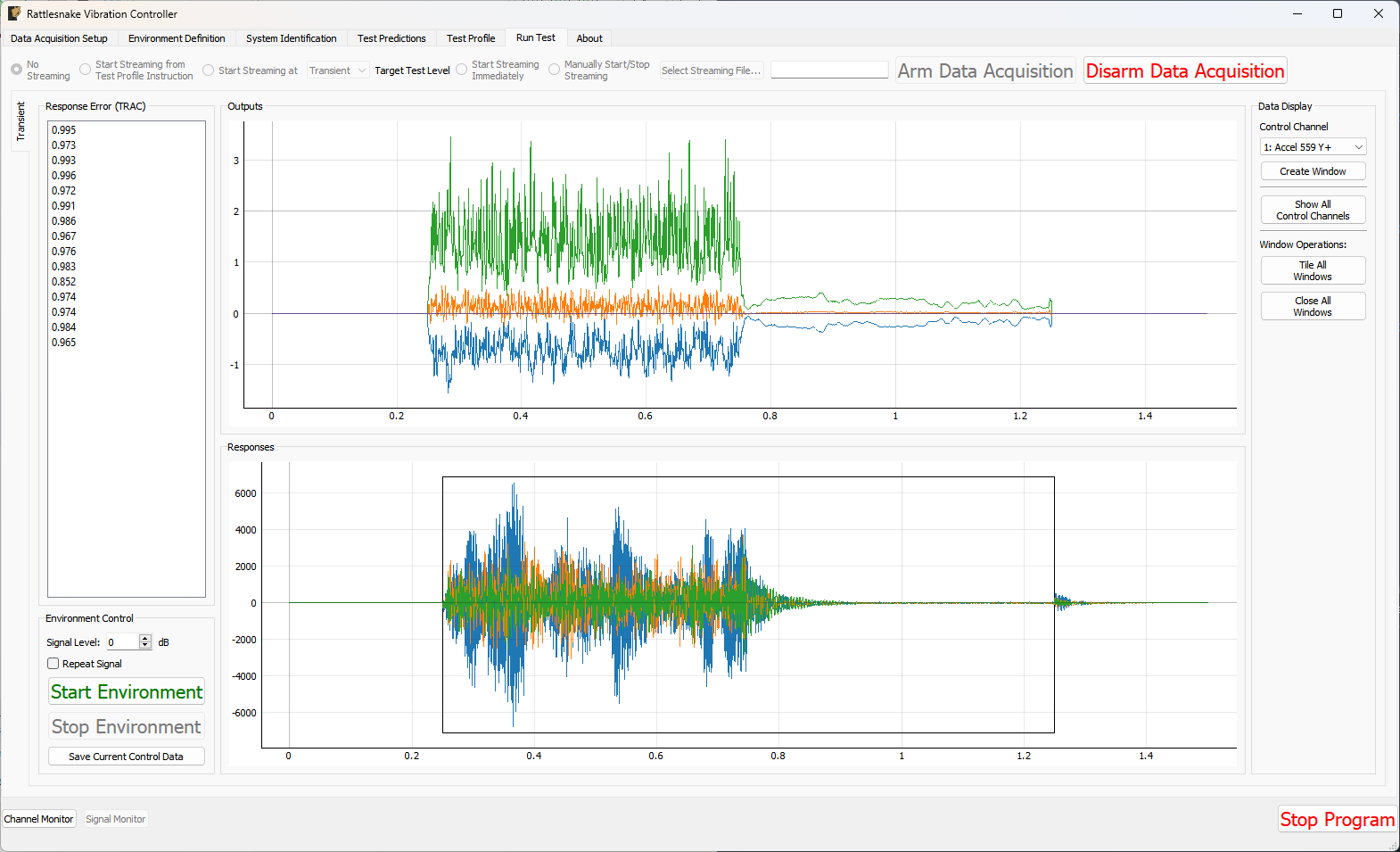

Figure 13-4. GUI for running the MIMO Transient environment.

There are operations that can be performed when setting up and running the MIMO Transient environment, and many visualization operations as well.

13.5.1. Test Level

The MIMO Transient Environment allows scaling of the test by modifying the Signal Level selector on the Run Test tab. The Signal specifies the scaling in decibels relative to the specification level, which is 0 dB. Note that all data and visualizations on the Run Test window are scaled back to full level, so users should not be surprised if for example the signals shown in the Outputs or Responses plots do not change significantly with test level. Unlike the MIMO Random Vibration environment, the MIMO Transient environment does not allow changing test level while the environment is active.

13.5.2. Repeating a Signal

The MIMO Transient environment also has the capability to repeat a signal continuously if the Repeat Signal checkbox is checked. If this is the case, users will be required to stop the environment by clicking the Stop Environment button. If the controller is not set to repeat, the environment will stop automatically after the signal has been output one time.

13.5.3. Test Metrics and Visualizations

The MIMO Transient environment displays the output signals in the Outputs plot and the responses to those signals at the control channels in the Responses plot. The controller will identify the position of the control signal in the response signal by using a correlation, and will draw a black box around that portion of the response signal, as shown in Figure 13-4. The errors in the response channels are reported as a TRAC value between the signal measured and the specification desired.

To interrogate specific channels, the Data Display section of the Run Test can be used. The specific control channel to visualize can be selected using Control Channel selector. Pressing the Create Window button then creates the specified plot.

Some convenience operations are also included to visualize all channels. The Show All Channels button will bring up one window per control channel. Be aware that showing a large number of channels can easily overwhelm the computer with plotting operations causing the GUI to become unresponsive, so use this operations with caution. Figure 13-5 shows an example displaying all channels for a test with six control degrees of freedom.

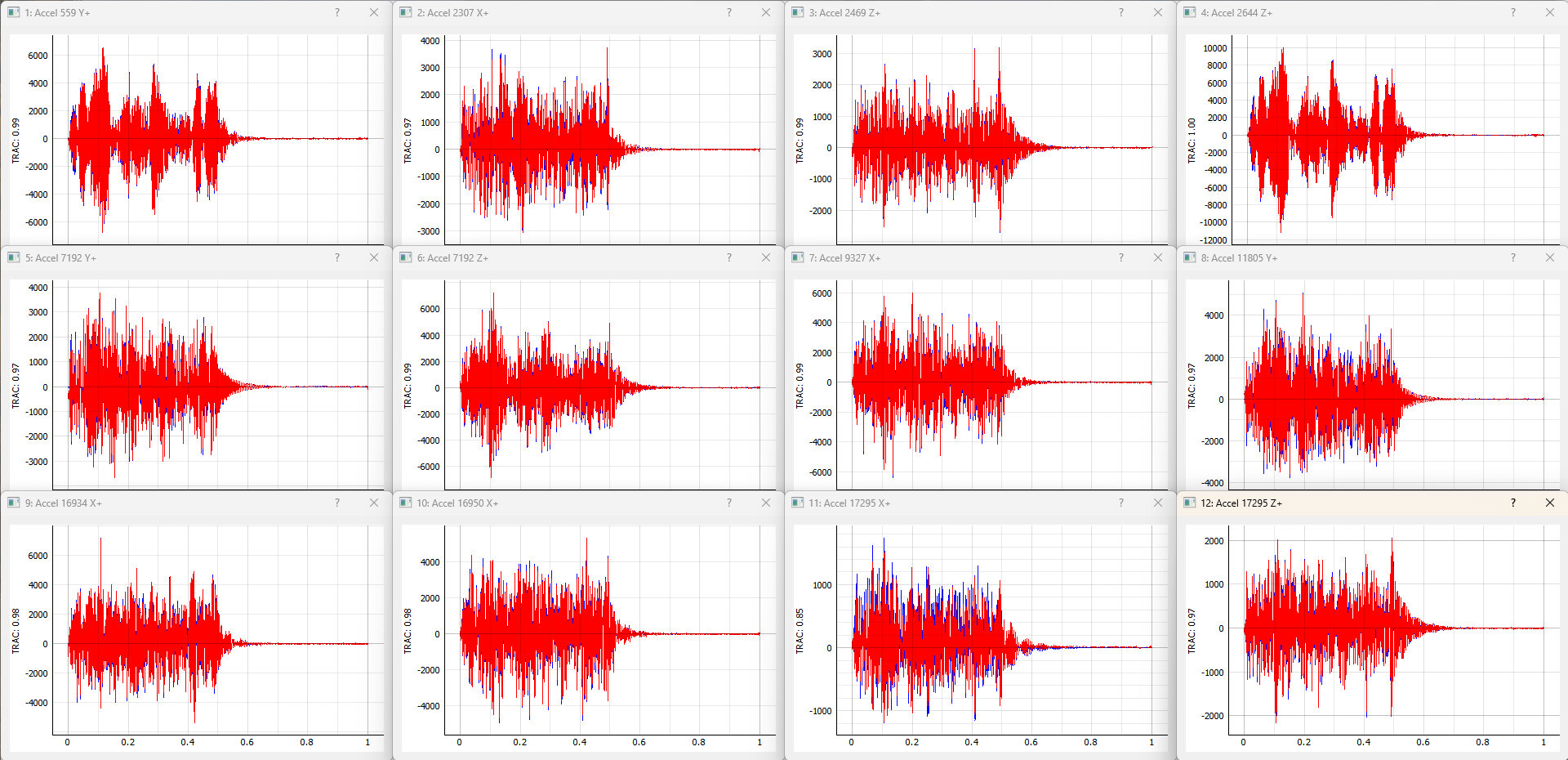

Figure 13-5. Visualizing individual channels' time response.

Further convenience operations are available in the Window Operations: section. Pressing Tile All Windows will rearrange all channel windows neatly across the screen. Pressing Close All Windows will close all open channel windows.

13.6. Output NetCDF File Structure

When Rattlesnake saves data to a netCDF file, environment-specific parameters are stored in a netCDF group with the same name as the environment name. Similar to the root netCDF structure described in Section 3.8, this group will have its own attributes, dimensions, and variables, which are described here.

13.6.1. NetCDF Dimensions

• signal_samples: The number of time samples in the specification signal provided to the MIMO Transient environment.
• specification_channels: The number of channels in the specification signal provided to the MIMO Transient environment.
• control_channels: The number of physical channels used for control. Note that this may be different from the specification_channels due to the presence of a transformation matrix.
• response_transformation_rows: The number of rows in the response channel transformation. This is not defined if no response transformation is used.
• response_transformation_cols: The number of columns in the response channel transformation. This is not defined if no response transformation is used.
• output_transformation_rows: The number of rows in the output transformation. This is not defined if no output transformation is used.
• output_transformation_cols: The number of columns in the output transformation. This is not defined if no output transformation is used.

13.6.2. NetCDF Attributes

• sysid_frame_size: The number of samples per measurement frame in the system identification
• sysid_averaging_type: The type of averaging used in the system identification, linear or exponential
• sysid_noise_averages: The number of measurement frames acquired for the noise floor calculation
• sysid_averages: The number of measurement frames acquired for the system identification calculation
• sysid_exponential_averaging_coefficient: The weighting coefficient used for new frames in the exponential averaging scheme
• sysid_estimator: The FRF estimator used to compute the transfer functions during the system identification
• sysid_level: The level used by the system identification in volts RMS.
• sysid_level_ramp_time: The time to ramp up to the test level when starting and ramp back to zero when stopping the system identification
• sysid_signal_type: The signal type used by the system identification
• sysid_window: The window function applied to the time data during the system identification
• sysid_overlap: The overlap fraction between measurement frames used for system identification
• sysid_burst_on: The fraction of a measurement frame that a burst is active for burst random excitation during system identification
• sysid_pretrigger: The fraction of a measurement used as a pre-trigger for burst random excitation during system identification
• sysid_burst_ramp_fraction: The fraction of a measurement frame used to ramp the burst up to full level and back to zero
• test_level_ramp_time: The time to ramp to the test level and back to zero
• control_python_script: The path to the Python script used to control the MIMO Random Vibration environment
• control_python_function: The function (or class or generator function) in the Python script used to control the MIMO Transient environment
• control_python_function_type: The type of the object used for the control law (function, generator, or class)
• control_python_function_parameters: The extra parameters passed to the control law.

13.6.3. NetCDF Variables

• control_signal: The control signal used by the MIMO Transient environment Type: 64-bit float; Dimensions: specification_channels $\times$ signal_samples
• response_transformation_matrix: The response transformation matrix. This is not defined if no response transformation is used. Type: 64-bit float; Dimensions: response_transformation_rows $\times$ response_transformation_cols
• output_transformation_matrix: The output transformation matrix. This is not defined if no output transformation is used. Type: 64-bit float; Dimensions: output_transformation_rows $\times$ output_transformation_cols
• control_channel_indices: The indices of the active control channels in the environment. Type: 32-bit int; Dimensions: control_channels

13.6.4. Saving Control Data

In addition to time streaming, Rattlesnake's MIMO Transient environment can also save the previous control data directly to the disk by clicking the Save Current Control Data. The control data is stored in a NetCDF file similar to the time streaming data. The primary difference is that the control data is time-aligned to the specification, so users don't need to worry about extracting the signal from an a time stream and trying to align it with specification. The control data also saves out the information from the system identification, including FRF and CPSD matrices.

The two additional dimensions are:

• drive_channels: The number of drive channels active in the environment.
• fft_lines: The number of frequency lines in the spectral quantities.

There are also several additional variables to store the spectral data:

• frf_data_real: The real part of the most recently computed value for the transfer functions between the excitation signals and the control response signals. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ drive_channels
• frf_data_imag: The imaginary part of the most recently computed value for the transfer functions between the excitation signals and the control response signals. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ drive_channels
• frf_coherence: The multiple coherence of the control channels computed during the test. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels
• response_cpsd_real: The real part of the CPSD matrix at the control channels from the system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ specification_channels
• response_cpsd_imag: The imaginary part of the CPSD matrix at the control channels from the system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ specification_channels
• drive_cpsd_real: The real part of the CPSD matrix at the excitation channels from the system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ drive_channels $\times$ drive_channels
• drive_cpsd_imag: The imaginary part of the CPSD matrix at the excitation channels from the system identifications. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ drive_channels $\times$ drive_channels
• response_noise_cpsd_real: The real part of the CPSD matrix at the control channels during the noise floor measurement that occurred during system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ specification_channels
• response_noise_cpsd_imag: The imaginary part of the CPSD matrix at the control channels during the noise floor measurement that occurred during system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ specification_channels $\times$ specification_channels
• drive_noise_cpsd_real: The real part of the CPSD matrix at the excitation channels during the noise floor measurement that occurred during system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ drive_channels $\times$ drive_channels
• drive_noise_cpsd_imag: The imaginary part of the CPSD matrix at the excitation channels during the noise floor measurement that occurred during system identification. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ drive_channels $\times$ drive_channels
• control_response: The time response of the system aligned in time to the specification. Type: 64-bit float; Dimensions: specification_channels $\times$ signal_samples
• control_drives: The drive signals aligned in time to the specification. Type: 64-bit float; Dimensions: drive_channels $\times$ signal_samples

13.7. Writing a Custom Control Law

The flexibility of the Rattlesnake framework is highlighted by the ease in which users can implement and iterate on their own ideas. For the MIMO Transient control type, users can implement custom control laws using a custom Python function, or alternatively a generator function or class which allow state to be maintained between function calls. This section will provide instructions and examples for implementing a custom control law.

The controller will provide various data types to the control law functions which are:

• sample_rate: The sample rate of the acquisition portion of the controller; real scalar integer
• specification_signals: The target signal for the control channels; real 2D array ($n_c\times n_s$)
• frequency_spacing: The frequency spacing of the transfer function array; real scalar float
• transfer_function: The current estimate of the transfer function between the control responses and the output voltages; complex 3D array ($n_f\times n_c\times n_o$)
• noise_response_cpsd: The levels and correlation of the noise floor measurement on the control channels obtained during system identification; complex 3D array ($n_f\times n_c\times n_c$)
• noise_reference_cpsd: The levels and correlation of the noise floor measurement on the excitation channels obtained during system identification; complex 3D array ($n_f\times n_o\times n_o$)
• sysid_response_cpsd: The levels and correlation of the control channels obtained during system identification; complex 3D array ($n_f\times n_c\times n_c$)
• sysid_reference_cpsd: The levels and correlation of the noise floor measurement on the excitation channels obtained during system identification; complex 3D array ($n_f\times n_o\times n_o$)
• multiple_coherence: The multiple coherence for each control channel; real 2D array ($n_f\times n_c$)
• frames: The number of measurement frames acquired so far, used to compute various parameters in the control law. This can be compared to total_frames to determine if a full set of measurement frames has been acquired, or if the estimation of the various parameters could improve with continued averaging; real scalar integer
• total_frames: The total number of frames used to compute the CPSD and FRF matrices; real scalar integer
• output_oversample_factor: Some hardware devices and settings within Rattlesnake require output signals from Rattlesnake to be oversampled compared to the input samples. For example, on the LAN-XI hardware, the slowest output rate is four times larger than the slowest acquisition rate. This argument tells the control law the factor by which the output returned from the controller is oversampled compared to the acquisition; real scalar integer
• extra_parameters: Extra parameters provided to the controller; string
• last_excitation_signals: The most recent output signal, which can be used for error-based control; real 2D array ($n_o\times n_s$)
• last_response_signals: The most recent responses to the last output signals, which can be used for error-based control; real 2D array ($n_c\times n_s$)

where size $n_s$ is the number of time samples in the control signal, $n_f$ is the number of frequency lines in the transfer function matrix, $n_c$ is the number of control channels, and $n_o$ is the number of output signals. Note that the values passed into the function may be defined using arbitrary variable names (e.g. transfer_function may be instead called H, or any other valid variable name); however, the order of the variables passed into each function will always be constant.

13.7.1. Defining a control law using a Python function

Python functions are the simplest approach to define a custom control law that can be used with the Rattlesnake software; however, they are limited in that a function's state is completely lost when a function returns. Still, they can be used to implement relatively complex control laws as long as no state persistence is required.

A Python function used to define a MIMO Transient control law in Rattlesnake would have the following general structure within a Python script.

# Any module imports, initialization code, or helper functions would go here

# Now we define the control law. It always receives the same arguments from the controller.
def control_law(
    sample_rate,
    specification_signals, # Signal to try to reproduce
    frequency_spacing,
    transfer_function, # Transfer Functions
    noise_response_cpsd, # Noise levels and correlation
    noise_reference_cpsd, # from the system identification
    sysid_response_cpsd, # Response levels and correlation
    sysid_reference_cpsd, # from the system identification
    multiple_coherence, # Coherence from the system identification
    frames, # Number of frames in the CPSD and FRF matrices
    total_frames, # Total frames that could be in the CPSD and FRF matrices
    output_oversample_factor, # Oversample factor to output
    extra_parameters = '', # Extra parameters for the control law
    last_excitation_signals = None, # Last excitation signal for drive-based control
    last_response_signals = None, # Last response signal for error correction
    ):

    # Code to perform the control would go here
    # output_signal = ...

    # Finally, we need to return an output signal matrix
    return output_signal

Listing 13.1. General Python function structure for defining a custom Transient control law called control_law in Rattlesnake

The function must return an output_signal, which is a 2D array with size ($n_o\times n_{os}$) where $n_{os}$ is the number of samples in the specification signal times the output_oversample_factor.

One example is shown to demonstrate how a Transient control law may be written.

13.7.1.1. Pseudoinverse Control

Perhaps the simplest strategy to perform MIMO Transient control is to simply invert the transfer function matrix to recover the least-squares solution of the optimal output signal from the desired responses. This example will demonstrate that approach with some additional arguments that may improve the control.

The mathematics for this control strategy are relatively simple; pre-multiply the spectra of the desired responses $\mathbf{X}$ by the pseudoinverse (${}^{+}$) of the transfer function matrix ${\mathbf{H}}_{xv}$. This calculation is performed for each frequency line.

$$\mathbf{V}={{\mathbf{H}}_{xv}}^{+}\mathbf{X}\text{\hspace{1em}(13.2)}$$

The implementation details are a bit more complex than this formula would reveal, as the controller gives and wants returned the time signals and not the spectra. This means the FFT must be computed to transform to the frequency domain for the calculations to be performed, and the IFFT must be computed to return to the time domain. Additionally, to handle the potential for oversampling the output, the drive signal is zero-padded to up-sample the signal appropriately. We must also handle the case where the number of samples in the system identification is not the same as the number of samples in the control signal. We will finally add optional arguments that may be specified using key-value pairs separated by a colon (e.g. the rcond parameter could be specified as rcond:1e-5 to specify a singular value threshold of 10,000 in the inverse). In Python code, the above mathematics and implementation details would look like

import numpy as np # Import numpy to get access to its function
# Parse the input arguments in extra_parameters
rcond = 1e-15
zero_impulse_after = None
# Split it up into lines
for entry in extra_parameters.split('\n'):
    try:
        # For each entry, split the key from the value using the colon
        field,value = entry.split(':')
        # Strip any whitespace
        field = field.strip()
        # Check the field to figure out which value to assign
        if field == 'rcond':
            rcond = float(value)
        elif field == 'zero_impulse_after':
            zero_impulse_after = float(value)
        else:
            # Report if we cannot understand the parameter
            print('Unrecognized Parameter: {:}, skipping...'.format(field))

# Compute impulse responses using the IFFT of the transfer function
# We will zero pad the IFFT to do interpolation in the frequency domain
# to match the length of the required signal
impulse_response = np.fft.irfft(transfer_function,axis=0)

# The impulse response should be going to zero at the end of the frame,
# but practically there may be some gibbs phenomenon effects that make the
# impulse response noncausal.  If we zero pad, this might be wrong.  We
# therefore give the use the ability to zero out this non-causal poriton of
# the impulse response.
if zero_impulse_after is not None:
    # Remove noncausal portion
    impulse_response_abscissa = np.arange(impulse_response.shape[0])/sample_rate
    zero_indices = impulse_response_abscissa > zero_impulse_after
    impulse_response[zero_indices] = 0

# Zero pad the impulse response to create a signal that is long enough for
# the specification signal
added_zeros = np.zeros((specification_signals.shape[-1]-impulse_response.shape[0],)
                       + impulse_response.shape[1:])
full_impulse_response = np.concatenate((impulse_response,added_zeros),axis=0)

# Compute FRFs using the FFT from the impulse response.  This is now
# interpolated such that it matches the frequency spacing of the specification
# signal
interpolated_transfer_function = np.fft.rfft(full_impulse_response,axis=0)

# Perform convolution by frequency domain multiplication
signal_fft = np.fft.rfft(specification_signals,axis=-1)
# Invert the FRF matrix using the specified rcond parameter
inverted_frf = np.linalg.pinv(interpolated_transfer_function,rcond=rcond)
# Multiply the inverted FRFs by the response spectra to get the drive spectra
drive_signals_fft = np.einsum('ijk,ki->ij',inverted_frf,signal_fft)

# Zero pad the drive FFT to oversample to the output_oversample_factor
drive_signals_fft_zero_padded = np.concatenate((drive_signals_fft[:-1],
    np.zeros((drive_signals_fft[:-1].shape[0]*(output_oversample_factor-1)+1,)
             +drive_signals_fft.shape[1:])),axis=0)

# Finally, take the IFFT to get the time domain signal.  We need to scale
# by the output_oversample_factor due to how the IFFT is normalized.
drive_signals_oversampled = np.fft.irfft(
    drive_signals_fft_zero_padded.T,axis=-1)*output_oversample_factor
return drive_signals_oversampled

Listing 13.2 Computing the pseudoinverse calculation to solve for a least-squares output spectrum

For users not familiar with Python and its numeric library numpy, the following points are clarified

• numpy is imported and assigned to the alias np, which lets us just type in np rather than the longer name numpy when we want to access numpy functions.
• To interpolate a function in the frequency domain, we can zero-pad its time response, and to interpolate a function in the time domain, we can zero-pad its frequency response.
• The numpy module has a function zeros to create an array of zeros and a function concatenate to combine two arrays together. These two functions allow us to zero-pad an array.
• FFT calculations can be performed using the Fourier Transform package fft within numpy. We will be using real signals, so we use rfft and irfft to do these transforms.
• The numpy pseudoinverse function pinv is stored in the linear algebra package linalg within numpy, therefore to access pinv, we need to call np.linalg.pinv
• The pinv can perform a pseudoinverse on "stacks" of matrices, so even though we are only calling the pinv function once, it is actually performing the pseudoinverse over all frequency lines
• The numpy einsum function utilizes a syntax similar to Einstein Summation Notation to perform multiplication and summation over certain dimensions of the arrays.

Wrapping the above code into the function definition from Listing 13.1, the control law can be defined as

import numpy as np

def pseudoinverse_control(
        sample_rate,
        specification_signals, # Signal to try to reproduce
        frequency_spacing,
        transfer_function, # Transfer Functions
        noise_response_cpsd,  # Noise levels and correlation
        noise_reference_cpsd, # from the system identification
        sysid_response_cpsd,  # Response levels and correlation
        sysid_reference_cpsd, # from the system identification
        multiple_coherence, # Coherence from the system identification
        frames, # Number of frames in the CPSD and FRF matrices
        total_frames, # Total frames that could be in the CPSD and FRF matrices
        output_oversample_factor, # Oversample factor to output
        extra_parameters = '', # Extra parameters for the control law
        last_excitation_signals = None, # Last excitation signal for drive-based control
        last_response_signals = None, # Last response signal for error correction
        ):
    # Parse the input arguments in extra_parameters
    rcond = 1e-15
    zero_impulse_after = None
    # Split it up into lines
    for entry in extra_parameters.split('\n'):
        try:
            # For each entry, split the key from the value using the colon
            field,value = entry.split(':')
            # Strip any whitespace
            field = field.strip()
            # Check the field to figure out which value to assign
            if field == 'rcond':
                rcond = float(value)
            elif field == 'zero_impulse_after':
                zero_impulse_after = float(value)
            else:
                # Report if we cannot understand the parameter
                print('Unrecognized Parameter: {:}, skipping...'.format(field))
        except ValueError:
            # Report if we cannot parse the line
            print('Unable to Parse Line {:}, skipping...'.format(entry))

    # Compute impulse responses using the IFFT of the transfer function
    # We will zero pad the IFFT to do interpolation in the frequency domain
    # to match the length of the required signal
    impulse_response = np.fft.irfft(transfer_function,axis=0)

    # The impulse response should be going to zero at the end of the frame,
    # but practically there may be some gibbs phenomenon effects that make the
    # impulse response noncausal.  If we zero pad, this might be wrong.  We
    # therefore give the use the ability to zero out this non-causal poriton of
    # the impulse response.
    if zero_impulse_after is not None:
        # Remove noncausal portion
        impulse_response_abscissa = np.arange(impulse_response.shape[0])/sample_rate
        zero_indices = impulse_response_abscissa > zero_impulse_after
        impulse_response[zero_indices] = 0

    # Zero pad the impulse response to create a signal that is long enough for
    # the specification signal
    added_zeros = np.zeros((specification_signals.shape[-1]-impulse_response.shape[0],)
                           + impulse_response.shape[1:])
    full_impulse_response = np.concatenate((impulse_response,added_zeros),axis=0)

    # Compute FRFs using the FFT from the impulse response.  This is now
    # interpolated such that it matches the frequency spacing of the specification
    # signal
    interpolated_transfer_function = np.fft.rfft(full_impulse_response,axis=0)

    # Perform convolution by frequency domain multiplication
    signal_fft = np.fft.rfft(specification_signals,axis=-1)
    # Invert the FRF matrix using the specified rcond parameter
    inverted_frf = np.linalg.pinv(interpolated_transfer_function,rcond=rcond)
    # Multiply the inverted FRFs by the response spectra to get the drive spectra
    drive_signals_fft = np.einsum('ijk,ki->ij',inverted_frf,signal_fft)

    # Zero pad the drive FFT to oversample to the output_oversample_factor
    drive_signals_fft_zero_padded = np.concatenate((drive_signals_fft[:-1],
        np.zeros((drive_signals_fft[:-1].shape[0]*(output_oversample_factor-1)+1,)
                 +drive_signals_fft.shape[1:])),axis=0)

    # Finally, take the IFFT to get the time domain signal.  We need to scale
    # by the output_oversample_factor due to how the IFFT is normalized.
    drive_signals_oversampled = np.fft.irfft(
        drive_signals_fft_zero_padded.T,axis=-1)*output_oversample_factor
    return drive_signals_oversampled

Listing 13.3 A pseudoinverse transient control law that can be loaded into Rattlesnake

The requirement that transient control laws are required to be able to oversample their output and may require switching between frequency and time domains mean that the Transient control laws will generally be more complex than the Random Vibration control laws. Note that these computations to oversample the output are still performed by the controller for the Random Vibration environment described in Chapter 12; however, the user does not need to handle them explicitly. In the Transient environment, the user-defined control laws are actually creating the time signals that will be sent to the exciters, so user-defined control laws must handle these computations.

13.7.2. Defining a control law using state-persistent approaches

Similarly to the MIMO Random Vibration environment, the Transient environment may also use state-persistent approaches such as generator functions or classes. This can be handy, for example, to compute the FFT of the desired response signals one time, as opposed to computing them every single control iteration, because the desired response signals generally do not change throughout a test.

13.7.2.1. Defining Control Laws with Generator Functions

The second strategy to define a control law in Rattlesnake is to use a Generator Function. A generator function is simply a function that maintains its internal state between function calls. Listing 13.4 shows the Pseudoinverse Transient control law implemented as a generator function.

import numpy as np

def pseudoinverse_control_generator():
    signal_fft = None
    inverted_frf = None
    drive_signals_oversampled = None
    while True:
        (sample_rate,
         specification_signals, # Signal to try to reproduce
         frequency_spacing,
         transfer_function, # Transfer Functions
         noise_response_cpsd,  # Noise levels and correlation
         noise_reference_cpsd, # from the system identification
         sysid_response_cpsd,  # Response levels and correlation
         sysid_reference_cpsd, # from the system identification
         multiple_coherence, # Coherence from the system identification
         frames, # Number of frames in the CPSD and FRF matrices
         total_frames, # Total frames that could be in the CPSD and FRF matrices
         output_oversample_factor, # Oversample factor to output
         extra_parameters, # Extra parameters for the control law
         last_excitation_signals, # Last excitation signal for drive-based control
         last_response_signals, # Last response signal for error correction
         ) = yield drive_signals_oversampled
        if signal_fft is None:
            # Compute the FFT of the spec if it hasn't been done yet
            signal_fft = np.fft.rfft(specification_signals).T
        # Get a tolerance if specified
        rcond = 1e-15
        zero_impulse_after = None
        for entry in extra_parameters.split('\n'):
            field,value = entry.split(':')
            field = field.strip()
            if field == 'rcond':
                rcond = float(value)
            elif field == 'zero_impulse_after':
                zero_impulse_after = float(value)
            else:
                print('Unrecognized Parameter: {:}'.format(field))
        if inverted_frf is None:
            # Compute impulse responses
            impulse_response = np.fft.irfft(transfer_function,axis=0)

            if zero_impulse_after is not None:
                # Remove noncausal portion
                impulse_response_abscissa = np.arange(impulse_response.shape[0])/sample_rate
                zero_indices = impulse_response_abscissa > zero_impulse_after
                impulse_response[zero_indices] = 0

            # Zero pad the impulse response to create a signal that is long enough
            added_zeros = np.zeros((specification_signals.shape[-1]-impulse_response.shape[0],) + impulse_response.shape[1:])
            full_impulse_response = np.concatenate((impulse_response,added_zeros),axis=0)

            # Compute FRFs
            interpolated_transfer_function = np.fft.rfft(full_impulse_response,axis=0)

            # Perform convolution in frequency domain
            inverted_frf = np.linalg.pinv(interpolated_transfer_function,rcond=rcond)

        drive_signals_fft = np.einsum('ijk,ki->ij',inverted_frf,signal_fft)

        # Zero pad the FFT to oversample
        drive_signals_fft_zero_padded = np.concatenate((drive_signals_fft[:-1],
            np.zeros((drive_signals_fft[:-1].shape[0]*(output_oversample_factor-1)+1,)+drive_signals_fft.shape[1:])),axis=0)

        drive_signals_oversampled = np.fft.irfft(drive_signals_fft_zero_padded.T,axis=-1)*output_oversample_factor

Listing 13.4 A Pseudoinverse Transient control law defined using a Python generator function to allow for state persistence

Note that the generator function itself is not called with any arguments, as the initial function call simply starts up the generator. Also note that there is no return statement in a generator function, only a yield statement. When a program requests the next value from a generator, the generator code proceeds until it hits a yield statement, at which time it pauses and waits for the next value to be requested. During this pause, all internal data is maintained inside the generator function. The yield statement also accepts new data into the generator function, so this is where the same arguments used to define a control law using a Python function are passed in to the generator control law. Therefore, by creating a while loop inside a generator function, the generator can be called infinitely many times to deliver data to the controller.

To implement the Pseudoinverse control as shown in Listing 13.4 several parameters are initialized as None, which enables the generator to check whether or not they have been computed yet. If they have, then there is no need to compute them again.

13.7.2.2. Defining Control Laws using Classes

A final way to implement more complex control laws is using a Python class. This approach allows for the near infinite flexibility of Python's object-oriented programming at the expense of more complex syntax. Users not familiar with Python's object-oriented programming paradigms are encouraged to learn more about the topic prior to reading this section.

A class in Python is effectively a container that can have functions and properties stored inside of it, so it provides a good way to encapsulate all the parameters and helper functions associated with a given control law into one place. A class allows for arbitrary properties to be stored within it, so arbitrary data can be made persistent between function calls.

For the Rattlesnake implementation of a control law, the class must have at a minimum three functions defined. These are the class constructor __init__ that is called when the class is instantiated, a system_id_update function that is called upon completion of the System Identification portion of the controller, and a control function that actually computes the output \ac{CPSD} matrix. A general class structure is shown below

# Any module imports or constants would go here

class ControlLawClass:
    def __init__(self,
                 sample_rate,
                 specification_signals, # Signal to try to reproduce
                 output_oversample_factor, # Oversample factor to output
                 extra_parameters, # Extra parameters for the control law
                 frequency_spacing,
                 transfer_function, # Transfer Functions
                 noise_response_cpsd,  # Noise levels and correlation
                 noise_reference_cpsd, # from the system identification
                 sysid_response_cpsd,  # Response levels and correlation
                 sysid_reference_cpsd, # from the system identification
                 multiple_coherence, # Coherence from the system identification
                 frames, # Number of frames in the CPSD and FRF matrices
                 total_frames, # Total frames that could be in the CPSD and FRF matrices
                 last_excitation_signals = None, # Last excitation signal for drive-based control
                 last_response_signals = None, # Last response signal for error correction
                 ):
        # Code to initialize the control law would go here

    def system_id_update(self,
                         frequency_spacing,
                         transfer_function, # Transfer Functions
                         noise_response_cpsd,  # Noise levels and correlation
                         noise_reference_cpsd, # from the system identification
                         sysid_response_cpsd,  # Response levels and correlation
                         sysid_reference_cpsd, # from the system identification
                         multiple_coherence, # Coherence from the system identification
                         frames, # Number of frames in the CPSD and FRF matrices
                         total_frames, # Total frames that could be in the CPSD and FRF matrices
                         ):
        # Code to update the control law with system identification information would go here

    def control(self,
                last_excitation_signals = None, # Last excitation signal for drive-based control
                last_response_signals = None, # Last response signal for error correction
                ) -> np.ndarray:
        # Code to perform the actual control operations would go here

    # Any helper functions or properties that belong with the class would go here

Listing 13.5 Structure for a class defining a transient control law in Rattlesnake

The class's __init__ constructor function is called whenever a class is instantiated (e.g. control_law_object = ControlLawClass(sample_rate,specification_signals,output_oversample_factor,...)). Note that the the constructor function accepts as arguments not only the data available at the time (e.g. the specification and any extra control parameters) but also any parameters that will eventually exist. This is because it needs to be able to seamlessly transition in case the control law is changed during control when there is already a transfer function, last signal, etc.

The system_id_function is called after the system identification is complete, so inside this function is where all setup calculations that require a transfer function would go. In the case of a typical pseudoinverse control law, the system identification will not change as the test proceeds, so the inversion can take place in this function.

The control function is then the function that actually performs the control operations to compute the output time history using the last response or output time histories in addition to any data that had been stored inside the class.

The class implementation of the pseudoinverse control is shown in Listing 13.6.

import numpy as np

class pseudoinverse_control_class:
    def __init__(self,
                 sample_rate,
                 specification_signals, # Signal to try to reproduce
                 output_oversample_factor, # Oversample factor to output
                 extra_parameters, # Extra parameters for the control law
                 frequency_spacing,
                 transfer_function, # Transfer Functions
                 noise_response_cpsd,  # Noise levels and correlation
                 noise_reference_cpsd, # from the system identification
                 sysid_response_cpsd,  # Response levels and correlation
                 sysid_reference_cpsd, # from the system identification
                 multiple_coherence, # Coherence from the system identification
                 frames, # Number of frames in the CPSD and FRF matrices
                 total_frames, # Total frames that could be in the CPSD and FRF matrices
                 last_excitation_signals = None, # Last excitation signal for drive-based control
                 last_response_signals = None, # Last response signal for error correction
                 ):
        self.rcond = 1e-15
        self.zero_impulse_after = None
        for entry in extra_parameters.split('\n'):
            field,value = entry.split(':')
            field = field.strip()
            if field == 'rcond':
                self.rcond = float(value)
            elif field == 'zero_impulse_after':
                self.zero_impulse_after = float(value)
            else:
                print('Unrecognized Parameter: {:}'.format(field))
        self.sample_rate = sample_rate
        self.specification_signals = specification_signals
        self.signal_fft = np.fft.rfft(specification_signals).T
        if self.transfer_function is not None:
            self.system_id_update(
                frequency_spacing,
                transfer_function, # Transfer Functions
                noise_response_cpsd,  # Noise levels and correlation
                noise_reference_cpsd, # from the system identification
                sysid_response_cpsd,  # Response levels and correlation
                sysid_reference_cpsd, # from the system identification
                multiple_coherence, # Coherence from the system identification
                frames, # Number of frames in the CPSD and FRF matrices
                total_frames, # Total frames that could be in the CPSD and FRF matrices
                )

    def system_id_update(self,
                         frequency_spacing,
                         transfer_function, # Transfer Functions
                         noise_response_cpsd,  # Noise levels and correlation
                         noise_reference_cpsd, # from the system identification
                         sysid_response_cpsd,  # Response levels and correlation
                         sysid_reference_cpsd, # from the system identification
                         multiple_coherence, # Coherence from the system identification
                         frames, # Number of frames in the CPSD and FRF matrices
                         total_frames, # Total frames that could be in the CPSD and FRF matrices
                         ):
        # Compute impulse responses
        impulse_response = np.fft.irfft(transfer_function,axis=0)

        if self.zero_impulse_after is not None:
            # Remove noncausal portion
            impulse_response_abscissa = np.arange(impulse_response.shape[0])/self.sample_rate
            zero_indices = impulse_response_abscissa > self.zero_impulse_after
            impulse_response[zero_indices] = 0

        # Zero pad the impulse response to create a signal that is long enough
        added_zeros = np.zeros((self.specification_signals.shape[-1]-impulse_response.shape[0],)
                               + impulse_response.shape[1:])
        full_impulse_response = np.concatenate((impulse_response,added_zeros),axis=0)

        # Compute FRFs
        interpolated_transfer_function = np.fft.rfft(full_impulse_response,axis=0)

        # Perform convolution in frequency domain
        self.inverted_frf = np.linalg.pinv(interpolated_transfer_function,rcond=self.rcond)

        drive_signals_fft = np.einsum('ijk,ki->ij',self.inverted_frf,self.signal_fft)

        # Zero pad the FFT to oversample
        drive_signals_fft_zero_padded = np.concatenate((drive_signals_fft[:-1],
            np.zeros((drive_signals_fft[:-1].shape[0]*(self.output_oversample_factor-1)+1,)
                     +drive_signals_fft.shape[1:])),axis=0)

        self.drive_signals_oversampled = np.fft.irfft(
            drive_signals_fft_zero_padded.T,axis=-1)*self.output_oversample_factor

    def control(self,
                last_excitation_signals = None, # Last excitation signal for drive-based control
                last_response_signals = None, # Last response signal for error correction
                ) -> np.ndarray:
        # We could modify the output signal based on new data that we obtained
        # Otherwise just output the same

        return self.drive_signals_oversampled

Listing 13.6 Class implementation of the buzz test approach

Note that the number of lines of code for a class implementation of the pseudoinverse control approach is not significantly more than the simpler function implementation, therefore users should not immediately discard the class-based approach as too difficult to implement in favor of the simpler function implementation. Each approach has its merits and limitations, so it is up to the user to decide the best approach for their control law.

13.8. Using Transformation Matrices

Transformation matrices in the Transient environment behave identically to the the Random Vibration environment. See Section 12.8 for more information.

13.9. Identifying the Signal in the Acquired Data

As the environment may be started or stopped arbitrarily during a given test, the Transient environment will need to identify where the signal that was desired actually occurs in the acquired signals.

The Transient environment keeps a buffer twice the length of the desired control signal, so at some point during the acquisition, the entire signal should be within the buffer.

To identify the position of the signal in the buffer, a correlation is performed between the signal that was output to the exciters and the acquired output data. Correlation is performed on the output signal as it is generally read directly back into the controller and does not depend on an accurate prediction of the part's response. The index of the maximum value of the correlation determines the sample closest to the starting point of the signal.

A second, sub-sample alignment is then performed using phases from the FFT of the signal truncated to the starting point and signal length compared to the phases of the specified output. The slope of the phase change vs frequency line is proportional to the sub-sample signal shift.

With the sample and subsample shift of the signal computed for the output signal, the same sample and subsample shift can be can be applied to the signal from the control gauges. This portion of the control channel signals can then be compared directly to the desired signal to judge how well the environment is controlling.

14. Time History Generator

Rattlesnake's Time History Generator environment provides the ability to simply stream a user-created signal to an output device. While this is a relatively simple environment, it can be used to create simple shocks or run open-loop excitation devices such as a centrifuge with voltage input being proportional to speed. There is no system identification, and therefore no test predictions that are made for this environment.

14.1. Signal Definition

The first step to defining a Time History Generator environment is to create the signal that will be output. Rattlesnake accepts the signal in the form of a 2D array consisting of an output sample for each excitation signal for each time step. Signals can be loaded from Numpy *.npy or *.npz files or Matlab *.mat files. For *.npy files, the stored array defines the signal directly, and it is assumed that the signal uses the sample rate specified in Rattlesnake. Note that if a hardware device over-samples the output (e.g. LAN-XI, see Section 5 LAN-XI Devices), it is the over-sampled output sample rate that is used rather than the acquisition sample rate. Matlab *.mat and Numpy *.npz files allow the users to specify a time vector as well as a signal, and should contain the following data members:

• signal: A $n_o\times n_s$ array containing the signal for each exciter for each time step in t.
• t: A $n_s$ array of times corresponding to the samples in the signal matrix.

where $n_o$ is the number of exciters and $n_s$ is the number of samples in the signal. If the time vector specified by t does not match the sample rate specified in Rattlesnake, the signal data will be linearly interpolated to provide the correct sample rate. If t is not provided in the *.mat or *.npz file, Rattlesnake will treat signal as if it were defined at the output sample rate of the controller.

The ordering of the signals in the signal file is the same as the ordering of the excitation devices in the channel table that are active in the current environment. The first signal will be played to the first excitation device, and so on.

Note that the environment will play the signal as-is, so it is up to the user to implement graceful startup and shutdown at the start and end of the signal if the test configuration requires it.

14.2. Defining the Time History Generator Environment in Rattlesnake

In addition to the signal that will be played to the excitation devices, there is only one parameter that needs to be defined in the Time History Generator. Figure 14.1 shows a Time History Generator sub-tab in the Environment Definition tab of Rattlesnake.

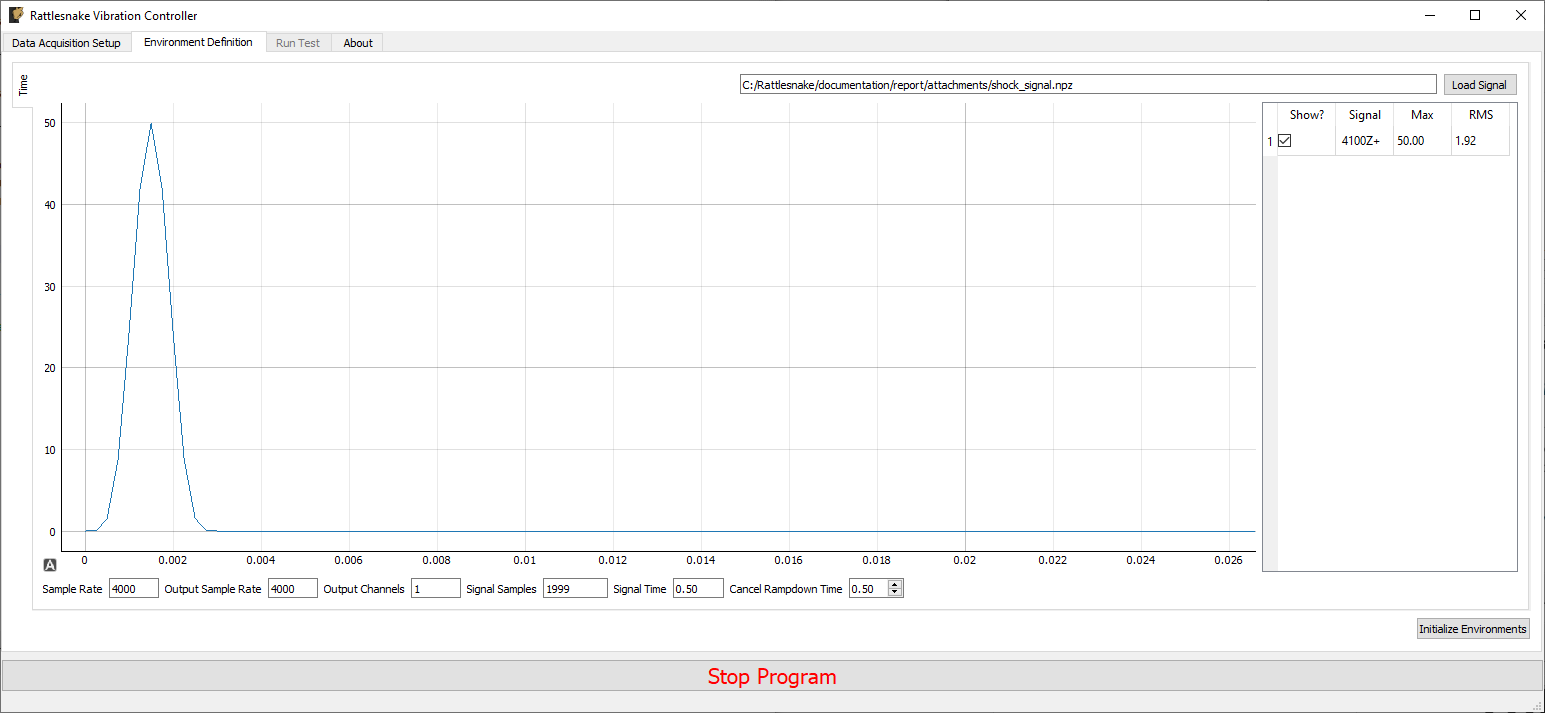

Figure 14-1. GUI defining the Time History Generation environment

Pressing the Load Signal button brings up a file dialog from which the signal file can be loaded. Once the file is loaded, it is displayed in the main plot window. Signal statistics are also displayed in the adjacent table. The checkbox in the Show? column of the table can be used to show or hide individual signals. The signal name in the Signal column is constructed from the node number and direction in the channel table. The Max and RMS value of the signal is also displayed.

At the bottom of the window, there are various computed parameters, and one user defined parameter.

• Sample Rate: The global sample rate of the data acquisition system. This is set on the Data Acquisition Setup tab, and displayed here for convenience as a read-only value.
• Output Sample Rate: This is the output sample rate, which might be different than Sample Rate if the hardware over-samples the output device. This is set on the Data Acquisition Setup tab, and displayed here for convenience as a read-only value.
• Output Channels: The number of excitation signals being used by this environment. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Signal Samples: The number of samples in the loaded signal. This is a computed quantity presented for convenience, so the use cannot modify it directly.
• Signal Time: The amount of time it will take to play the signal. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Cancel Rampdown Time: The amount of time the environment will take to ramp to zero if the environment is stopped prior to the signal being completely played.

14.3. Running the Time History Generator Environment

The Time History Generator environment is then run on the Run Test tab of the controller. With the data acquisition system armed, the GUI looks like Figure 14.2.

Figure 14-2. GUI for running the Time History Generator Environment

Two parameters can be defined prior to starting the environment.

• Signal Level: Allows the user to scale the signal prior to output by a number of dB.
• Repeat Signal: Checking this checkbox makes the signal repeat once started until the environment is stopped manually. Alternatively, the environment will stop automatically once the signal has been played.

Similar to other environments, there are Start Environment and Stop Environment buttons to control when the environment occurs. If the Stop Environment button is clicked, the signal will continue to play for the specified Cancel Rampdown Time while the environment ramps the signal level to zero.

14.4. Output NetCDF File Structure

When Rattlesnake saves data to a netCDF file, environment-specific parameters are stored in a netCDF group with the same name as the environment name. Similar to the root netCDF structure described in Section 3.8 Rattlesnake Output Files, this group will have its own attributes, dimensions, and variables, which are described here.

14.4.2. NetCDF Dimensions

• output_channels: The number of output signals used by the environment
• signal_samples: The number of samples in the output signals

14.4.2. NetCDF Attributes

• cancel_rampdown_time: The time to ramp to zero if the environment is stopped.

14.4.3. NetCDF Variables

• output_signal: The signals that are played to the excitation devices Type: 64-bit float; Dimensions: output_channels $\times$ signal_samples

15. Modal Testing

Rattlesnake's most recent environment is the Modal Testing environment, which is designed for dynamic characterization of a test article. The environment computes transfer functions between a subset of reference channels and the remaining response channels. Reference channels are traditionally measurements of the forces applied to the structure using either a modal impact hammer or modal shaker. The modal testing environment can generate many standard modal signals such as chirp or burst random. However, shaker signals can also be generated from other environments using Rattlesnake's combined environments capabilities.

15.1. Defining the Modal Testing Environment in Rattlesnake

The Rattlesnake Modal Testing environment has many signal processing parameters to specify when setting up the modal test. These are defined on the Environment Definition tab in the Rattlesnake controller on a sub-tab corresponding to the name of the modal testing environment. Figure 15-1 shows a Modal Testing sub-tab. The following subsections describe the parameters that can be specified, as well as their effects on the analysis.

Figure 15-1. GUI used to define a Modal Testing Environment

15.1.1. Sampling Parameters

The Sampling Parameters section contains information and settings that pertain to the samping in the modal test. It consists of the following parameters:

• Sample Rate: The global sample rate of the data acquisition system. This is set on the Data Acquisition Setup tab, and displayed here for convenience as a read-only value.
• Samples Per Frame: The number of time samples used in each measurement frame. Modifying this value will change the length of the measurement, as well as the frequency spacing of the spectral data.
• Samples Per Acquire: The number of additional samples required per measurement frame when taking into account overlapping of the measurement frames. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Frame Time: The amount of time it takes to measure a frame of data, in seconds. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Nyquist Frequency: The maximum bandwidth of the measurement given the sample rate. This is the largest frequency value in the FFT. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• FFT Lines: The number of frequency lines in the FFT. This is a computed quantity presented for convenience, so the user cannot modify it directly.
• Frequency Spacing: The frequency resolution of the FFT. This is a computed quantity presented for convenience, so the user cannot modify it directly.

15.1.2. System ID Parameters

The System ID Parameters section contains information and settings that pertain to the computation of spectral quantities in the Modal Testing Environment. This section contains the following parameters:

• Averaging Type: The type of averaging used to compute the spectral quantities. Linear averaging weights each measurement frame equally. Exponential averaging weights more recent frames more heavily.
• Number of Averages: The number of averaged measurement frames used to compute the spectral quantities.
• Averaging Coefficient: If Exponential Averaging is used, this is the weighting of the most recent frame compared to the weighting of the previous frames. If the averaging coefficient is $\alpha$, then the most recent frame will be weighted $\alpha$, the frame before that will be weighted $\alpha (1-\alpha )$, the frame before that will be $\alpha (1-\alpha {)}^2$, etc.
• FRF Technique: The estimator used to compute transfer functions between voltage signals and responses.
• FRF Window: The window function used to reduce leakage in the FFT calculation.
• Overlap Percentage: The overlap percentage between measurement frames when computing spectral quantities.
• Window value at frame end: For an exponential window, the value of the window function at the end of the measurement frame. This value will determine how quickly the exponential window decays. This parameter is only visible when an exponential window is selected.

15.1.3. Triggering

The Triggering section contains information and settings that pertain to triggering each measurement frame using a measured signal. The parameters are:

• Triggering Type: The type of triggering used for a test. If Free Run is selected, all data will be acquired immediately. This is useful for Random, Pseudorandom, or Chirp signals. If First Frame is selected, the software will wait for a trigger to occur before the first frame is measured, but subsequent frames will be measured immediately. This setting is useful for Burst Random excitation, where the first frame must be synchronized with the excitation signal, but because the excitation is the same length as the frame, subsequent frames will automatically be aligned with the excitation. If Every Frame is selected, a trigger will be required every measurement frame. This is useful for Impact Hammer testing, where there may be an unknown amount of time between hammer impacts.
• Acceptance: If Accept All is selected, all measurement frames will be automatically accepted. If Manual is selected, the user will have the option to accept or reject measurements. If Autoreject... is selected, the user will be prompted to load in a Python function that will accept the time history measurement for the given measurement frame and return a True or False depending on whether or not the frame should be accepted or rejected. This could be used to automatically reject a signal if, for example, there were a double hit or if the peak level were not correct.
• Wait for Steady State: This parameter specifies a time to wait before acquiring measurements to allow the system to come to steady state. This is useful for signals that assume steady state response, such as Sinusoid, Pseudorandom, or Chirp excitation.
• Trigger Channel: This parameter selects the channel used to trigger the measurement.
• Pretrigger: This parameter specifies how much of the measurement frame occurs prior to the trigger. This is useful to allow the entire signal to be measured, as a portion of the trigger signal often occurs before the trigger actually occurs.
• Trigger Slope: This parameter specifies the slope of the signal used to find the trigger. A value of Positive means that the trigger will occur when the signal is below the trigger level and then goes above the trigger level. A value of Negative means that the trigger will occur when the signal is above the trigger level and then goes below the trigger level.
• Trigger Level: The level of the trigger as a percentage of the full range of the channel.
• Trigger Level (V): The level of the trigger in volts.
• Trigger Level (EU): The level of the trigger in Engineering Units. These are the units specified in the channel table based on the sensitivity of the channel specified in the channel table.
• Hysteresis Level: The Hysteresis level is the level below which the trigger must return prior to another trigger being able to be accepted. This can be used to ensure that the trigger signal returns to some nominal state (e.g. zero force) before another trigger can be acquired.
• Hysteresis Level (V): The Hysteresis Level of the trigger signal in volts.
• Hysteresis Level (EU): The Hysteresis level of the trigger signal in Engineering Units. These are the units specified in the channel table based on the sensitivity of the channel specified in the channel table.
• Hysteresis Frame %: The percentage of the measurement frame that must be below the Hysteresis level before another trigger can be accepted. This is useful for Burst Random or Hammer excitation where the signal should return to zero for some portion of the frame prior to a trigger being acquired. Without this parameter, a trigger could occur in the middle of a Burst, depending on when the acquisition starts up relative to the output.
• Hysteresis Samples: The number of samples that the trigger signal must be below the Hysteresis Level.
• Hysteresis Time: The amount of time the trigger signal must be below the Hysteresis Level.

15.1.4. Channel Information

The Channel Information section contains information regarding how many channels are active for the given test. These quantities are read-only to inform the user about the number of channels the current setup will contain.

• Response Channels: The number of response channels in the measurement. These will be compared against the reference channels to compute frequency response functions.
• Reference Channels: The number of reference channels in the measurement.
• Output Channels: The number of output channels that will be present in the test. If used as shaker drives, this value should generally match the number of Reference Channels. For a hammer test, this value may be zero.

15.1.5. Channel Selections

The Channel Selections section contains a list of all of the channels in the test and the ability to select which channels are references or responses, as well as to enable or disable channels.

To disable a channel, simply uncheck the checkbox in the Enabled column associated with a given channel. Disabling a voltage channel associated with a Feedback Device and Feedback Channel on the channel table will also disable that output.

To make a channel a reference channel, simply check the checkbox in the Reference column associated with a given channel. This will turn the channel from a Response channel to a Reference channel.

Multiple rows of the Channel Selctions table can be selected at once. The Enable Selected and Disable Selected buttons will enable or disable all selected channels, respectively. Similarly, the Check Selected References and Uncheck Selected References buttons will turn the selected channels into Reference Channels or Response Channels, respectively.

15.1.6. Signal Generator

The Signal Generator section contains the parameters to determine what signal will be generated for the modal test. The tabs at the top of the Signal Generator section determine the type of signal that will be applied. Each signal type may have different parameters to define it.

• No Signal Generation: No signal will be generated if this is selected.

• Random: A True Random signal will be generated. This signal is continually generated, and being random, will not repeat for each measurement frame. Generally a window function such as a Hann window should be used with a Random signal.

  • RMS: Sets the RMS voltage level for the output signal
  • Frequency Range: Sets the minimum and maximum content of the signal

• Burst Random: A Burst Random signal will be generated. A Burst Random signal is essentially a Random signal that shuts off part of the way through a measurement frame. This signal is continually generated, and being random, will not repeat for each measurement frame. When using a Burst Random excitation, users will generally want to set up a First Frame trigger on a voltage channel with a Hysteresis Frame % of approximately half the time the burst will be "off".

  • RMS: Sets the RMS voltage level for the output signal. The RMS level here describes the level when the burst is active.
  • Frequency Range: Sets the minimum and maximum content of the signal
  • On Percentage: Sets the fraction of the measurement frame that the burst will be active for. The rest of the measurement frame, the signal will be zero.

• Pseudorandom: A Pseudorandom signal will be generated. This is a signal that appears random, but is actually deterministically constructed from the frequency lines of the FFT with randomized phases. This signal will repeat for each measurement frame. When using Pseudorandom excitation, users should set the Wait For Steady State parameter to ensure the system has reached steady state prior to acquiring data. Pseudorandom excitation will generally not work well with multiple shaker excitation.

  • RMS: Sets the RMS voltage level for the output signal
  • Frequency Range: Sets the minimum and maximum content of the signal

• Chirp A Chirp signal will be generated. A Chirp is a fast sine sweep between two frequency values. This signal will repeat for each measurement frame. When using Chirp excitation, users should set the Wait For Steady State parameter to ensure the system has reached steady state prior to acquiring data. Chirp excitation will generally not work well with multiple shaker excitation.

  • Peak Level: Sets the peak voltage level for the output signal
  • Frequency Range: Sets the start and end frequencies of the Chirp

• Square Pulse: A square pulse wave will be generated. This wave is useful for triggering other test hardware, such as an automatic hammer.

  • Peak Level: Sets the peak voltage level for the output signal
  • Frequency: Sets the frequency of the square pulse. The period of the square pulse can be longer than one measurement frame.
  • Percent On: Sets the percentage of the period of the square wave that the signal is "up".

• Sine: A sine pulse wave will be generated. This is useful for characterizing a single frequency line or for performing rigid body checkouts. Be careful when selecting a frequency to ensure there is no leakage at that frequency line.

  • Peak Level Sets the peak voltage level for the output signal
  • Frequency Sets the frequency of the sine wave

The selected signal will be plotted in the Output Signal plot, which will give the user an idea of what the signal looks like. If the Automatically Regenerate Signal on Parameter Change checkbox is checked, the signal should update automatically when different parameters are selected. If not, the user can press the Regenerate Signal button to regenerate the signal. For random signals, the Regenerate Signal button can also be used to visualize different realizations of the random signal.

15.2. Running a Modal Test

The Modal Testing Environment is then run on the Run Test tab of the controller. With the data acquisition system armed, the GUI initially looks like Figure 15-2. This screen looks rather empty, but users can populate it with functions of their choice, as shown in Figure 15-3.

Figure 15-2. Empty GUI to run a modal test in Rattlesnake.

Figure 15-3. GUI to run a modal test in Rattlesnake populated with several data plots.

15.2.1. Acquisition

The Acquisition portion of the window contains controls for starting and stopping the measurement, as well as saving modal data to a file. See Section 15.3 Output NetCDF File Structure for a description of the file format.

• Preview Acquisition: Clicking the Preview Acquisition button will start the measurement running continuously, so the user can preview it and make sure it looks correct. Data will not be saved to disk, nor will the acquisition automatically stop after the specified number of measurement frames have been acquired.
• Start Acquisition: Clicking the Start Acquisition button will start the measurement running. Data will be stored to disk in the file specified in the Data File: box, and the acquisition will automatically stop when the specified number of averages has been acquired.
• Stop Acquisition: Clicking the Stop Acquisition button will stop the current measurement. Data already written to disk will remain on disk.
• Data File: The Data File: box displays the file name that the modal data will be written to. See Section \ref{sec:rattlesnake_environments_modal_output_files} for a description of the file format.
• Select File...: The Select File... button allows the user to select a file to use to save the modal data to disk.
• Auto-Increment: If this checkbox is checked, a four-digit number will be appended to the file name, and will be incremented for each run. This can be used to prevent accidentally overwriting data that has already been acquired.

15.2.2. Averaging

The Averaging portion of the window displays the current number of measurement frames that have been acquired, as well as the total number of measurement frames that are to be acquired. If Acceptance is set to Manual, then the Accept and Reject buttons will become available after each measurement frame is acquired, which will allow the users to manually accept or reject a measurement frame.

If the measurement was started using the Start Acquisition button, the measurement will stop automatically when the current number of measurement frames is equal to the total number of measurement frames. If Preview Acquisition was used, then the measurement will continue until stopped with the Stop Acquisition button.

15.2.3. Windows

The Windows portion of the screen allows the user to customize the data that they visualize during the test.

• New: Clicking the New button will create a new window on the right-hand side of the screen.
• New from Template...: The New from Template... drop down menu allows users to visualize common data types for modal testing.
  • Drive Point (Magnitude): Rattlesnake will parse the channel names in the channel table to identify drive point FRFs, of which it will display the magnitude. This will create one window for each drive point FRF.
  • Drive Point (Imaginary): Rattlesnake will parse the channel names in the channel table to identify drive point FRFs, of which it will display the imaginary part. This will create one window for each drive point FRF. For an acceleration to force FRF, the imaginary part of the drive point FRF should always be positive if both channels reference and response channels have polarity of + or -, or negative if one of the reference or response channels has a polarity of + and the other has a polarity of -. If the imaginary part of the drive point FRF crosses zero there could be an issue with the test setup.
  • Drive Point Coherence: Rattlesnake will parse the channel names in the channel table to identify drive point FRFs which it will display with the coherence overlaid. This will create one window for each drive point FRF.
  • Reciprocity: Rattlesnake will parse the channel names in the channel table to identify reciprocal FRFs to overlay. It will find, for example the FRF with input at degree of freedom A and response at degree of freedom B and overlay it with the FRF with input at B and response at A. It will generally create $\frac{n^2-n}{2}$ windows where $n$ is the number of drive points in the measurement.
  • Reference Autospectrum: Rattlesnake will plot the autospectrum for each reference channel in the test. Users can use this plot to ensure adequate excitation over the bandwidth of interest. It will generate one window per each reference channel in the test.
  • 3x3 Channel Grid: Rattlesnake will create 9 windows which by default display time histories for the first 9 channels in the test. This selection, combined with setting the Increment Channels selector to 9, can be used to quickly look through all of the channels in the test.
• Tile: Clicking the Tile button will tile all data display windows across the space available in the Rattlesnake GUI.
• Close All: Clicking this button will close all data display windows that are currently open.
• Increment Channels: If a value is set in the Increment Channels selector, then when the << or >> buttons are clicked, all of the response channels in all of the windows that are not locked will decrement or increment by that number. This can be used to quickly look through all channels in a test without having to change the channel in each window manually. For display windows with multiple channels, this will increment only the response channel. The reference channel must be set manually.

15.2.3.1. Window Types

Windows created in the Run Test tab of a Modal Testing environment are flexible in that they can show multiple different types of data in various formats for any channel in the test. All windows have a Lock checkbox that when checked does not allow the channel to change via the Increment Channels arrow buttons. A locked channel can still be changed manually, however.

This section will walk through the various window types in a modal test.

15.2.3.2. Time Window

The Time window displays the time trace for a single measurement frame for the selected channel. Figure 15.4 shows an example of this window. The channel to visualize can be chosen from the drop-down menu. The Lock checkbox can be checked to ensure the channel does not change when the Increment Channels functionality is utilized.

Figure 15-4. Modal Testing data window showing a channel's time signal.

15.2.3.3. Windowed Time Window

The Windowed Time window displays the time trace for a single measurement with the window function applied. This allows users to visualize the affect that the window has on the data. Figure 15-4 shows an example of this window. The channel to visualize can be chosen from the drop-down menu. The Lock checkbox can be checked to ensure the channel does not change when the Increment Channels functionality is utilized.

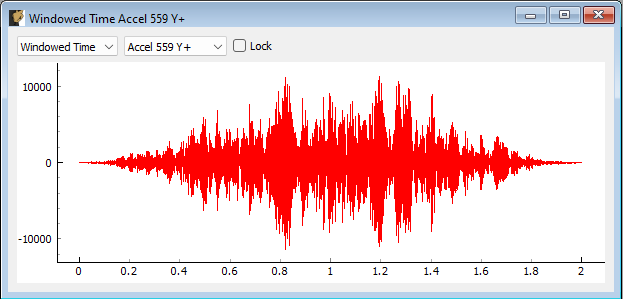

Figure 15-5. Modal Testing data window showing a channel's windowed time signal.

15.2.3.4. Spectrum Window

The Spectrum window displays the magnitude of the FFT of the (windowed) time trace for a single measurement. Figure 15-6 shows an example of this window. The channel to visualize can be chosen from the drop-down menu. The Lock checkbox can be checked to ensure the channel does not change when the Increment Channels functionality is utilized.

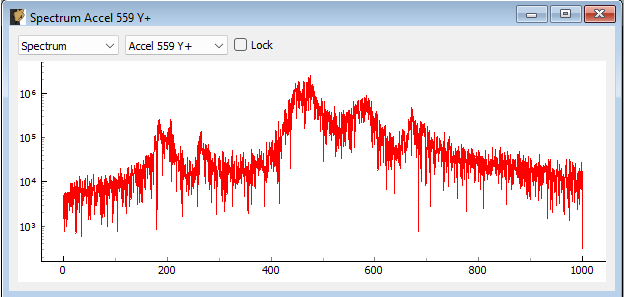

Figure 15-6. Modal Testing data window showing a channel's spectrum.

15.2.3.5. Autospectrum Window

The Autospectrum window displays the magnitude of the autospectrum for a single measurement. This is an averaged quantity, so it will generally improve as more averages are acquired. Figure 15-7 shows an example of this window. The channel to visualize can be chosen from the drop-down menu. The Lock checkbox can be checked to ensure the channel does not change when the Increment Channels functionality is utilized.

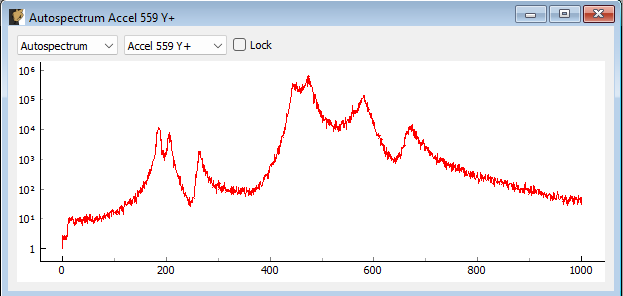

Figure 15-7. Modal Testing data window showing a channel's autospectrum.

15.2.3.6. FRF Window

The FRF window displays a FRF for a reference/response channel combination. This is an averaged quantity, so it will generally improve as more averages are acquired. Figure \ref{fig:modalfrfwindow} shows an example of this window. Two channel selection menus exist to select which FRF to visualize. The first corresponds to the Response channel, and the second corresponds to the Reference channel. Channels selected as a Reference on the Environment Definition tab will show up in the reference channel selection menu, and channels that were not selected will show up in the response channel selection menu. The FRF can be visualized by looking at Real, Imaginary, Magnitude, or Phase parts, or it can be split into two plots to visualize Magnitude and Phase or Real and Imaginary parts simultaneously. The Lock checkbox can be checked to ensure the response channel does not change when the Increment Channels functionality is utilized.

Figure 15-8. Modal Testing data window showing the FRF between a reference and response channel.

15.2.3.7. Coherence Window

The Coherence window displays the coherence for a given channel. Figure 15-9 shows an example of this window. If only a single reference is used, this will be the regular coherence. If multiple references are used, this will then be the Multiple Coherence function. The channel to visualize can be chosen from the drop-down menu. The Lock checkbox can be checked to ensure the channel does not change when the Increment Channels functionality is utilized.

Figure 15-9. Modal Testing data window showing a channel's coherence.

15.2.3.8. FRF Coherence Window

The FRF Coherence window displays a FRF overlaid with the Coherence plot. This allows users to align drops in coherence with features of the FRF to determine if they occur at modes of the structure, which could suggest an issue with the data. Figure 15-10 shows an example of this window. Two channel selection menus exist to select which FRF to visualize. The first corresponds to the Response channel, and the second corresponds to the Reference channel. The coherence will generally correspond to the Response channel: if multiple references exist, then the multiple coherence that is plotted will be a function of the response degree of freedom; if only a single reference exists, then the regular coherence will be with respect to the only reference in the test, and will also then only change when the response is updated. The FRF can be visualized by looking at Real, Imaginary, Magnitude, or Phase parts, or it can be split into two plots to visualize Magnitude and Phase or Real and Imaginary parts simultaneously. If these latter options are selected, the coherence will be overlaid on the second plot, which will be the Magnitude or Imaginary part. The Lock checkbox can be checked to ensure the response channel does not change when the Increment Channels functionality is utilized.

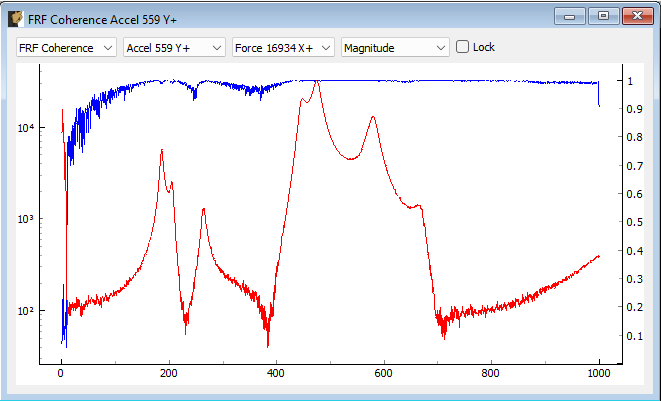

Figure 15-10. Modal Testing data window showing a channel's FRF overlaid with the coherence.

15.2.3.9. Reciprocity Window

The Reciprocity window displays two reciprocal FRFs overlaid. For a linear system, these FRFs should be identical to one another. Figure 15-11 shows an example of this window. Two channel selection menus exist to select which FRF to visualize. The first corresponds to the Response channel, and the second corresponds to the Reference channel. Rattlesnake will automatically go through and find the reciprocal FRF for that measurement and overlay it. The FRF can be visualized by looking at Real, Imaginary, Magnitude, or Phase parts, or it can be split into two plots to visualize Magnitude and Phase or Real and Imaginary parts simultaneously. The Lock checkbox can be checked to ensure the response channel does not change when the Increment Channels functionality is utilized.

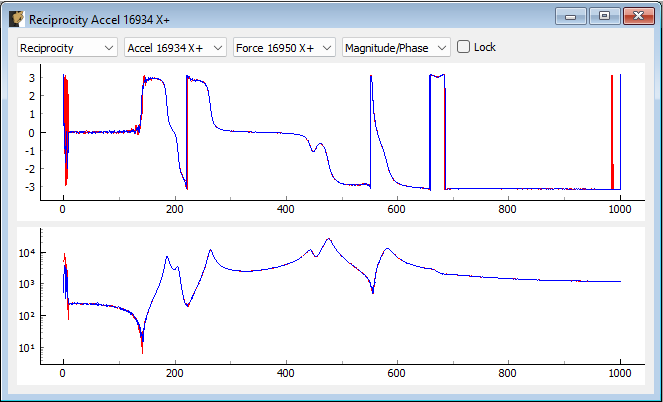

** 15-11. Modal Testing window showing two reciprocal FRFs.**

15.2.4. Degree of Freedom Override

This section of the Modal Testing Run Test tab allows users to override the channel metadata for a given measurement. This is particularly useful for roving hammer or roving accelerometer testing strategies. The node identification number and direction are defined on the channel table on the first tab of the software, and it would be very tedious to need to move back to the first tab to redefine the node number, reinitialize the data acquisition, redefine the environment definition, and finally, rearm the test to take data. Instead, the user can override the degree of freedom information without leaving the Run Test tab.

To add an override channel, users can press the Add Override button. This will create a new row in the override table. These can be removed by clicking the Remove Override button with the particular row in the table selected. Figure 15-12 shows an example of this functionality where the node information on the force channel has been updated. Note that the windows will also be updated to display this new degree of freedom information.

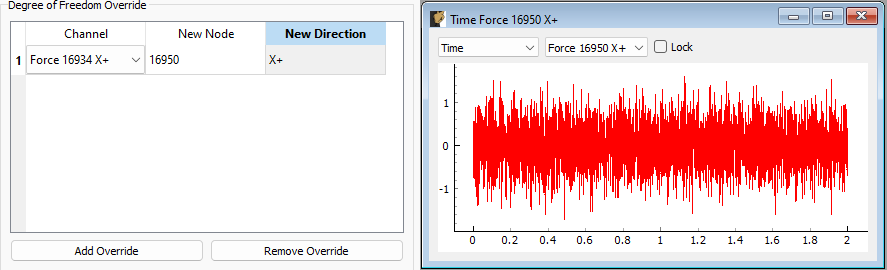

Figure 15-12. Overriding the 16934 X+ degree of freedom information with 16950 X+ degree of freedom information.

15.3. Output NetCDF File Structure

When Rattlesnake saves data to a netCDF file, environment-specific parameters are stored in a netCDF group with the same name as the environment name. Similar to the root netCDF structure described in Section 3.8 Rattlesnake Output Files, this group will have its own attributes, dimensions, and variables, which are described here.

15.3.1. NetCDF Dimensions

• reference_channels: The number of reference channels in the measurement
• response_channels: The number of response channels in the measurement

15.3.2. NetCDF Attributes

• samples_per_frame: The number of samples per measurement frame.
• averaging_type: A string specifying if linear or exponential averaging was performed in the measurement.
• num_averages: The number of averages used to compute spectral quantities like FRFs and autospectra.
• averaging_coefficient: If Exponential Averaging is used, this is the weighting of the most recent frame compared to the weighting of the previous frames. If the averaging coefficient is $\alpha$, then the most recent frame will be weighted $\alpha$, the frame before that will be weighted $\alpha (1-\alpha )$, the frame before that will be $\alpha (1-\alpha {)}^2$, etc.
• frf_technique: A string representing the estimator used to compute FRFs, e.g. H1, H2, Hv.
• frf_window: A string representing the window function used when computing FRFs.
• overlap: The overlap fraction between measurement frames.
• trigger_type: A string representing the type of triggering used in the modal test (e.g. Free Run, First Frame, Every Frame).
• accept_type: A string representing the acceptance type used in the modal test (e.g. Accept All, Manual).
• wait_for_steady_state: The amount of time the measurement needed to wait for steady state to occur before acquiring data.
• trigger_channel: An integer representing the channel used to trigger the measurement.
• pretrigger: The amount of the measurement frame that occurs prior to the trigger.
• trigger_slope_positive: An integer equal to 1 if the slope was positive and 0 if the slope was negative.
• trigger_level: The level that was used to trigger the system as a fraction of the total range of the channel.
• hysteresis_level: The level that the data must return back to prior to being able to accept another trigger as a fraction of the total range of the channel.
• hysteresis_length: The length of time that a channel must return to the hysteresis level prior to being able to accept another trigger as a fraction of the measurement frame length.
• signal_generator_type: The type of signal being generated by the modal test
• signal_generator_level: The signal level, which could be a peak value for signals such as a sine wave, or an RMS value for random signals
• signal_generator_min_frequency: The minimum frequency of the excitation signal
• signal_generator_max_frequency: The maximum frequency of the excitation signal
• signal_generator_on_fraction: The percent of time that a square wave is up'' or a burst random is active''.
• exponential_window_value_at_frame_end: The value of the exponential window function at the end of the measurement frame, used to set the strength of the exponential window.
• acceptance_function: If the system is set to automatically reject a measurement, this is the script and function name used to evaluate that signal.

15.3.3. NetCDF Variables

• reference_channel_indices: The indices into the channel table that correspond to the reference channels. Type: 32-bit int; Dimensions: reference_channels
• response_channel_indices: The indices into the channel table that correspond to the response channels. Type: 32-bit int; Dimensions: response_channels

15.3.4. Saving Modal Data

In addition to time streaming, Rattlesnake's Modal Testing environment will also save bespoke modal data files directly to the disk when a test is started with the Start Acquisition button. The computed spectral quantities such as FRF and coherence data are in a NetCDF file, and are updated at each average. Time data is also stored to this file, but only the time data that is used for spectral computations. For example, if a hammer test is being performed and the user takes a minute to evaluate the data before accepting or rejecting the measurement frame, that time data measured during that pause will not be stored to the modal data file; however, it would be stored to the streaming data file described in Section 3.8 Rattlesnake Output Files, which is essentially an open-tape measurement.

The additional dimension is:

• fft_lines: The number of frequency lines in the spectral quantities.

There are also several additional variables to store the spectral data:

• frf_data_real: The real part of the most recently computed value for the transfer functions between the reference signals and the response signals. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ response_channels $\times$ reference_channels
• frf_data_imag: The imaginary part of the most recently computed value for the transfer functions between the excitation signals and the control response signals. NetCDF files cannot handle complex data types so real and imaginary parts are split into two variables. Type: 64-bit float; Dimensions: fft_lines $\times$ response_channels $\times$ reference_channels
• coherence: The multiple or regular coherence of the channels computed during the test, depending on if there are multiple references or a single reference, respectively. Type: 64-bit float; Dimensions: fft_lines $\times$ response_channels

16. Combined Environments

Rattlesnake offers functionality to run multiple events simultaneously. This can be used to control multiple types of excitation devices (for example a centrifuge along with random vibration) as well as multiple environments using common excitation devices (for example a random vibration and shock environment using a single shaker table).

A combined environments test is selected by selecting the Combined Environments... option in the window shown in Figure 3-3. After selection, a GUI window will appear that allows the user to define which environments will be combined for the given test. The user adds or removes environments from the table of environments displayed in this window by clicking the Add Environment or Remove Selected Environment buttons. In the table itself, the type of environment can be chosen using the dropdown menu in the Environment Type column. Each environment must also be given a unique name in the Environment Name column. An example of this window is shown in Figure 16-1. In this example, two environments have been chosen, a MIMO Random Vibration environment called "Environment 1" and a Time History Generator environment called "Environment 2".

Figure 16-1. Dialog used to select environments for a combined environments test.

Combined environments tests have the potential to be very complex, as parameters for multiple environments need to be defined. To make the setup of combined environments tests less tedious, Rattlesnake gives the user an option to load a combined environments profile using the Load Profile... button. This profile is an Excel workbook with multiple worksheets defining the channel setup, global data acquisition parameters, environment parameters, as well as the test timeline. Rattlesnake allows the user to save a profile template to disk, which can be opened and modified to specify the entire combined environments test by clicking the Save Profile Template... button. Note that the template will be created with placeholder environments corresponding to the environments that are displayed in the Environment table, so it is in the user's best interest to add the required environments to the table using the Add Environment button and define each environment's type and name prior to saving the template.

Once the environments in the combined environments test are selected, the GUI is set up accordingly. Users will notice the addition of an Environment Table on the Data Acquisition Setup tab which can be used to determine which excitation and response channels are to be used by each environment. Excitation signals can be used by one or more environments. If an excitation signal is used by multiple environments that will be run simultaneously, the excitation signal output to the hardware will end up being a summation of the individual environment's output signals. It is up to the user to ensure that the combination of environment signals does not exceed the output that the hardware is capable of. Similarly, response signals can be used by single environments, multiple environments, or no environments. Only response signals belonging to a specific environment will be passed to that environment for analysis. Note however that the part may be responding to excitation from multiple environments, so even if a given channel is only used by one environment, it may have response contributions from all active environments. It is up to the user to design each environment such that this "cross-talk" is handled correctly, Rattlesnake will not attempt to separate a given response into contributions from each environment. If a signal is used by no environments, it will still be recorded and saved to disk; however, data from it will not be delivered to any environment.

With multiple environments defined, the Environment Definition and Run Test tabs will have a sub-tab to define or control each environment. On the Environment Definition tab, each environment's sub-tab will need to be defined prior to selecting the Initialize Environments button. Additionally, certain environments will have System Identification or Test Prediction tabs. System identification will need to be performed for each environment that requires it prior to proceeding with the test setup.

The last major change to the GUI for a combined environments test is the inclusion of the Test Profile tab which allows users to create a timeline of events that will occur in the combined environments test. This is described more thoroughly in Section 3.6 Test Profiles.

17. Implementing New Environment Types

WARNING: This chapter contains advanced Rattlesnake operations that require a very good understanding of the Rattlesnake software architecture. Understanding this chapter is not required to run the software successfully, and therefore this chapter can be skipped if the user is not interested in implementing new environments. Implementing an environment is a serious undertaking that will involve potentially thousands of lines of code depending on its complexity (the MIMO Random Vibration environment is over 3,000 lines of code), so this chapter will only present the basic concepts and minimum required coding, leaving the reader to dig into the code to understand the actual details required to implement the environment.

17.1. Overview of Environments

In Rattlesnake, an environment is the portion of the code that generates the signal that will be output, perhaps using previously acquired data to inform the next output signal. In order to use environments interchangeably or simultaneously, Rattlesnake abstracts its environments so the interface between an environment and the main controller is common regardless of the type of environment used. In general, an environment will consist of three main parts, and each of these parts inherits from an abstract base class defined in the components/abstract_environment.py source file in the GitHub Repository.

• Environment Metadata or Parameters: Each environment requires defining an object that contains all of the parameters that completely define that environment, e.g. frame lengths, window functions, averaging, control targets, etc.
• Environment-specific UI: Each environment requires defining a UI into its functionality. This includes both the actual GUI that appears on the screen, as well as the code to handle the operations performed when the user interacts with the GUI.
• Environment Implementation: Each environment requires defining its operations. These operations will involve, for example, computing transfer functions between excitation and responses on the part, computing various metrics, and must at the end determine the next signal that will be output to the excitation devices in the test.

17.2. Overview of Environment Interactions with the Controller

Rattlesnake runs most of its tasks on separate processes in order to perform operations simultaneously. Figure 17-1 shows a high-level overview of the controller processes.

Figure 17-1. High-level flow chart of the Rattlesnake software

The UI of the controller exists on the main Rattlesnake process. Therefore, any environment-specific UI components are also run on this process. At run-time after the environments in a given test have been selected, the controller assembles the GUI, combining it with the environment-specific interfaces of each environment used in the test. Typically, the constructor for each environment's UI class will handle adding the environment-specific portion of the GUI to the main GUI. The class implementing the UI should inherit from the AbstractUI class in the components/abstract_environment.py file.

The class implementing the environment computations should inherit from the AbstractEnvironment class in the components/abstract_environment.py file. Each environment is run on a separate process to enable environments to run simultaneously with the acquisition and output processes. Because of this, environments communicate with the rest of the controller primarily via queue objects from the Python multiprocessing module. Messages put to and received from these queues are generally of the form (message,data) where message specifies the operation that the receiving process should perform, and the data is any parameters or input data required by that operation. For example, a message might be START_CONTROL and the data might be a test level such as -6 dB. It is up to the environment to define what operations to perform when it receives the START_CONTROL message.

Each environment will interact with many data streams, and therefore will interact with many queues. Each environment will have an input_queue or command_queue that it will pull these instructions and data from. To enable the environments to pass messages back to the controller, a controller_communication_queue is provided where the environment can put its own messages and data to be read by the controller. A gui_update_queue also exists for environments to put updates to the GUI; this would be used to tell the controller to update a plot or set the value of some widget.

The environment will receive acquired data through a data_in_queue, so it can use previously measured data to compute control decisions. Similarly, the environment will put its next output data set to a data_out_queue, which will be read by the output process and put to the data acquisition system through the output hardware interface.

Finally, the environment can put messages to a log_file_queue which will be written to the Rattlesnake log file, which is useful for debugging environment behavior.

In general, the environment parameters will be loaded, selected, or otherwise defined in the environment-specific GUI in the main process, but need to be passed to the environment implementation running on a separate process. Rattlesnake requires that these parameters be packaged into an object that contains all the parameters to define the environment. The class defining this object should inherit from the AbstractMetadata class in the components/abstract_environment.py file.

17.3 Writing an AbstractMetadata Subclass

In general, the first step to defining an environment is to define the parameters that define the environment. These will be specified in a subclass of the AbstractMetadata class.

This class is for the most part just a container for the parameters, but it does require the definition of a store_to_netcdf method, as the controller needs to know how to take the different parameters defining an environment and store them to a netCDF file as output from Rattlesnake. For example, in the MIMO Random Vibration environment, this function defines the output structure described in Section 12.6 Output NetCDF File Structure. The Streaming process will call this function when it creates a netCDF file for output from Rattlesnake.

In many cases it can be helpful to specify other properties that are derived from the environment parameters as part of this class. For example, if one environment specifies a ramp time between test levels, one common computation would be to compute the number of time samples this ramping event takes from the ramp time and the sample rate of the data acquisition system.

17.4. Designing the Envionment-Specific GUI

With the parameters defining the environment defined in an AbstractMetadata subclass, GUI components can be designed that allows a user of the software to specify these parameters and control the environment. At run-time, these components will be added to the main GUI as shown in Figure 17.2.

Figure 17-2. Graphical representation of adding a GUI element defining the MIMO Random Vibration environment into the main controller GUI.

These GUI elements can be designed using a software such as QtDesigner and loaded at run-time, or assembled programmatically in the constructor for the environment. Up to four GUI components can designed, though two of the components are optional.

17.4.1. Environment Definition GUI

The first GUI component that should be created is the interface in the Environment Definition tab. Essentially, the author of the environment should define a GUI element that contains all the parameters to define a specific environment, including signal processing parameters and the control targets. This is a required portion of the GUI as all the environment parameters must be defined before the controller can be run.

17.4.2. System Identification and Test Predictions GUI

The second and third GUI components are system identification and test predictions. These are optional, as not all environments will require system identification (e.g. the Time History Generator environment described in Chapter 14 Time History Generator).

The system identification portion of the GUI is generally common between different controller types, as techniques for developing a transfer function between excitation and response are fairly universal. The user should be able to start and stop acquisition of transfer function data, as well as visualize the transfer functions as they are computed. Both the MIMO Random and MIMO Transient environments utilize a common system identification framework, which is defined in the abstract_sysid_environment.py and abstract_sysid_data_analysis.py. If users wish to utilize this system identification framework for their own environments, they are welcome to make their environment inherit from this class, which will save a significant amount of coding to write a new system identification framework.

When the system identification is performed, generally an environment can compute a prediction of the responses that could be achieved. Thought should be given as to the best way to present the predicted responses on the Test Predictions GUI component. The user must be able to determine if a given test is feasible, so they should be aware of the required excitation as well as the accuracy the environment expects to achieve.

17.4.3. Environment Run GUI

The final GUI component controls running the test. Here the user should be able to start and stop the environment, as well receive a visual of how well the environment is controlling the response of the test article. Generally this will entail some type of overview plot or table. This might also provide the functionality to visualize individual response or excitation channels.

17.4.4. Writing an AbstractUI Subclass

With the GUI components defined, the code containing the UI logic and callbacks can be written. This will generally inherit from the AbstractUI class in the components/abstract_environment.py file.

17.4.4.1. Abstract Methods in the AbstractUI class

Because it inherits from the AbstractUI base class, classes defining environment-specific UIs in Rattlesnake require definition of a number abstract methods:

• __init__: The class constructor that calls the superclass constructor, adds the GUI elements to the main controller's GUI tabs, and connects callback functions to the GUI widgets. This function will also set up the command map as described below.
• collect_environment_definition_parameters: This function gathers the environment parameters from the current values of the GUI widgets and constructs the corresponding AbstractMetadata subclass object.
• initialize_data_acquisition: This function is called when the Data Acquisition parameters are initialized (channel table, sample rate, etc.). It should set up the environment user interface accordingly.
• initialize_environment: This function is called when the Environment Parameters are initialized. It should set up the user interface and environment appropriately based off parameters specified in the environment's definition GUI components. It must also return an object of the AbstractMetadata subclass corresponding to the present environment, so the controller can send it to the environment.
• retrieve_metadata: This function retrieves parameters from a netCDF dataset that was written by the controller during streaming. It must populate the widgets in the user interface with the proper information. Where the store_to_netcdf function in the AbstractMetadata subclass writes parameters to the netCDF file, this function must be able to read that data back into the controller.
• create_environment_template: This function creates a template worksheet in an Excel workbook where users can specify environment parameters that are loaded in via the Load Profile... button on the Environment Selector dialog box. This function should be defined using the @staticmethod decorator.
• set_parameters_from_template: This function reads the template generated by the create_environment_template function after a user has filled in the required information.
• start_control: The function containing the logic to start the environment controlling.
• stop_control: The function containing the logic to gracefully shut down the environment.
• update_gui: This function receives data from the gui_update_queue that specifies how the user interface should be updated. Data is typically recieved as (instruction,data) pairs stored as a tuple, where the instruction specifies which operation to perform or which widget to modify, and data provides additional information to use in the operation (a signal to plot, the value to update a widget to, etc.).

17.4.4.2. Command Map for the UI

As described in Section 3.6 Test Profiles, Rattlesnake can automate a sequence of operations for combined environments tests. To define such a sequence, the user creates a table of operations that occur at a given time in the test. Each environment must therefore define which operations it can perform, as well as defining what happens when each of the operations is triggered. To define these profile operations, each environment-specific UI class contains a command_map dictionary that maps strings to functions in the class. The main controller UI reads the strings in this command_map object to populate the drop-down lists in the Test Profile table. Then, when one of the operations is triggered, the controller calls the function mapped to that string in the command_map object. In this way, the main controller UI needs only to access the command_map object to know which operations can be automated using the test profile. Figure 17-3 shows how specific entries in the command_map translate to operations in the Test Profile table.

Note that the AbstractUI class defines two entries in the command_map, "Start Control" and "Stop Control", which map to the start_control and stop_control functions that are required to be defined. Because new environment UI classes will inherit from AbstractUI, they will also have these operations defined in their command_map. Therefore, every environment will be able to be started and stopped via the Test Profile functionality. Authors of new environments are then able to add additional operations to their subclasses if required.

Figure 17-3. The command_map dictionary in each AbstractUI subclass maps functions in the subclass to strings that will appear in the Test Profile tab as available operations that can be automated in a combined environments test.

17.5. Writing an AbstractEnvironment Subclass

The environment implementation is what performs the control calculations to generate the next output signal required by the controller. It generally is started as a separate process from the main controller and communicates to the main controller using queues. This enables multiple environments to be run simultaneously for combined environments tests.

The environment implementation will generally inherit from the AbstractEnvironment abstract base class. The AbstractEnvironment defines the minimum functionality required for an environment to interact with the controller; the author of a new environment is expected to significantly expand on this minimum functionality to produce a useful and functional environment in Rattlesnake.

The AbstractEnvironment class defines the following methods:

• log: Writes a message to the log_file_queue so it will eventually be put to the log file along with a timestamp of the message and the name of the environment putting the message to the queue. The parallel nature of Rattlesnake means that messages written to the log file might be out of order depending on what is happening when the messages are written, so it is important to include the source and time of the message so operations can be reconstructed.
• run: The main looping function that defines the environment's subprocess. It continually waits for (message,data) instructions from the command_queue and then uses a command map to map the messages to functions defined in the class, passing the data as the argument to the function: function = command_map[message]; output = function(data). This function will continue to run until the output from one of the command_map functions returns True.
• quit: Returns True to kick the class out of the loop in the run function so the process eventually exits. This function can be overwritten by an inheriting subclass to perform extra cleanup or shutdown operations.
• map_command: A function that maps a message that will be received by the command_queue to a function that will be called in the class.

The AbstractEnvironment class also specifies the following abstract methods that must be defined by any subclasses:

• initialize_data_acquisition_parameters: Gets the data acquisition parameters (sample rate, channel table) from the controller and sets the environment up appropriately.
• initialize_environment_test_parameters: Gets the environment parameters (as an object of a subclass of AbstractMetadata) and sets up the enviornment appropriately
• stop_environment: Defines operations to gracefully shut down the environment

Note that none of the functions above have anything to do with the actual generation of the signal in the environment. As described previously, the above is the minimum requirements to interact with the controller. It is up to the author to determine and implement the best approach to actually generate the signals and put them to the data_out_queue. It is recommended that authors of new environments look at existing environments in Rattlesnake to understand the flow of information in those environments.

As described above, the environment will sit in a loop in the run function waiting for (message,data) pairs to come down the command_queue. Therefore, in order for any of the other functions listed above to be called, they should be mapped to a specific instruction message, or otherwise called from within a function that is mapped to a specific instruction message. The environment classes that inherit from AbstractEnvironment utilize a similar command_map as the environment-specific UI classes that inherit from AbstractUI. However, instead of mapping strings to functions, the command_map for the actual environment implementation maps messages to functions. Therefore, when a specific message is received, the run function queries the command_map to get the function mapped to that message. That function is then called with data as the argument.

Note that when creating a new process, a function is specified that defines the operations that will be performed on the new process. Therefore a function must be defined that instantiates an object from the environment class and calls the run function of that object. Any environment-specific set-up or clean-up operations should be performed in this function as well.

17.6. Connecting the Environment to the Controller

To get Rattlesnake to recognize a new environment, it must be added to a number of data structures in the components/environments.py file. A "short name" for the environment should be added to the ControlTypes enumeration. A "long name" for the environment can be added to the environment_long_names dictionary. If the environment should be usable in combined environments, the corresponding ControlTypes enum should be added to the combined_environments_capable list. If *.ui files from QtDesigner are used to define environment UIs, the paths should be added to the corresponding environment_definition_ui_paths, environment_prediction_ui_paths, and environment_run_ui_paths dictionaries. Finally the UI class and target function that will be called by processes utilizing the given environment should be imported and assigned to the respective data containers.

• TODO: In the bibiography, discover why [3] RyanA.SchultzandGarrettD.Nelson. Inputsignal synthesis for open-loop multiple-input/multiple-output testing. In Chad Walber, PatrickWalter,andSteveSeidlitz, editors,Sensors and Instrumentation, Aircraft/Aerospace, Energy Harvesting & Dynamic Environments Testing, Volume 7,pages 245–257, Cham,2020. Springer International Publishing. is not being cited in the mdbook version, but exists in the LaTeX version.

Appendix A. Introduction to Example Problems

There is a significant amount of information contained in this document, which can be incredibly difficult to digest for a new user of the software. These appendices will therefore contain example problems that users can implement either completely synthetically or using minimal hardware resources to try out Rattlesnake. These can be used as a kind of quick-start guide to using Rattlesnake.

Appendix B demonstrates how a test can be run using relatively inexpensive NI hardware.

Appendix C demonstrates how the same test from Appendix B can be simulated synthetically using SDynPy System objects. This example problem would be a good place to start for users without hardware, as it only relies on software.

Appendix D demonstrates how the same test from Appendix B can be simulated synthetically using State Space matrices. State space matrices are more flexible than SDynPy System objects to represent generic linear time-invariant systems.

Appendix B. Example Problem using NI cDAQ Hardware and the NII DAQmx Interface

This appendix will demonstrate a example problem using real hardware on a simple beam structure. This example problem will use a simple cDAQ hardware. A NI cDAQ-9185 chassis is used with two NI-9232 acquisition modules and two NI-9260 output modules. Figure B-1 shows this hardware setup.

Figure B-1. NI cDAQ hardware used for this demonstration.

This example problem will start with a modal test using an impact hammer, then demonstrate a modal test with a shaker, and finally perform a MIMO Random and MIMO Transient test.

The beam being tested is 24 inches long by 1 inch high by 0.75 inches deep and made from steel. It is resting on soft foam to simulate a free-free boundary condition. We have six acquisition channels, so we will use four of those channels to measure response, and the other two to measure force and voltage signals as required by the testing configuration. Figure B-2 shows the beam, as well as a block with the coordinate axes labeled.

Figure B-2. Beam structure that will be tested in this example problem.

B.1. Modal Testing with an Impact Hammer

The first demonstration will be a simple impact test using a modal hammer. This will require no output from Rattlesnake.

B.1.1. Data Acquisition Setup

We will excite the beam in the thin direction, so we will place four uniaxial accelerometers on the beam at the 1, 12, 18, and 23 inch distances from the left end. We will name these locations 1, 12, 18, and 23, respectively.

As we install instrumentation, we will fill out a channel table. Rather than filling out the channel table in the GUI, we will load it from an Excel spreadsheet, which allows us to more easily save our work. We can get a template channel table to fill out by opening Rattlesnake and selecting the Modal Testing environment (Figure B-3).

Figure B-3. Selecting the Modal Environment in Rattlesnake

We can then click the Save Channel Table button to save out the empty channel table to an Excel spreadsheet (Figure B-4).

Figure B-4. Saving out an empty channel table to fill out for the test.

As we add instrumentation and plug it into our data acquisition system, we will record that information in the channel table. In order to tell Rattlesnake the correct device, we open NI Measurement and Automation Explorer (NI MAX). In the Devices and Interfaces section, we can see our network devices, which includes our cDAQ system and its associated modules (Figure B-5).

Figure B-5. NI MAX dialog showing the cDAQ devices.

Our acquisition channels will be plugged into devices cDAQ9185-217ED78Mod1 and cDAQ9185-217ED78Mod2 which have acquisition channels ai0, ai1, and ai2, and our output devices are cDAQ9185-217ED78Mod3 and cDAQ9185-217ED78Mod4 which have output channels ao0 and ao1.

After we add our accelerometers, we will also add a channel for the modal hammer. Note that we will vary the hammer excitation location, so we will simply put in an arbitrary node number that we will override later. We will hit the beam on the surface opposite the side that the accelerometers are mounted on, so the direction of the impact is the identical to the directions of the accelerometers.

When we finish our channel table it looks like Figure B-6. Note that there is no output from Rattlesnake, so there are no entries in the Output Feedback in the channel table.

Figure B-6. Channel Table in Excel ready to load into Rattlesnake.

The test setup after attaching the accelerometers and plugging in the instrumentation is shown in Figure B-7.

Figure B-7. Modal test setup using the impact hammer.

We can now load our channel table into Rattlesnake by clicking the Load Channel Table button shown in Figure B-8.

Figure B-8. Loading in the channel table for the test.

We should see that the information from the Excel spreadsheet is populated in the Rattlesnake GUI.

In the Data Acquisition Parameter section we will leave NI DAQmx selected. We will set the Sample Rate to 5120 Hz, as this is a valid output rate for both the cDAQ device types we are using. We can leave the Time per Read and Time per Write to their defaults. Figure B-9 shows the loaded channel table and data acquisition settings.

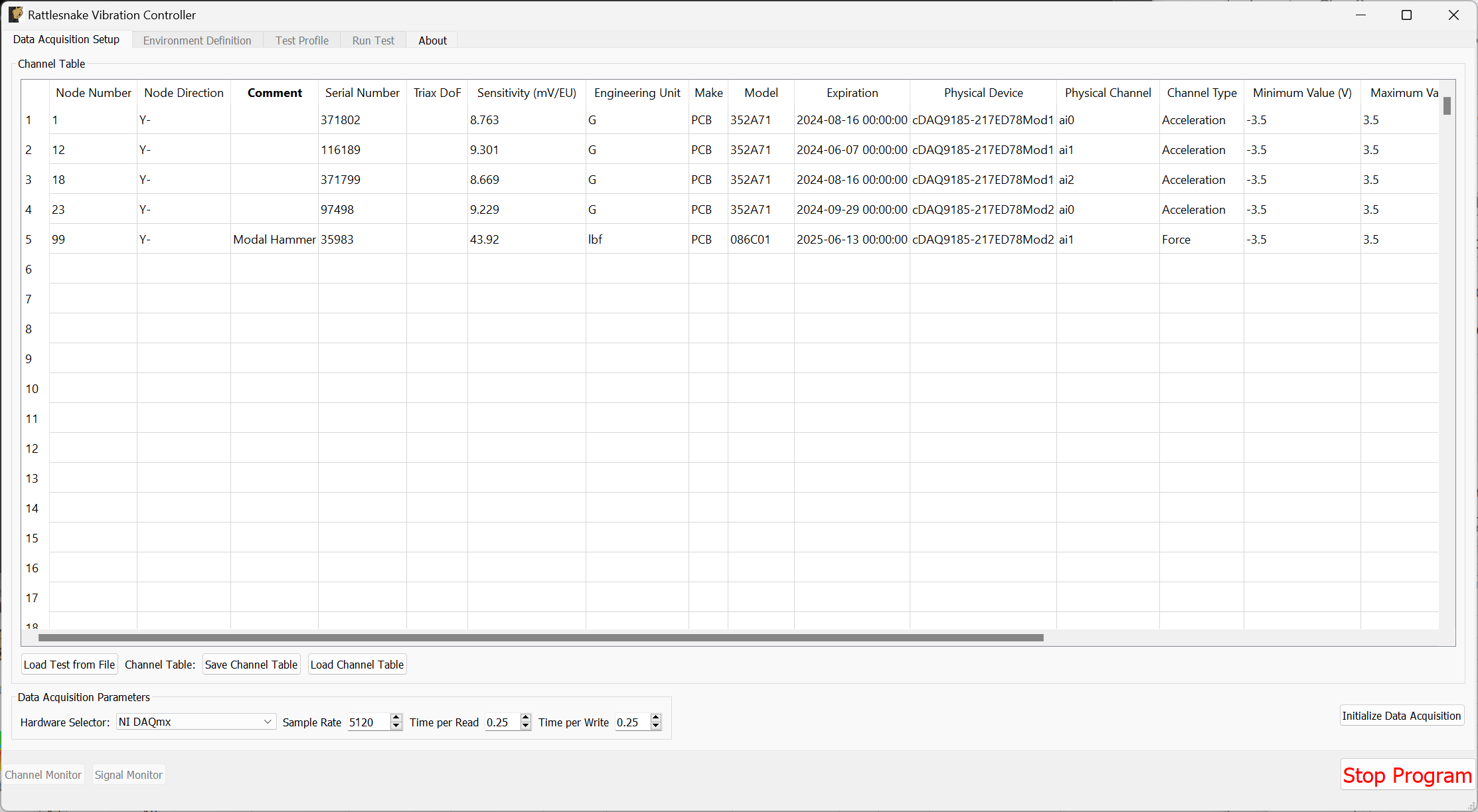

Figure B-9. Data acquisition settings for the Modal Test using an impact hammer.

At this point, we can click the Initialize Data Acquisition button shown in Figure B-10 to proceed to the next stage of the test.

Figure B-10. Click the Initialize Data Acquisition button to proceed.

B.1.2. Environment Setup

At this point, we now need to set up our modal testing environment on the Environment Definition tab. As this is a simple beam, it will likely take a while to decay, so we will set up a 2 second measurement frame by setting the Samples per Frame to 10240.

We will lower the Number of Averages to 5.

For Triggering, we will set the Triggering Type to Every Frame, and set the Acceptance to Manual. We set the Trigger Channel to the Force channel with a 2% Pretrigger. The Trigger Level we will set to 1% and the Hysteresis Level to half of that value. Finally, we will set the Hysteresis Frame % to 50%.

In the Channel Selections table, we will check the Reference column for the Force channel.

When all of these parameters are adjusted, we can click the Initialize Environments button to proceed. Figure B-11 shows the window with all settings set.

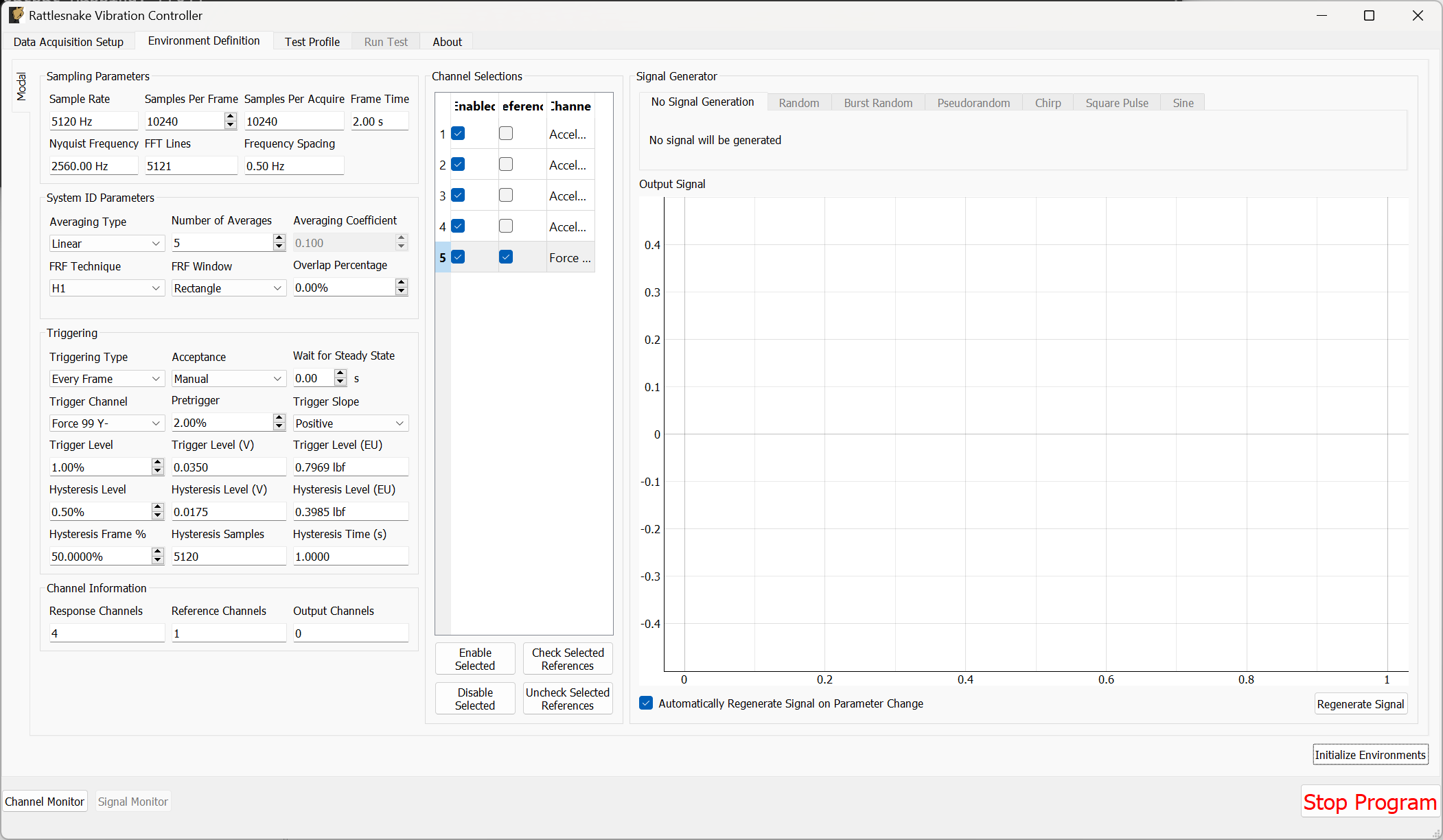

Figure B-11. Modal Test parameters for the impact test.

B.1.3. Test Profile

We will leave the Test Profile tab empty. Simply click the Initialize Profile button to proceed on this tab.

B.1.4. Run Test

We will save the standard modal data file from this test, so we won't worry about setting up streaming.

To enable the Modal Environment, first click the Arm Data Acquisition button. At this point, the modal environment buttons will become enabled, as shown in Figure B-12.

Figure B-12. Run Test tab with data acquisition armed

To start, we will use the Degree of Freedom Override section to choose our actual excitation location. This allows us to more quickly adjust the impact location than returning to the Data Acquisition Setup page and reinitializing everything in the channel table. Click the Add Override button, and in the row that appears, change the Channel column to the force channel. In the New Node column, put 23, which will be the position we excite at. For the New Direction, put Y-. This is shown in Figure B-13.

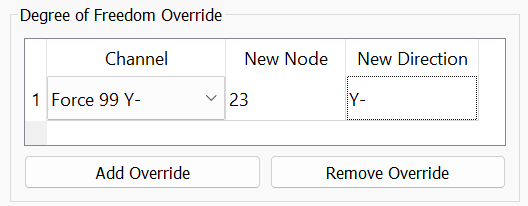

Figure B-13. Using the Degree of Freedom Override to adjust the impact location metadata.

Now with our channels correct, we can set up data display windows. We will use the New from Template... dropdown menu to create Drive Point (Imaginary), Drive Point Coherence, and Reference Autospectrum channels. We will also manually create 5 windows by clicking the New button, and set them to visualize the time histories for each channel; these will help us determine if we need to change the trigger settings, frame length, or add a window. Clicking the Tile button will expand the windows to fill up the available space. Figure B-14 shows the result of these operations.

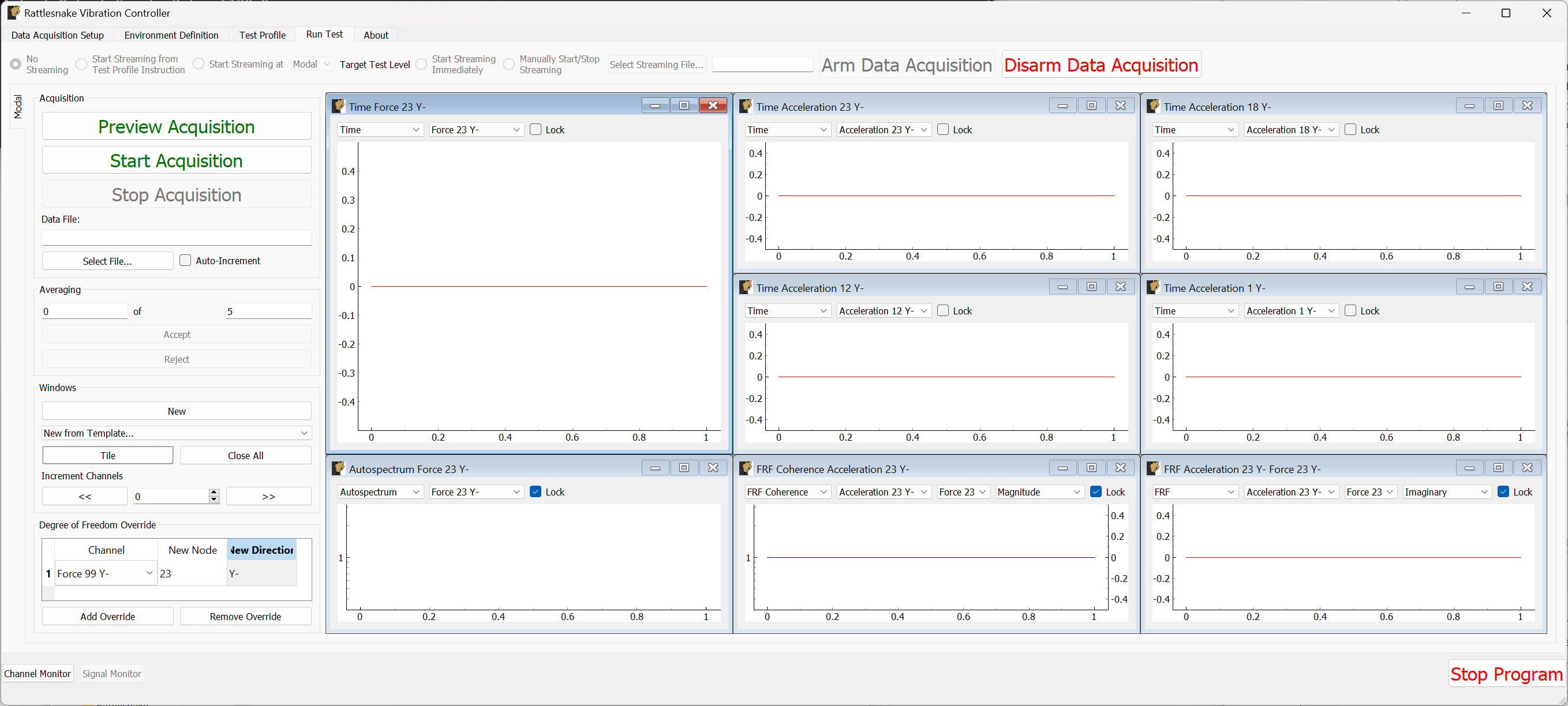

Figure B-14. Run Test tab with modal windows created.

We will first preview the measurement to ensure that all of the parameters we have selected are adequate. Click the Preview Acquisition button and impact the structure behind the 23Y- accelerometer. If the data acquisition triggers, data should appear in the windows as shown in Figure B-15.

Figure B-15. Data acquisition triggered, waiting for acceptance or rejection of the measurement.

After the data appears, the Accept and Reject buttons should become active. If the signal decays within the window and the force looks reasonable, we can click Accept which will then proceed to the next measurement. After a measurement is accepted, averaged quantities such as coherence, frequency response functions, and autopower spectra will also be computed as shown in Figure B-16. Only Spectra (FFTs) and time histories can be visualized prior to accepting a measurement.

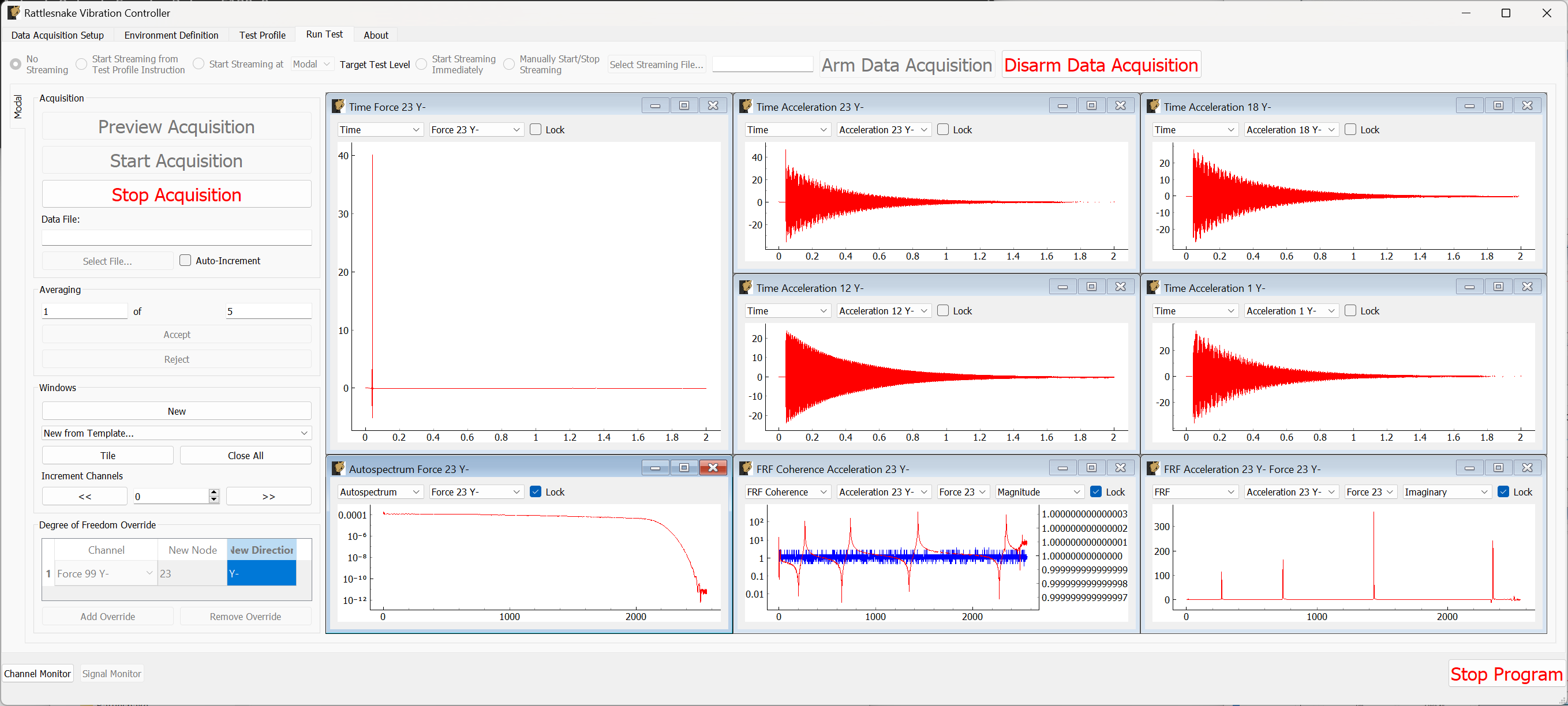

Figure B-16. Spectral quantities appear after acceptance.

After a handful of measurements are taken, we should be able to see the coherence and frequency response functions stabilize. We can evaluate the measurement by investigating the drive point FRF, coherence, reference autospectra, or any other quantities of interest. Figure B-17 shows these results.

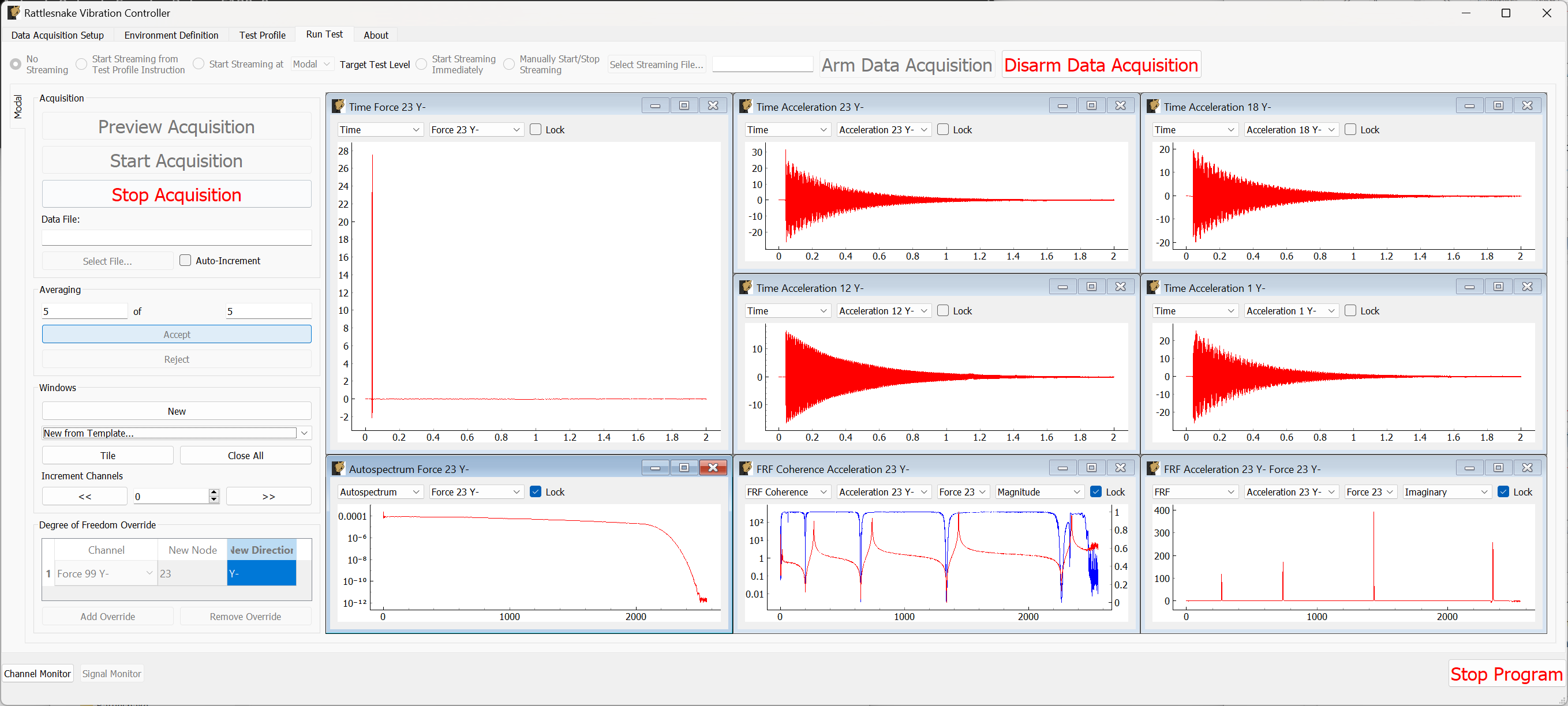

Figure B-17. Quantities of interest after 5 averages.

If this looks satisfactory, we can proceed with the measurement. Clicking the Stop Acquisition button will stop the preview, and allow us to start a real measurement. We must assign a Data File to save to by clicking the Select File... button. We will call our file beam_hammer_impact.nc4. To ensure we do not overwrite our data as we rove the hammer, we will click the Auto-Increment checkbox to automatically increment the filename. This is shown in Figure B-18.

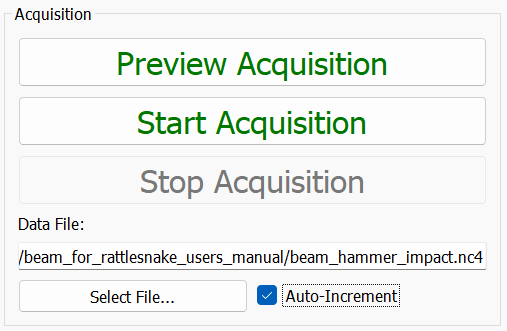

Figure B-18. Setting a file name for the modal data.

With the data file selected, we can click the Start Acquisition button. We perform the measurement identically to the preview case. When the specified number of averages have been acquired, the measurement will stop automatically as shown in Figure B-19

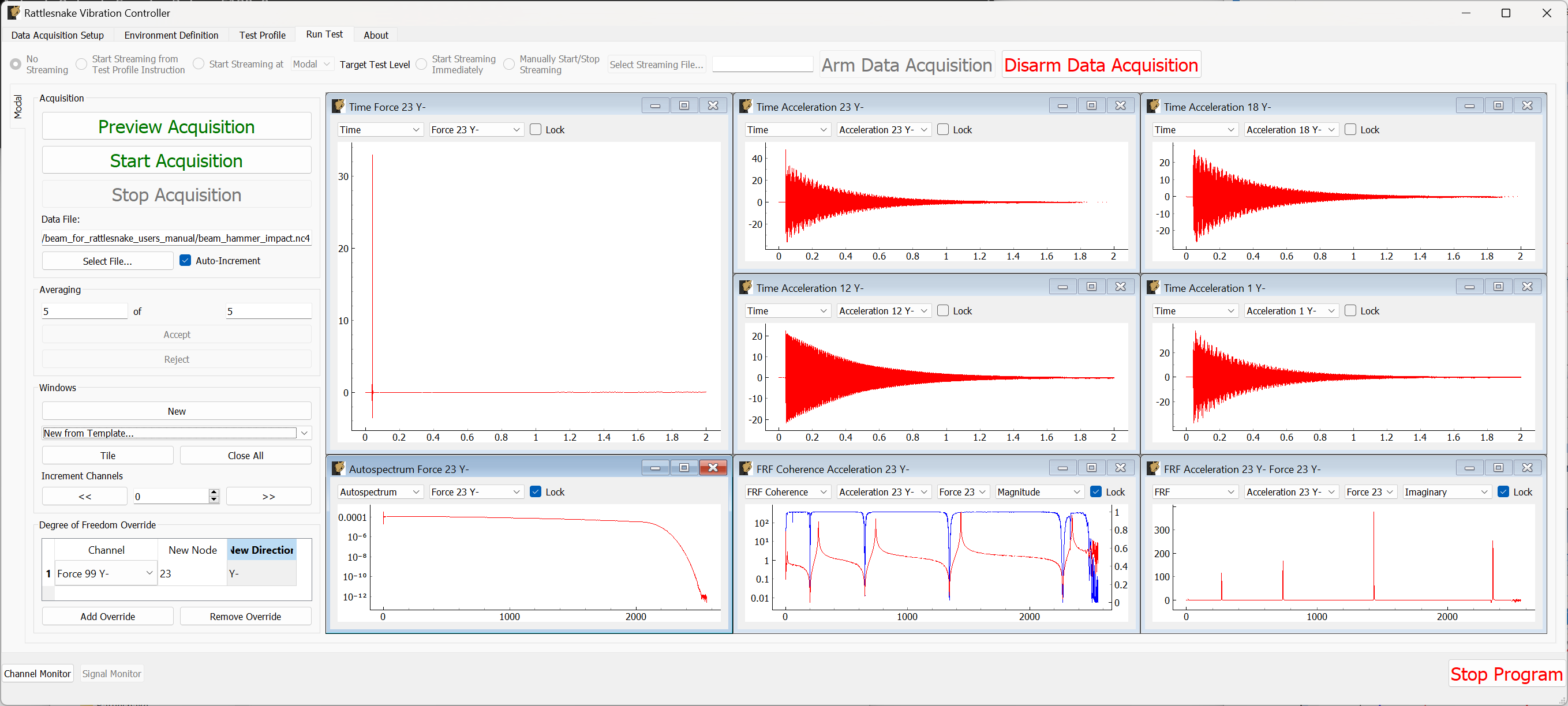

Figure B-19. Acquisition stops automatically after the desired number of impacts.

Now we will acquire the next measurement at node 18. We will update the New Node column of the Degree of Freedom Override table to be 18. Note that this will also change the labels on the data windows. We will need to update the response channels on those windows to make sure we are still visualizing the drive point data, as shown in Figure B-20.

Figure B-20. Updating the signal being visualized in the data visualization window.

We can simply press the Start Acquisition button, and a new file will be created. After that measurment has been obtained, we will then repeat again, updating the Degree of Freedom Override table to node 12 and start a measurement exciting at that location.

When these measurements are complete, we can click Disarm Data Acquisition to stop the measurement, and close the Rattlesnake software.

B.1.5. Analyzing Modal Data

To analyze these data, we will use SDynPy, which is an open-source Python-based structural dynamics toolset. SDynPy can be installed via pip using pip install sdynpy, or otherwise downloaded from the Github repository. SDynPy is well-integrated with Rattlesnake, making it trivial to load in data from a Rattlesnake test.

For example, reading in a modal dataset with SDynPy looks like:

# Import SDynPy and Numpy
import sdynpy as sdpy
import numpy as np

# Read a rattlesnake file using `read_modal_data`
time_data, frfs, coherence, channel_table = sdpy.rattlesnake.read_modal_data(
'beam_hammer_impact_0000.nc4')\end{lstlisting}

We can plot the data easily using SDynPy's plotting functionality:

frfs.plot(one_axis=False,subplots_kwargs={'layout':'constrained'})

The results of this command are shown in Figure B-21.

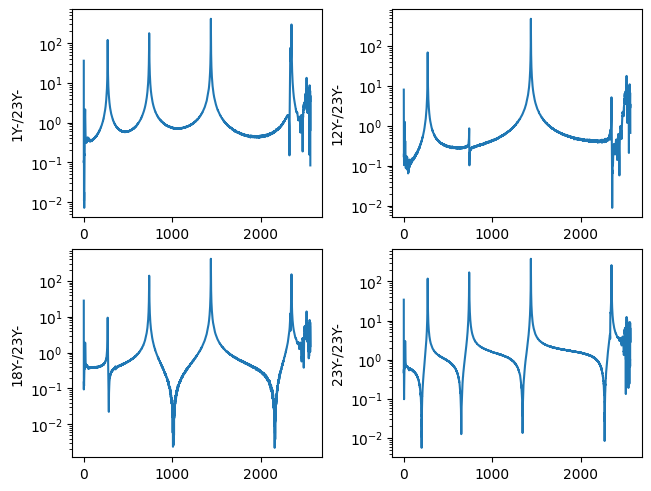

Figure B-21. Frequency response functions plotted in SDynPy from the modal impact test.

We can combine and plot the frequency response functions from our multiple datasets:

all_frfs = []
for i in range(3):
    _, frfs, _, _ = sdpy.rattlesnake.read_modal_data('beam_hammer_impact_{:04}.nc4'.format(i))
all_frfs.append(frfs)
all_frfs = np.concatenate(all_frfs)
all_frfs.plot(one_axis=False,subplots_kwargs={'layout':'constrained','figsize':(10,6)})

The results of this command are shown in Figure B-22.

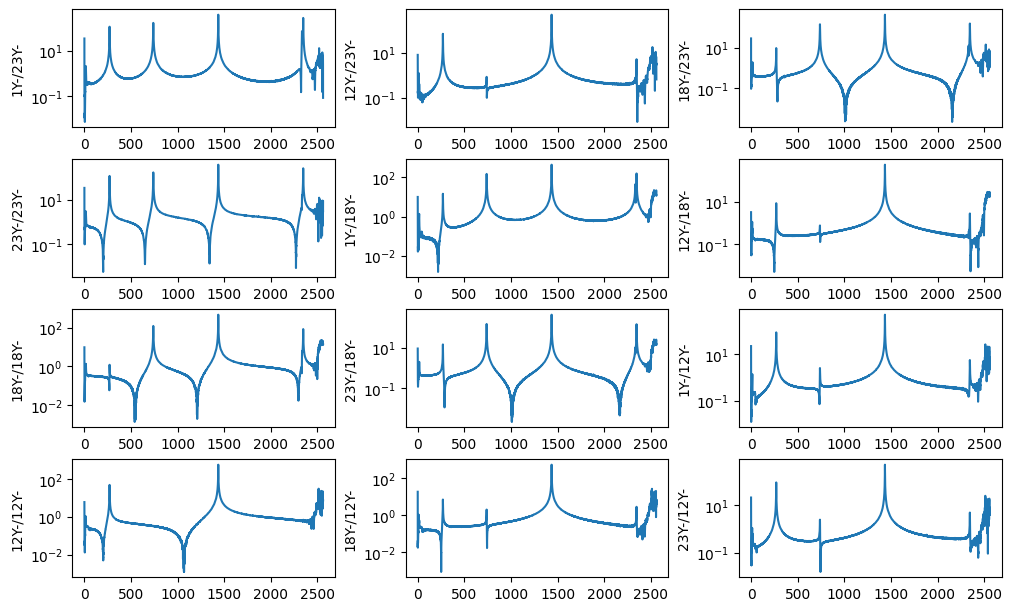

Figure B-22. All FRFs from the three impacts

Ideally we would like to plot mode shapes of this test, so as a first step towards that goal we will construct a test geometry. This contains nodes, coordinate systems, and optionally tracelines or elements. We can construct nodes with the ID numbers given in the test and coordinates specified by each node's position along the beam. Here we construct and print a node_array in SDynPy

nodes = sdpy.node_array(id = [1,12,18,23],
                        coordinate = [[1,0,0],
                                      [12,0,0],
                                      [18,0,0],
                                      [23,0,0]])
print(nodes)

which has output

    Index,     ID,        X,        Y,        Z, DefCS, DisCS
     (0,),      1,    1.000,    0.000,    0.000,     1,     1
     (1,),     12,   12.000,    0.000,    0.000,     1,     1
     (2,),     18,   18.000,    0.000,    0.000,     1,     1
     (3,),     23,   23.000,    0.000,    0.000,     1,     1

We will do similarly with a global coordinate system

css = sdpy.coordinate_system_array(id=1,name='global')
print(css)\end{lstlisting}

which has output

   Index,     ID,                 Name, Color,       Type
      (),      1,               global,     1,  Cartesian\end{lstlisting}

We can then construct a Geometry object. We will then add a traceline to connect the nodes together. We will then plot the geometry.

geometry = sdpy.Geometry(nodes,css)
geometry.add_traceline([1,12,18,23])
geometry.plot()\end{lstlisting}

The plotted geometry is shown in Figure B-23.

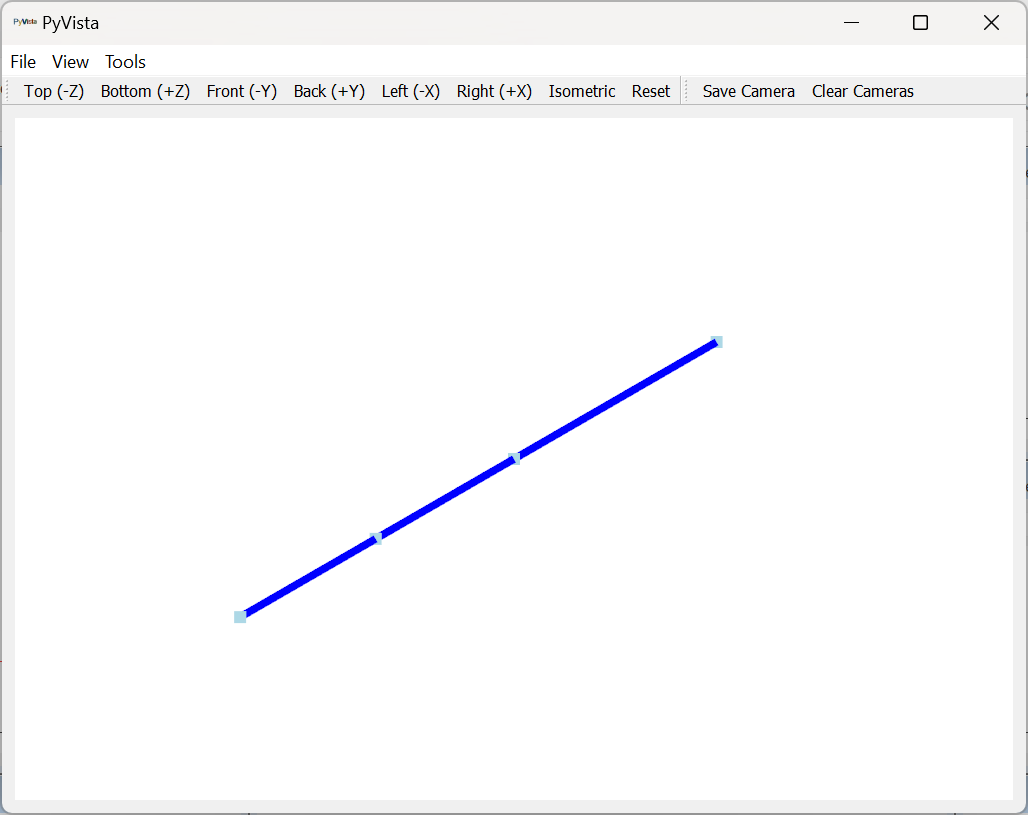

Figure B-23. Geometry used to plot mode shapes in the modal test.

Now that we have a geometry, we can fit modes and plot mode shapes. We will only fit up to approximately 2000 Hz, which is where the antialiasing filter of the cDAQ device is clearly active. We will use the PolyPy_GUI in SDynPy to do the mode fits. We can add our geometry directly to the fitter by assigning to the geometry attribute.

ppgui = sdpy.PolyPy_GUI(all_frfs)
ppgui.geometry = geometry\end{lstlisting}

We can select frequency ranges and polynomial orders to solve for, then click Compute Stabilization to proceed, as shown in Figure B-24.

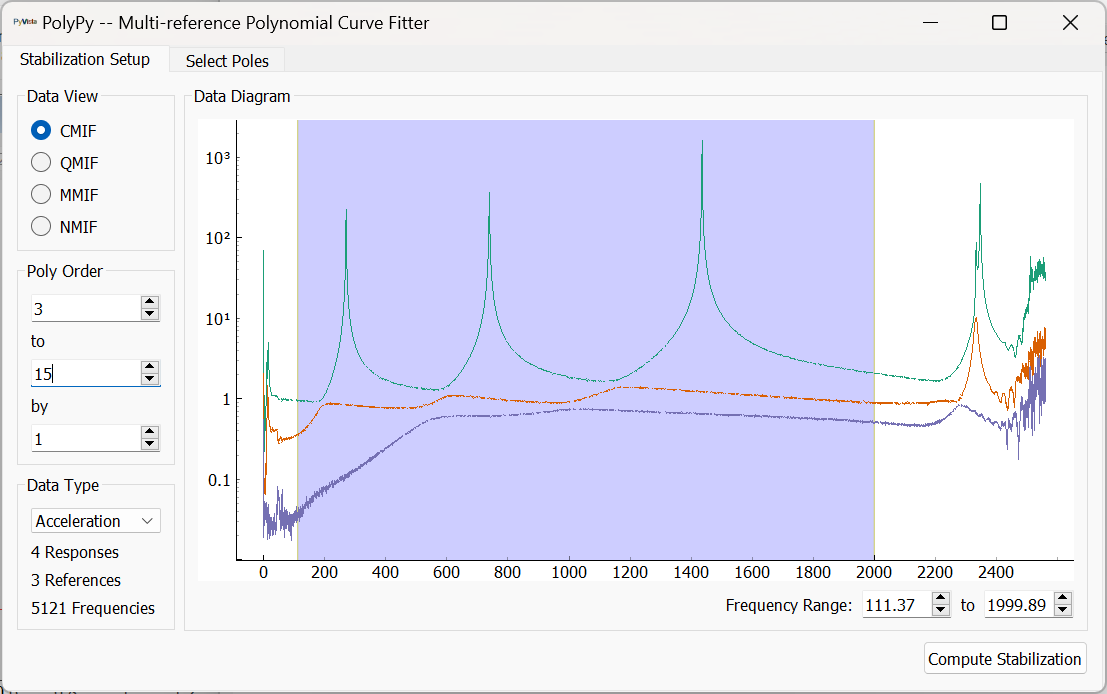

Figure B-24. Setting up frequency ranges and polynomial orders in PolyPy.

We can then select stable poles from the diagram and plot resynthesized FRFs or mode indicator functions. This operation and the results are shown in Figure B-25.

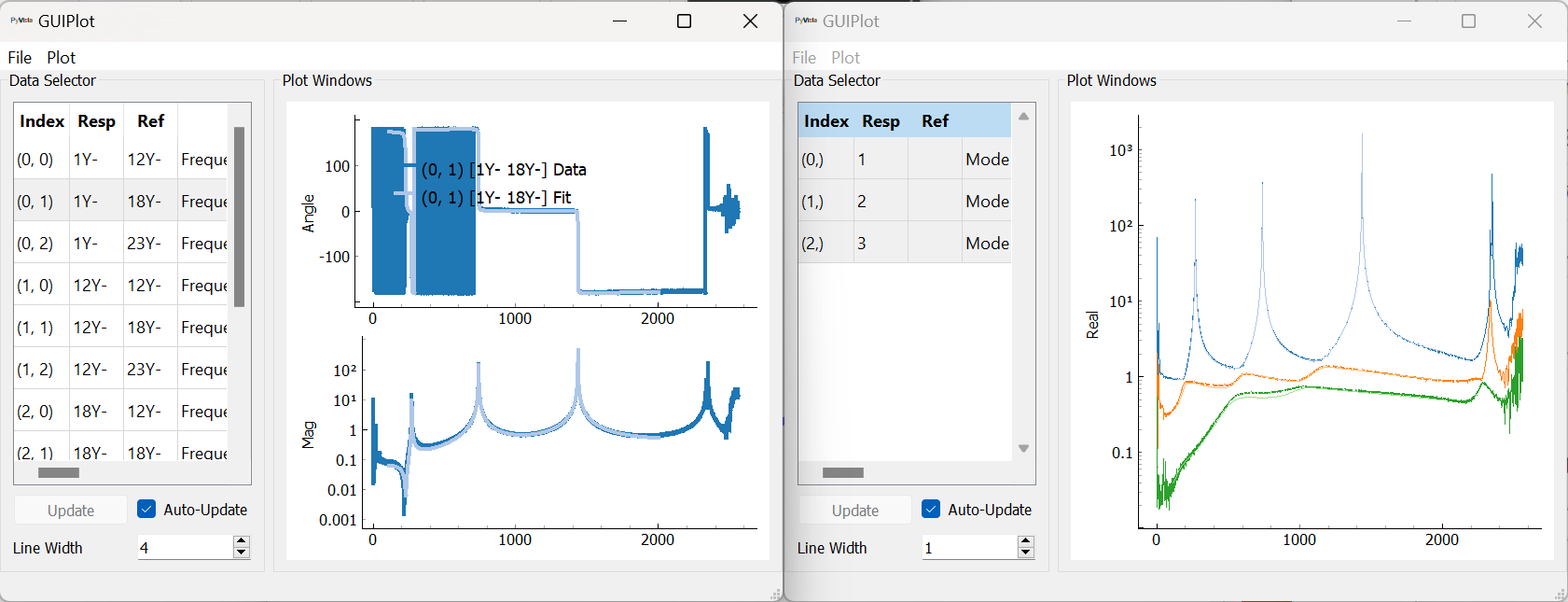

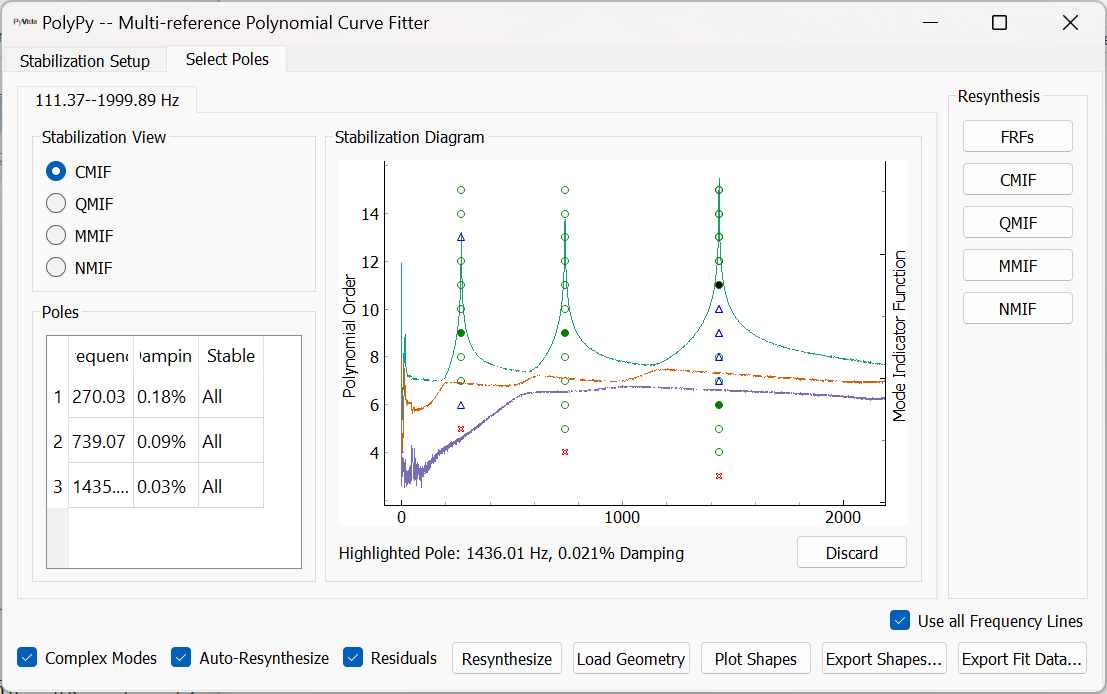

Figure B-25. Selecting stable poles and visualizing resynthesized FRFs.

We can then plot mode shapes from the test. Note that with only four sensors, our mode shapes will not be very highly resolved; however, they clearly correspond to the first three bending modes of the beam. The first mode shape is shown in Figure \ref{fig:examplecdaqmodalfits}.

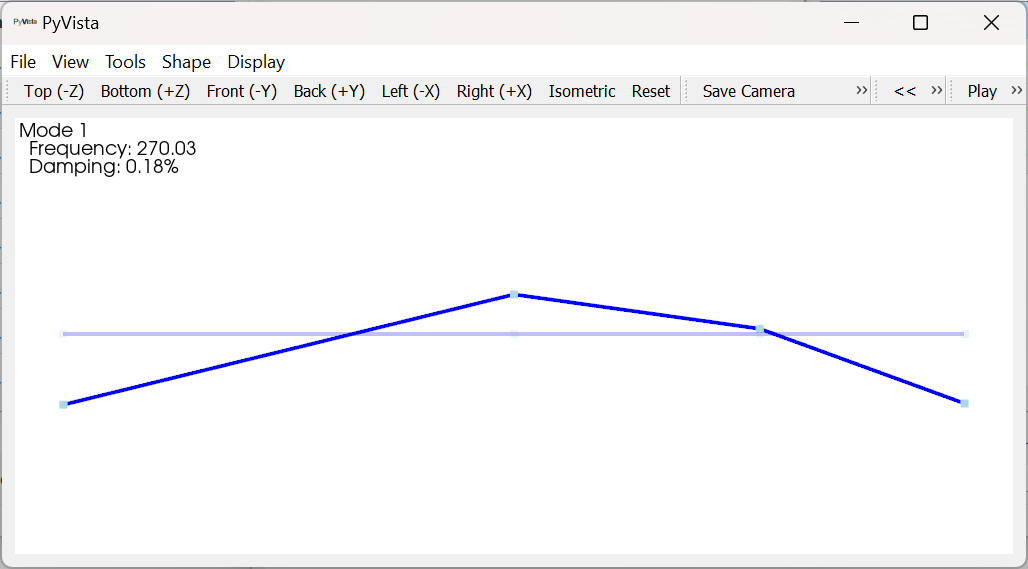

B-26. First mode shape fit to the modal data from the impact test.

B.2. Modal Testing with a Modal Shaker

Next we will demonstrate how to run a modal test with a shaker. A cap is placed over the accelerometer at node 1, and a force sensor is threaded into the cap. A receptacle is mounted to the force gauge to accept the shaker stinger.

B.2.1. Data Acquisition Settings

Recall that because Rattlesnake is required to measure the voltage associated with any drive signals it outputs, adding a shaker to a modal test requires two channels: one for the force sensor to measure the reference force, and one to measure the shaker voltage. Therefore, if we aim to measure the force for this test, we can only accommodate a single shaker input, as four of the six available channels channels are already taken by the accelerometers.

When we set up the shaker, we put a tee into the output channel from the data acquisition system, and we tee off the shaker drive signal into the last acquisition channel and to the shaker amplifier, as shown in Figure B-27. Figure B-28 shows a wider view with the modal shaker visible.

Figure B-27. Data acquisition setup for the shaker test showing the shaker signal teed into the last acquisition channel.

Figure B-28. Modal shaker setup for running a modal test.

As we fill out the channel table, we enter the physical device and channel that the shaker voltage is teed into in the Channel Definition section of the channel table, and enter the physical device and channel that the shaker voltage originates from in the Output Feedback section. In our case, the shaker signal comes from the ao0 channel on the third module cDAQ9185-217ED78Mod3. The shaker signal is teed into acquisition channel ai2 on the second module cDAQ9185-217ED78Mod2. We also enter the force sensor into the channel table. note that the direction associated with the force is now in the Y+ direction, as the push direction of the shaker is opposite the measurement direction of the accelerometer that is covered by the cap. Figure B-29 shows the channel table set up in Excel.

Figure B-29. Channel table set up for the modal shaker test.

Note that when assigning a node and direction to the voltage signal, you do not want to use the same values as for the drive point, otherwise Rattlesnake will not be able to determine which frequency response function is the drive point FRF. The author's practice is to use the same node number as the force sensor, but offset by some value (e.g. 100 in this case). In the case of multiple shakers, it will be clear which voltage corresponds to which shaker if such a convention is followed.

With the channel table set up, we can now start Rattlesnake and load the channel table. We will again select the Modal Testing environment, click the Load Channel Table button and load our file. We will again set the Sample Rate to 5120 Hz. With these parameters set, we can click the Initialize Data Acquisition button to proceed. Figure \ref{fig:examplecdaqmodalshakerdaqsettings} shows these settings in the Rattlesnake GUI.

Figure B-30. Data acquisition settings for the Modal Shaker Test

B.2.2. Environment Definition for Pseudorandom Excitation

Now we set up the Modal Testing environment parameters. Because we only have one shaker, we can use the Pseudorandom excitation, so we will plan for that.

We will leave the Samples per Frame at its default value. We will change the Number of Averages to 10. We will leave Triggering Type set to Free Run, but we will add a delay of 5 in the Wait for Steady State box, to allow the system to come to steady state, as assumed by the Pseudorandom excitation.

In the Channel Selections box, we select the Force channel as the reference.

In the Signal Generator portion of the window, we select the Pseudorandom tab to set up a Pseudorandom signal. We can truncate the Frequency Range from 10 -- 2000 to remove the large rigid body motion that can occur at low frequency, as well as the portion of the excitation that is in the antialiasing filters of the system. We will set the RMS value to 0.1 V.

With these parameters set, we can click the Initialize Environments button to proceed. Figure B-31 shows these settings in the Rattlesnake GUI.

Figure B-31. Parameters set for the Pseudorandom shaker excitation.

B.2.3. Test Profile

We will leave the Test Profile tab empty. Simply click the Initialize Profile button to proceed on this tab.

B.2.4. Run Test

To run the test we can again Arm Data Acquisition to enable the modal controls. Because we will not be roving the shaker, we have entered the proper node number into the channel table, and therefore do not need to utilize the Degree of Freedom Override table. We will again display the standard diagnostics of drive point FRF and coherence, reference autospectra, and time response from all sensors and the voltage signal. This is shown in Figure B-32.

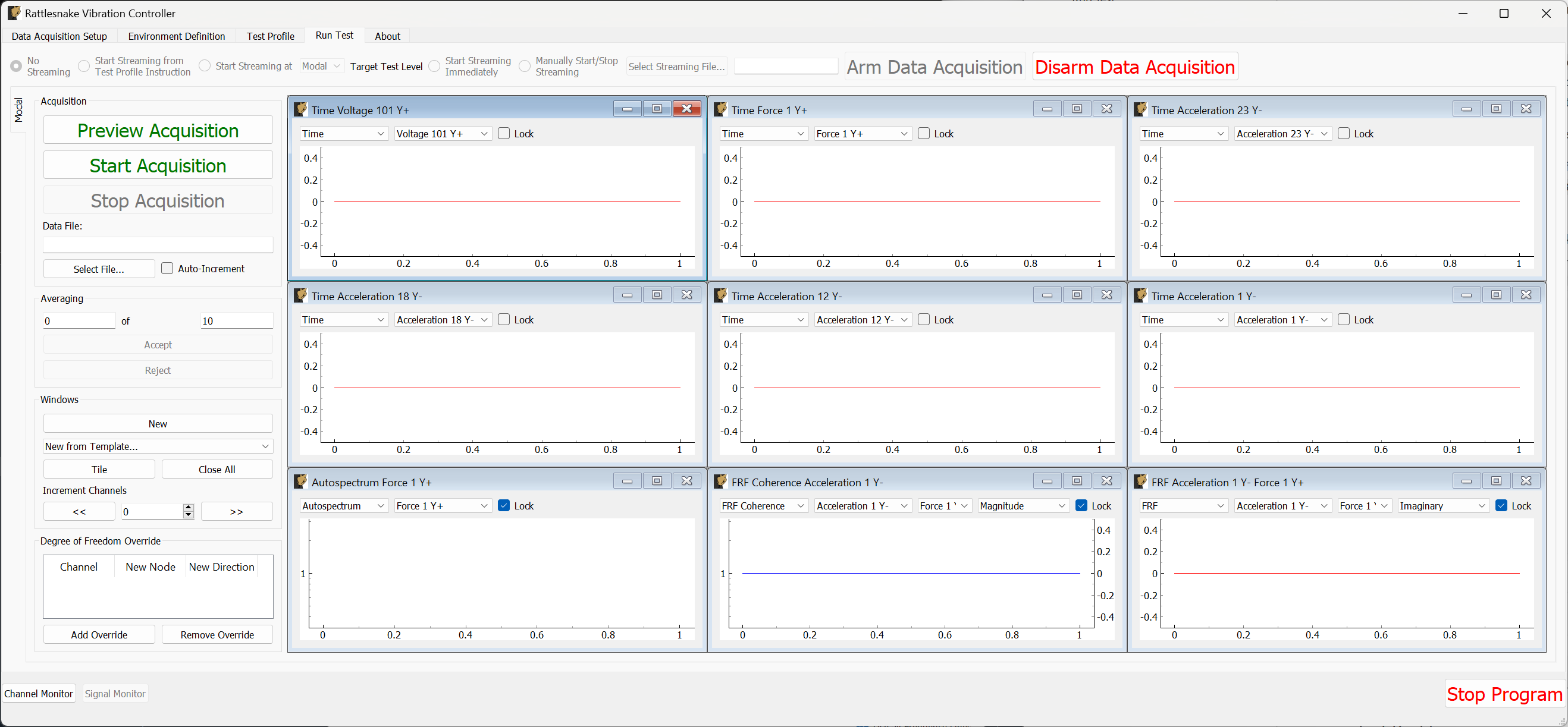

Figure B-32. Shaker testing with data acquisition armed and data visualization windows created.

We can then Preview Acquisition to see how the test parameters look. Data will take a few seconds to appear after the shaker starts due to the Wait for Steady State parameter that was set. Ideally if the pseudorandom excitation has reached steady state, we should see no appreciable difference between the time response of measurement frames, as the exact same signal is being applied and exact same responses are being measured. This is shown in Figure B-33.

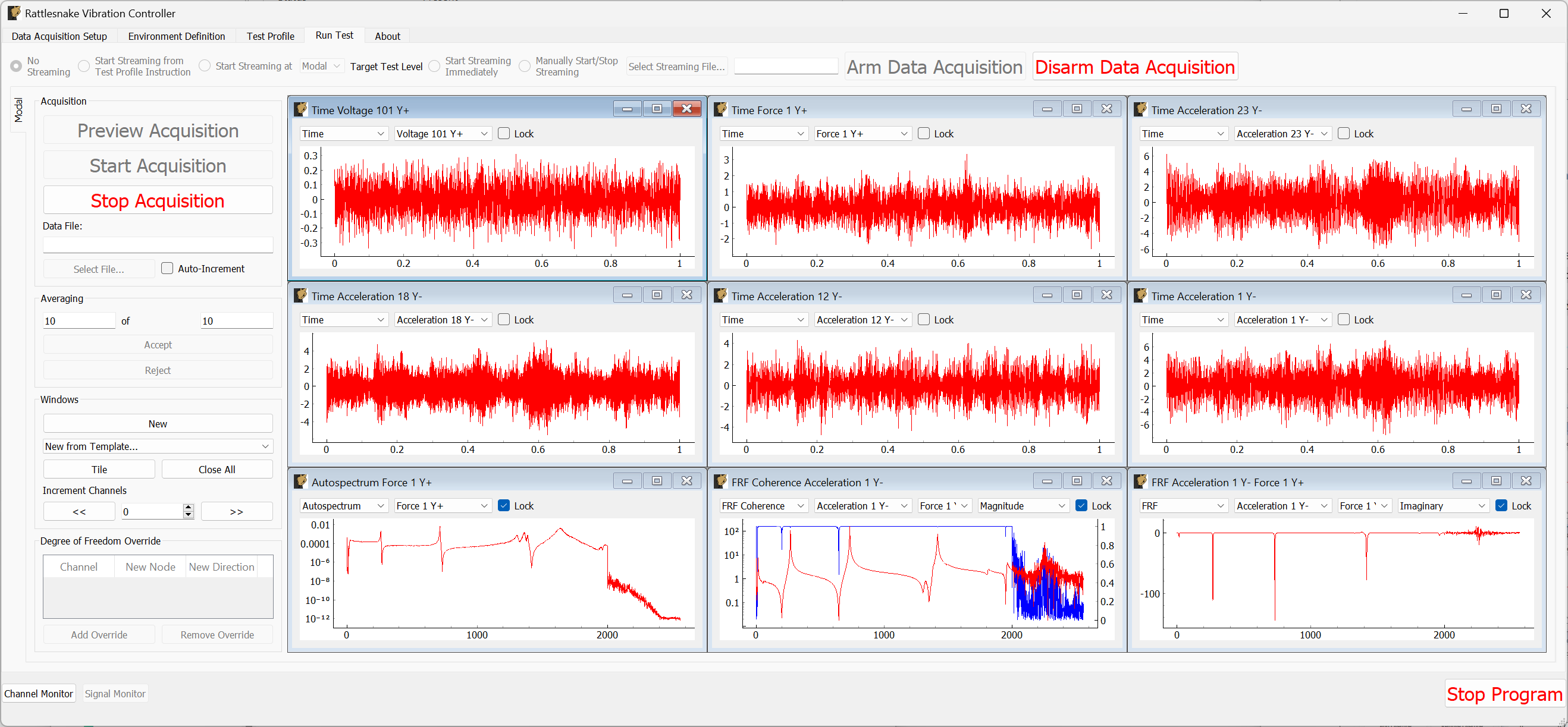

Figure B-33. Previewing the data acquisition with the pseudorandom excitation.

If we are happy with the preview, we can move to Start Acquisition. We define a file to save the data to called beam_shaker_pseudorandom.nc4. This is shown in Figure B-34. The measurement and shakers should stop automatically when the requested number of averages have been acquired.

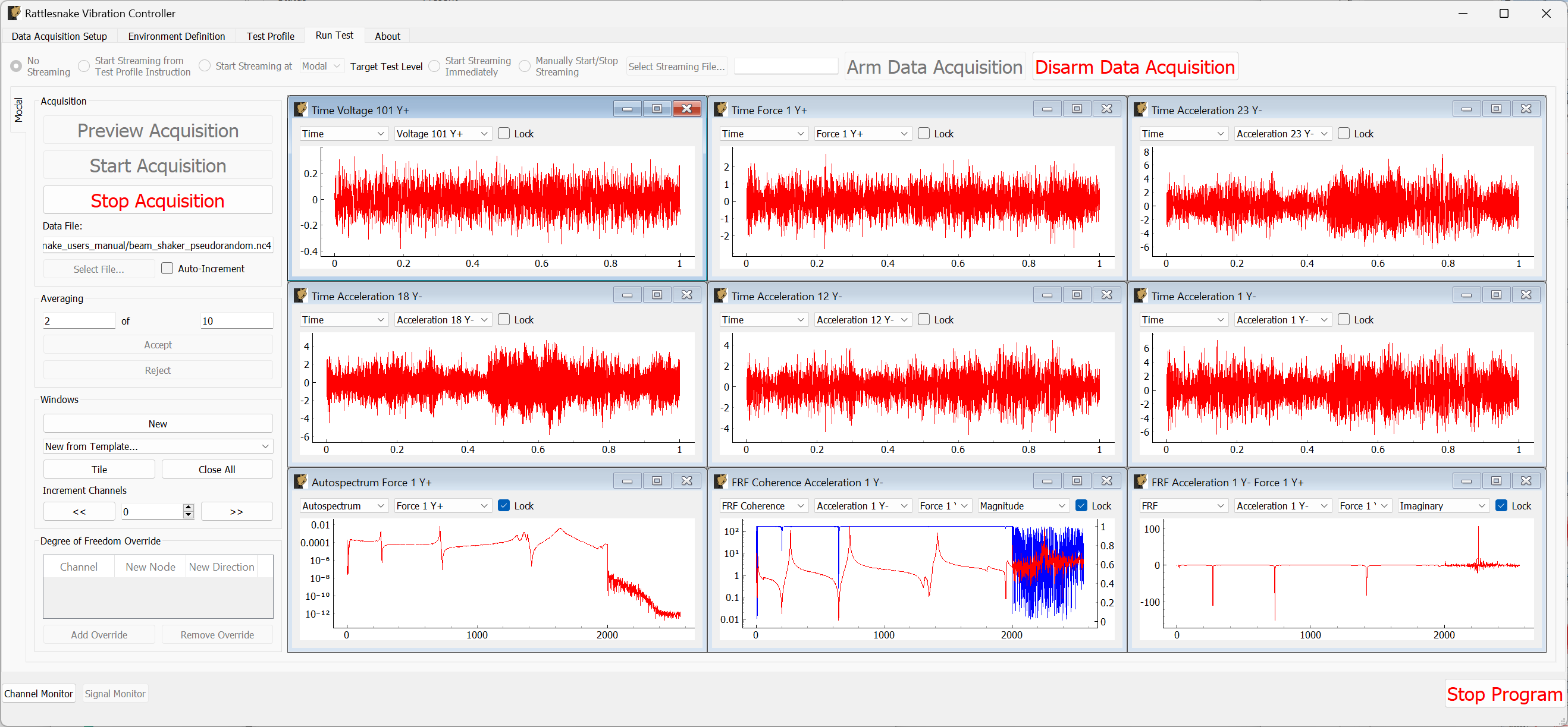

Figure B-33. Acquiring the pseudorandom modal data.

Once the test completes, we can mute our amplifier and Disarm Data Acquisition.

B.2.5. Other Shaker Excitation Types

We will return to the Environment Definition tab and set up a Burst Random test. We saw that the hammer ring-down took approximately 2 seconds, so we will set the Samples Per Frame value to 15360 to achieve a 3 second frame. We will set the Number of Averages to 30. We will set the Triggering Type to First Frame, remove the Wait for Steady State value, and set the Trigger Channel to the voltage channel with a Pretrigger of 1%. We will set the Trigger Level to 1%, the Hysteresis Level to half that value, and the Hysteresis Frame % to 25%.

In the Signal Generator section, we will select a Burst Random signal and set the On Percentage to 33% to provide a 1 second burst and 2 second ring down. We will keep the other parameters the same as our previous Pseudorandom test.

Figure B-35 shows the parameters in the Rattlesnake GUI. Click the Initialize Environments button to proceed, and return to the Run Test tab.

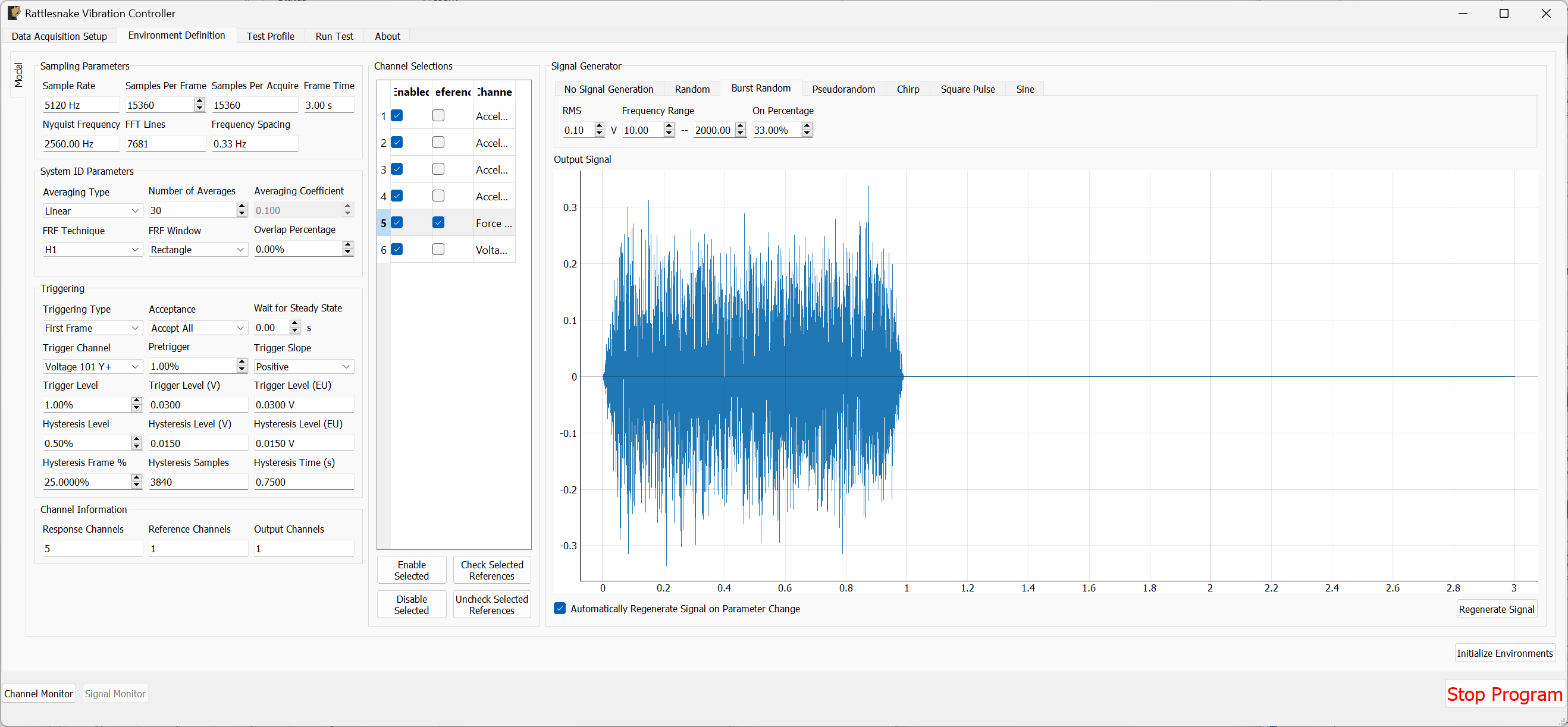

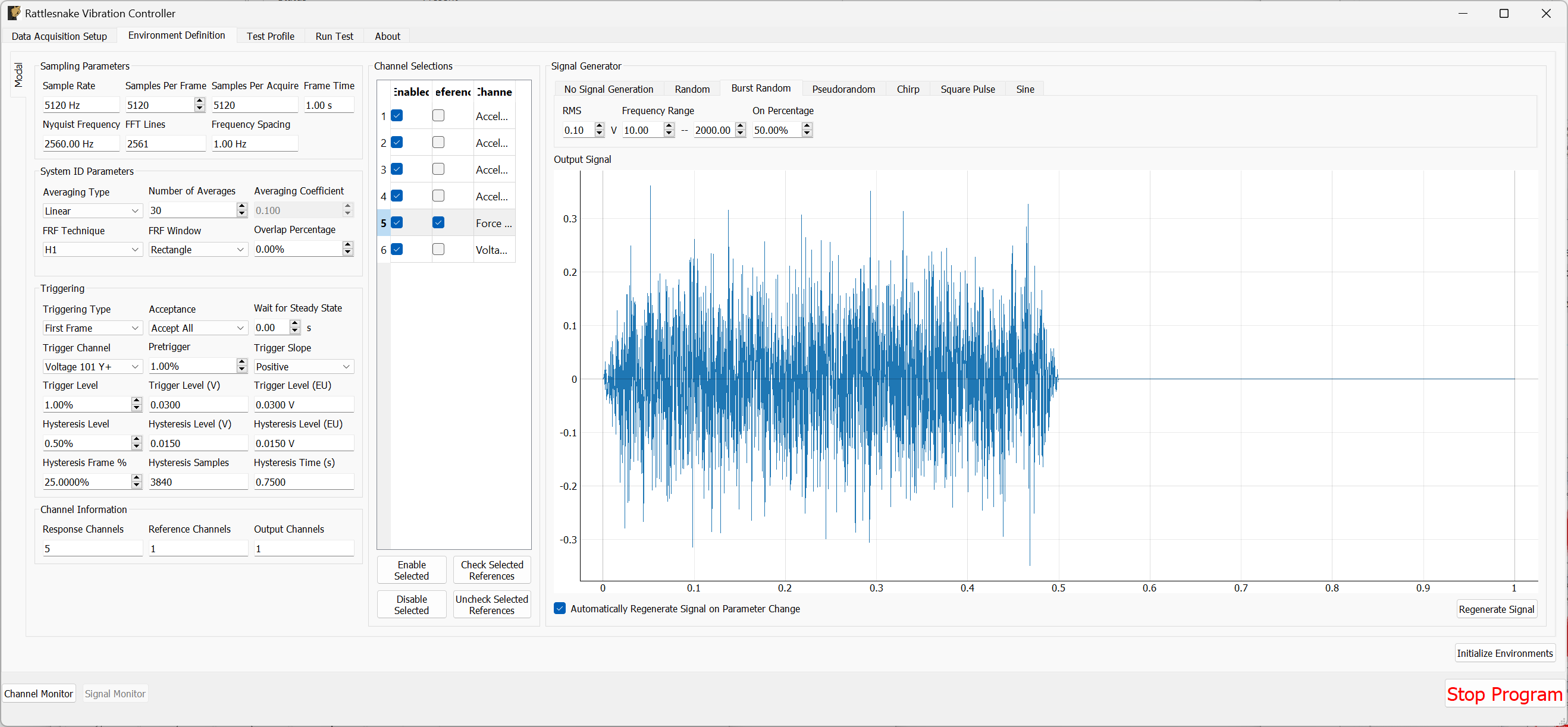

Figure B-35. Test parameters for the Burst Random excitation

We can preview the signal by clicking the Preview Acquisition button to ensure that the triggering has been set up correctly and the signals ring down appropriately. Figure B-36 shows the previewed data.

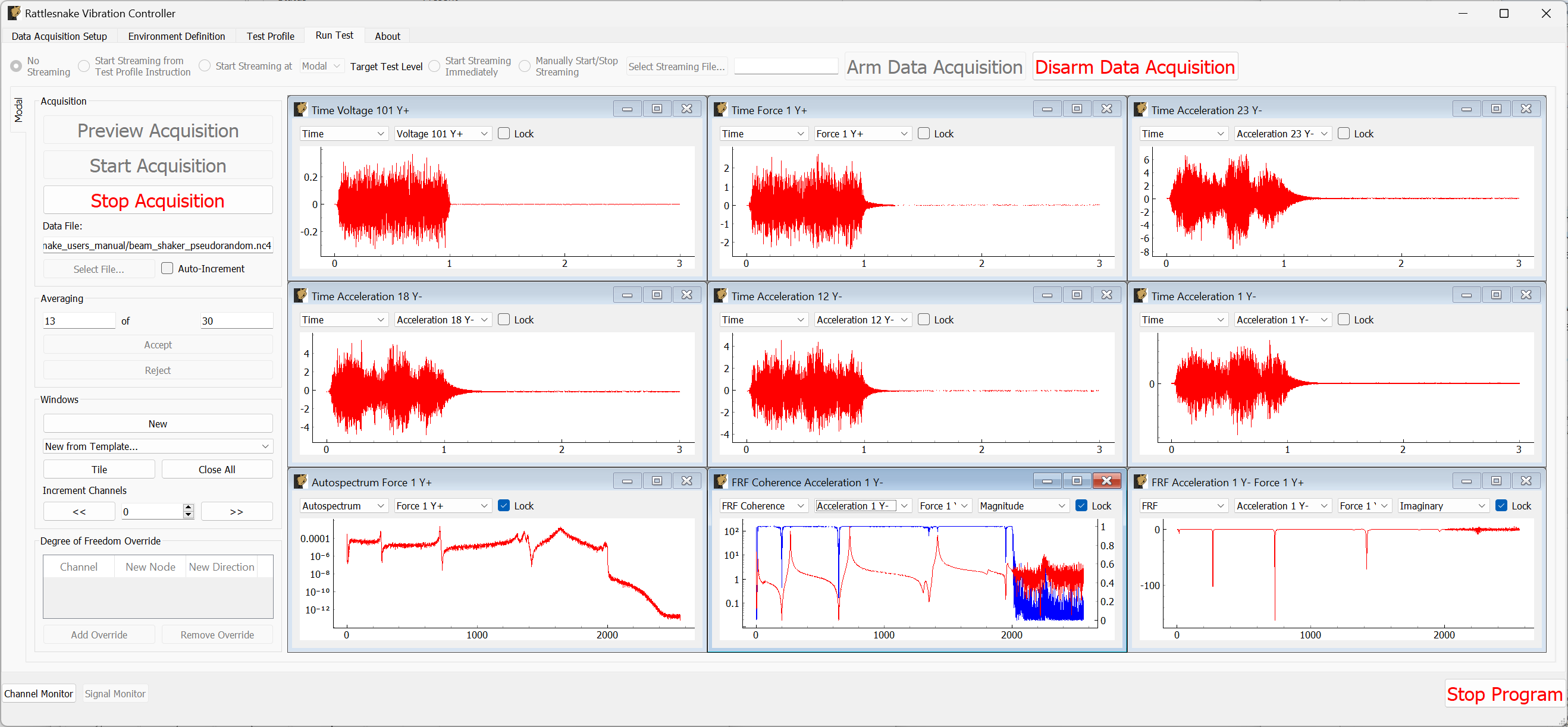

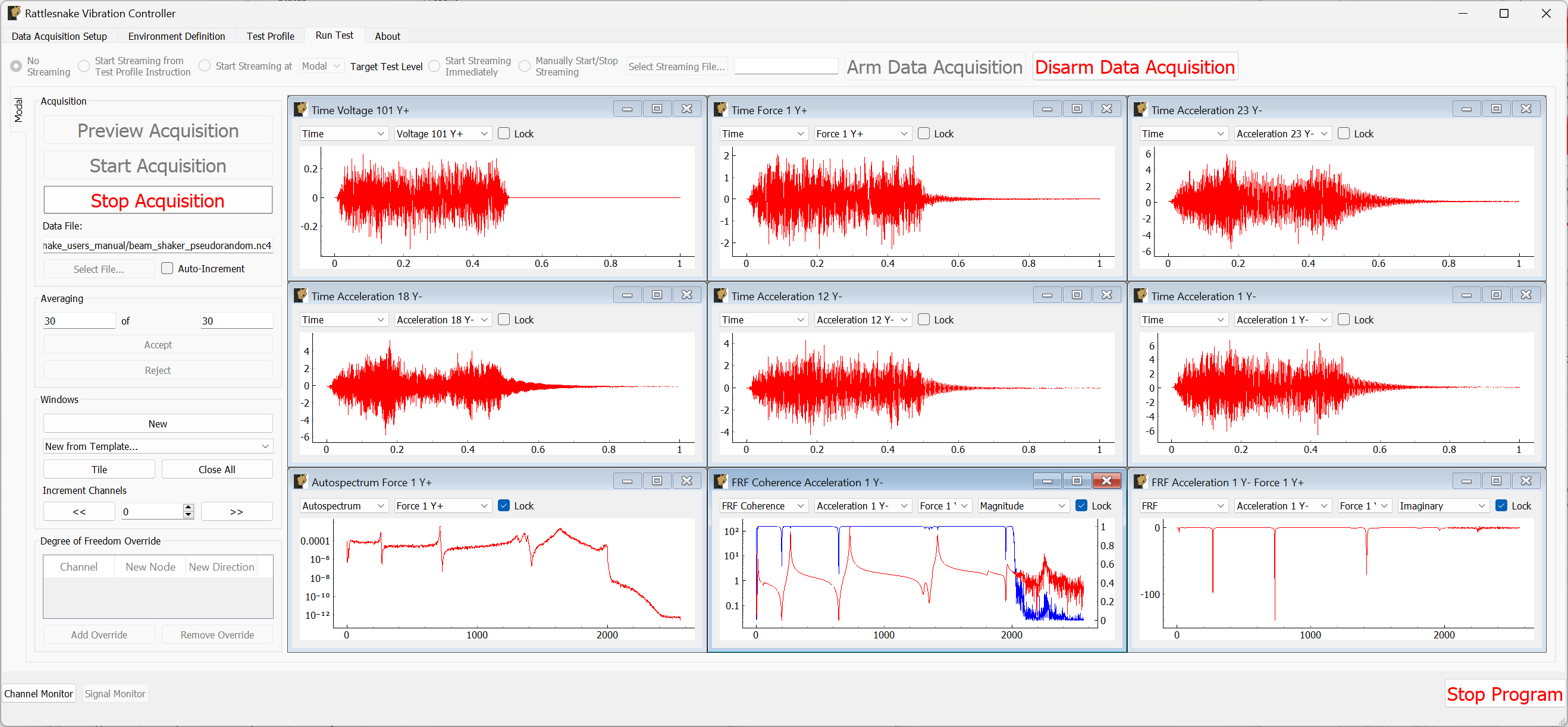

Figure B-36. Previewing the measurement with the initial parameter set.

Apparently the shaker adds enough damping that the structure stops ringing by approximately 1/2 second after the burst finishes. Let's therefore Stop Acquisition, Disarm Data Acquisition, and return to the Environment Definition tab. We will update the Samples Per Frame value to 5120 to achieve a 1 second measurement frame. We will also change the burst On Percentage to 50%.

Figure B-37 shows the updated parameters in the Rattlesnake GUI. Click the Initialize Environments button to confirm these settings, and return to the Run Test tab.

Figure B-37. Updated burst random parameters after previewing the initial guess at the parameters.

We can then preview this new configuration by Arm Data Acquisition and Start Preview. The results are shown in Figure \ref{fig:examplecdaqburstrandompreviewv2}. This configuration looks good and runs 3x faster, so we will keep it.

B-38. Previewing the measurement with the updated parameter set.

Press the Stop Acquisition button to stop the preview, set a file to store the results to (beam_shaker_burst.nc4) and Start Acquisition. The acquisition should stop automatically when 30 averages are obtained. Figure B-39 shows the measurement midway through acquisition.

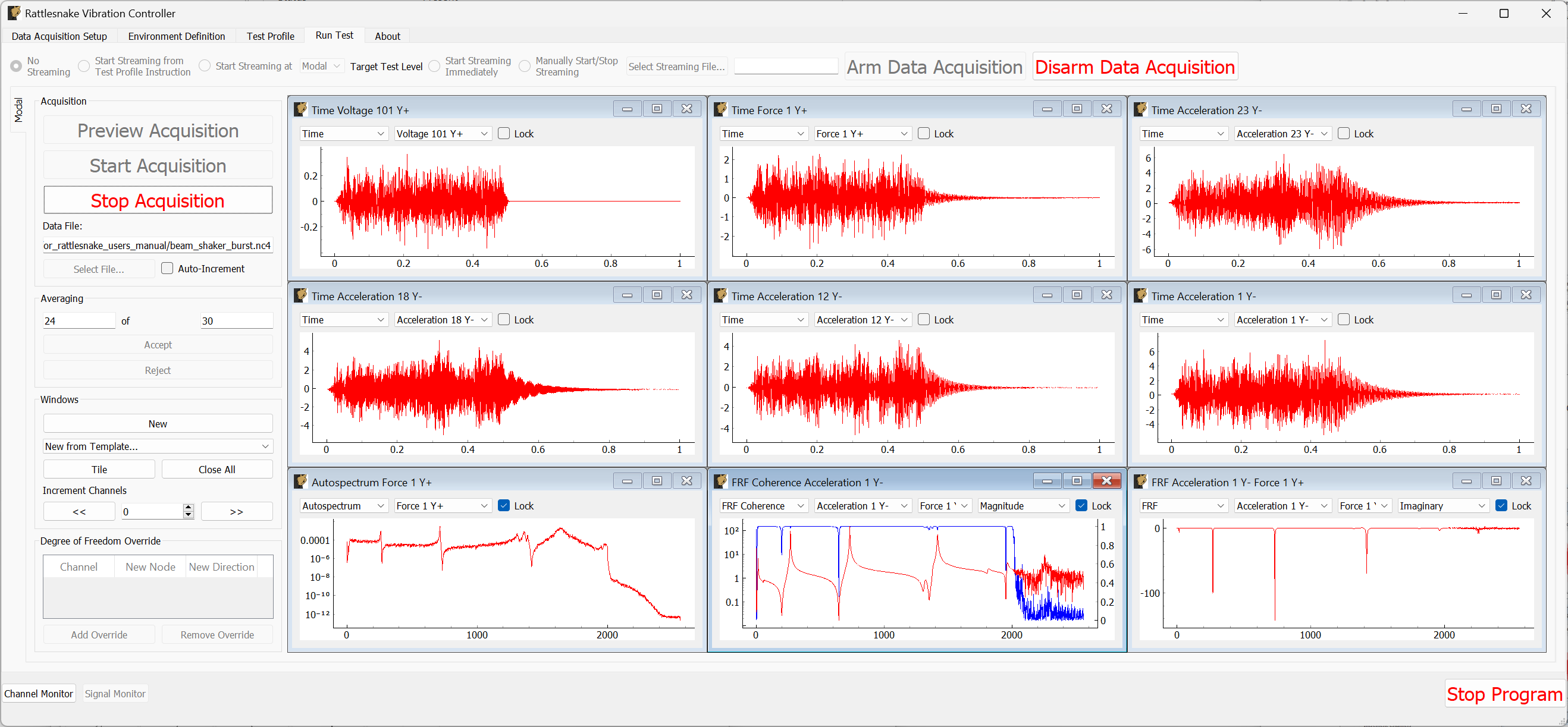

Figure B-39. Acquiring the burst random data

B.2.6. Analyzing Modal Shaker Data

We can now analyze the shaker data similarly to the hammer data using SDynPy. We will also load in the impact data from the tip. While we did not excite the structure at node 1 with the hammer, we can use symmetry of the beam to compare between the two measurement types.

# Read a rattlesnake file using `read_modal_data`
time_data_pr, frfs_pr, coherence_pr, channel_table_pr = sdpy.rattlesnake.read_modal_data(
    'beam_shaker_pseudorandom.nc4')
time_data_br, frfs_br, coherence_br, channel_table_br = sdpy.rattlesnake.read_modal_data(
    'beam_shaker_burst.nc4')
# Compare to the impact
time_data_im, frfs_im, coherence_im, channel_table_im = sdpy.rattlesnake.read_modal_data(
    'beam_hammer_impact_0000.nc4')

We can use SDynPy to extract common degrees of freedom from each test and plot the FRFs for each.

import matplotlib.pyplot as plt

ref_resp_dofs = sdpy.coordinate_array([1,23],'Y+')
compare_frfs = [frfs_pr[ref_resp_dofs[::-1]][np.newaxis],
frfs_br[ref_resp_dofs[::-1]][np.newaxis],
frfs_im[ref_resp_dofs][np.newaxis]]
fig,ax = plt.subplots(2)
for frf in compare_frfs:
frf.plot(ax)
ax[-1].legend(['Psuedorandom','Burst','Hammer'])
ax[-1].set_yscale('log')

This gives the following plot:

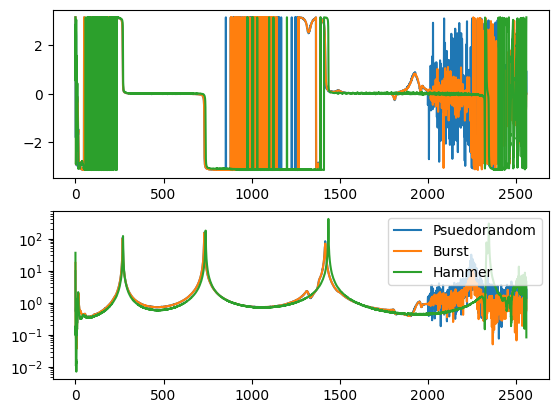

Figure B-40. Comparison of hammer impact testing compared to shaker excitation with two types of signals.

We can note that the peaks are shifted slightly lower in frequency for the shaker testing, likely due to the small amount of mass loading of the shaker. Additionally, there appears to be some shaker-structure interactions going on near the third mode, but otherwise there is reasonably good agreement between the three tests.

B.3. Running a Vibration Test with Rattlesnake

Now we will demonstrate how we can run a controlled vibration test with Rattlesnake. We will demonstrate both Random and Transient vibration control in this section.

B.3.1. Constructing Vibration Specifications

Before we can run a test, we will first generate some environment data. This is the response that we will control to during the vibration testing. We will do this using the modal hammer to randomly impact the structure, and then we will try to get the shaker to control to that response.

To acquire environment data, we will simply run the modal environment in preview mode, but now use Rattlesnake's Streaming functionality to record time data, from which we will construct specifications for vibration testing.

We will disconnect the shaker from our test article. Then we return to the Environment Definition page and set the Triggering Type to Free Run.

On the Run Test tab, before selecting Arm Data Acquisition we select Start Streaming Immediately and Select Streaming File... to save a time history file called environment_streaming.nc4. This is shown in Figure B-41 .

Figure B-41. Run Test tab with Streaming enabled

Now we can Arm Data Acquisition and then Preview Acquisition. Once the data acquisition is running, we will tap the structure with the modal hammer repeatedly along the length of the beam. Don't worry that the hammer is not plugged in, as we only care about the accelerometer response. Once we have recorded a few seconds of impacts, we can select Stop Acquisition and Disarm Data Acquisition. Note that the streaming file will not be available until the data acquisition is disarmed. We can now close Rattlesnake because we are done with the Modal environment.

We will now load the streaming file with SDynPy to create an environment.

time_history, channel_table = sdpy.rattlesnake.read_rattlesnake_output(
    'environment_streaming.nc4')

We will extract just the first four acceleration channels for our environment, which are shown in Figure B-42

accelerations = time_history[:4]
accelerations.plot()

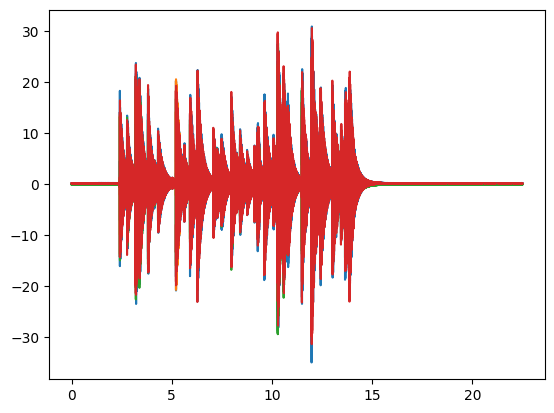

Figure B-42. Measured acceleration data that we will turn into vibration specifications.

Looking at the data, we can truncate it to just the time range of interest, shown in Figure B-43.

truncated_accelerations = accelerations.extract_elements_by_abscissa(2.3,16.3)
truncated_accelerations.plot()

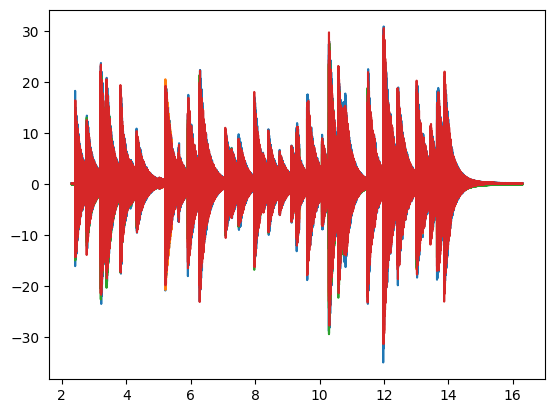

Figure B-43. Truncated acceleration data that we will turn into vibration specifications.

To construct a random vibration environment, we will compute CPSDs from this signal. While this isn't really an appropriate signal for a random vibration specification, it is good enough to demonstrate Rattlesnake's capabilities. Figure B-44 shows the APSDs, which are the diagonal entries of the CPSD specification matrix.

random_spec = truncated_accelerations.cpsd(samples_per_frame = 5120, overlap=0.5, window = 'hann')
# Remove low frequency and antialiasing filters
random_spec = random_spec.extract_elements_by_abscissa(20,2000)
# Scale it down so we don't break shakers trying to hit it
random_spec = random_spec / 100

ax = random_spec.plot_asds()
fig = ax[0,0].figure
fig.tight_layout()

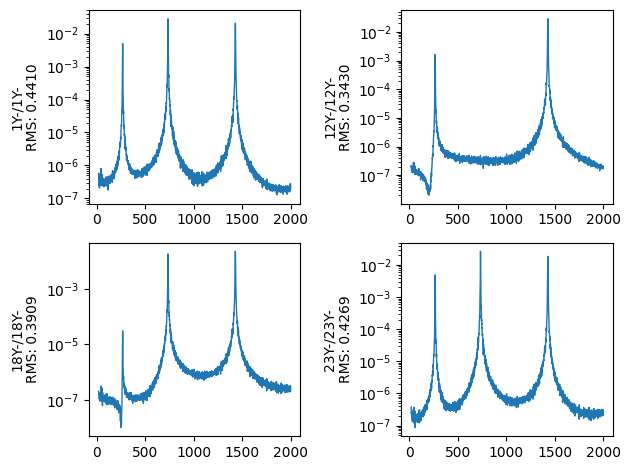

Figure B-44. Diagonal entries of the random vibration specification CPSD matrix.

We will also construct a transient specification that we will use to test the transient vibration control, shown in Figure B-45.

# We will make it shorter and again scale it down to make it so we don't break anything
transient_spec = truncated_accelerations.extract_elements_by_abscissa(11.48,16.3) / 5
transient_spec.plot()

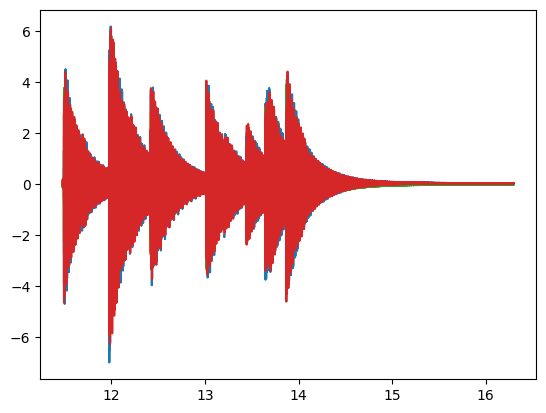

Figure B-45. Transient specification used for vibration control.

We can now save these specifications to disk.

random_spec.to_rattlesnake_specification('random_specification.npz')
transient_spec.to_rattlesnake_specification('transient_specification.npz')

B.3.2. Setting up the Shakers and Channel Table

We will now set up our vibration test. We add a second shaker to the other end of the beam using a second drive cap over the accelerometer at node 23, shown in Figure B-46.

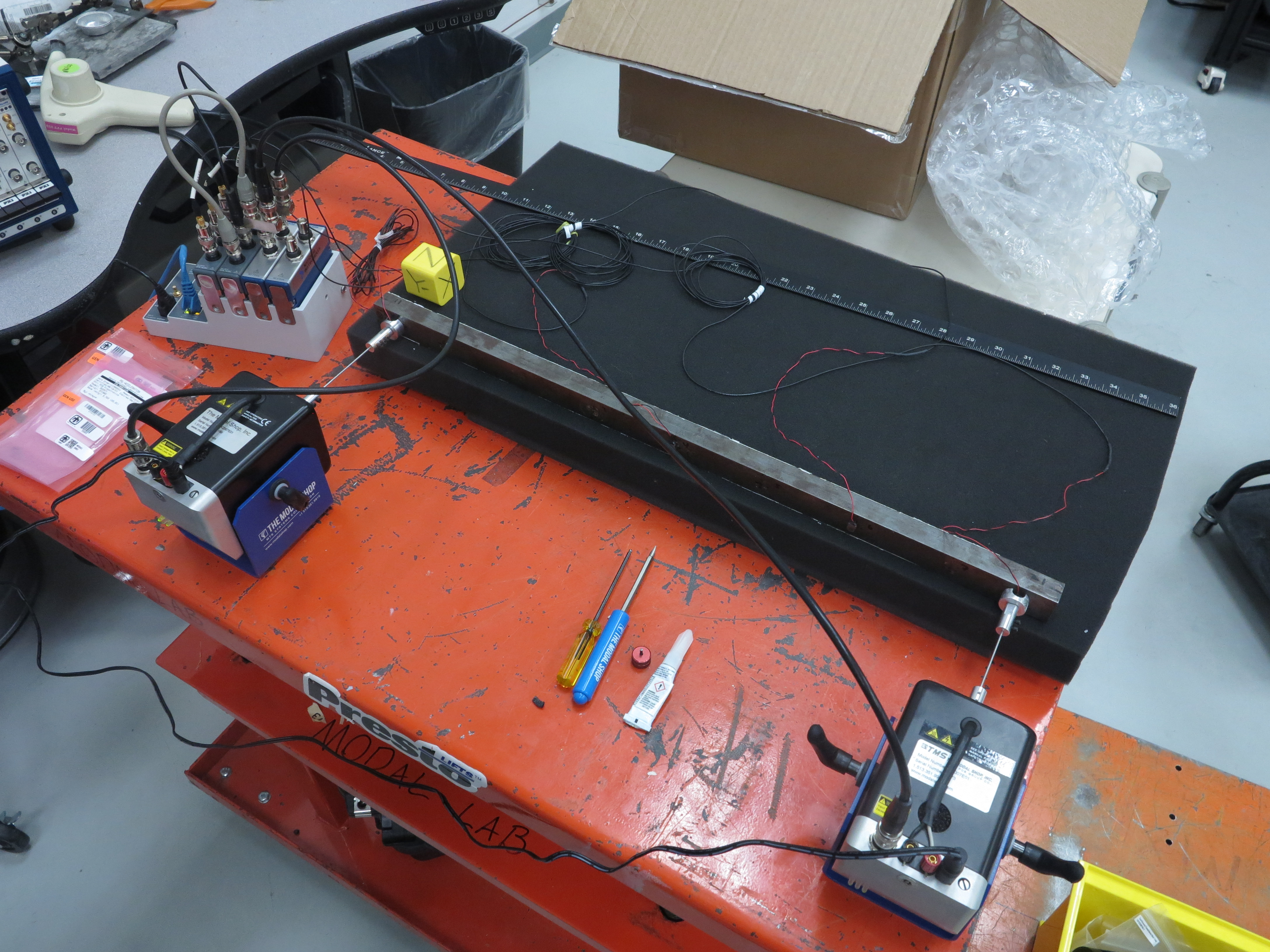

Figure B-46. Vibration test setup showing two shakers attached to the test article.

Because we only have 6 acquisition channels, we must remove the force gauge to make room for the second shaker drive signal. We have now teed the first shaker's drive from cDAQ9185-217ED78Mod3's ao0 channel to the ai1 channel of cDAQ9185-217ED78Mod2. The second shaker will be driven by cDAQ9185-217ED78Mod3's ao1 channel and is teed to the ai2 channel of cDAQ9185-217ED78Mod2. This is shown in Figure B-47.

Figure B-47. cDAQ hardware setup using two shakers.

Our channel table now looks like Figure B-48.

Figure B-48. Channel table for the random vibration test setup

B.3.3. Setting up the Random Vibration Test

Now that the test hardware and channel table are set up, we will set up our random vibration test. We will open Rattlesnake and select the MIMO Random Vibration environment as shown in Figure B-49 .

Figure B-49. Selecting the MIMO Random Vibration environment

On the Data Acquisition Setup tab, we will Load Channel Table to import our Excel channel spreadsheet. We will also set the Sample Rate to 5120. The other parameters can be left at their default values. Figure B-50 shows these parameters.

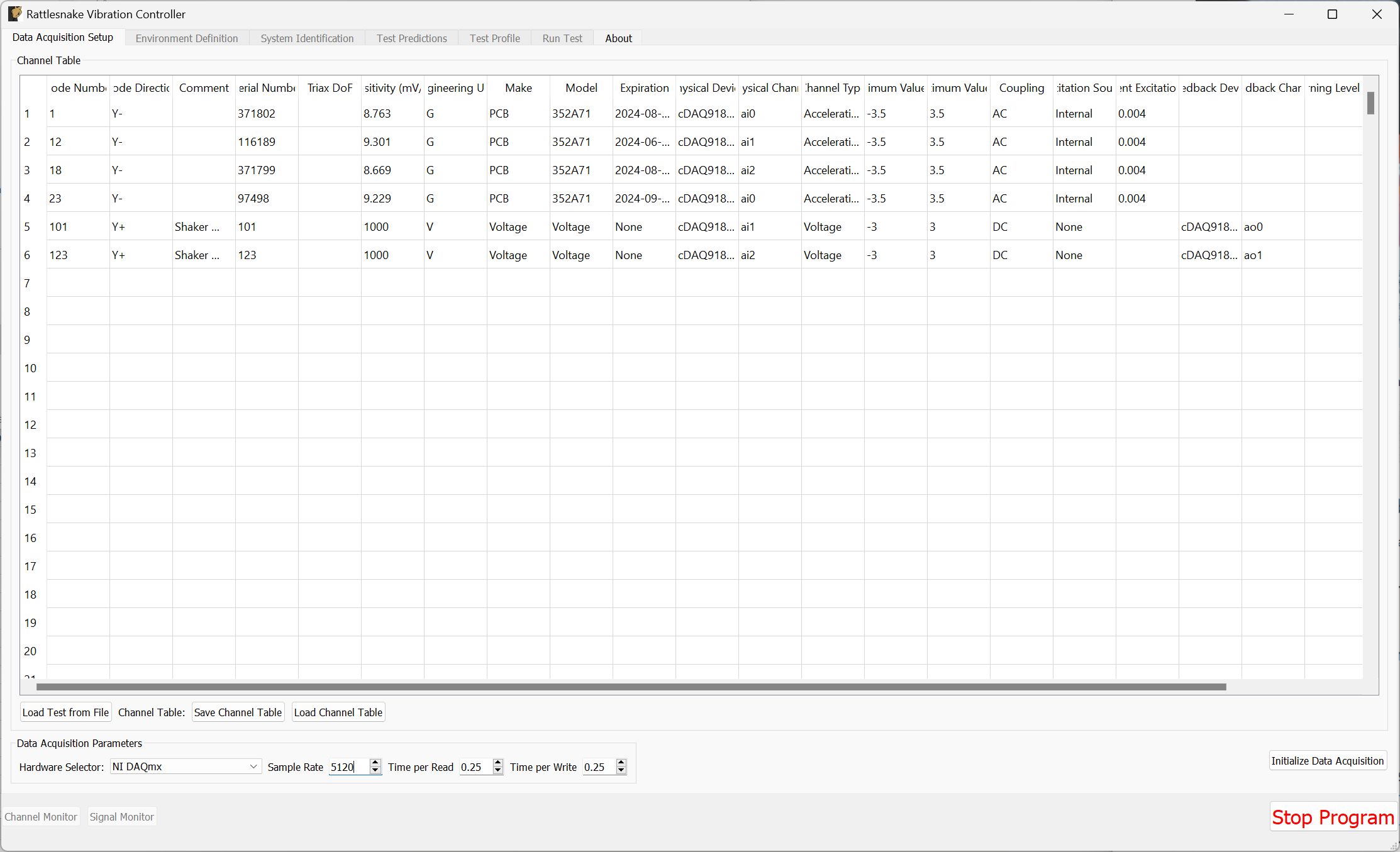

Figure B-50. Data acquisition setup for the vibration tests.

Click the Initialize Data Acquisition button to proceed.

On the Environment Definition tab, we will keep the Samples Per Frame set to 5120, which is consistent with the parameters used to construct the specification. In the Control Python Script section, we will click Load to select a control law. We will use the control_laws.py file, which is located in the control_laws folder of the main Rattlesnake directory. In the Control Python Function drop-down, we will select pseudoinverse_control.

In the Control Channels section, we will select all four acceleration channels, which we will use to control to the environment.

Finally we will click the Load Spec button and navigate to our random specification file random_specification.npz from SDynPy. The specification should then appear in the plots.

With these parameters selected, we can click the Initialize Environments button to proceed. Figure B-51 shows the parameters in the Rattlesnake GUI.

Figure B-51. Random vibration parameters specified in the Rattlesnake GUI.

At this point, we must run the System Identification phase of the controller. We will set the Level to 0.1 V RMS, then click Start to start the system identification. A noise floor check will first be run, then the system identification follows. Rattlesnake will determine the transfer functions between the two shaker drive signals and the four accelerometer channels. When the specified number of averages have been obtained, the System Identification will stop automatically. Figure B-52 shows the system identification phase of the controller.

k

Figure B-52. System identification for the Random Vibration environment.

On the Test Prediction tab, Rattlesnake will make predictions of the voltage that it will need to output to achieve the control specified, as well as the responses predicted to be obtained. Here it is important to note that the output signals are not too large for the shakers. Figure B-53 shows the predictions for this test.

Figure B-53. Test predictions for the random vibration environment

If the predictions look good, we can proceed to the Test Profile tab, which we will again leave blank and click the Initialize Test Profile button to proceed to the Run Test tab.

B.3.4. Running a Random Vibration Test

On the Run Test tab, we see a different interface than the one we saw for the modal test. We can click the Arm Data Acquisition button to enable the Random environment.

To start, we will set the Current Test Level to -12 dB to ensure when we start the test we don't break anything. We will then step up slowly to the full 0 dB level test.

We can then click the Start Environment button to start the test. Figure B-54 shows the GUI prior to starting the test with the test level turned down to -12 dB.

Figure B-54. Ready to start a random vibration test in Rattlesnake

As the test is running, the main Rattlesnake interface will show the sum of APSDs, which is the trace of the CPSD matrix and can be thought of as an average response of the test (Figure B-55). To visualize individual channels, windows can be created in the Data Display section of the window (Figure B-56).

Figure B-55. Rattlesnake GUI showing the average test response

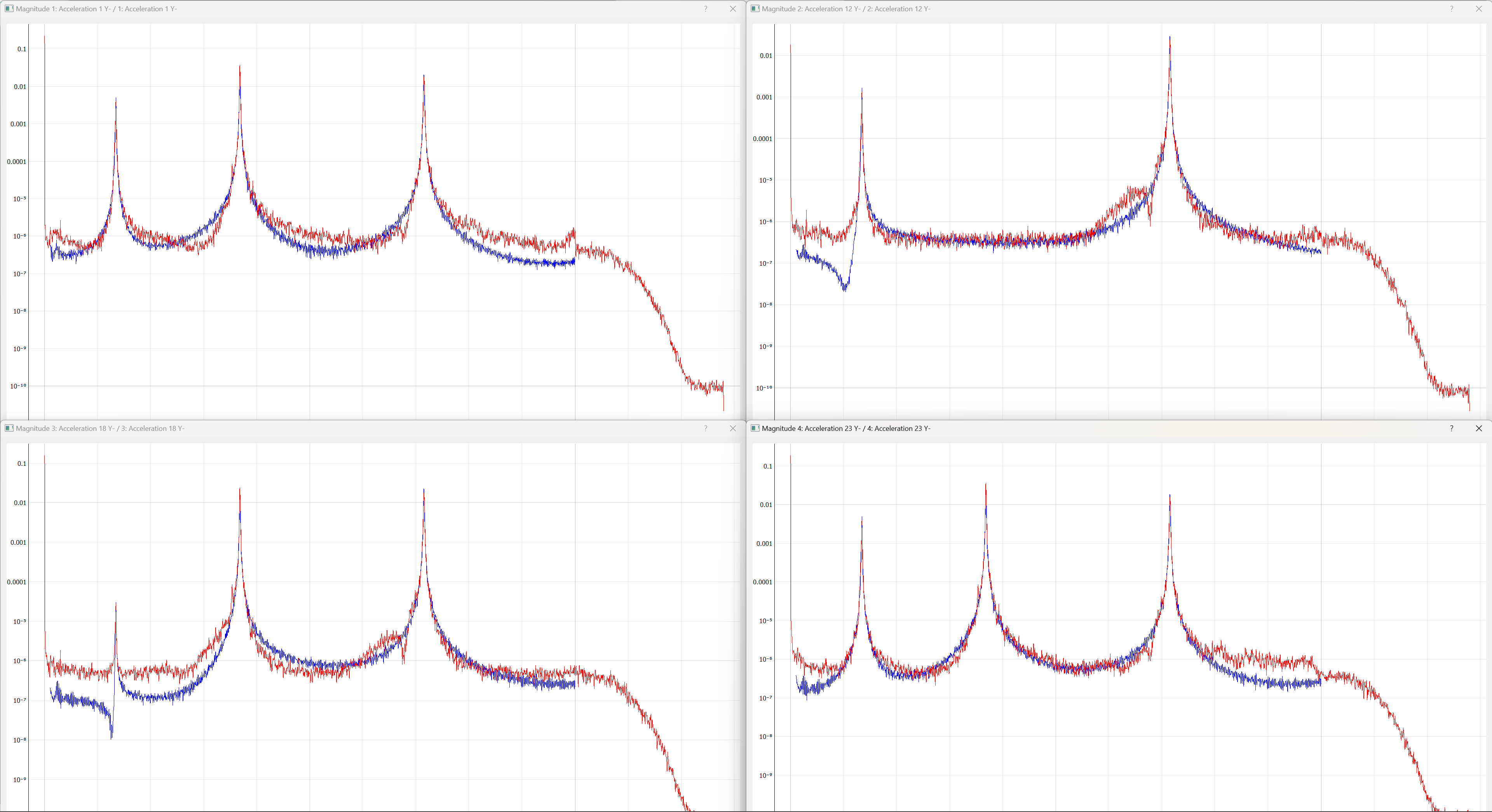

Figure B-56. Individual channel APSDs showing how well each channel is matching the test level.

If the controller is controlling sufficiently well, we can step up the level to 0 dB as shown in Figure B-57 .

\begin{figure}
    \centering
    \includegraphics[width=\linewidth]{figures/example_cdaq_random_vibration_sum_asds_full_level}
    \caption{Vibration control at full specification level.}
    \label{fig:examplecdaqrandomvibrationsumasdsfulllevel}
\end{figure}

B-57. Vibration control at full specification level.

Feel free to investigate other control laws in the control_laws.py file, as they can result in a better control than the standard pseudoinverse control. Figure B-58 shows the results using the match_trace_pseudoinverse approach. In particular, we see the regions between the peaks improve in this case.

Figure B-58. Improved control using a closed loop control law found in match_trace_pseudoinverse.

Clearly, Rattlesnake has obtained relatively good control for this test.

To save data from the test, we can either stream time data using the same approach used previously, or we can simply use the Save Current Spectral Data to save out the current realizations of the control CPSDs, which we will call random_vibration_spectral_results.nc4. This is the quickest way to do comparisons between the specification and the control achieved. We can load this file with SDynPy and use SDynPy to make comparisons between the test and specification. The results are shown in Figure B-59.

control, spec, drives = sdpy.rattlesnake.read_random_spectral_data(
    'random_vibration_spectral_results.nc4')
spec = spec.extract_elements_by_abscissa(20,2000)
control = control.extract_elements_by_abscissa(20,2000)
spec.error_summary(figure_kwargs={'figsize':(10,6)},Control=control)

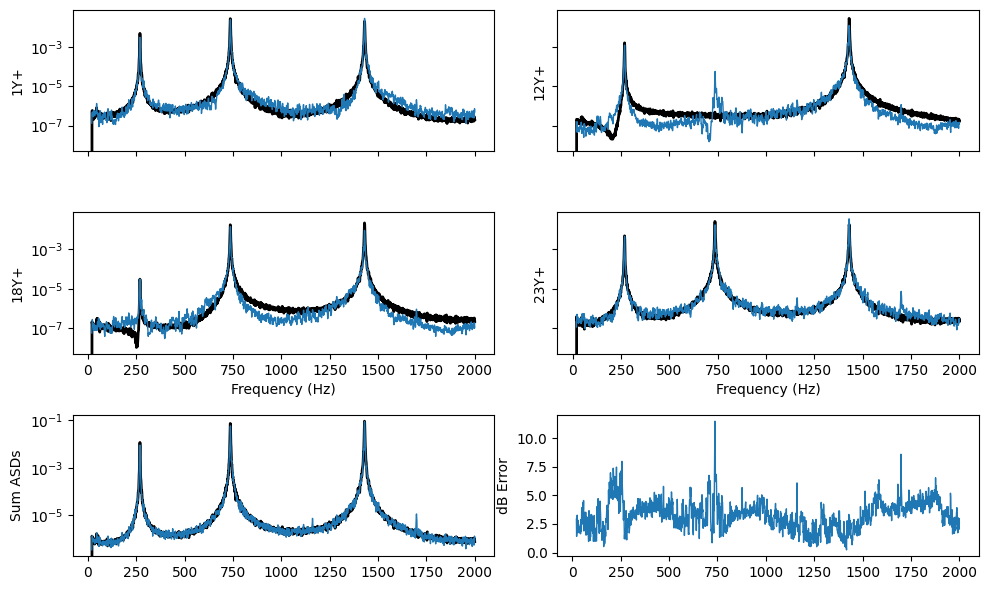

Figure B-59. Error summary between the test and specification for the random vibration control.

We can then Stop Environment, Disarm Data Acquisition and close the software.

B.3.5. Setting up the Transient Vibration Test

The last demonstration will show how we can perform a MIMO Transient environment test. Open Rattlesnake and select the MIMO Transient environment as shown in Figure B-60.

\begin{figure}[H]
    \centering
    \includegraphics[width=0.5\linewidth]{figures/example_cdaq_mimo_transient_selection}
    \caption{Selecting the MIMO Transient environment}
    \label{fig:examplecdaqmimotransientselection}
\end{figure}

Figure B-60. Selecting the MIMO Transient environment

We will set the Data Acquisition Setup tab identical to what was used before, as shown in Figure B-50. Click the Initialize Data Acquisition button to proceed.

On the Environment Definition tab, we will again Load a control law file. This time we will load the transient_control_laws.py file, which contains transient control laws for Rattlesnake. We will select the pseudoinverse_control function.

In the Control Channels section, we will again select all four accelerometer channels as the control channels.

Finally, we will select the Load Signal button to load in our specification file transient_specification.npz. Figure B-61 shows these parameters set in the Rattlesnake GUI. With these parameters set, we will click the Initialize Environments button to proceed.

Figure B-61. Parameters set for the Transient environment in the Rattlesnake GUI.

The Transient environment will also need to perform a System Identification. Again set the Level to 0.1 V RMS and click Start to start the noise floor and system identification. Here it may be useful to look at the Impulse Response, as that is useful to understand how transient control will be performed. This is shown in Figure B-62.

Figure B-62. System Identification for the Transient environment with Impulse Response function shown.

Once the system identification has been performed, Rattlesnake will again make a prediction as to the results of the test and show it on the Test Predictions tab. It will show the peak voltage it aims to output, as well as the response it predicts that it will get compared to the desired response. Figure B-63 shows these predictions.

Figure B-63. Test predictions and voltage that will be output for the transient control.

We can then proceed to the Test Profile tab, click the Initialize Profile button, and we are ready to run the test.

B.3.6. Running a Transient Test

We can now click the Arm Data Acquisition button to enable the Transient control functionality. We can set the Signal Level to -12 dB to start so we don't break anything when we run. If it runs successfully, then we can step back up to full level.

Rattlesnake will identify the control signal as it comes through the data acquisition and surround it with a box, as shown in Figure B-64.

Figure B-64. Running the transient control with the control signal identified.

To visualize individual channels, new windows can be created in the Data Display portion of the window. The four control channels can be seen in Figure B-65

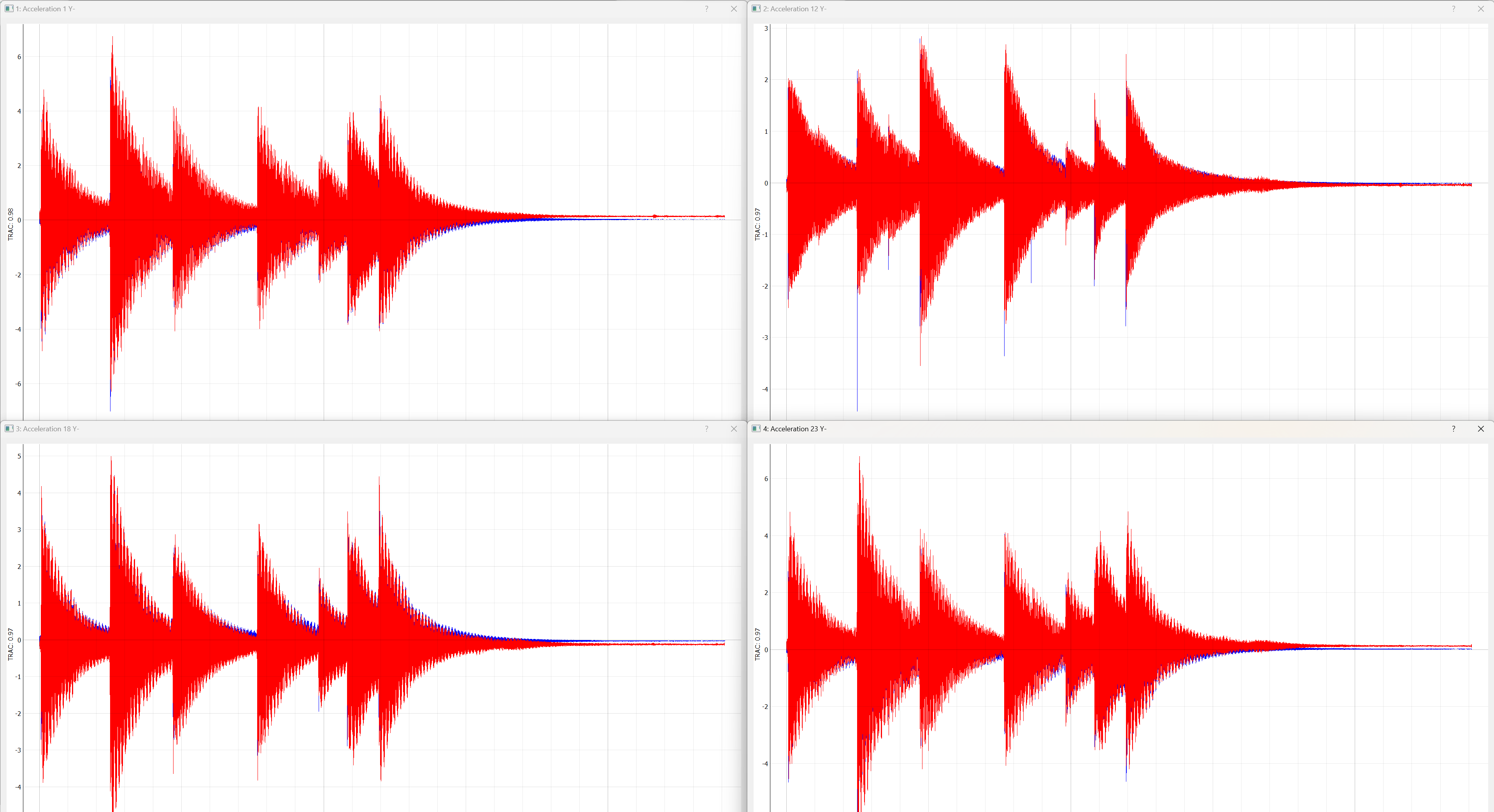

Figure B-65. Control achieved on each control channel in the Transient vibration test.

To save out data, we can click the Save Current Control Data button. We will save the data to the file transient_vibration_control_results.nc4. This can be loaded into SDynPy to do comparisons to the desired signal. It can be useful to zoom in to the starts of each impulse to see that while the ring down does match quite well, the initial impulse cannot be achieved as well with the modal shakers as it was with the impact hammer. These results are shown in Figure B-66.

control, specification, drives = sdpy.rattlesnake.read_transient_control_data(
'transient_vibration_control_results.nc4')

ax = specification.plot(
    one_axis=False, plot_kwargs = {'linewidth':0.5},
    subplots_kwargs = {'figsize':(10,6),'sharex':True,'sharey':True})
for a,c in zip(ax.flatten(),control):
    c.plot(a,plot_kwargs = {'linewidth':0.5})
# Zoom in on a specific portion
a.set_xlim(0.45,0.55)

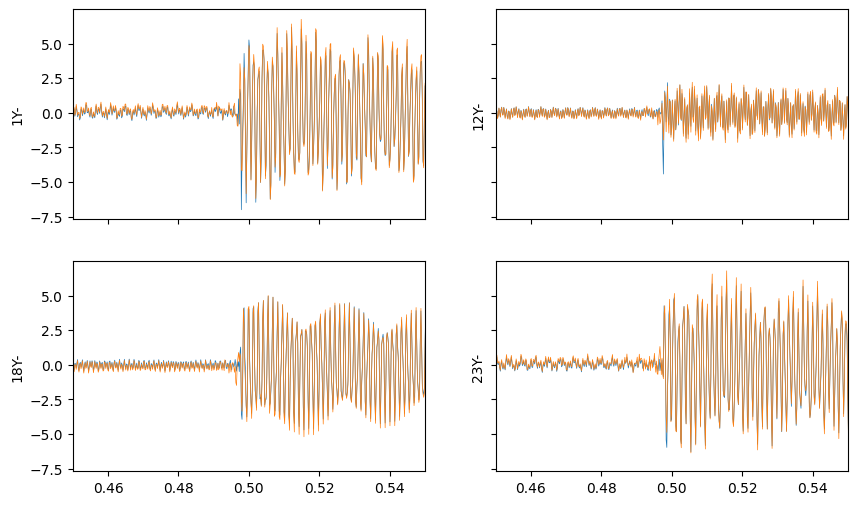

Figure B-66. Zoom into an impact during the transient control showing good results achieved after the impact.

B.4. Summary

This appendix has walked through several example tests using real hardware with Rattlesnake. Users are encouraged to use this appendix as a quick-start guide to using Rattlesnake. A relatively inexpensive NI cDAQ device was used to perform modal and vibration testing on a simple beam structure with minimal instrumentation.

Modal testing was performed using both hammer impacts and shaker excitation. Modes were fit to the data using the SDynPy Python package.

Vibration testing was performed using modal shakers. An impact hammer was used to create an environment that the vibration test would aim to replicate. Both MIMO Random and MIMO transient vibration tests were run, where the MIMO Random attempted replicate a prescribed CPSD matrix, and the MIMO Transient attempted to replicate the time history directly. Both control schemes achieved good results.

Appendix C. Synthetic Example Problem with a SDynPy System

This example problem

Creating a SDynPy System and Specifications for Random and Transient Vibration Tests

Importing Relevant Python Packages

Creating the Demonstration Objects

Selecting Degrees of Freedom

Simulating an Environment

Running a Synthetic Modal Test

Data Acquisition Setup

Environment Definition for Pseudorandom Excitation

Test Profile

Run Test

Other Shaker Excitation Types

Analyzing Modal Data

Running a Synthetic Vibration Test with Rattlesnake

Setting up the Channel Table

Setting up the Random Vibration Test

Running a Random Vibration Test

Setting up the Transient Vibration Test

Running a Transient Test

Summary

Appendix D. Synthetic Example Problem using State Space Metrics

One final example will

Creating a State Space Model

Creating the State Space Model

Running a Synthetic Vibration Test

Data Acquisition Setup

Environment Setup and Running a Synthetic Test

Summary

Contributors

• Daniel P. Rohe
• Ryan Schultz
• Norman Hunter

Development

Documentation

Update the online documentation as follows:

# change to the project directory
cd rattlesnake/rattlesnake-vibration-controller

# activate the virtual environment
source .venv/bin/activate       # for bash shell
source .venv/bin/activate.csh   # for c shell
source .venv/bin/activate.fish  # for fish shell
.\.venv\Scripts\activate        # for powershell

# change to the mdbook directory
cd rattlesnake/rattlesnake-vibration-controller/documentation/mdbook

# update the source markdown (.md) files as necessary in the
# rattlesnake/rattlesnake-vibration-controller/documentation/mdbook/src
# folder

# build the mdbook build, which build the target to the
# rattlesnake/rattlesnake-vibration-controller/documentation/mdbook/book
# folder
mdbook build

# visualize the mdbook in a local web browser
mdbook serve --open

Bibliography

To create the bibliography, use mdbook-bib, a popular and well-documented third-party plugin.

Cargo, the Rust programming language's package manager, is a prerequisite to get the plugin.

1. Install the plugin via Cargo:

cargo install mdbook-bib

2. Prepare your bibliography file:

The mdbook-bib plugin uses the standard BibLaTeX (.bib) format for references. Create a .bib file (e.g., bibliography.bib) in the root of the documentation/mdbook/src/ directory. Populate the file with references, e.g.,

@book{knuth1986computer,
  title={The Computer Science of TeX and Metafont: An Inaugural Lecture},
  author={Knuth, Donald E},
  year={1986},
  publisher={American Mathematical Society}
}

3. Configure book.toml

Tell mdBook to use the mdbook-bib preprocessor and specify the path to the bibliography file in the book.toml configuration file. Add the following section to the book.toml:

[preprocessor.bib]
# The name of your .bib file, relative to the src directory
bibliography = "bibliography.bib"

# Optional: Set the title for the automatically generated bibliography chapter
title = "Bibliography"

# Optional: Render the entire bibliography ("all") or only cited entries ("cited")
render-bib = "cited"

4. Add in-text citations

In a markdown file, use {{ and }} to surround the citation key, # cite key, for example:

{{ #cite knuth1986computer }}

5. Build the book

Run the mdbook build command. The preprocessor will automatically run, finding the citations, generating the citation numbering, and creating a new chapter containing the formatted bibliography based on the entries in the .bib file.

mdbook build

Line Numbering

In the python code blocks, line number is not present by default. To create line numbering, use cargo to install the mdbook-numbering package:

cargo install mdbook-numbering

Configure book.toml to include

# https://crates.io/crates/mdbook-numbering
# requires mdbook 0.5.0 and above.
# Add the preprocessor to the build pipeline
[preprocessor.numbering]
# Optional: Configuration for code block line numbering
[preprocessor.numbering.code]
enable = true

Setting enable = true under [preprocessor.numbering.code] specifically turns on line numbering for all code blocks.

Once configured, any standard Markdown code block, including one for Python, will automatically have line numbers when the book is built.

LaTeX Reformatting

In the process of translating the original SAND report from LaTeX into mdbooks, the following were helpful:

# Alt+Cmd+F (Replace)
# regex ON
\\inlineCode\{(.+?)\}
`$1`
