1. Introduction

PEAT (Process Extraction and Analysis Tool) is a multifunction utility and library for interrogating and mapping ICS and OT devices, including network discovery, acquiring and parsing artifacts (firmware, logic, etc.), uploading artifacts, and sending commands. It runs on most systems, including Linux, Windows, macOS, and as a Docker Container. Refer to Supported platforms for full details on supported platforms.

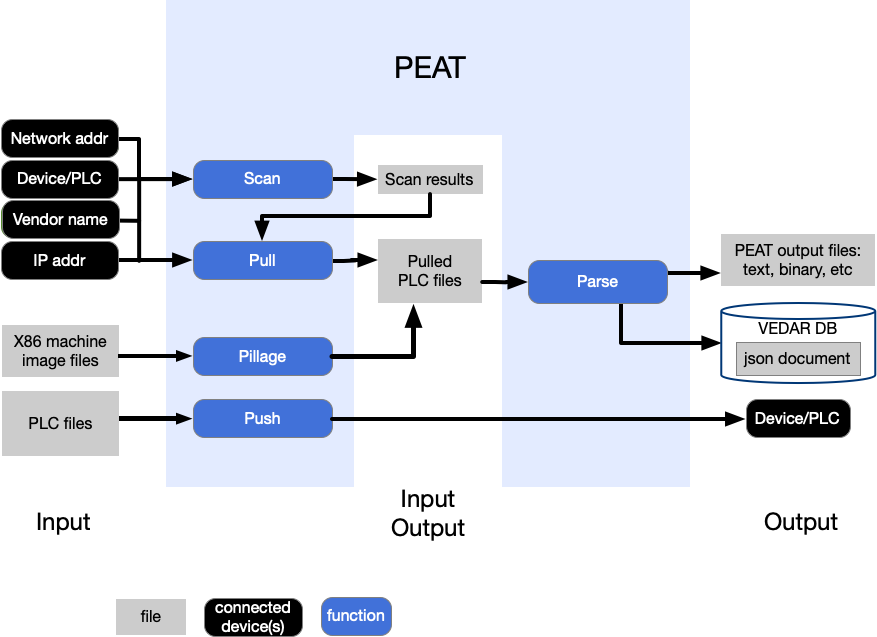

1.1. High-level flow

1.2. Supported ICS/OT devices

1.2.1. Description of functions

• Scan: discover and identify the device on a network and gather basic information about it (such as the vendor, model and other basic information)

• Pull: actively interrogate devices to retrieve detailed information and artifacts (e.g. configurations, logic, firmware, logs, etc.) from a device via a communication link (Ethernet, serial, etc.).

• Parse: ability to extract information from the device’s configuration, programming, or firmware files. This can be file(s) from the device itself or exported from the vendor software used to program the device, with the latter form commonly known as a “project file”. The amount of information extracted varies by device and TRL level.

1.2.2. CSV files

CSV files for the tables that are listed in the sections that follow.

• Supported devices: supported_devices.csv

• Unintegrated devices: unintegrated_devices.csv

• TCP/IP protocols currently used by PEAT: tcp_ip_protocols_used_by_peat.csv

1.2.3. Included devices

Devices that are included with PEAT “out of the box” and are fully-integrated as PEAT modules. The “Firmware Versions” column lists firmware versions that PEAT has been known to work with, and is not exhaustive or indicative of if PEAT will or will not work with a particular firmware version.

Warning

The estimated Technology Readiness Levels (TRL) for each module are estimates only and are only intended to provide insight into the maturity of a module’s development level and reliability

Vendor	Device	Supported Functions	Protocols	Firmware Versions	Notes	Estimated TRL
Rockwell	Allen-Bradley ControlLogix 1756 PLC. L7 and L8-series CPUs. EN2T/D, EWEB, EN2TR, and EN2TR/C communication modules and L8 CPU built-in Ethernet.	Scan, Pull logic, Push firmware, Parse pulled logic	FTP, HTTP, SNMP, CIP	L74/B CPU v30.13, L74/B EN2T/D v10.7, L74/B EWEB/A v4.11, L81E/B CPU v33.11, L81E/B EN2TR/C v11.2, L81E/B EWEB/A v5.1, L83E/B CPU v33.11, L83E/B EN4TR/A v2.1, L83E/B IF8/A v1.5, L83E/B IF8/A v1.5	This has been run with some success against a PanelView HMI, so it may work with those devices and possibly other Rockwell CIP devices. Supported protocols and amount of data collected vary by model and type of the communication module being interrogated. For example, the L8-series CPUs built-in Ethernet interface doesn’t have a HTTP interface PEAT can retrieve data from. Why TRL 6? The module was tested against a significant number of PLCs with real logic in a high-fidelity emulation in Summer 2021, which meets the requirement of testing a prototype or representative of a deliverable in an actual environment or in a high-fidelity laboratory environment that emulates the actual environment. PEAT module: ControlLogix. Device OS: VxWorks (version 6 or 7, not sure).	TRL 6
Rockwell	Studio5000/RSLogix5000 L5X files	Parse			Parsing of .l5x files exported from Rockwell Studio5000/RSLogix5000. This is the engineering software used for Rockwell/Allen-Bradley PLCs, such as the ControlLogix, MicroLogix, and others. PEAT module: L5X.	TRL 4
Rockwell	PanelView Plus HMI	Parse	N/A	WindowsCE 6.0	Parsing of output from the wince_pillage.exe tool. The wince_pillage tool collects data from Windows CE devices and outputs a JSON file. The WindowsCE PEAT module simply parses the output of that tool. PEAT module: WindowsCE. Device OS: Windows CE 6.0.	TRL 4
Camlin	Totus G9 Dissolved Gas Analyzer (DGA)	Scan, Pull config	HTTP		PEAT module: Totus. Device OS: Husarz (Camlin GNU/Linux Distribution) 2.2.4 (morty), Linux 3.10.107.	TRL 5
GE	Multilin D25 RTU	Pull config, logs, and logic	Telnet		Why TRL 5? Used in several exercises in a realistic environment. PEAT module: GERTU. Device OS: Unknown (TBD).	TRL 5
GE	Multilin T60 and L90 relays	Pull config, logs, and logic	HTTP		Why TRL 5? Used in several exercises in a realistic environment. Should be compatible with D30 and N60 as well, but these have not been tested. PEAT module: GERelay. Device OS: Unknown (TBD).	TRL 5
GE	Multilin F35 relays	Pull config, logs, and logic	HTTP		Compatibility of GERelay module with the F35 Relay has not been tested after major integration changes that were made in 2021 since we don’t have one available for testing. Everything should still work, but it’s not TRL 5. PEAT module: GERelay. Device OS: Unknown (TBD).	TRL 4
SEL	311C	Scan, Pull basic info, Parse config, Parse project file, Pull memory	Telnet	311C-2 R508.V0 (D2015-02-19)	PEAT has been tested against at least one SEL-311C over Telnet, with some success. PEAT module: SELRelay. Device OS: ThreadX.	TRL 4
SEL	311L	Scan, Pull basic info, Parse config, Parse project file, Pull memory	Telnet	311L-7 R502.V0 (D2014-11-06)	PEAT is able to pull basic information from the 311L, but not full configs, due to lack of fil command. PEAT is able to read live device memory, and verify regions pulled. A small section of sections can be pulled or all of memory. This is configurable in the PEAT YAML config file. PEAT module: SELRelay. Device OS: ThreadX.	TRL 5
SEL	300G, 387, 587Z	Scan, Pull config, Parse config, Parse project file	FTP, Telnet		Active operations (Scan, Pull) have NOT been tested against actual devices for these models. We’re confident they’ll work like the other relays, perhaps with slightly different credentials, however your mileage may vary. PEAT module: SELRelay. Device OS: ThreadX.	TRL 4
SEL	351, 351S, 451 protection relays	Scan, Pull config, Pull logs, Push config, Parse config, Parse project file	FTP, Telnet, HTTP, HTTPS, RS-232 (Serial)	351 Firmware R510.V0 (D2011-04-29), 351 Boot Firmware R102, 351S Firmware R516.V2 (D2019-01-11), 351S Boot Firmware RS209.V0, 451 Firmware R322.V0 (D2018-06-30), 451 Boot Firmware R209.V0	PEAT module: SELRelay. Device OS: ThreadX	TRL 6
SEL	411L, 487E protection relays	Scan, Pull config, Parse config, Parse project file	FTP, Telnet	411L Firmware R124.V0 (D2019-01-30) 487E Firmware R317.V1 (D2019-02-11)	PEAT module: SELRelay. Device OS: ThreadX.	TRL 5
SEL	700G, 710, 751 generator and motor protection relays	Scan, Pull config, Push config, Parse config, Parse project file	FTP, Telnet	700G Firmware R200.V0 (D2018-06-29), 710 Firmware R411.V0 (D2017-06-23), 751 Firmware R201.V1 (D2018-09-21), 751 Firmware R300.V3 (D2021-01-04)	PEAT module: SELRelay. Device OS: ThreadX.	TRL 6
SEL	2032 Communications Processor	Scan, Pull config, Push config, Parse config, Parse project file	FTP, Telnet	2032 Firmware R115.V1 (D2015-10-28)	PEAT module: SELRelay. Partial support. PEAT will collect basic identification information and download files, but it doesn’t do anything RTU-specific at the moment for this device. Device OS: Unknown (likely ThreadX).	TRL 4
SEL	3530, 3530-4, 3350 RTACs	Scan, Pull config, Parse project file	HTTP, PostgreSQL	3530 Firmware R144.V2 (D2019-02-16), 3530 Firmware R149.V1 (D2021-12-14), 3530-4 Firmware R144.V1 (D2019-01-11), 3350 Firmware R152.V0 (D2023-11-07)	PEAT module: SELRTAC. Device OS: Linux (with custom kernel modules and whitelisting).	TRL 6
SEL	3620 Security Gateway	Scan, Pull config	HTTPS	SEL-3620 R212 V0 Z017006 (D2022-10-03)	PEAT module: SEL3620	TRL 3
Sandia	SCEPTRE Virtual Field Device	Scan, Pull config, Pull firmware, Push firmware, Push config, Parse config	FTP		PEAT module: SCEPTRE. Device OS: Ubuntu 14.04 LTS.	TRL 6
Siemens	Siprotec 4 relay	Scan, Pull network config	HTTP, SNMP		PEAT module: Siprotec. Device OS: Unknown (TBD).	TRL 4
Siemens	SIMATIC TP700 Comfort HMI	Parse		WindowsCE 6.0	Parsing of output from the wince_pillage.exe tool. The wince_pillage tool collects data from Windows CE devices and outputs a JSON file. The WindowsCE PEAT module simply parses the output of that tool. PEAT module: WindowsCE. Device OS: Windows CE 6.0.	TRL 4
Schneider Electric	Modicon M340 PLC (BMXP 3020 Ethernet module)	Scan, Pull config, Pull logic, Parse config, Parse logic	FTP, SNMP, Modbus/TCP (UMAS)	CPU v02.90 IR2, ETH v03.20 IR2	This has been run once with some success against a Quantum 140 PLC, so it may work against that device. PEAT module: M340. Device OS: VxWorks version 7.	TRL 6
Schneider Electric	Sage 2400 and 3030M RTUs	Scan, Pull config, Parse config, Parse firmware (rudimentary support for firmware parsing)	FTP, Telnet, SSH, HTTP, HTTPS		PEAT module: Sage. Device OS: VxWorks 6. Other models than 2400 and 3030M may work as well if they share the same baseboard controller as these devices, since Schneider reuses the baseboards with different motherboards and chassis. Note: the Sage RTUs were originally developed by Telvent until they were acquired by Schneider Electric in 2011. This is why there are references to ‘Telvent’ in various places in configs, and they were formerly called ‘Telvent Sage RTUs’.	TRL 5
Woodward	2301E	Scan, Pull config	RS-232 serial (Servlink protocol)		PEAT module: WDW2301E. Device OS: VxWorks (possibly 6).	TRL 4
Woodward	easYgen 3500XT	Scan, Pull config	FTP, ServLink/TCP, RS-232 serial (Servlink protocol)		The parsing code for .wset and .tc files isn’t integrated yet (as of 2022). PEAT module: Easygen3500XT. Device OS: VxWorks 6.	TRL 4
Woodward	MicroNet Plus	Scan, Pull config, logic, and logs	FTP		PEAT module: MicroNet. Device OS: VxWorks 5.5.1.	TRL 4
Fortinet	FortiGate FG-100 Firewall	Parse config, Parse logs	N/A	7.0.2	PEAT module: Fortigate.	TRL 3
iDirect	iDirect X-Series modems (X3, X5, X7)	Scan, Pull config and logs	SSH, HTTPS		PEAT module: Idirect	TRL 4
Windows	WindowsCE devices	Parse config	N/A	WindowsCE 6.0	Special functionality leveraging a Windows binary called wince_pillage.exe that is deployed on Windows CE device, collects data, then the collected info is parsed by PEAT. Tested with Siemens TP700 Comfort HMI Panel and Rockwell PanelView Plus 7 Standard HMI. PEAT module: WindowsCE.	TRL 4
UEFI	UEFI SPIExtract dump parser	Parse	N/A		PEAT module for parsing a UEFI SPIExtract Dump. Right now this tool will parse *spi.*.txt files and *hashes.json files.	TRL 3

1.2.4. Unintegrated devices

Devices that have code and some amount of work done for, but are not included with PEAT “out of the box” and aren’t yet integrated as PEAT modules. The analysis work is done, they just need a modest amount of development effort to integrate them as PEAT modules.

Vendor	Device	Supported Functions	Protocols	Notes	Estimated TRL
ABB	RTU 560 RTU	Pull config, Pull firmware	HTTP	Standalone module. Not currently open-source.	TRL 2
Allen-Bradley	Micrologix 1100 PLC	N/A	CIP	Exists as an Independent script. Not currently open-source.	TRL 2
Siemens	S7 PLCs	N/A	SNAP7	Exists as an Independent script. Not currently open-source.	TRL 2

1.2.5. TCP/IP protocols currently used by PEAT

Protocol	Port	Transport protocol(s)	PEAT Module(s)	Notes
FTP	21	TCP	ControlLogix, SELRelay, SCEPTRE, M340, ION, MicroNet, Sage, Easygen3500XT
SSH	22	TCP	Sage, ION, Idirect
SFTP	22	TCP	Sage	SFTP is encrypted FTP over a SSH tunnel.
Telnet	23	TCP	ION, SELRelay, GERTU, Sage
HTTP	80	TCP	ControlLogix, ION, SELRTAC, SELRelay, Siprotec, Sage, GERelay, Totus
HTTPS	443	TCP	ControlLogix, ION, SELRTAC, Siprotec, SELRelay, SEL3620, Sage, Idirect
SNMP	161	UDP	ControlLogix, M340, Siprotec	SNMP (Simple Network Management Protocol).
Modbus/TCP	502	TCP	M340
UMAS	502	TCP	M340	UMAS is a proprietary protocol built on top of Modbus/TCP. Used by Schneider Electric Modicon devices.
ServLink/TCP	666, 667	TCP	Easygen3500XT	ServLink is a Woodward-proprietary protocol for communicating with various devices over either TCP or Serial, including the easYgen 3500XT, 2301E, and potentially other devices. ServLink typically uses port 666, but it may use port 667.
postgres	5432	TCP	SELRTAC	PostgreSQL database communication. Commonly known as the ‘wire protocol’.
ION	7700, 7701, 7702	TCP	ION	Proprietary protocol for Schneider Electric PowerLogic ION power meters. Used for reading and updating device configuration, firmware updates, and general communications between ION Setup software and a ION meter. ION uses port 7700 by default, but can also use ports 7701 or 7702.
CIP	44818	TCP, UDP	ControlLogix	CIP (Common Industrial Protocol) is a Rockwell/Allen-Bradley-developed protocol used by Rockwell devices and others.

1.3. Why use peat?

1.3.1. Use cases

• Network inventory, enumeration, discovery. Going into a unknown network, what’s here? Even on a known system, documentation is often out of date.

• Forensics and incident response. If an incident happened, run PEAT to collect logs, file artifacts, hashes, and carve out memory reads. Was the firmware modified? The logic? Is the config correct and expected? What happened in the logs?

• Monitoring for malicious activity. Regular pulls over time. Compare them using Hipparchus, or analytics and anomaly detection with Archimedes.

• Backups. There are 100 relays, point a PEAT pull at all of them, backup done in 10 minutes. Imagine having to do that individually with SEL aCCelerator…your engineer will be unhappy. And how do you automate that?

• Health monitoring. Ensure the system is healthy and no errors are in the logs. PEAT can help fill the gaps where vendor capabilities are lacking.

• Recovery. PEAT push can upload configs or firmware to bring a device back to a known-good state (if it exists).

• Red Team tool

  • Sneakypeat is a lighter weight PEAT designed to be used for red team exercises.

  • PEAT can be used as a reconnisance tool during red team exercises or engagements.

1.3.2. Why use PEAT instead of Vendor software or other tools?

• Immensely difficult or even impossible to automate. Getting data out is hard, let alone operating it.

• Licensing costs/ability (there is vendor software that costs ~$11,000 USD for a SINGLE license).

• Often can’t run headless, need a heavy Windows VM, and it’s a GUI (and that Windows VM needs a license…).

• Automating Windows GUI is time consuming and brittle - This is typically just a one-off type of ability that’s expensive to develop and maintain.

• Vendor software usually only supports their latest and greatest, older devices require older software, which results in multiple bespoke VMs that require upkeep.

• Data is limited to what vendor has chosen to implement in this particular software, not what’s possible to obtain. They do not (typically) pull down raw meter values, certain configuration values, running process, network states, raw files, file hashes, etc.

• It isn’t very portable, and system requirements are heavy (virtualization software, system with resources to run a VM, can’t do headless)

• Doesn’t scale, if you want to pull from 10 power meters at the same time, you’ll need 10 VMs.

• Performance. PEAT is often faster.

• System load. Few or no ways to limit what data is pulled, it could pull a little or a ton of data, depending on the software, causing undesirable load on the device. PEAT also causes load, but you can configure it to just pull what’s needed.

• Standardized output. PEAT standardizes the data so downstream tools and SIEM platforms can ingest the data. - There is Consistency across vendors by using PEAT - The power of a defined data model and standardized schema

• Integration. PEAT has a variety of output formats that are both machine-parsable by other tools, and readable by humans. Additionally, it integrates with Elasticsearch.

• Automation. PEAT is trivial to automate, and in fact has been automated many times in the past.
