Single-Fidelity Triangular Maps Tutorial¶
This notebook is a compact, end-to-end introduction to the single-fidelity TriangularMap API. We learn a monotone lower-triangular map that pushes a two-dimensional target density \(\pi_0\) to a standard Gaussian reference density \(\eta\).
We construct and train the map twice—once from a total order and once from explicit multi-index sets—then use the total-order fit, denoted \(\widehat{\boldsymbol{S}}^{\mathrm{SF}}\), for pushforwards, inverse sampling, conditional sampling, and density evaluation.
Notation used in this notebook¶
We construct a transport map \(\widehat{\boldsymbol{S}}^{\mathrm{SF}}\) from samples. We use \(d=2\), target
\(\pi_0\), dataset \(\mathcal X_0=\{x_0^{(j)}\}_{j=1}^{N_0}\), and reference
\(\eta=\mathcal N(0,I)\). The executable names X_0, N_0, S_hat_SF, and
S_hat_SF_MI are ASCII spellings of those symbols.
1. The analytic banana example¶
Let \(Z=(Z_1,Z_2)\sim\eta=\mathcal N(0,I)\) and define the target samples by
This construction gives rise to a unique monotone lower-triangular map \(\boldsymbol{S}\) (Knothe–Rosenblatt rearrangement) that pushes the target to the reference,
Its Jacobian determinant is one, so \(\log\pi(x)=\log\eta(\boldsymbol{S}(x))\). The ordering is useful because the exact conditional is also known:
We call the learned forward map \(\widehat{\boldsymbol{S}}^{\mathrm{SF}}\).
import time
from IPython.display import Markdown, display
import matplotlib.pyplot as plt
import numpy as np
from mftt import MapParams, OptimizationParams, Reference, TriangularMap
SEED = 101
rng = np.random.default_rng(SEED)
BEND = 0.5 # curvature of banana
INPUT_DIM = 2
TARGET_COLOR = "#E76F51"
REFERENCE_COLOR = "#457B9D"
LEARNED_COLOR = "#2A9D8F"
SPARSE_COLOR = "#8E5EA2"
plt.rcParams.update({
"figure.dpi": 110,
"axes.spines.top": False,
"axes.spines.right": False,
"axes.labelsize": 11,
"axes.titlesize": 12,
"font.size": 10,
})
2. Sampling and density helpers¶
All helpers below work on batches with shape (n_samples, 2). They let us compare the learned map with the exact distribution without relying on any extra package.
def banana_sample(n_samples, rng, bend=BEND):
"""Draw samples from pi by applying the exact inverse S^{-1}."""
z = rng.standard_normal((n_samples, 2))
return S_0_inverse(z, bend=bend)
def S_0(x, bend=BEND):
"""Analytic Knothe--Rosenblatt map S: pi -> eta."""
x = np.asarray(x, dtype=float)
z = x.copy()
z[:, 1] = x[:, 1] - bend * (x[:, 0] ** 2 - 1.0)
return z
def S_0_inverse(z, bend=BEND):
"""Analytic inverse S^{-1}: eta -> pi."""
z = np.asarray(z, dtype=float)
x = z.copy()
x[:, 1] = z[:, 1] + bend * (z[:, 0] ** 2 - 1.0)
return x
def standard_normal_logpdf(z):
z = np.asarray(z, dtype=float)
return -0.5 * np.sum(z * z, axis=1) - np.log(2.0 * np.pi)
def banana_logpdf(x, bend=BEND):
return standard_normal_logpdf(S_0(x, bend=bend))
def normal_pdf_1d(values, mean=0.0, std=1.0):
values = np.asarray(values, dtype=float)
scaled = (values - mean) / std
return np.exp(-0.5 * scaled * scaled) / (np.sqrt(2.0 * np.pi) * std)
def make_grid(x_limits, y_limits, n=220):
x1 = np.linspace(*x_limits, n)
x2 = np.linspace(*y_limits, n)
xx, yy = np.meshgrid(x1, x2)
return xx, yy, np.column_stack((xx.ravel(), yy.ravel()))
def style_joint_axis(ax, x_label=r"$x_1$", y_label=r"$x_2$", limits=(-4.0, 4.0, -4.5, 4.5)):
ax.set(xlabel=x_label, ylabel=y_label, xlim=limits[:2], ylim=limits[2:])
ax.set_aspect("equal", adjustable="box")
# Verify the analytic pair before learning anything.
analytic_probe = banana_sample(128, rng)
assert np.allclose(S_0_inverse(S_0(analytic_probe)), analytic_probe)

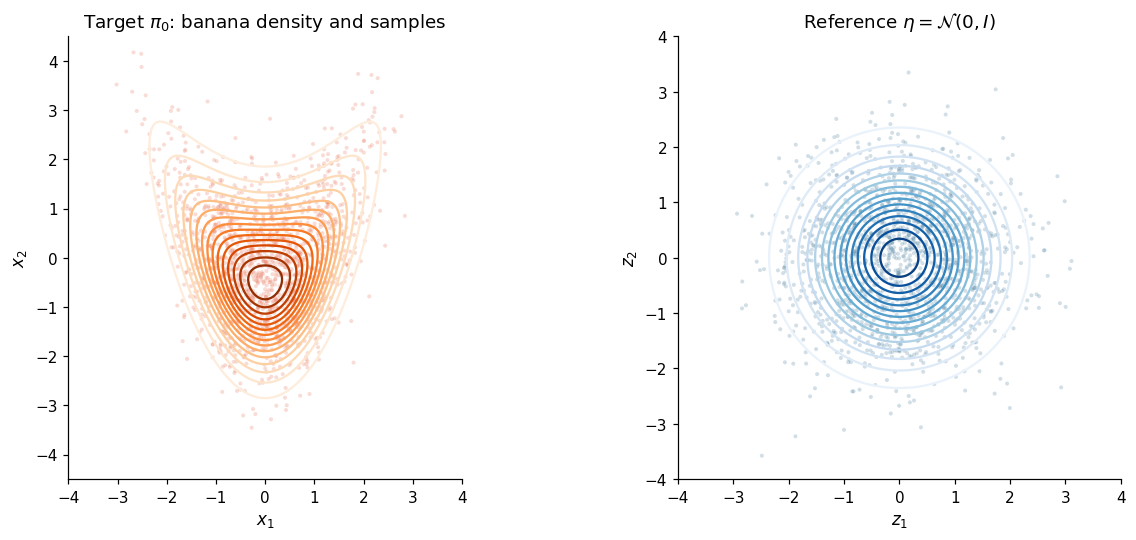

3. Target and reference at a glance¶
The contours plots show the true target and reference densities. The overlayed scatter plots show independent samples from these densities.
# Define number of training, testing, and display points
N_0 = 10000
N_test = 6000
N_display = 1500
X_0 = banana_sample(N_0, rng)
x_0_test = banana_sample(N_test, rng)
z_reference_display = rng.standard_normal((N_display, INPUT_DIM))
x_xx, x_yy, x_grid = make_grid((-4.0, 4.0), (-4.5, 4.5))
z_xx, z_yy, z_grid = make_grid((-4.0, 4.0), (-4.0, 4.0))
true_pi_0_density = np.exp(banana_logpdf(x_grid)).reshape(x_xx.shape)
reference_density = np.exp(standard_normal_logpdf(z_grid)).reshape(z_xx.shape)
fig, axes = plt.subplots(1, 2, figsize=(11.5, 4.8), constrained_layout=True)
axes[0].contour(x_xx, x_yy, true_pi_0_density, levels=18, cmap="Oranges")
axes[0].scatter(X_0[:N_display, 0], X_0[:N_display, 1], s=7, alpha=0.24, color=TARGET_COLOR, edgecolors="none")
axes[0].set_title(r"Target $\pi_0$: banana density and samples")
style_joint_axis(axes[0])
axes[1].contour(z_xx, z_yy, reference_density, levels=18, cmap="Blues")
axes[1].scatter(z_reference_display[:, 0], z_reference_display[:, 1], s=7, alpha=0.24, color=REFERENCE_COLOR, edgecolors="none")
axes[1].set_title(r"Reference $\eta=\mathcal{N}(0,I)$")
style_joint_axis(axes[1], r"$z_1$", r"$z_2$", (-4.0, 4.0, -4.0, 4.0))
plt.show()
4. Construct two maps¶
Map components are parameterized by multivariate Hermite functions. These can be specified through a total order or through an explicit list of multi-indices. We exercise both map construction methods below. The total-order construction uses total order 2, and the explicit construction specifies per-component multi-indices:
Component 1 uses
[(0,), (1,)]Component 2 uses
[(0, 0), (0, 1), (2, 0)]
We require all components to be at least total order 1, enabling consistent identity initialization.
# Specify reference density
reference = Reference.standard_normal(INPUT_DIM)
# Specify optimization parameters: supports scipy BFGS and L-BFGS-B
optimization = OptimizationParams(
optimizer="BFGS",
reg_cst=1e-10,
gtol=1e-8,
maxiter=200,
)
# Primary learned map: \widehat{\boldsymbol{S}}^{\mathrm{SF}}, specified only by total order.
total_order_params = MapParams(total_order=2, optimization=optimization)
S_hat_SF = TriangularMap(X_0, total_order_params, reference=reference)
# Alternative learned map: \widehat{\boldsymbol{S}}^{\mathrm{SF}}_{MI}, specified by multi-index sets.
explicit_multi_index_sets = [
[(0,), (1,)],
[(0, 0), (0, 1), (2, 0)],
]
S_hat_SF_MI = TriangularMap.from_multi_index_sets(
X_0,
explicit_multi_index_sets,
reference=reference,
optimization=optimization,
)
# You can get a human readable description of the maps through the print command:
print(S_hat_SF)
print(S_hat_SF_MI)
TriangularMap(family=single_fidelity, input_dim=2, basis=total_order(2), components=2, samples=10000, reference=StandardNormal(dim=2))
TriangularMap(family=single_fidelity, input_dim=2, basis=explicit_multi_indices, component_terms=[2, 3], component_max_degrees=[1, 2], components=2, samples=10000, reference=StandardNormal(dim=2))
5. Training the maps¶
Map training is accomplished via TriangularMap.train().
# Train total-order map
start = time.perf_counter()
S_hat_SF.train(verbose=True)
total_order_seconds = time.perf_counter() - start
# Train explicit multi-index map
start = time.perf_counter()
S_hat_SF_MI.train(verbose=True)
explicit_seconds = time.perf_counter() - start
print("Total-order map coefficients:", S_hat_SF.coeffs.size)
print("Explicit multi-index map coefficients:", S_hat_SF_MI.coeffs.size)
print(f"Total-order training time: {total_order_seconds:.2f} s")
print(f"Explicit multi-index training time: {explicit_seconds:.2f} s")
print("\nTotal-order optimizer diagnostics:")
print(S_hat_SF.optimization_diagnostics())
print("\nExplicit multi-index optimizer diagnostics:")
print(S_hat_SF_MI.optimization_diagnostics())
Completed training component 1/2.
Completed training component 2/2.
Completed training component 1/2.
Completed training component 2/2.
Total-order map coefficients: 9
Explicit multi-index map coefficients: 5
Total-order training time: 1.19 s
Explicit multi-index training time: 0.27 s
Total-order optimizer diagnostics:
{'components': [{'success': True, 'status': 0, 'message': 'Optimization terminated successfully.', 'nit': 13, 'nfev': 16, 'njev': 16, 'fun': 0.49966777202495444, 'grad_norm': 3.4644990610850336e-09, 'optimizer': 'BFGS', 'gtol': 1e-08, 'maxiter': 200, 'reg_cst': 1e-10}, {'success': True, 'status': 0, 'message': 'Optimization terminated successfully.', 'nit': 40, 'nfev': 44, 'njev': 44, 'fun': 0.2999724851332188, 'grad_norm': 4.474511449152462e-10, 'optimizer': 'BFGS', 'gtol': 1e-08, 'maxiter': 200, 'reg_cst': 1e-10}], 'aao': None}
Explicit multi-index optimizer diagnostics:
{'components': [{'success': True, 'status': 0, 'message': 'Optimization terminated successfully.', 'nit': 0, 'nfev': 1, 'njev': 1, 'fun': 0.5000000010543012, 'grad_norm': 6.494000563252061e-10, 'optimizer': 'BFGS', 'gtol': 1e-08, 'maxiter': 200, 'reg_cst': 1e-10}, {'success': True, 'status': 0, 'message': 'Optimization terminated successfully.', 'nit': 13, 'nfev': 16, 'njev': 16, 'fun': 0.3001958890661231, 'grad_norm': 6.318704002235003e-09, 'optimizer': 'BFGS', 'gtol': 1e-08, 'maxiter': 200, 'reg_cst': 1e-10}], 'aao': None}

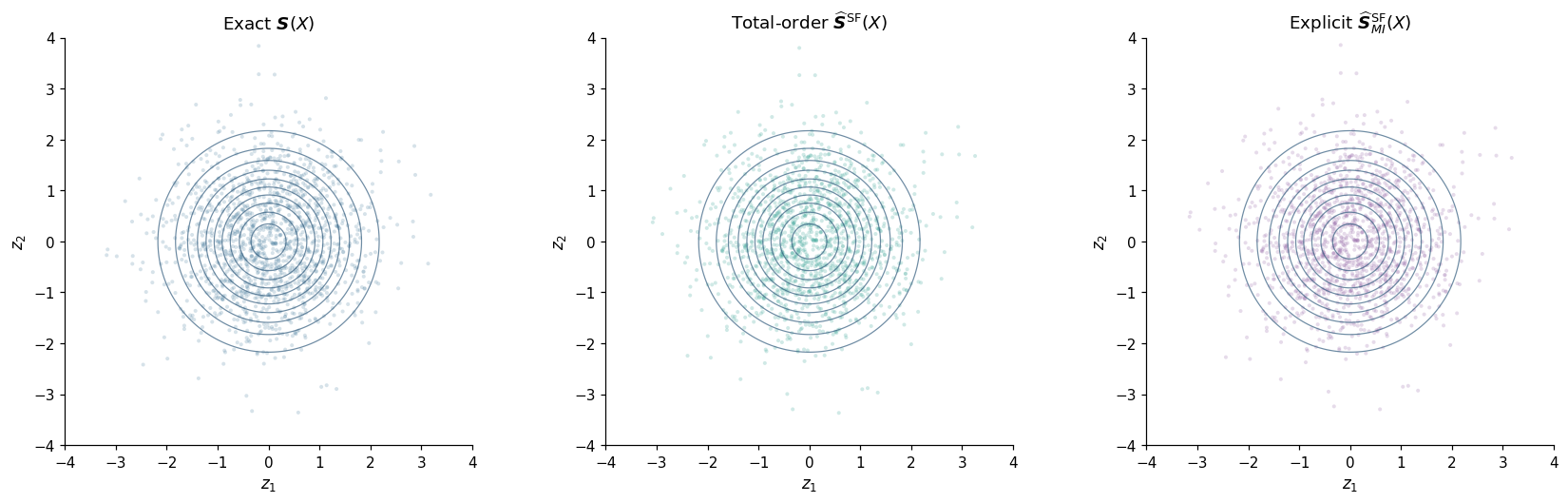

5. Compare the learned pushforwards¶
evaluate(x) computes the learned forward map. The exact \(\boldsymbol{S}\), the total-order \(\widehat{\boldsymbol{S}}^{\mathrm{SF}}\), and the sparse \(\widehat{\boldsymbol{S}}^{\mathrm{SF}}_{MI}\) should all turn held-out banana samples into samples close to \(\eta\).
The total-order model remains the primary \(\widehat{\boldsymbol{S}}^{\mathrm{SF}}\) below.
def map_summary(name, model, elapsed_seconds):
z_hat = model.evaluate(x_0_test)
exact_z = S_0(x_0_test)
recovered = model.inverse(z_hat[:512])
round_trip_error = np.max(np.abs(recovered - x_0_test[:512]))
assert round_trip_error < 1e-6
return {
"name": name,
"coefficients": model.coeffs.size,
"seconds": elapsed_seconds,
"S_rmse": float(np.sqrt(np.mean((z_hat - exact_z) ** 2))),
"pushforward_mean": z_hat.mean(axis=0),
"pushforward_covariance": np.cov(z_hat, rowvar=False),
"round_trip_error": float(round_trip_error),
"z_hat": z_hat,
}
summaries = [
map_summary(r"$\widehat{\boldsymbol{S}}^{\mathrm{SF}}$ (total order)", S_hat_SF, total_order_seconds),
map_summary(r"$\widehat{\boldsymbol{S}}^{\mathrm{SF}}_{MI}$ (explicit)", S_hat_SF_MI, explicit_seconds),
]
for result in summaries:
display(Markdown(f"### {result['name']}"))
print(f" coefficients: {result['coefficients']}, training: {result['seconds']:.2f} s")
print(f" RMSE against exact S: {result['S_rmse']:.4f}")
print(" pushed mean:", np.array2string(result["pushforward_mean"], precision=3))
print(" pushed covariance:\n", np.array2string(result["pushforward_covariance"], precision=3))
print(f" max round-trip error: {result['round_trip_error']:.2e}")
exact_pushforward = S_0(x_0_test[:N_display])
total_pushforward = summaries[0]["z_hat"][:N_display]
explicit_pushforward = summaries[1]["z_hat"][:N_display]
fig, axes = plt.subplots(1, 3, figsize=(15.5, 4.7), constrained_layout=True)
for ax, pushed, color, title in zip(
axes,
[exact_pushforward, total_pushforward, explicit_pushforward],
[REFERENCE_COLOR, LEARNED_COLOR, SPARSE_COLOR],
[r"Exact $\boldsymbol{S}(X)$", r"Total-order $\widehat{\boldsymbol{S}}^{\mathrm{SF}}(X)$", r"Explicit $\widehat{\boldsymbol{S}}^{\mathrm{SF}}_{MI}(X)$"],
):
ax.contour(z_xx, z_yy, reference_density, levels=10, colors="#315B7D", linewidths=0.8, alpha=0.7)
ax.scatter(pushed[:, 0], pushed[:, 1], s=7, alpha=0.22, color=color, edgecolors="none")
ax.set_title(title)
style_joint_axis(ax, r"$z_1$", r"$z_2$", (-4.0, 4.0, -4.0, 4.0))
plt.show()
\(\widehat{\boldsymbol{S}}^{\mathrm{SF}}\) (total order)
coefficients: 9, training: 1.19 s
RMSE against exact S: 0.0512
pushed mean: [0.01 0.039]
pushed covariance:
[[0.975 0.009]
[0.009 1. ]]
max round-trip error: 1.16e-08
coefficients: 5, training: 0.27 s
RMSE against exact S: 0.0530
pushed mean: [0.01 0.039]
pushed covariance:
[[0.973 0.004]
[0.004 1.001]]
max round-trip error: 1.11e-15
\(\widehat{\boldsymbol{S}}^{\mathrm{SF}}_{MI}\) (explicit)

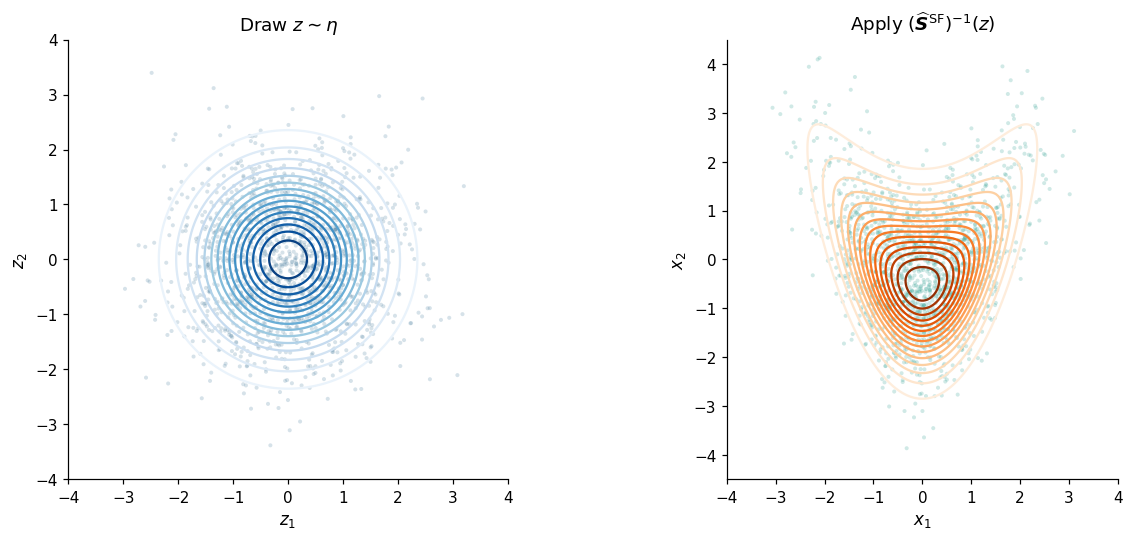

6. Unconditional target sampling via \((\widehat{\boldsymbol{S}}^{\mathrm{SF}})^{-1}\)¶
To draw from the learned target, first draw \(z\sim\eta\) and then apply inverse(z), which computes \((\widehat{\boldsymbol{S}}^{\mathrm{SF}})^{-1}(z)\). sample(...) is a convenience wrapper that performs the same two steps.
n_generate = 5000
sampling_seed = 404
sampling_rng = np.random.default_rng(sampling_seed)
z_draws = sampling_rng.standard_normal((n_generate, INPUT_DIM))
x_draws_from_inverse = S_hat_SF.inverse(z_draws)
x_draws_from_sample = S_hat_SF.sample(n_generate, random_state=sampling_seed)
assert np.allclose(x_draws_from_inverse, x_draws_from_sample)
fig, axes = plt.subplots(1, 2, figsize=(11.5, 4.8), constrained_layout=True)
axes[0].contour(z_xx, z_yy, reference_density, levels=18, cmap="Blues")
axes[0].scatter(z_draws[:N_display, 0], z_draws[:N_display, 1], s=7, alpha=0.22, color=REFERENCE_COLOR, edgecolors="none")
axes[0].set_title(r"Draw $z\sim\eta$")
style_joint_axis(axes[0], r"$z_1$", r"$z_2$", (-4.0, 4.0, -4.0, 4.0))
axes[1].contour(x_xx, x_yy, true_pi_0_density, levels=18, cmap="Oranges")
axes[1].scatter(x_draws_from_inverse[:N_display, 0], x_draws_from_inverse[:N_display, 1], s=7, alpha=0.22, color=LEARNED_COLOR, edgecolors="none")
axes[1].set_title(r"Apply $(\widehat{\boldsymbol{S}}^{\mathrm{SF}})^{-1}(z)$")
style_joint_axis(axes[1])
plt.show()

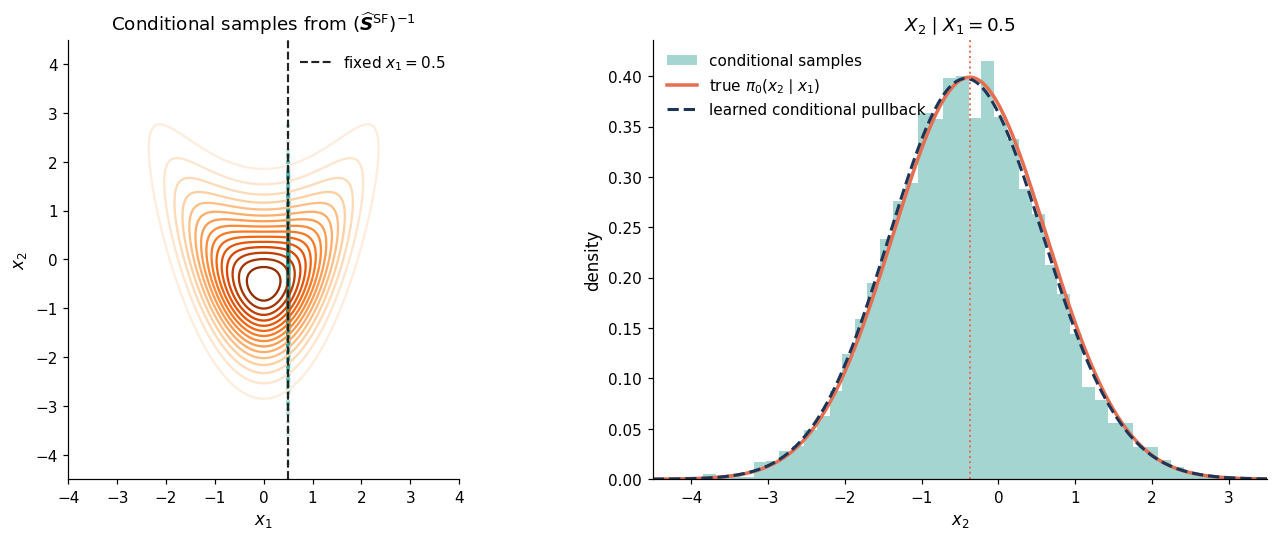

7. Conditional sampling and conditional density¶
For a lower-triangular map in this variable order, we can fix a leading prefix. Here we condition on \(X_1=0.5\) and sample \(X_2\). The library therefore uses fixed_indices=[0].
The same learned map provides the conditional density through conditional_pullback_pdf(x, fixed_indices=[0]).
conditioned_x1 = 0.5
n_conditional = 5000
conditional_samples = S_hat_SF.conditional_sample(
n_conditional,
fixed_indices=[0],
fixed_values=np.array([conditioned_x1]),
random_state=808,
)
assert np.allclose(conditional_samples[:, 0], conditioned_x1)
x2_conditional_grid = np.linspace(-4.5, 3.5, 500)
conditional_grid = np.column_stack((np.full_like(x2_conditional_grid, conditioned_x1), x2_conditional_grid))
true_conditional_mean = BEND * (conditioned_x1**2 - 1.0)
true_conditional_density = normal_pdf_1d(x2_conditional_grid, mean=true_conditional_mean)
learned_conditional_logdensity = S_hat_SF.conditional_pullback_logpdf(conditional_grid, fixed_indices=[0])
learned_conditional_density = S_hat_SF.conditional_pullback_pdf(conditional_grid, fixed_indices=[0])
assert np.all(np.isfinite(learned_conditional_logdensity))
assert np.all(np.isfinite(learned_conditional_density))
assert np.all(learned_conditional_density >= 0.0)
fig, axes = plt.subplots(1, 2, figsize=(12, 4.8), constrained_layout=True)
axes[0].contour(x_xx, x_yy, true_pi_0_density, levels=18, cmap="Oranges")
axes[0].scatter(conditional_samples[:N_display, 0], conditional_samples[:N_display, 1], s=8, alpha=0.2, color=LEARNED_COLOR, edgecolors="none")
axes[0].axvline(conditioned_x1, color="#222222", linestyle="--", linewidth=1.4, label=rf"fixed $x_1={conditioned_x1}$")
axes[0].set_title(r"Conditional samples from $(\widehat{\boldsymbol{S}}^{\mathrm{SF}})^{-1}$")
axes[0].legend(frameon=False, loc="upper right")
style_joint_axis(axes[0])
axes[1].hist(conditional_samples[:, 1], bins=45, density=True, alpha=0.42, color=LEARNED_COLOR, edgecolor="none", label="conditional samples")
axes[1].plot(x2_conditional_grid, true_conditional_density, color=TARGET_COLOR, linewidth=2.3, label=r"true $\pi_0(x_2\mid x_1)$")
axes[1].plot(x2_conditional_grid, learned_conditional_density, color="#1D3557", linestyle="--", linewidth=2.0, label=r"learned conditional pullback")
axes[1].axvline(true_conditional_mean, color=TARGET_COLOR, linestyle=":", linewidth=1.3)
axes[1].set(title=rf"$X_2\mid X_1={conditioned_x1}$", xlabel=r"$x_2$", ylabel="density", xlim=(-4.5, 3.5))
axes[1].legend(frameon=False)
plt.show()

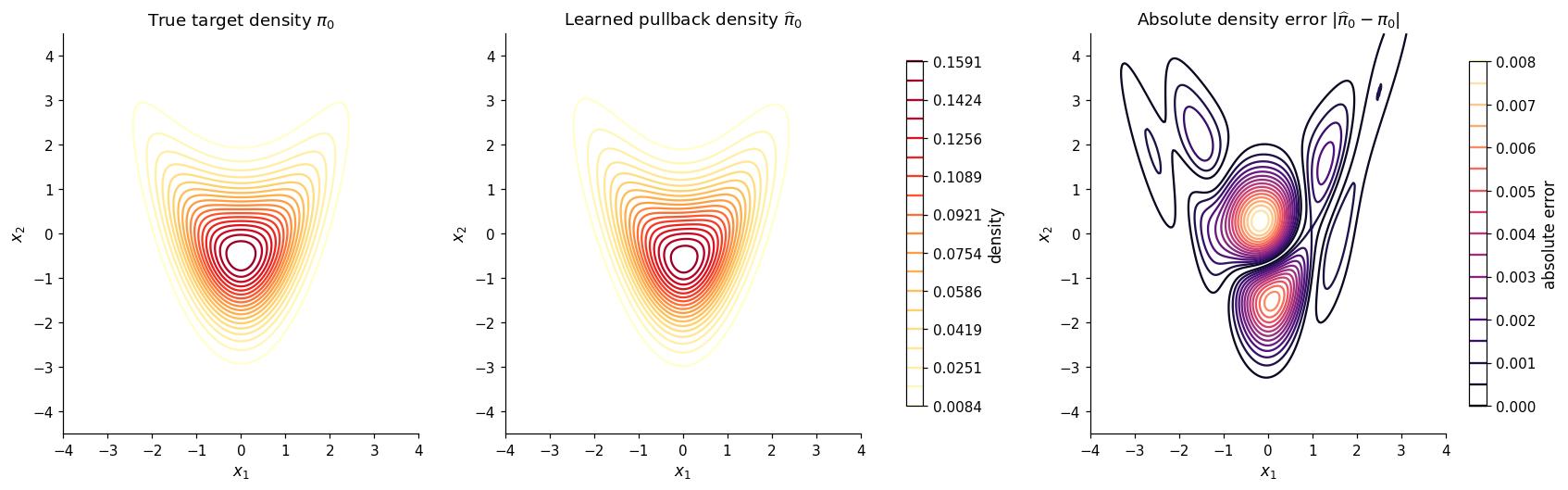

8. The map-induced joint target density¶
pullback_pdf(x) evaluates the learned target density
The panels compare it directly with the analytic banana density.
learned_pi_0_logdensity = S_hat_SF.pullback_logpdf(x_grid)
learned_pi_0_density = S_hat_SF.pullback_pdf(x_grid).reshape(x_xx.shape)
assert np.all(np.isfinite(learned_pi_0_logdensity))
assert np.all(np.isfinite(learned_pi_0_density))
assert np.all(learned_pi_0_density >= 0.0)
absolute_density_error = np.abs(learned_pi_0_density - true_pi_0_density)
density_max = max(true_pi_0_density.max(), learned_pi_0_density.max())
density_levels = np.linspace(0.0, density_max, 20)[1:]
error_max = absolute_density_error.max()
fig, axes = plt.subplots(1, 3, figsize=(15.5, 4.7), constrained_layout=True)
true_plot = axes[0].contour(x_xx, x_yy, true_pi_0_density, levels=density_levels, cmap="YlOrRd")
axes[0].set_title(r"True target density $\pi_0$")
learned_plot = axes[1].contour(x_xx, x_yy, learned_pi_0_density, levels=density_levels, cmap="YlOrRd")
axes[1].set_title(r"Learned pullback density $\widehat\pi_0$")
error_plot = axes[2].contour(x_xx, x_yy, absolute_density_error, levels=18, cmap="magma", vmin=0.0, vmax=error_max)
axes[2].set_title(r"Absolute density error $|\widehat\pi_0-\pi_0|$")
for ax in axes:
style_joint_axis(ax)
fig.colorbar(true_plot, ax=axes[:2], shrink=0.86, label="density")
fig.colorbar(error_plot, ax=axes[2], shrink=0.86, label="absolute error")
plt.show()
9. Math-to-API summary¶
Task |
Mathematical operation |
|
|---|---|---|
Push target samples to reference |
\(\widehat{\boldsymbol{S}}^{\mathrm{SF}}(x)\) |
|
Pull reference samples to target |
\((\widehat{\boldsymbol{S}}^{\mathrm{SF}})^{-1}(z)\) |
|
Draw unconditional target samples |
\(z\sim\eta\), then \((\widehat{\boldsymbol{S}}^{\mathrm{SF}})^{-1}(z)\) |
|
Draw \(X_2\mid X_1=a\) |
Clamp the leading coordinate while inverting |
|
Evaluate learned target density |
\(\widehat\pi_0(x)\) |
|
Evaluate learned conditional density |
\(\widehat\pi_0(x_2\mid x_1)\) |
|
The total-order specification is the easiest starting point. Explicit multi-index sets are useful when you know a sparse structure, as in this banana example. In either case, triangularity makes both inversion-based sampling and leading-coordinate conditioning direct.
