Description#

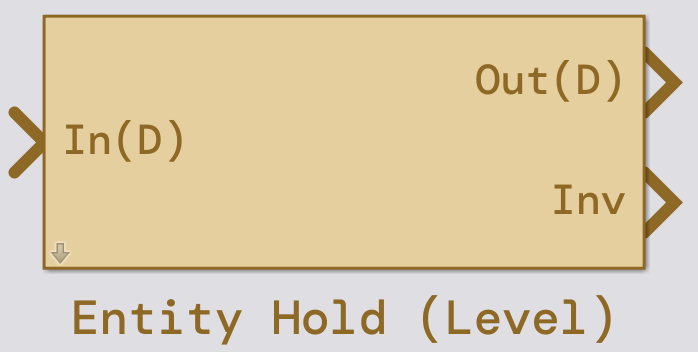

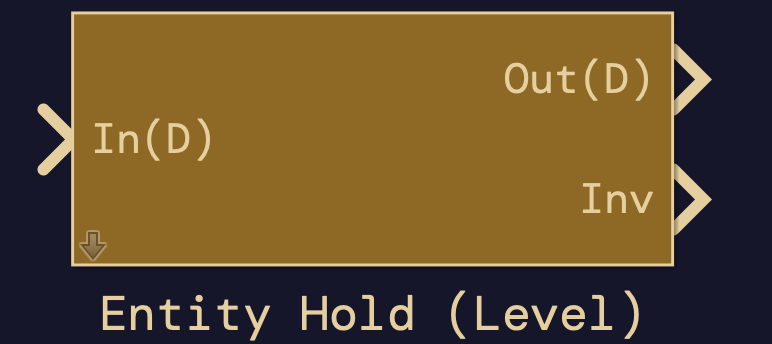

The entity hold (level) block simply holds a entities at a set level in a queue. If there are more items in queue than the level set point, then entities can leave the queue. The internal queue uses a First In First Out (FIFO) scheme. An optional process time is available which applies a time delay to an entity after it leaves the queue. This parameter can control how quickly entities are able to leave after the level set point has been reached. A continuous inventory term is updated whenever entities enter or leave the block.

Mask dialog options#

Hold level (items) : scalar

Number of entities to hold in inventory. If more than this number of entities are in queue, then entities can leave the block. Value should be $\in [0,\mathrm{\infty }]$ where a value of 0 results in entities leaving the block as soon as process time (hr) has elapsed.

Process time (hr) : scalar

Time in hours to delay an entity between entering the block and arriving in the queue. Value should be $\in [0,\mathrm{\infty })$.

Ports#

In(D) : entity

Entity to hold. Expects an entity with attributes:

• isovec (signal): Has shape [1677, 1] that represents the different isotopes tracked by F3M

• auxparam (scalar): Function varies based on user implementation

Outputs#

Out(D) : entity

Output entity. Outputs entity with the same attributes as specified in In(D) when the number of items in queue is greater than specified in Hold level (items) as long as the queue is not empty. Uses a FIFO scheme.

Inv : signal

Continuous inventory signal with shape [1677, 1]. Updated when entities enter or leave the block
