Fenix is a software library compatible with the Message Passing Interface (MPI) to support fault recovery without application shutdown. Fenix has two components: process recovery and data recovery. Process recovery is used to repair communicators whose ranks suffered failure detected by the MPI runtime. Data recovery is an optional feature that can be used to implement a high-performance in-memory checkpoint/restart mechanism.

Below is a brief overview of these two components, but see the Process Recovery and Data Recovery topics for more details.

Process Recovery

The core feature of process recovery is creation of a resilient communicator that will automatically repair itself. This recovery is achieved by setting aside some number of ranks as spare ranks. When a failure is detected, the spare ranks are used to replace the failed ranks.

The exact process of recovery is subject to some nuances of the OpenMPI ULFM specification, which Fenix is implemented on top of. For example, messages may have locally succeeded while failing on other participating ranks.

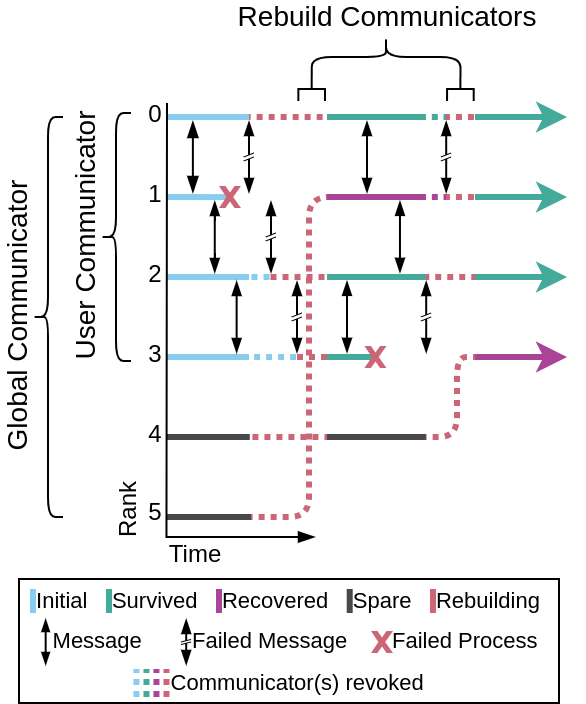

An example process flow diagram for recovery using Fenix

The default recovery pattern is to perform a longjmp to the location of Fenix_Init following communicator repairs. This emulates the typical offline checkpoint/restart pattern, but without the need to restart the application. However, longjmp has some nebulous behavior in many applications. Fenix also supports a non-jumping recovery pattern. This is more predictable across compilers and optimizations, but requires checking the return value of every MPI call to detect failed operations (though communicator repair is still automatic). A good practice for C++ applications is to use the non-jumping pattern, but add a Fenix error-handler callback to throw an exception on failure.

Data Recovery

Fenix provides its own redundant data storage API to facilitate data recovery along with process recovery, but the user can choose other data recovery options to meet a variety of application needs. For example, data could be recovered by approximately interpolating values from unaffected, topologically neighboring ranks instead of by reading stored redundant data. In addition, the user may decide to use external libraries such as VeloC.

‍Any Fenix function without a return type, e.g. Fenix_Init, may be implemented via macros, in which case it cannot be used to resolve function pointers.
